Located at the southern tip of Rugged Island, Battery Const. #294 is perched atop a precipitous slope nearly 700 feet above the waters of Resurrection Bay. The battery was to have two 6-inch guns emplaced in turret-like steel shields, one on either side of the central magazine and plotting structure.

Battery #294 is one of two "split-level" 200 series batteries built by the US during the 1940s (The other being Battery Const. #296 in Kodiak). In these batteries the front corridor and rooms adjoining it are one story higher than the plotting and power areas to the rear. A stairway in the center corridor provides access between the two levels. In addition, the plotting complex and power plant are on opposite sides of the center corridor when compared to most other 200 series batteries.

Construction on Battery #294 was still under way in the Spring of 1944 when the Defenses of Seward were abandoned. According to Army documents, all of the concrete work had been finished and "Work had begun on the backfill and installation of Signal, power room and gun equipment."

Today, the excellent state of preservation and incomplete construction make Battery #294 a fascinating study in WWII Coast Artillery construction.


Emplacement #1
Emplacement #2
Power plant
Plotting Complex
Battery Command station




Center Corridor

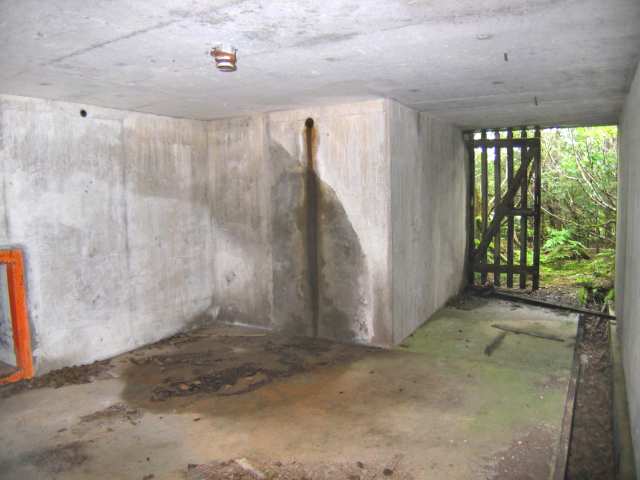

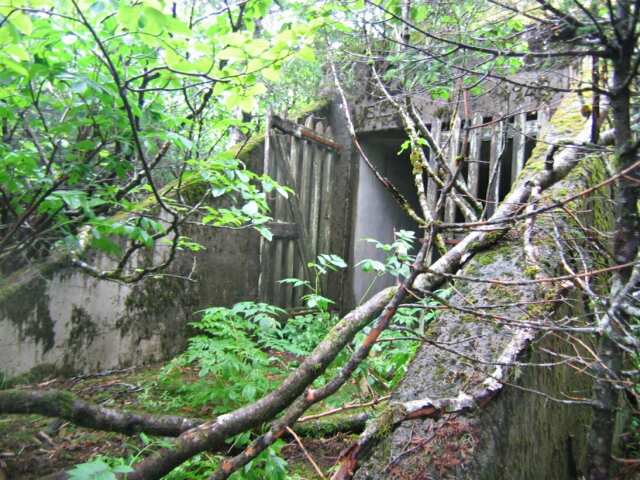

The rear entrance.
July 2004

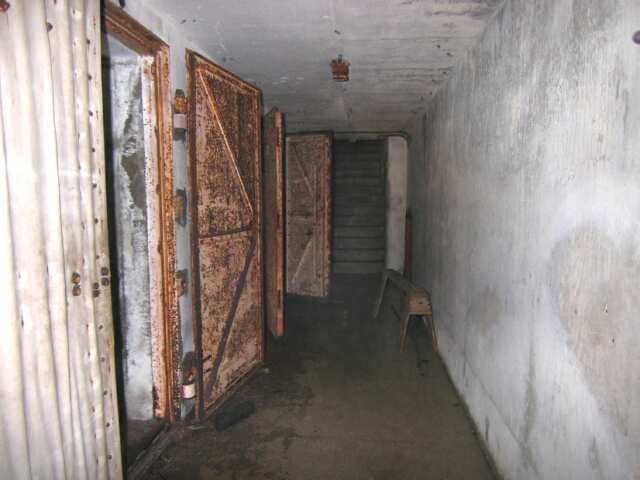

Looking northwest in the center corridor.
July 2005

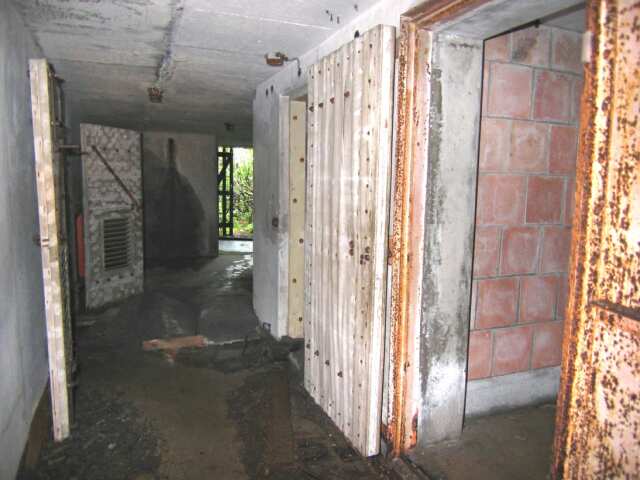

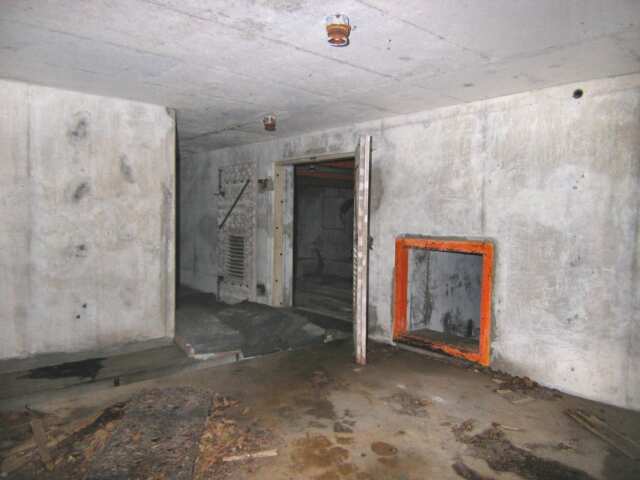

Looking north past the airlock door on the right.
July 2004

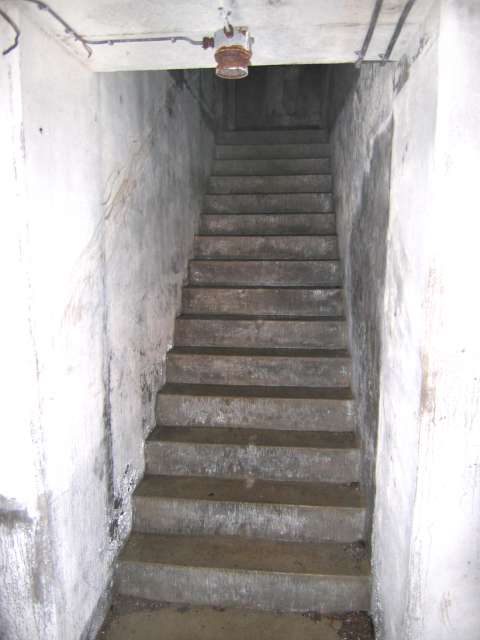

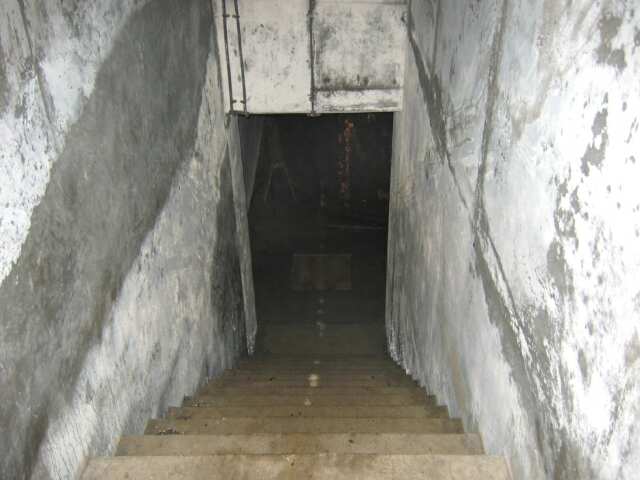

The stairway, looking north.
July 2004
Looking southwest in the center corridor.
July 2004
The center corridor looking south.
July 2004
Looking south, up the stairs to the front corridor.
July 2004




Front Corridor

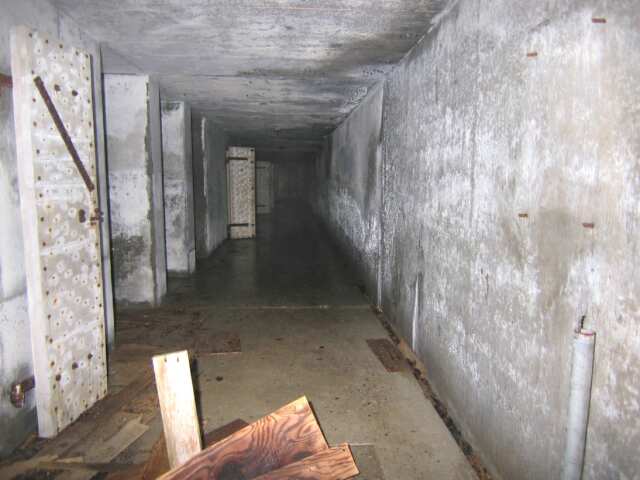

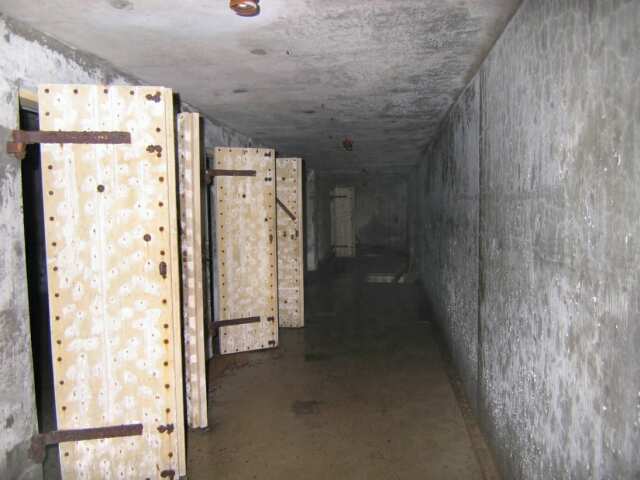

Looking west from the middle.
July 2004
Looking east from the west end.
July 2004

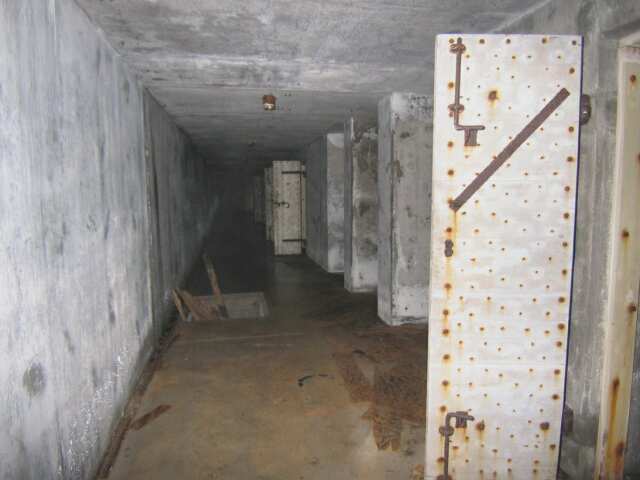

Looking east from the middle.
July 2004

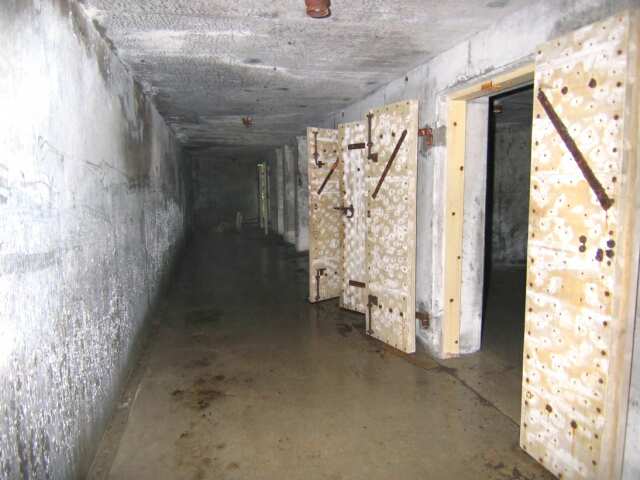

Looking west from the east end.
July 2004




Manholes

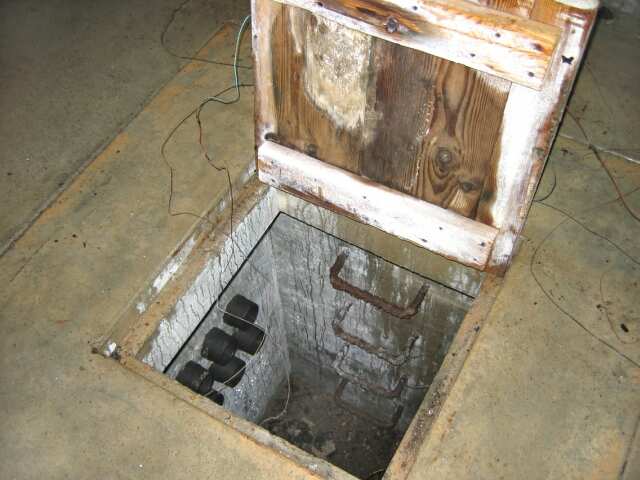

Manhole in the center of the front corridor.
July 2004

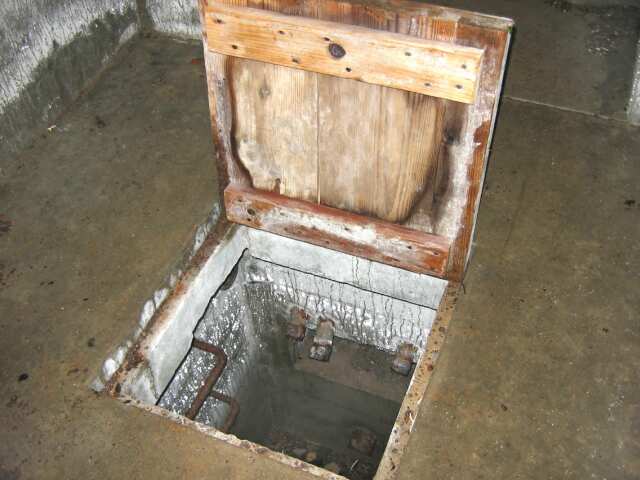

Manhole at the bottom of the stairway.
July 2004

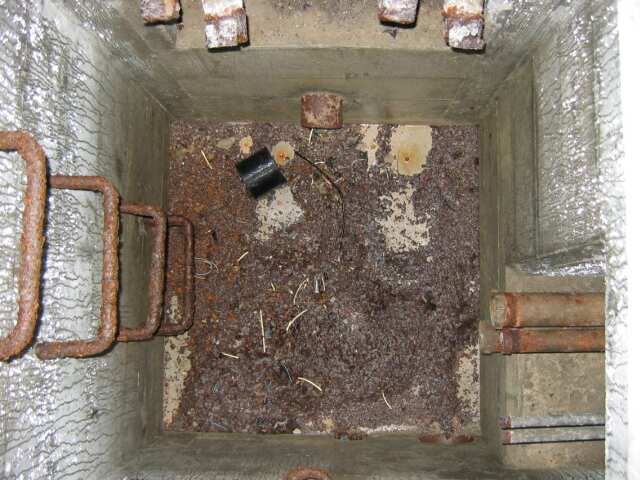

Inside the front corridor manhole.
July 2004
Inside the manhole at the bottom of the stairs.
July 2004




Exterior



Looking east on top of the battery.
July 2004
The top of the battery, BC station in the upper left.
July 2004

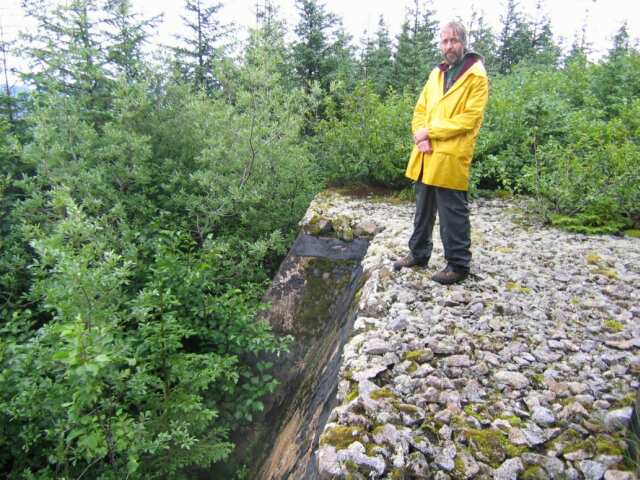

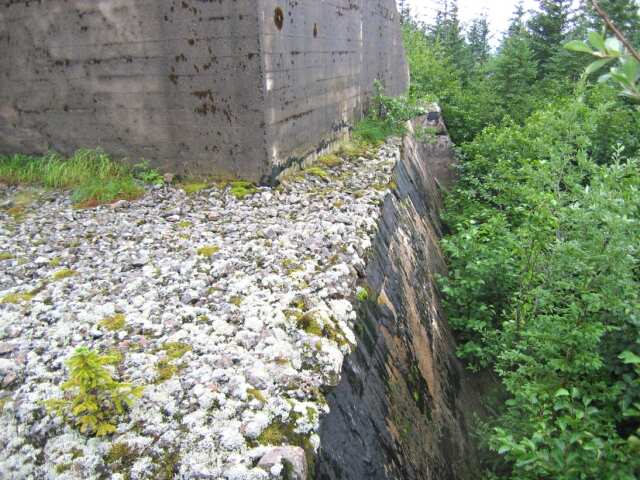

The backfilling operation was never completed, leaving the outside of the battery exposed.
July 2005




Fuel tank vault

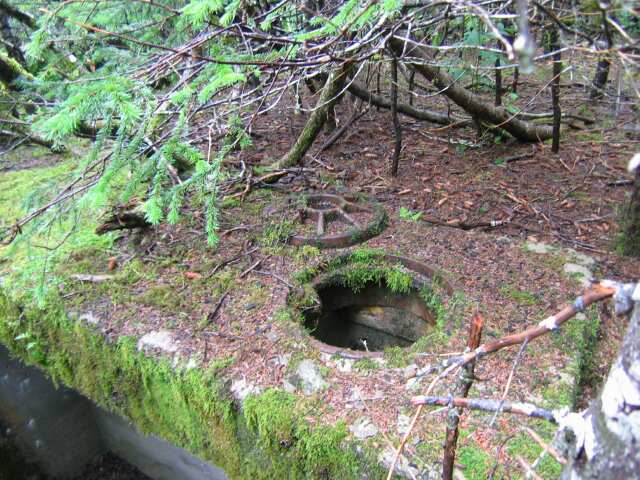

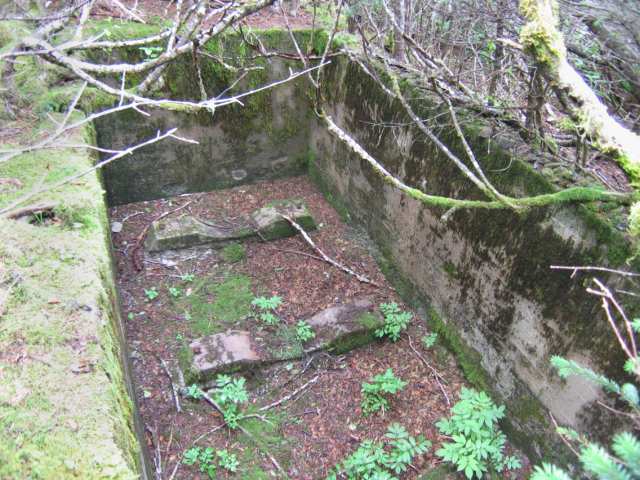

The upper fuel tank vault.
July 2005
Detail of the upper fuel tank vault manhole.
July 2004







Documents

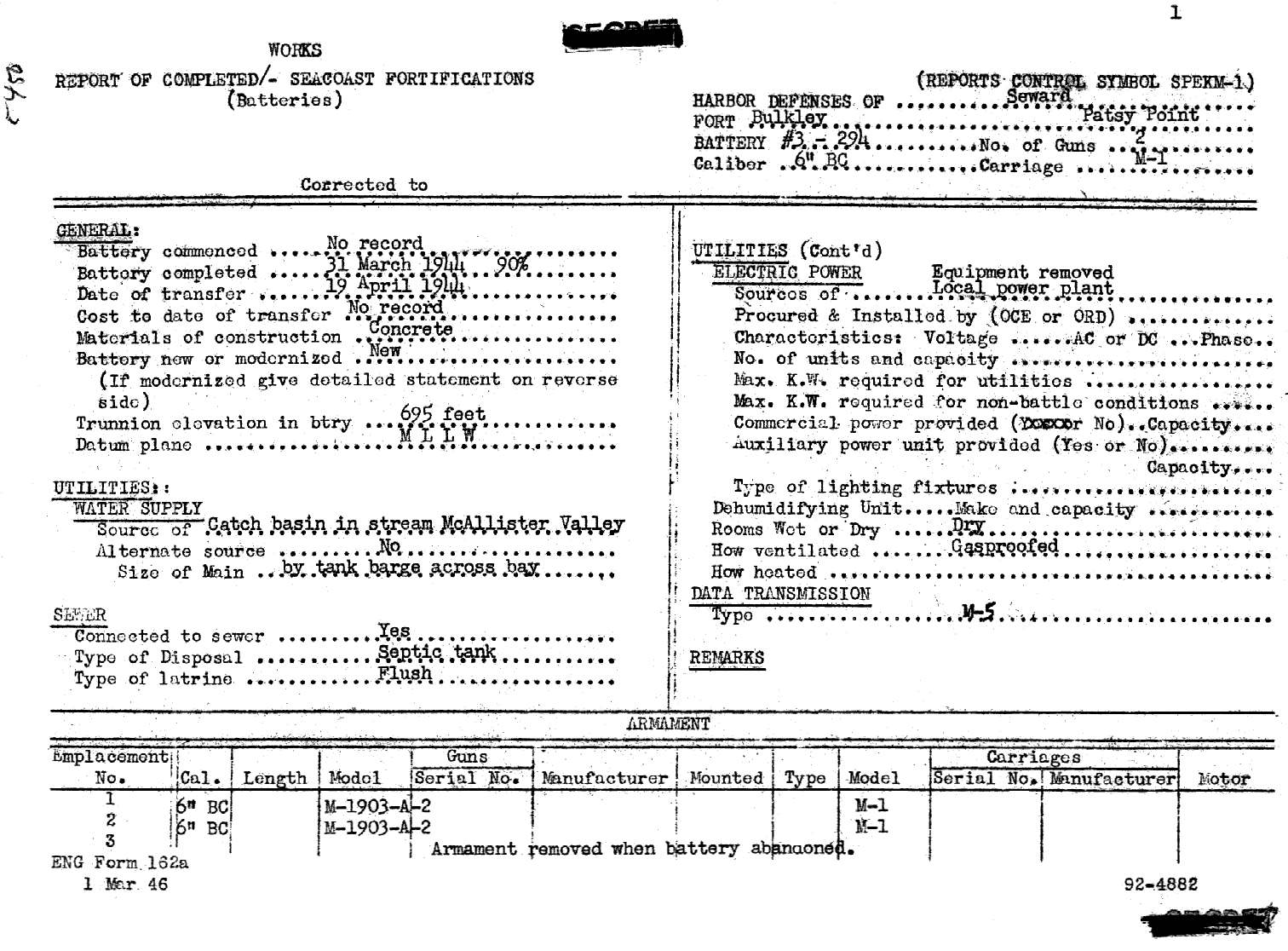

Form 1

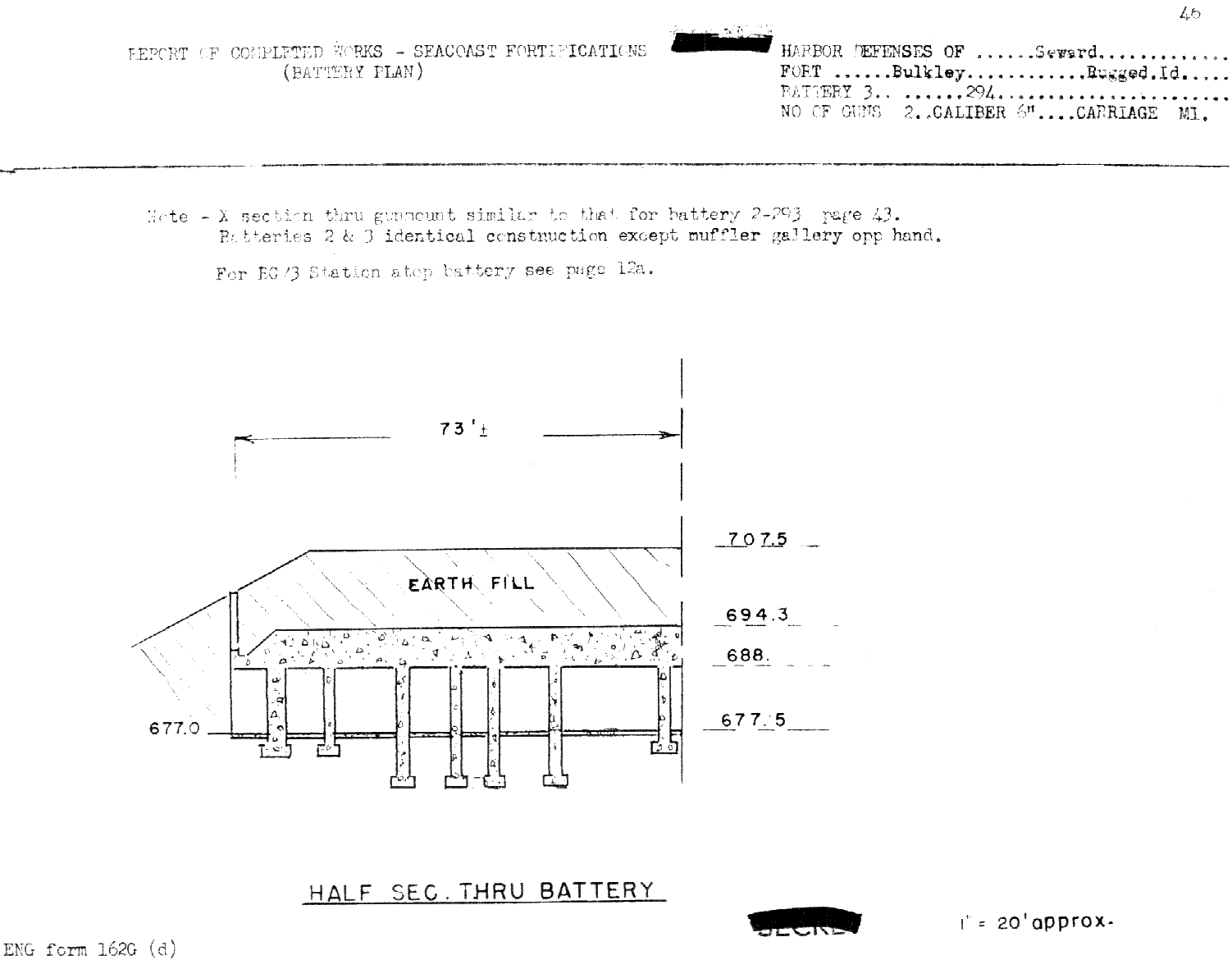

Form 7, part 1
Form 7, part 2

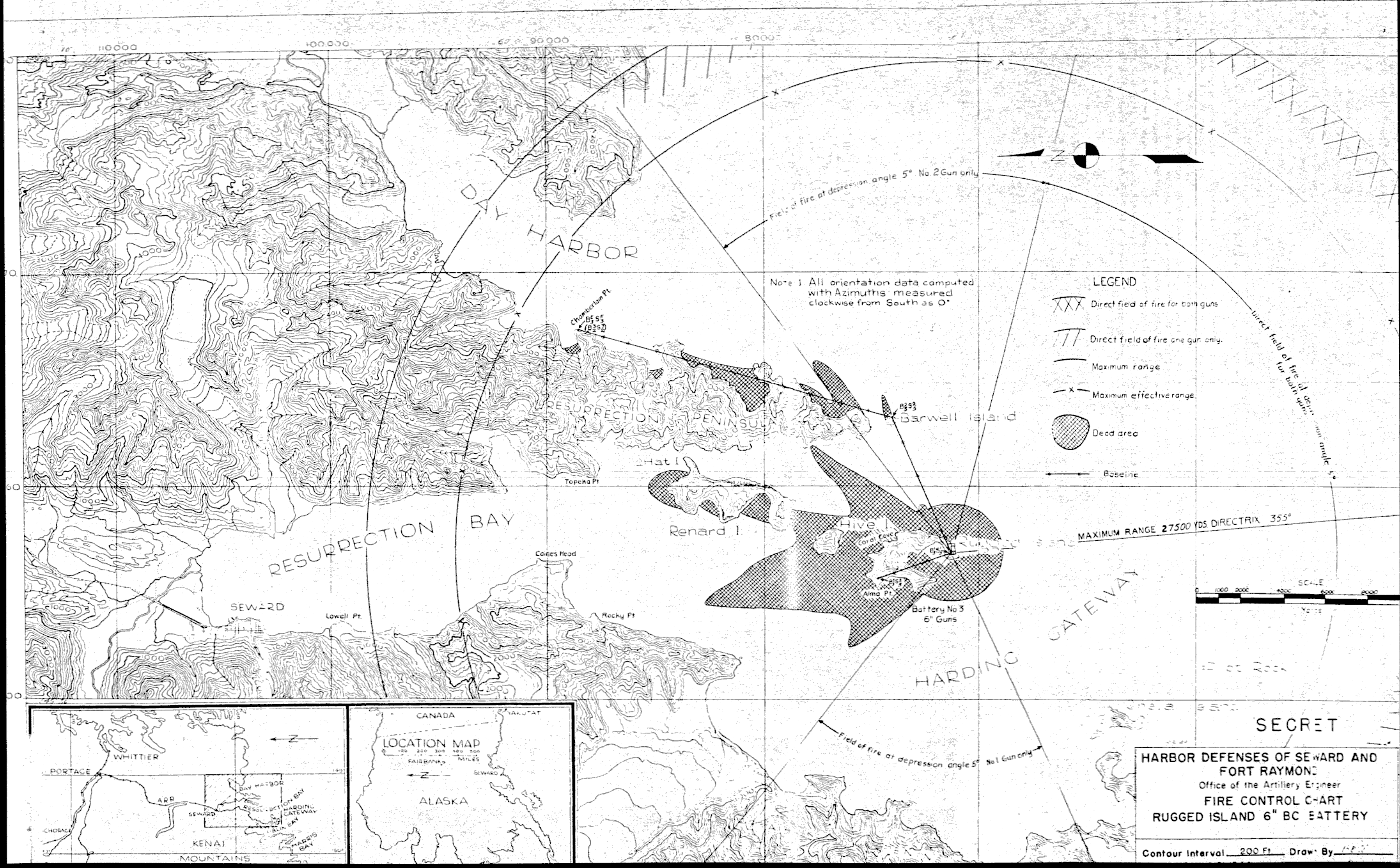

Fire Control Chart

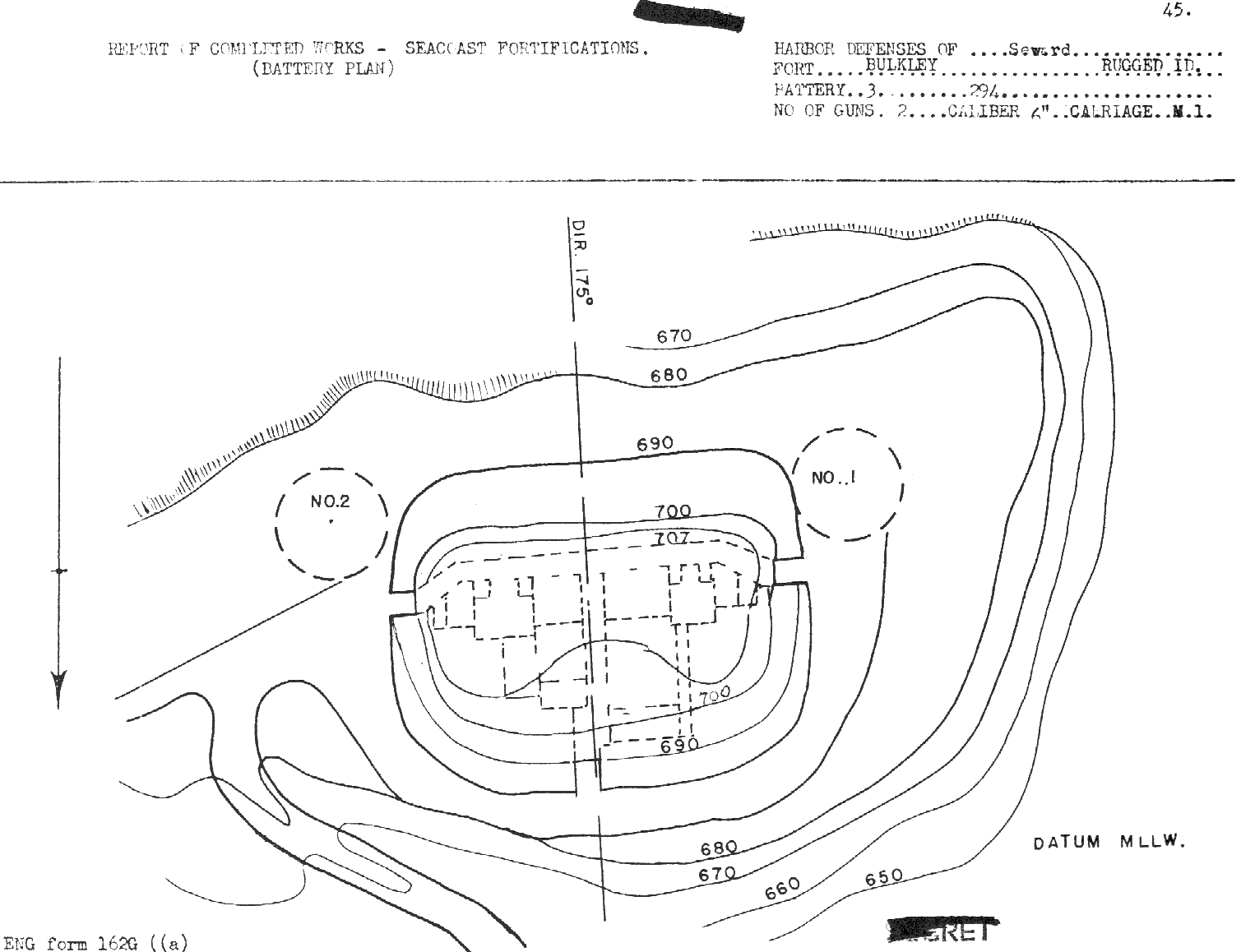

Plot PlanAugust 19, 1944
The following are plans from Battery #296, similar in layout.

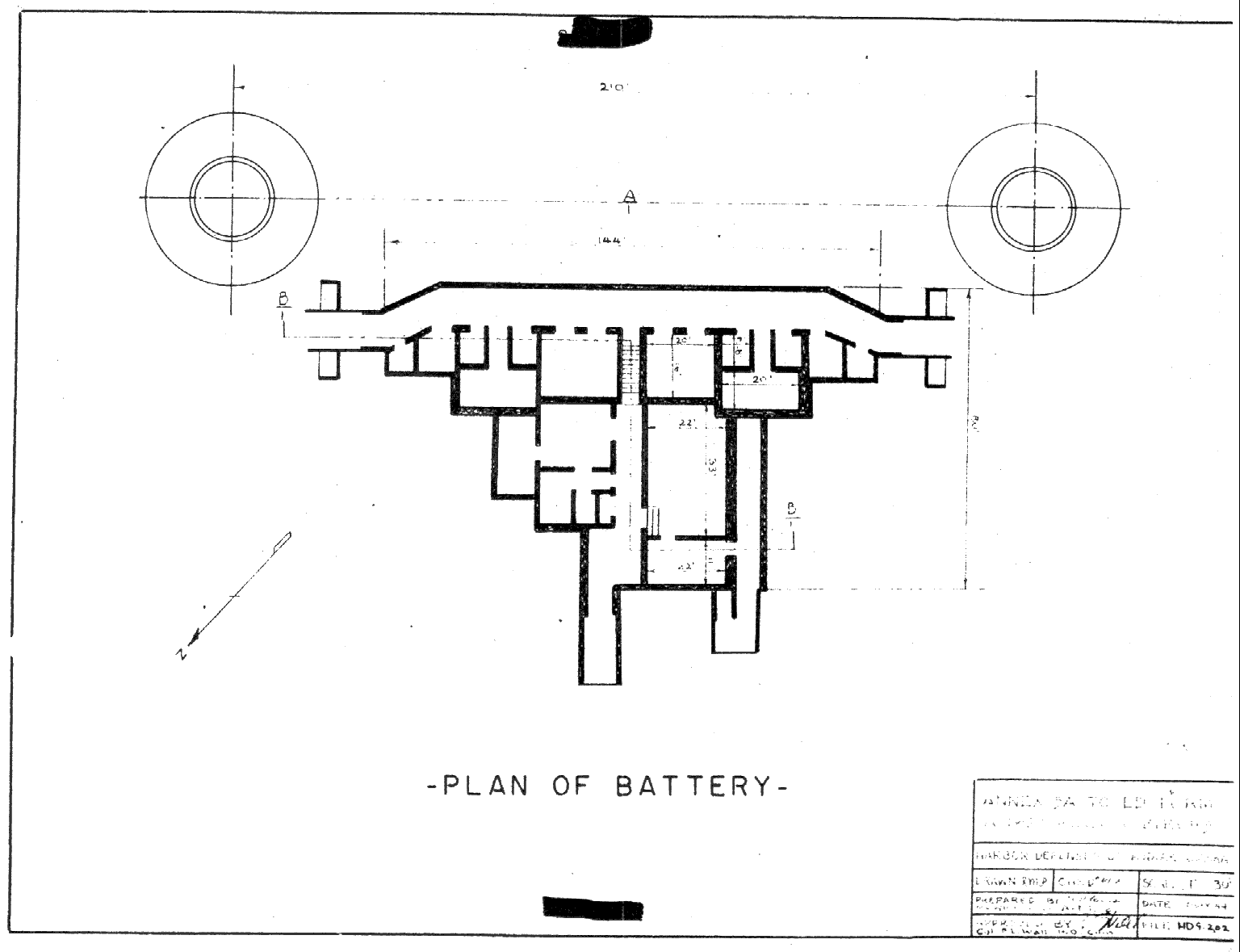

PlanMay, 1944

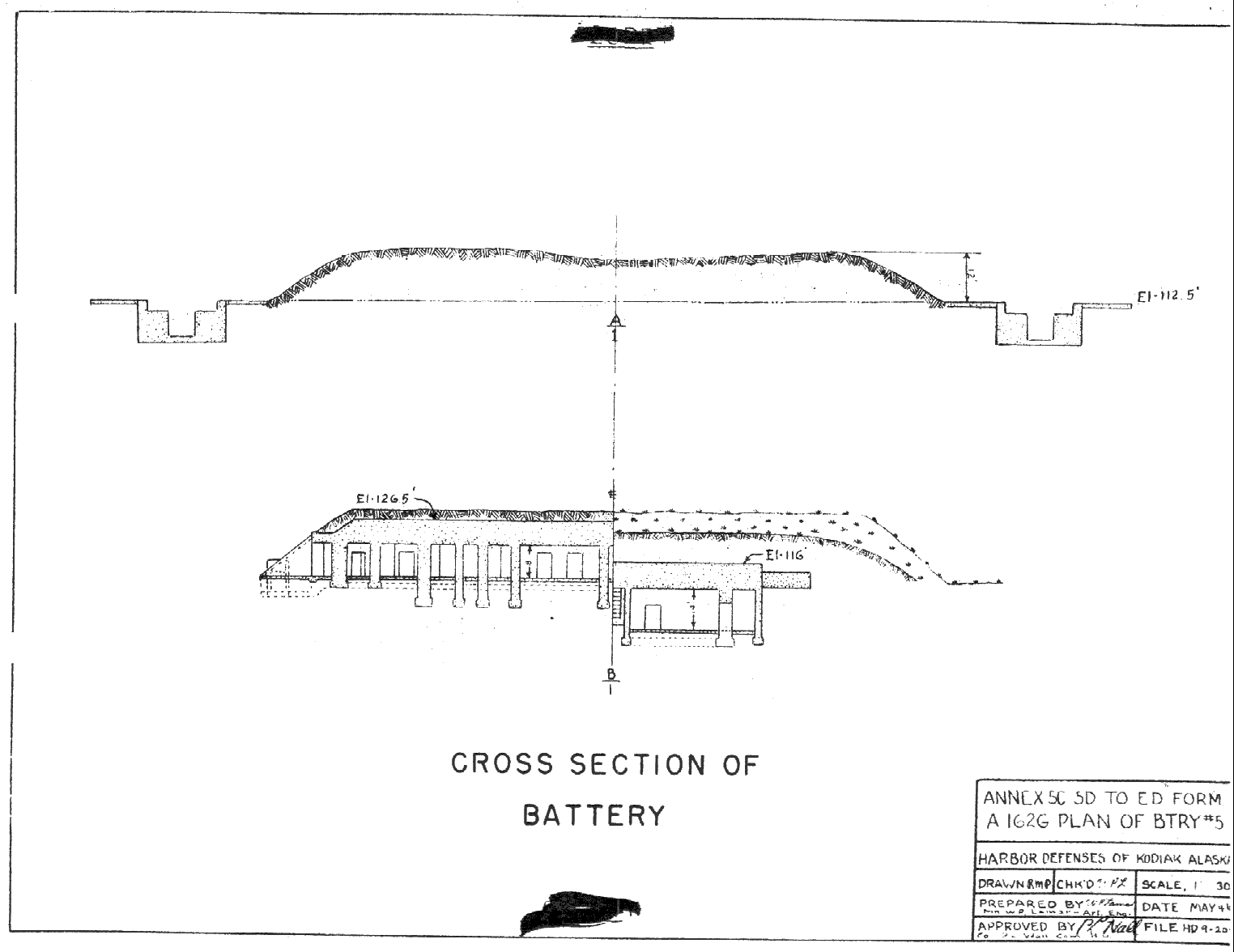

SectionsMay, 1944

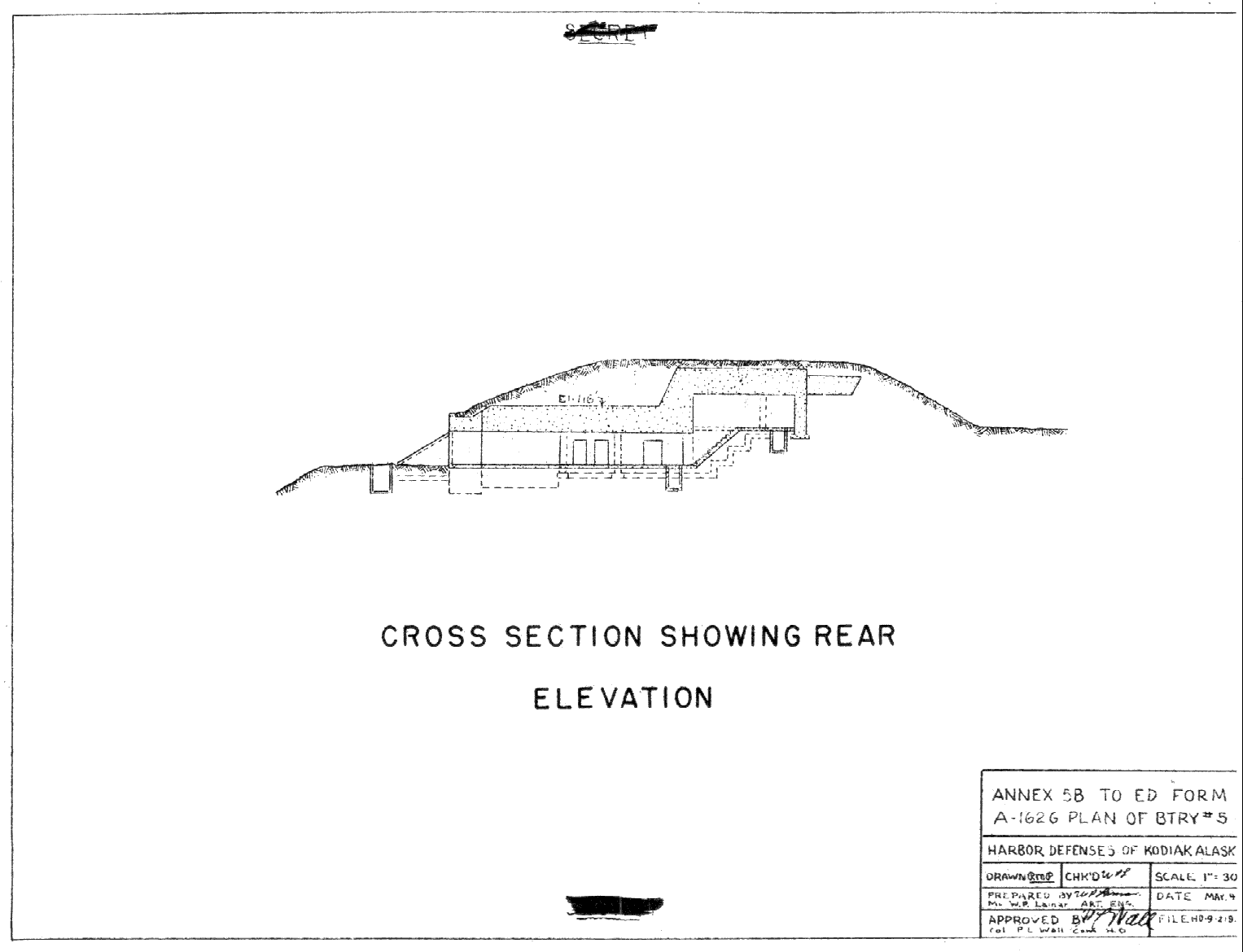

SectionMay, 1944
