BC 3 and B 1/3 S 1/3
Fort Bulkley, HD Seward
Home  |  Seward

The combined Battery Command and B1 S1 base end station for Battery Const. #294 is located on top of the battery structure at Rugged Island. The station consists of two observation rooms, one in front of and lower than the other, and one store room located under the upper observation room. Access was via a short side entrance corridor off of the store room.

Although never backfilled, all major concrete work had been finished and the installation of internal fittings had begun prior to the time of abandonment. Interestingly, a wooden form for the upper half of a concrete DPF pedestal remains in the store room.

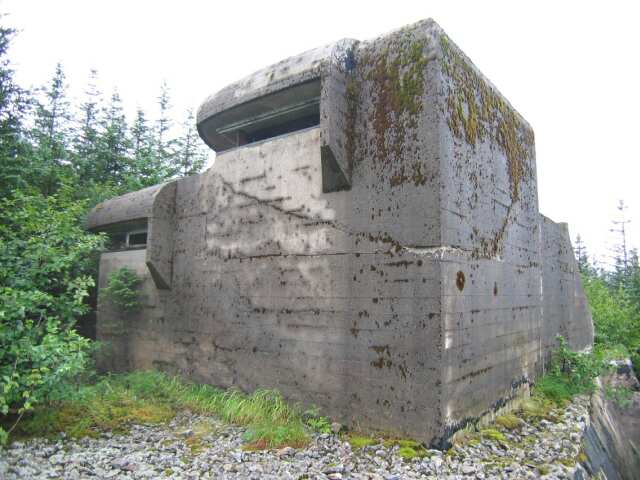

Looking southwest at the station.
July 2004

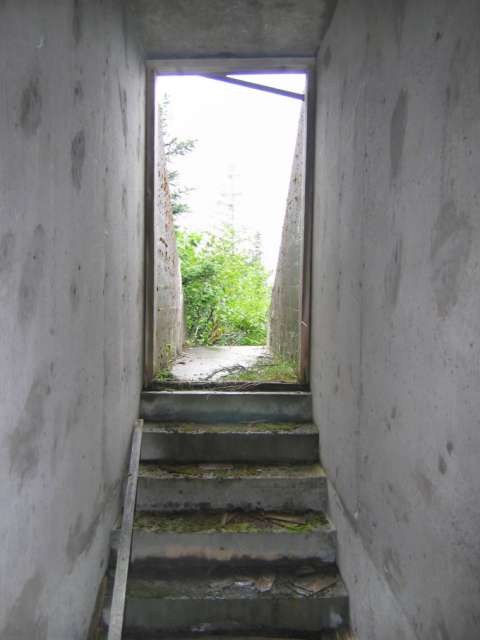

Looking west in the entry corridor.
July 2004

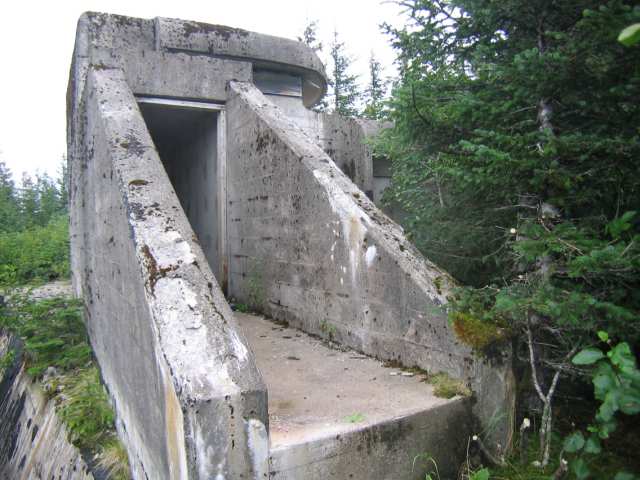

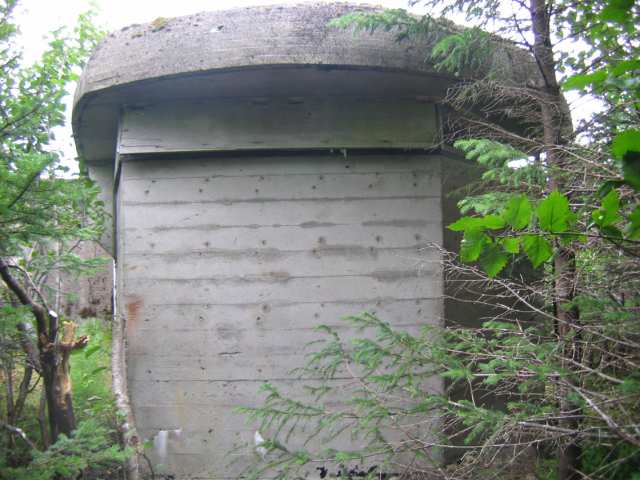

Looking east at the station.
July 2005
The front of the station.
July 2005



Store Room

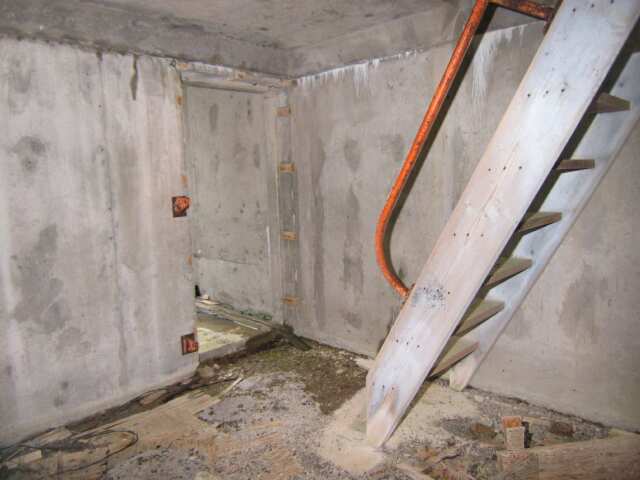

Looking northwest, door to the entry corridor and stairs to the BC station.
July 2004
The store room, looking southeast.
July 2004

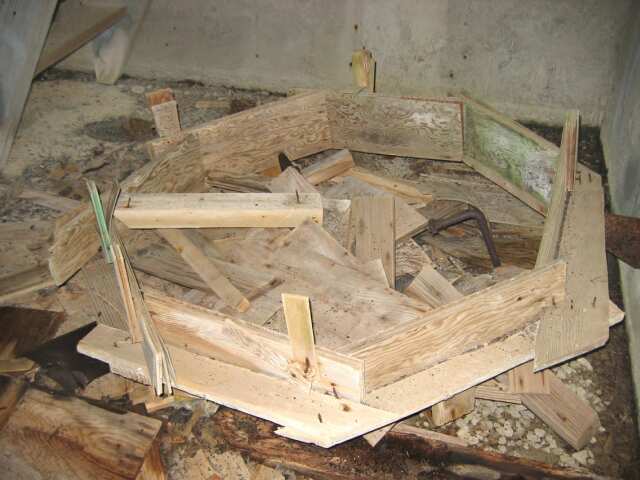

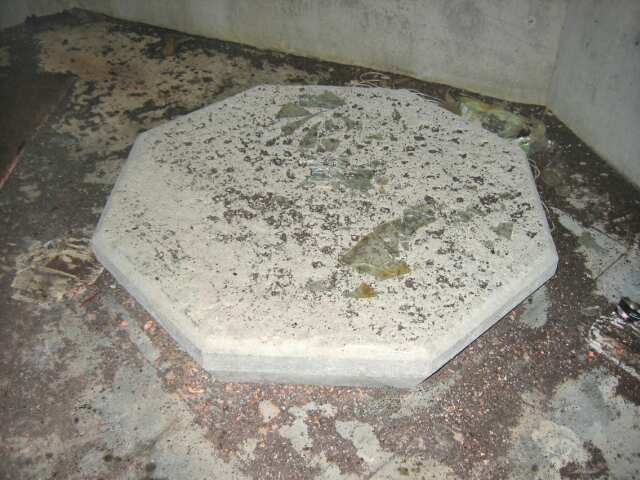

Detail of DPF pedestal form.
July 2004

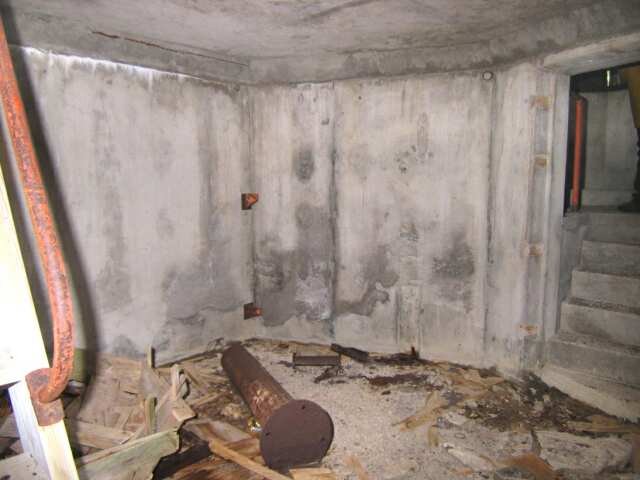

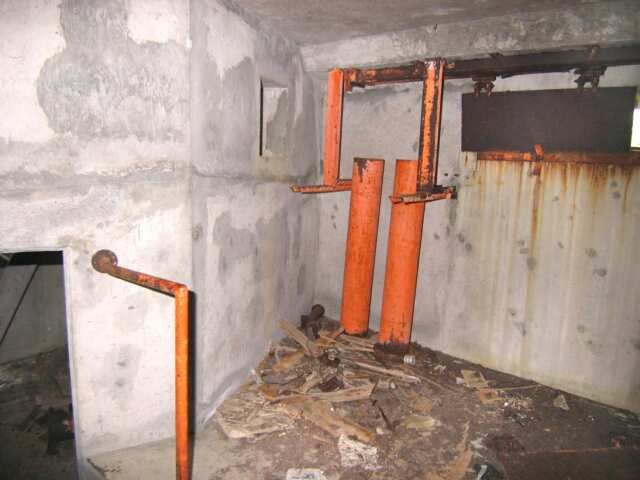

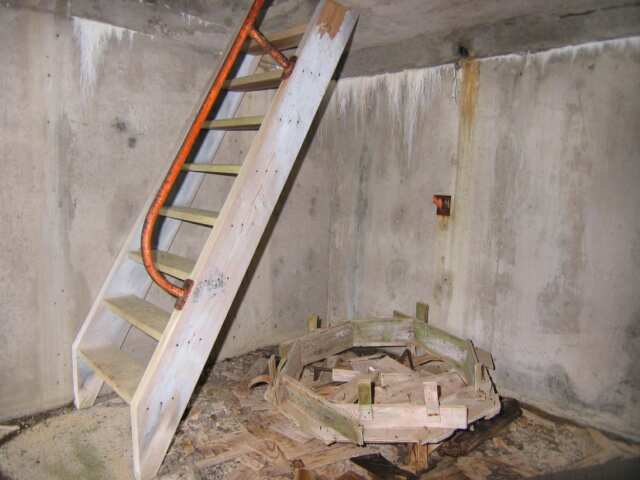

The northeast corner. Note the DPF form under the stairs.
July 2004

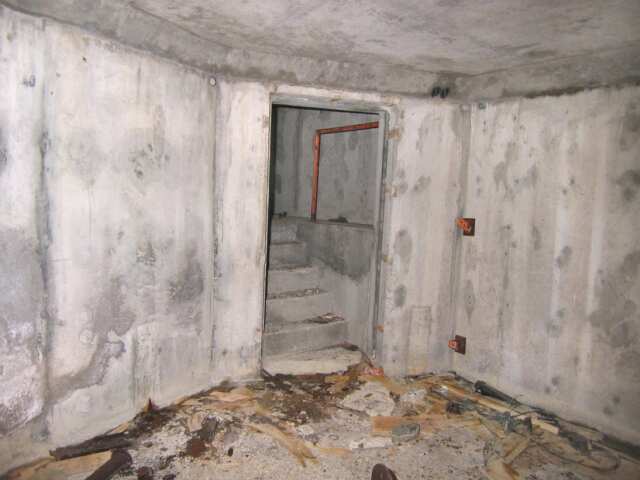

Looking southwest, door to B1 S1.
July 2004

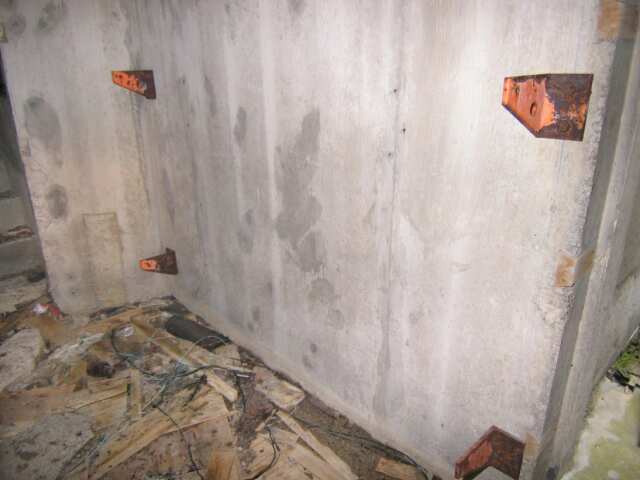

Detail of fold-down bunk bed mounts.
July 2004



B1 S1 Station

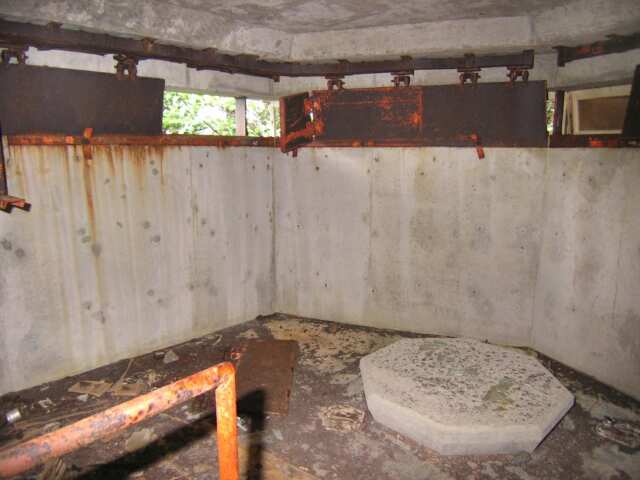

Looking southeast.
July 2004
The northwest corner, stairs to the store room.
July 2004
Detail of incomplete DPF pedestal.
July 2004

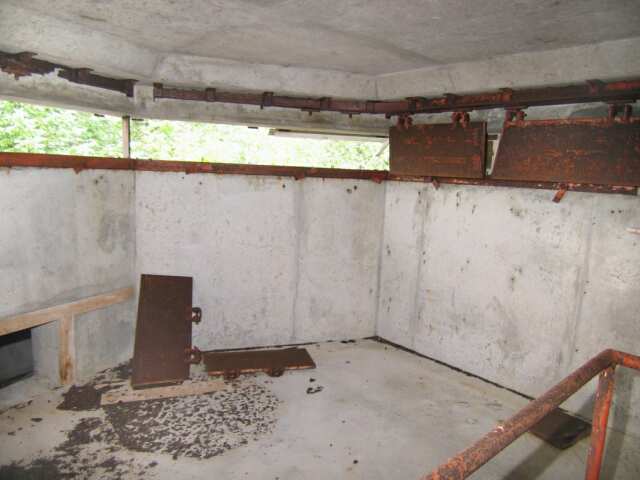

Looking southwest.
July 2004
Looking northeast. Note the two uninstalled azimuth instrument piers in the corner.
July 2004

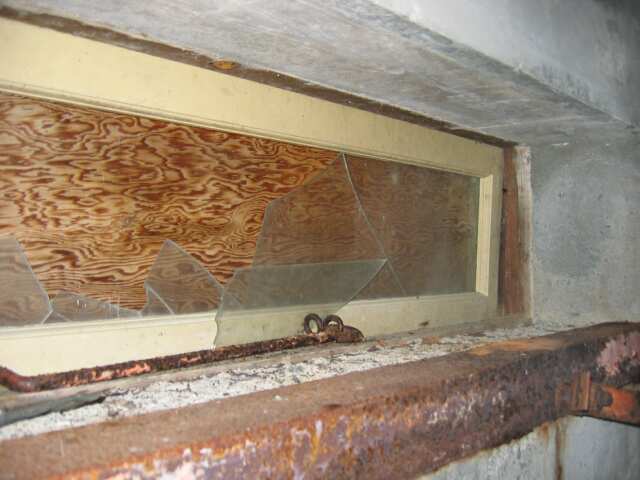

Detail of glass in the observation window.
July 2004



BC Station

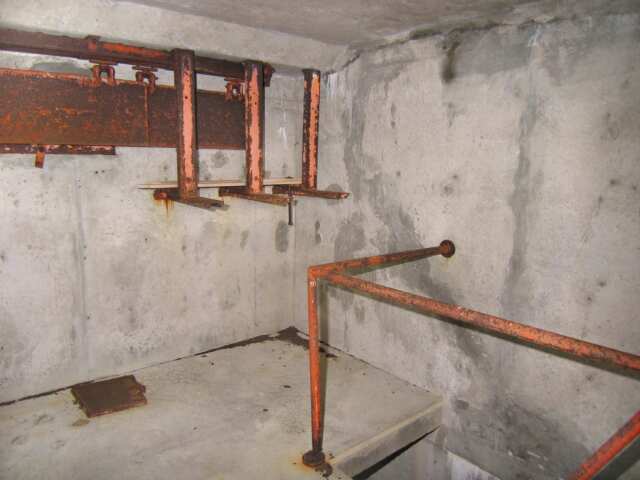

Looking southeast at the front of the station.
July 2004
The northwest corner.
July 2004

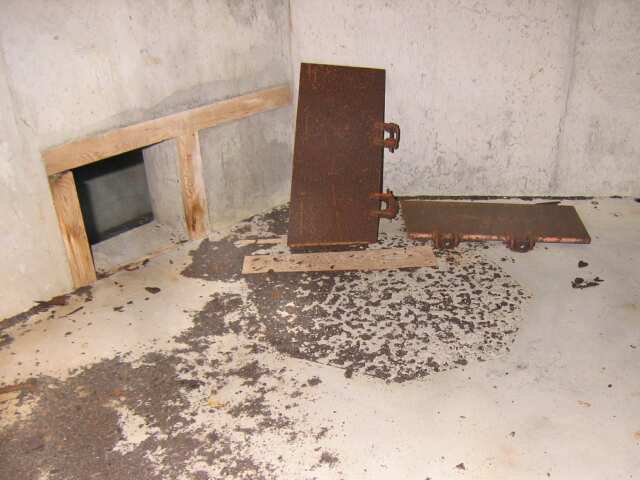

Detail of DPF pedestal outline and communication window to B1 S1.
July 2004

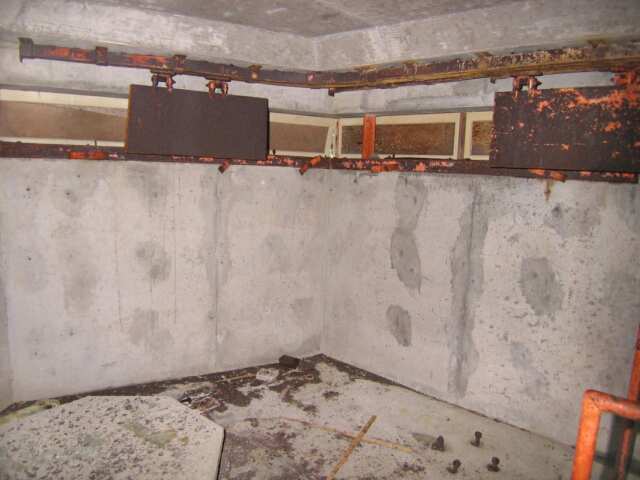

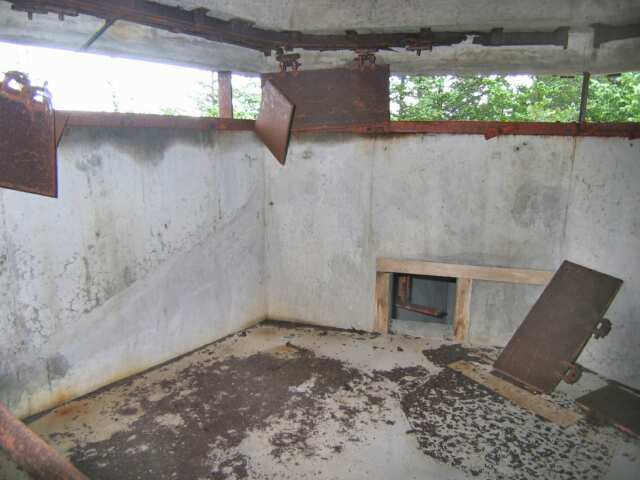

Looking southwest.
July 2004

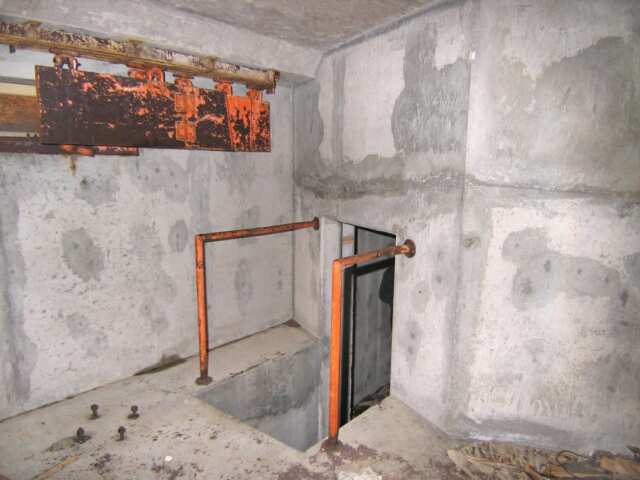

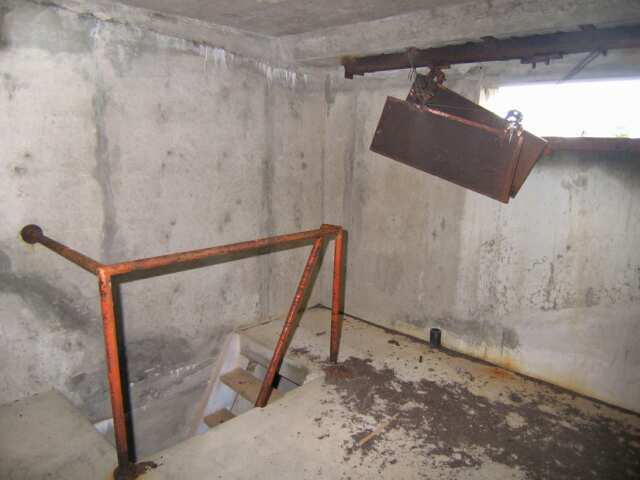

Looking northeast, stairwell to the store room.
July 2004

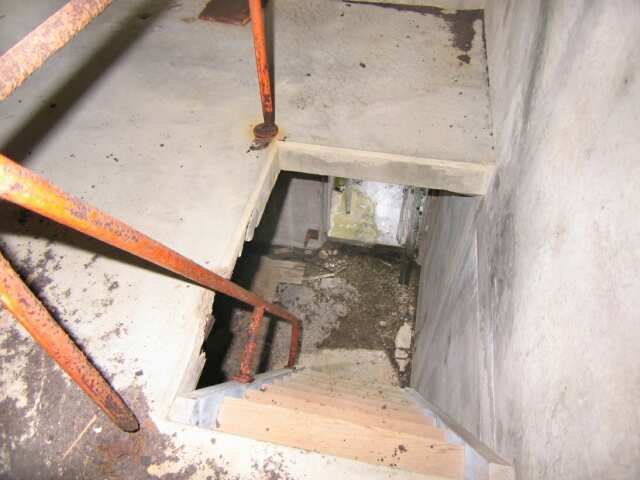

Looking down the stairs into the store room.
July 2004






Documents
Form 2
Form 2, plan
