Battery Const. #296
Castle Bluff, Long Island, HD Kodiak
Home  |  Kodiak


Located at the northern end of Long Island, Battery #296 is one of two "split-level" 200 series batteries built by the US during the 1940s (The other being Battery Const. #296 in Seward). In these batteries the front corridor and rooms adjoining it are one story higher than the plotting and power areas to the rear. A stairway in the center corridor provides access between the two levels. In addition, the plotting complex and power plant are on opposite sides of the center corridor when compared to a typical 200 series battery.

The battery was armed with a pair of 6-inch guns mounted in turret-like steel shields, one on either side of the central battery structure. Both guns were destroyed in place sometime after the war and significant portions of the guns and carriages remain at the site.

Emplacement #1
Emplacement #2
Power plant
Plotting Complex
Battery Command station



Center Corridor

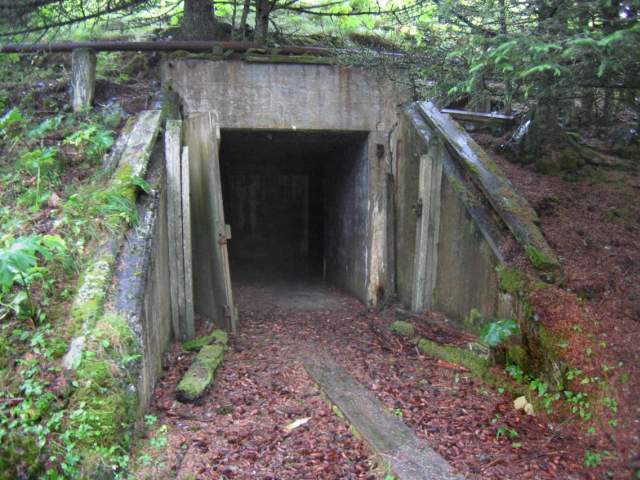

The rear entrance.
August 2005

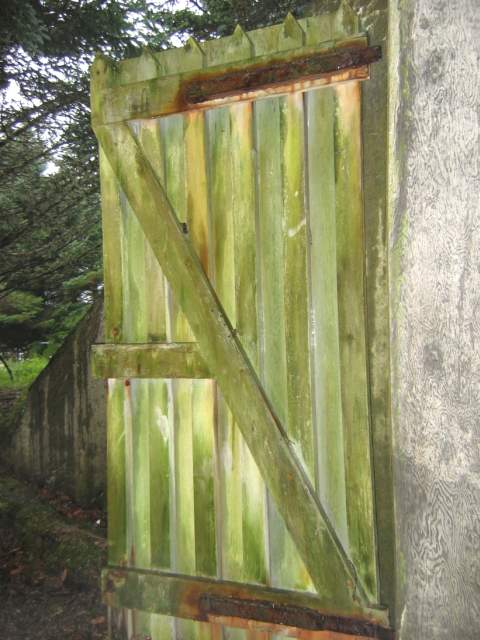

Detail of the rear doors.
August 2005

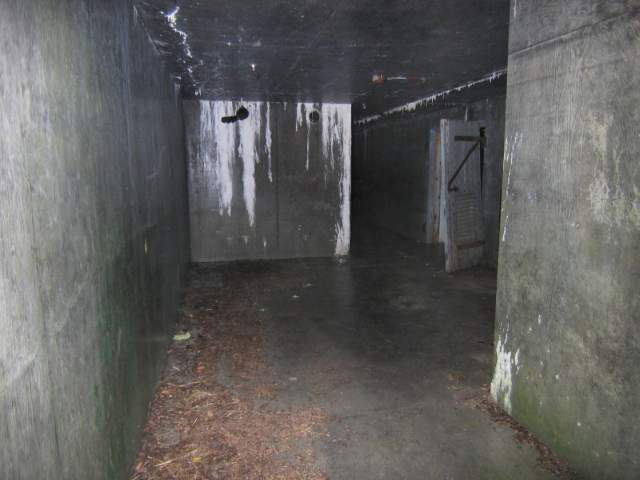

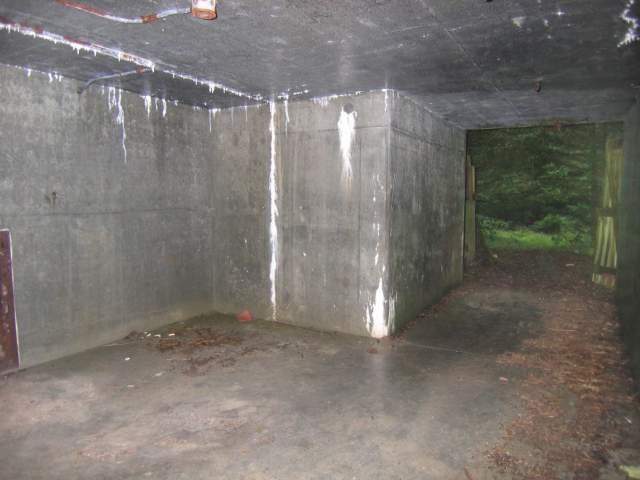

Looking southeast just inside the rear entrance.
August 2005
Looking northwest at the rear entrance.
August 2005

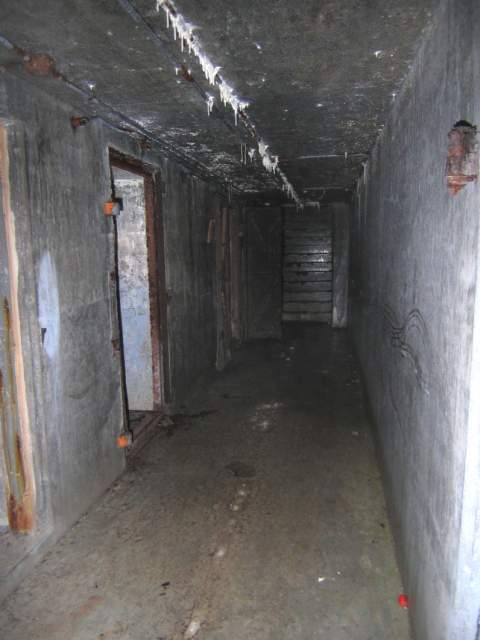

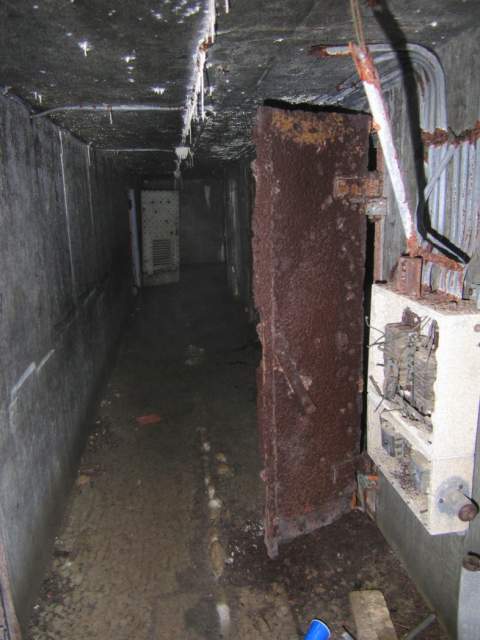

Looking southeast in the center corridor.
August 2005
Looking northwest from the foot of the stairway.
August 2005

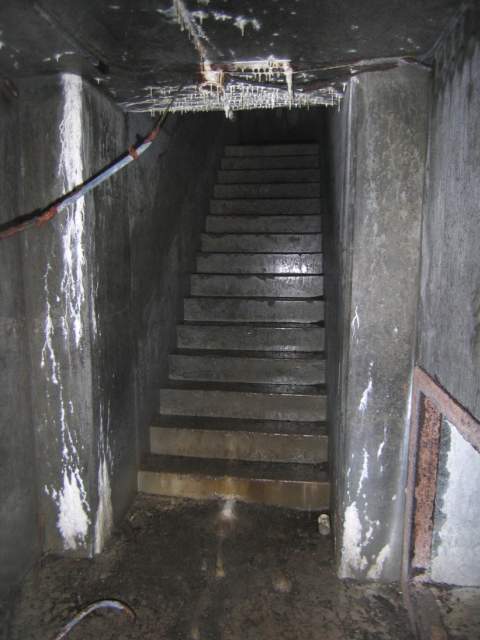

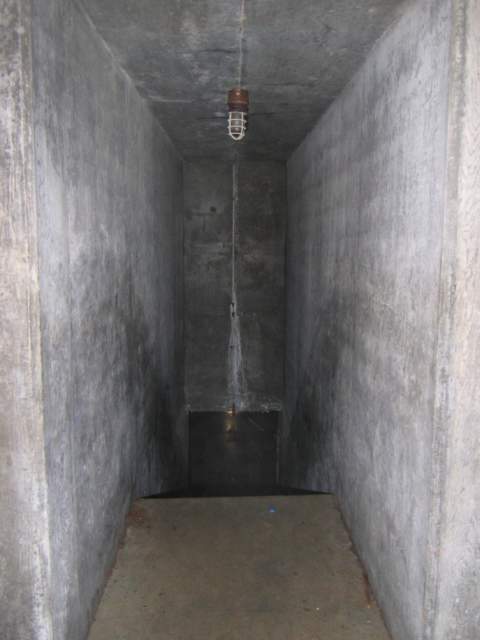

Looking up the stairway.
August 2005
Looking northwest at the top of the stairway.
August 2005

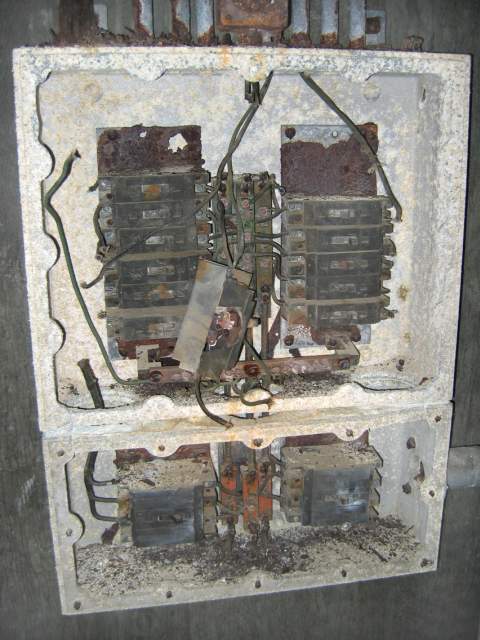

Detail of electrical box at the foot of the stairway.
August 2005

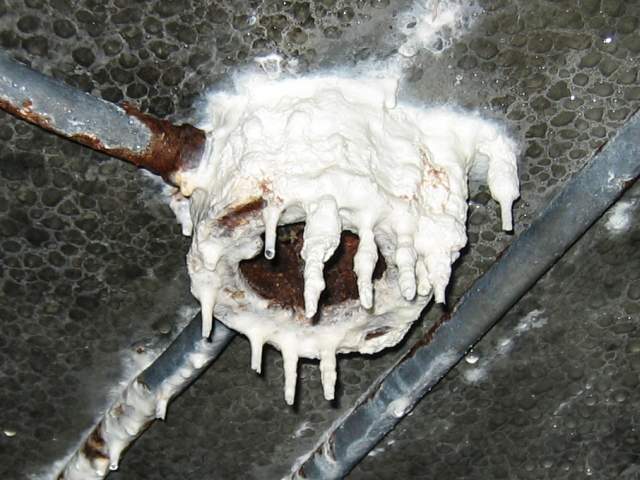

Detail of calcified electrical box in center corridor.
August 2005



Front Corridor

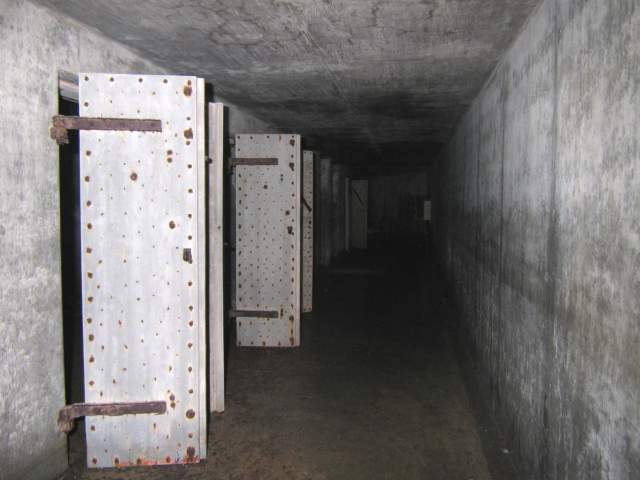

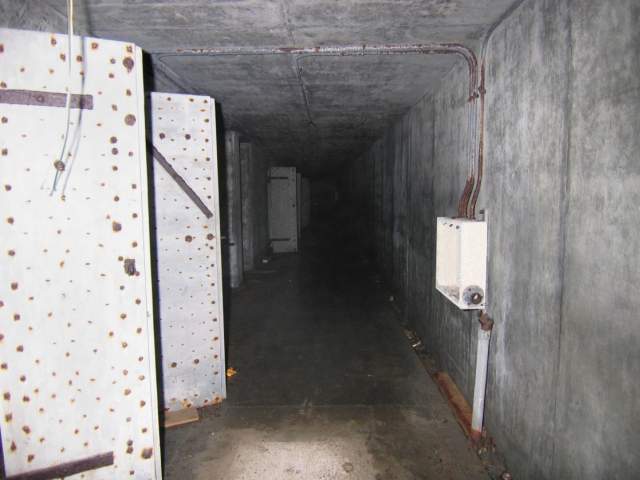

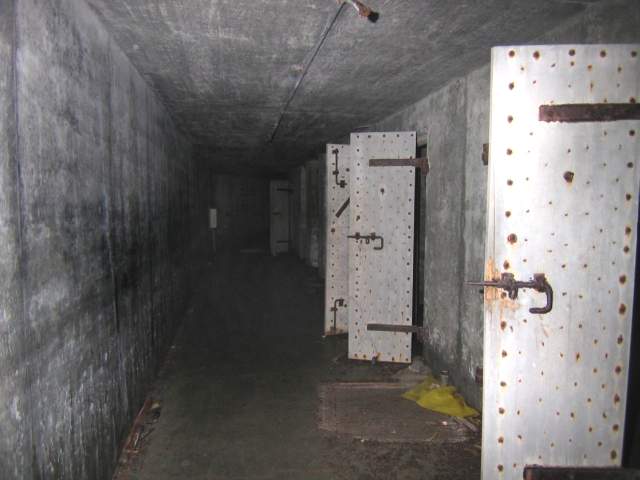

Looking southwest from the center of the front corridor.
August 2005

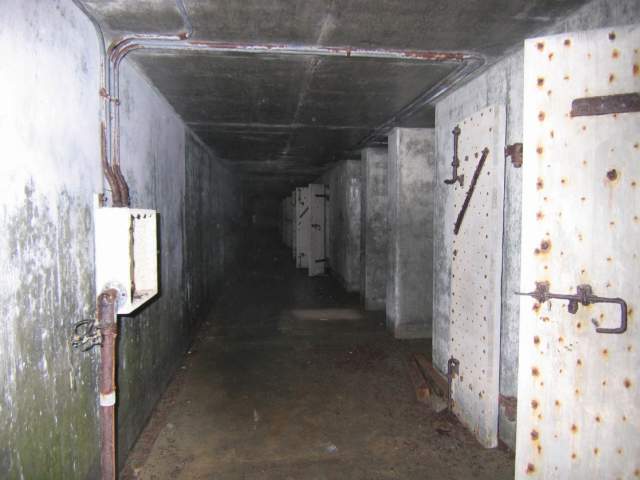

Looking northeast from the center of the front corridor.
August 2005
Looking southwest from the #2 end of the front corridor.
August 2005
Looking northeast from the #1 end of the center of the front corridor.
August 2005

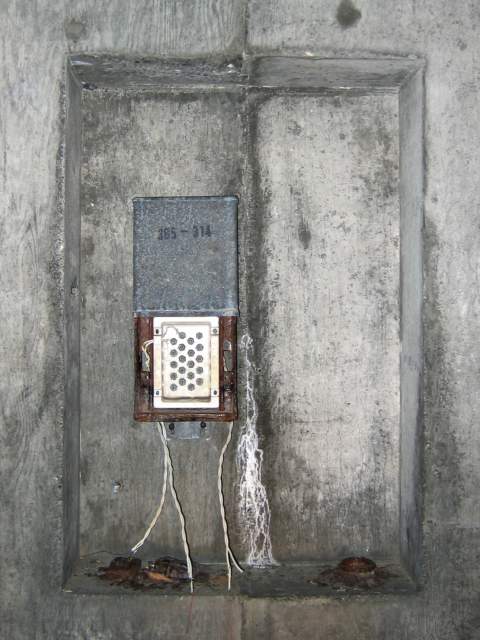

Detail of recess in the southeast wall near the center of the front corridor.
August 2005







Documents

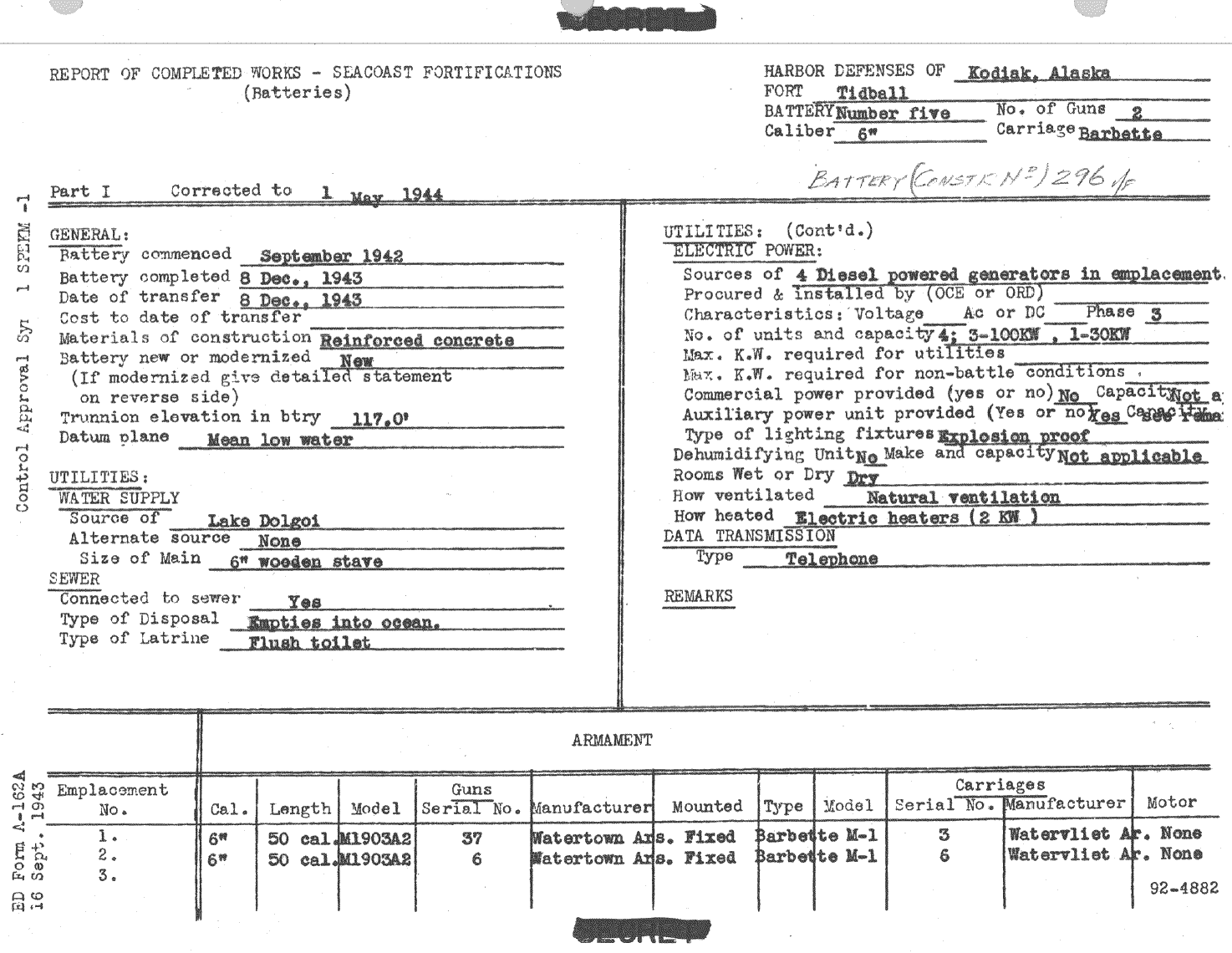

Form 1May 1, 1944

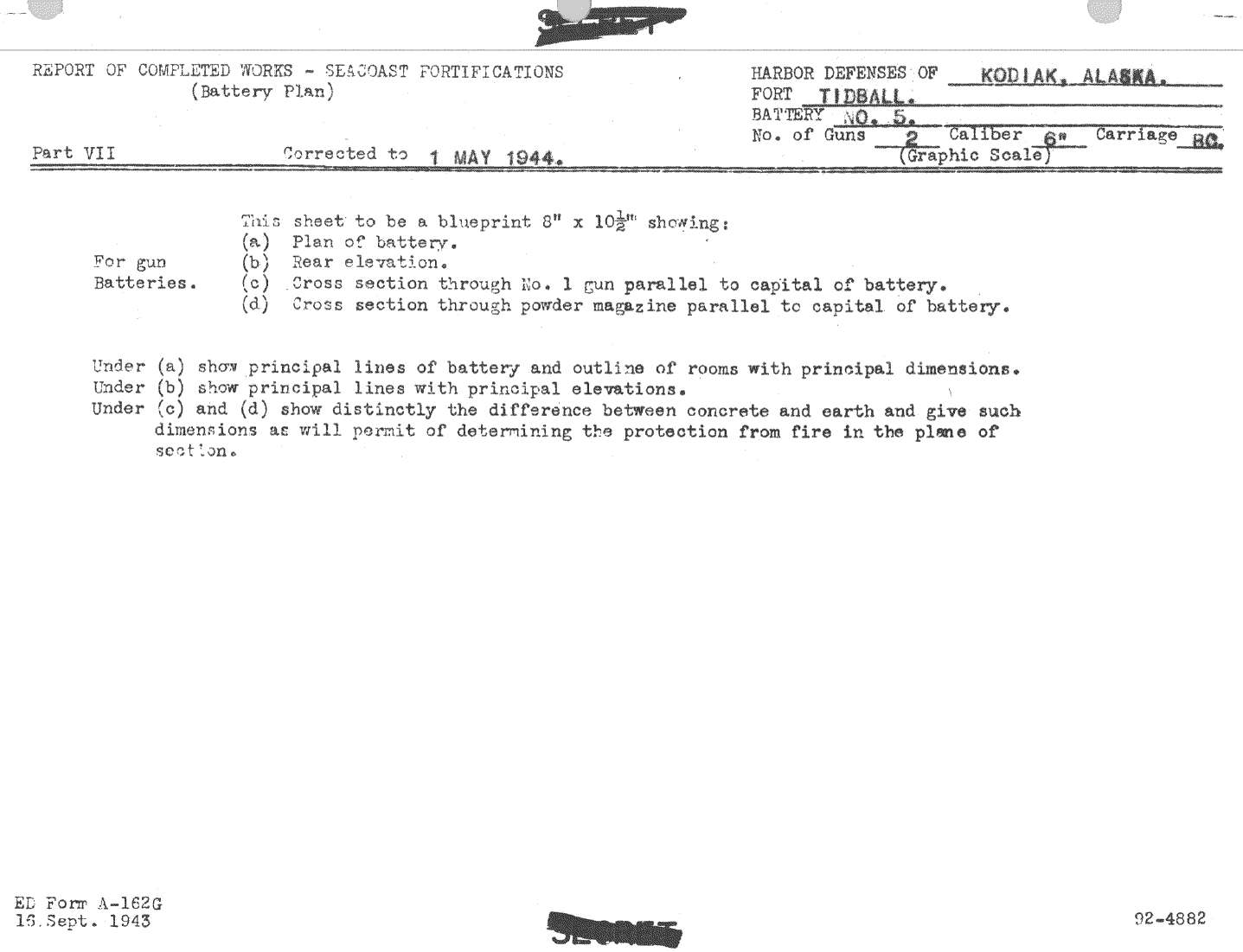

Form 7, page 1May 1, 1944

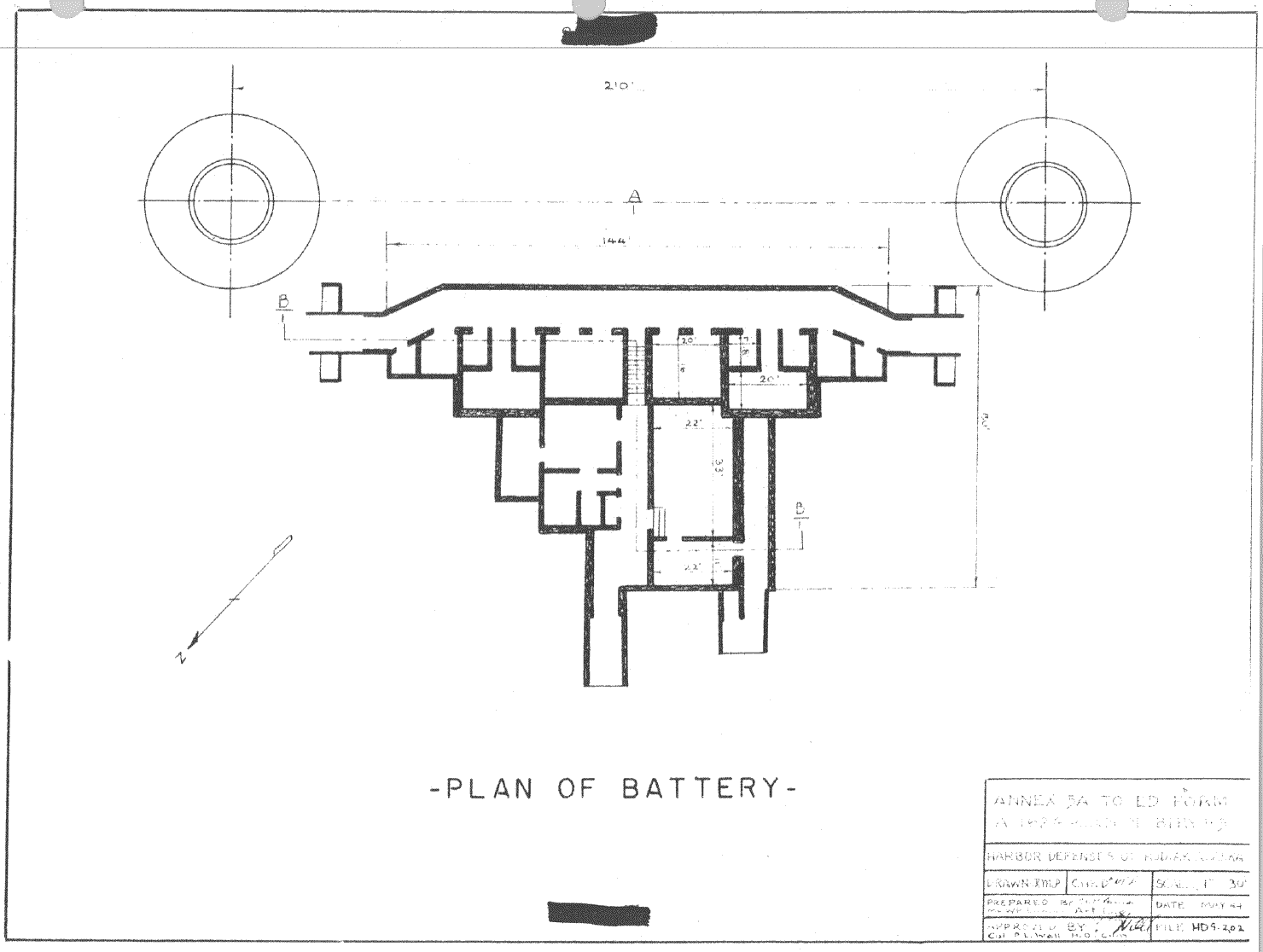

Form 7, page 2May 1944

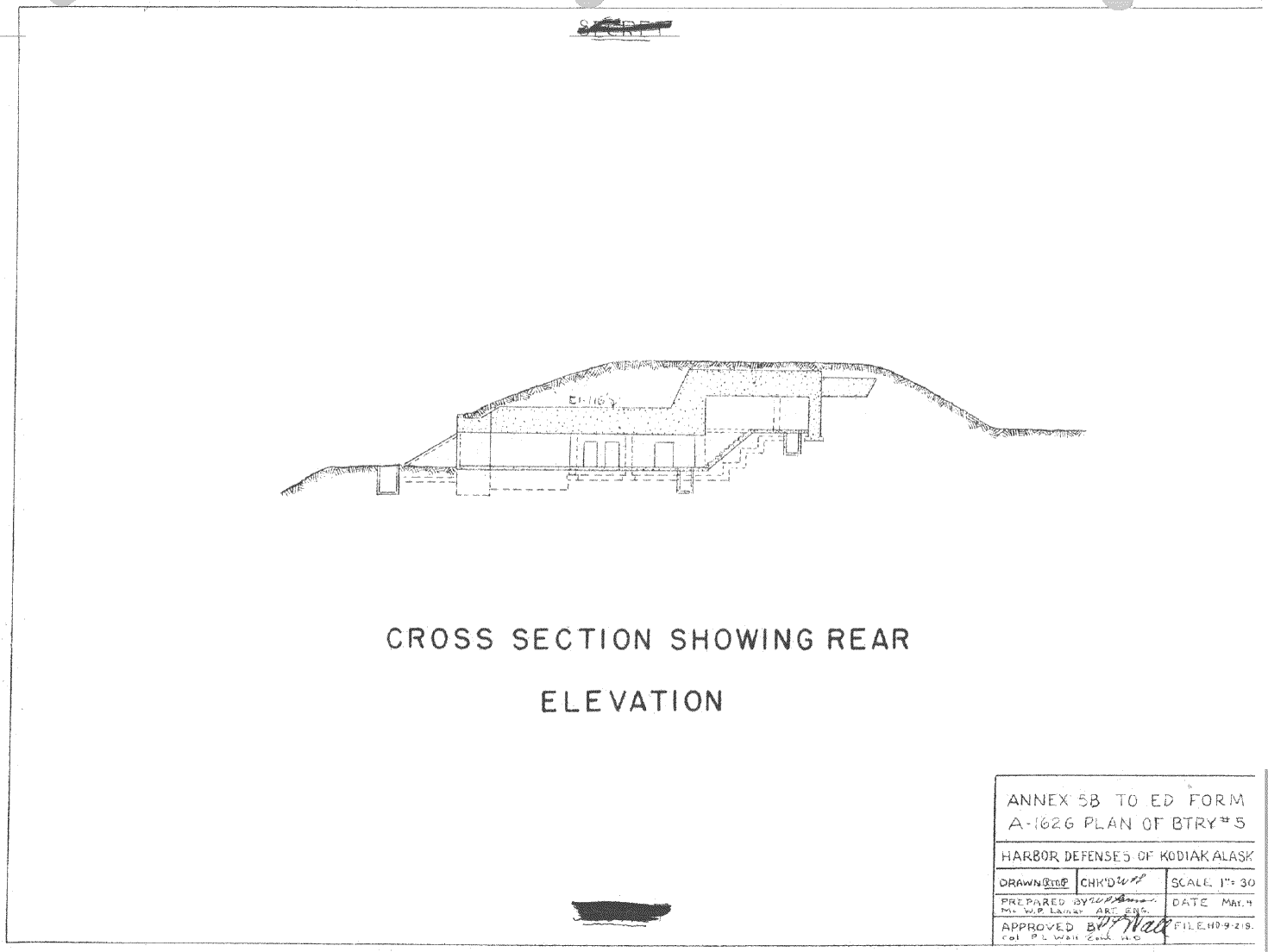

Form 7, page 3May 1944

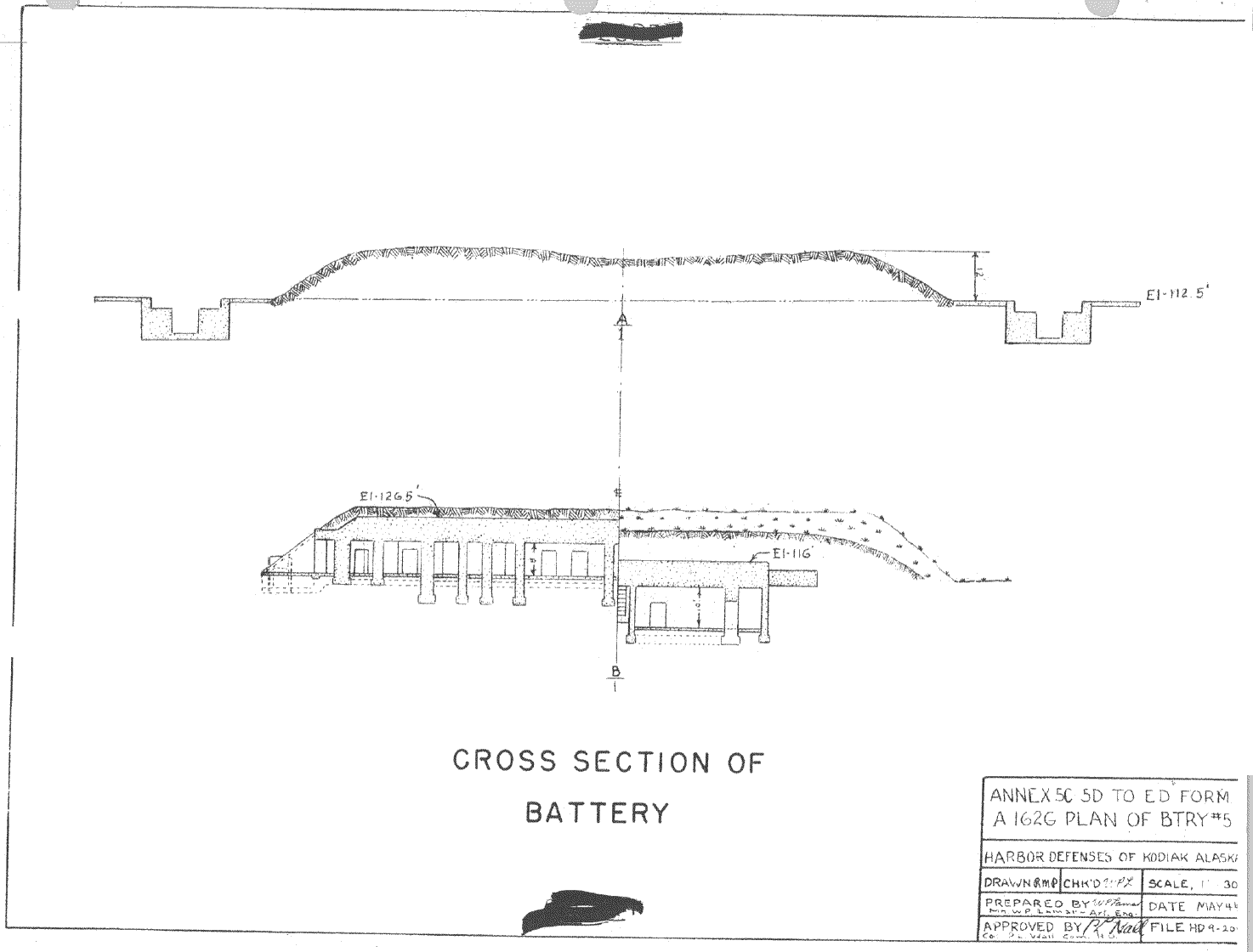

Form 7, page 4May 1944

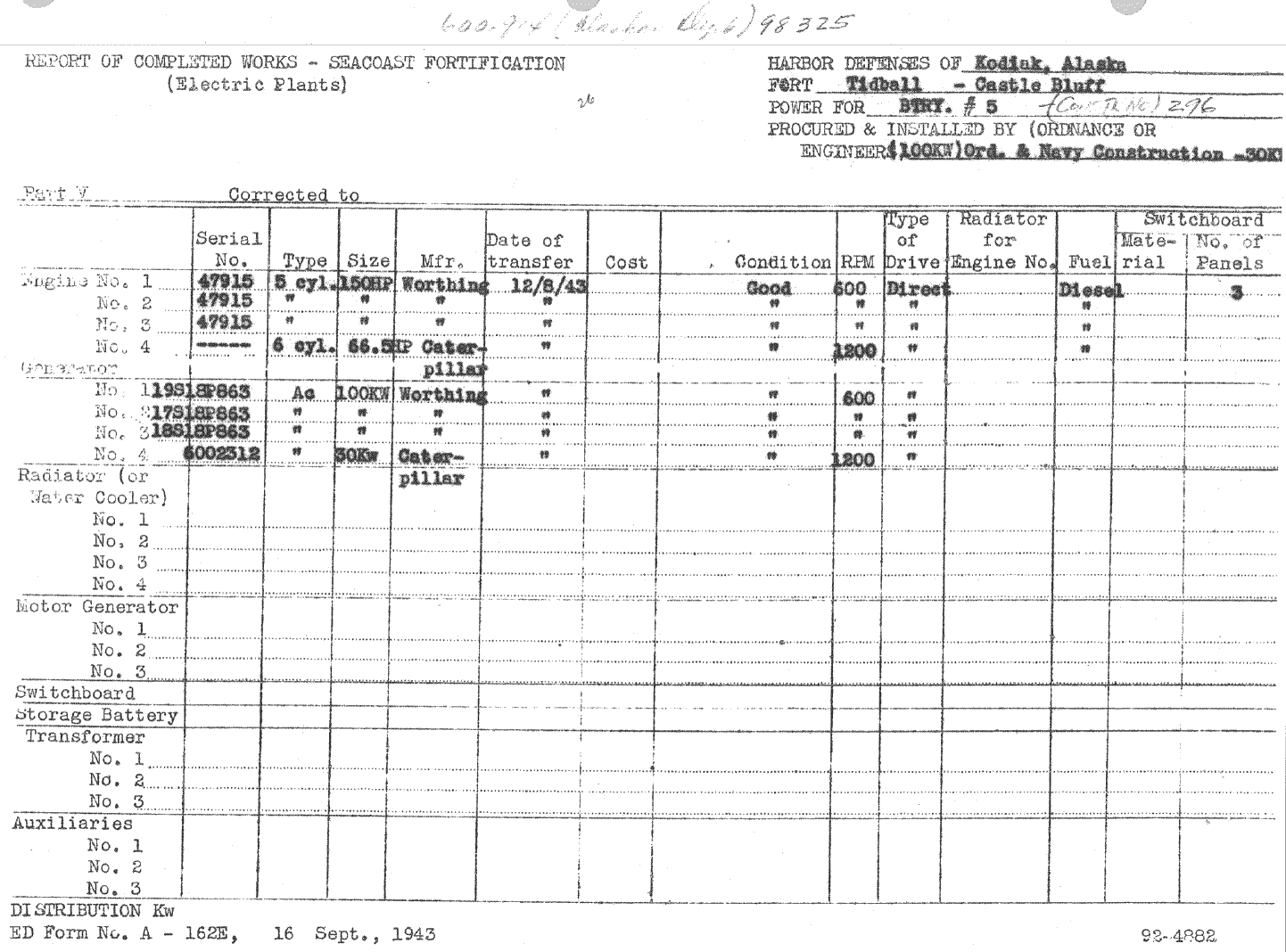

Form 5

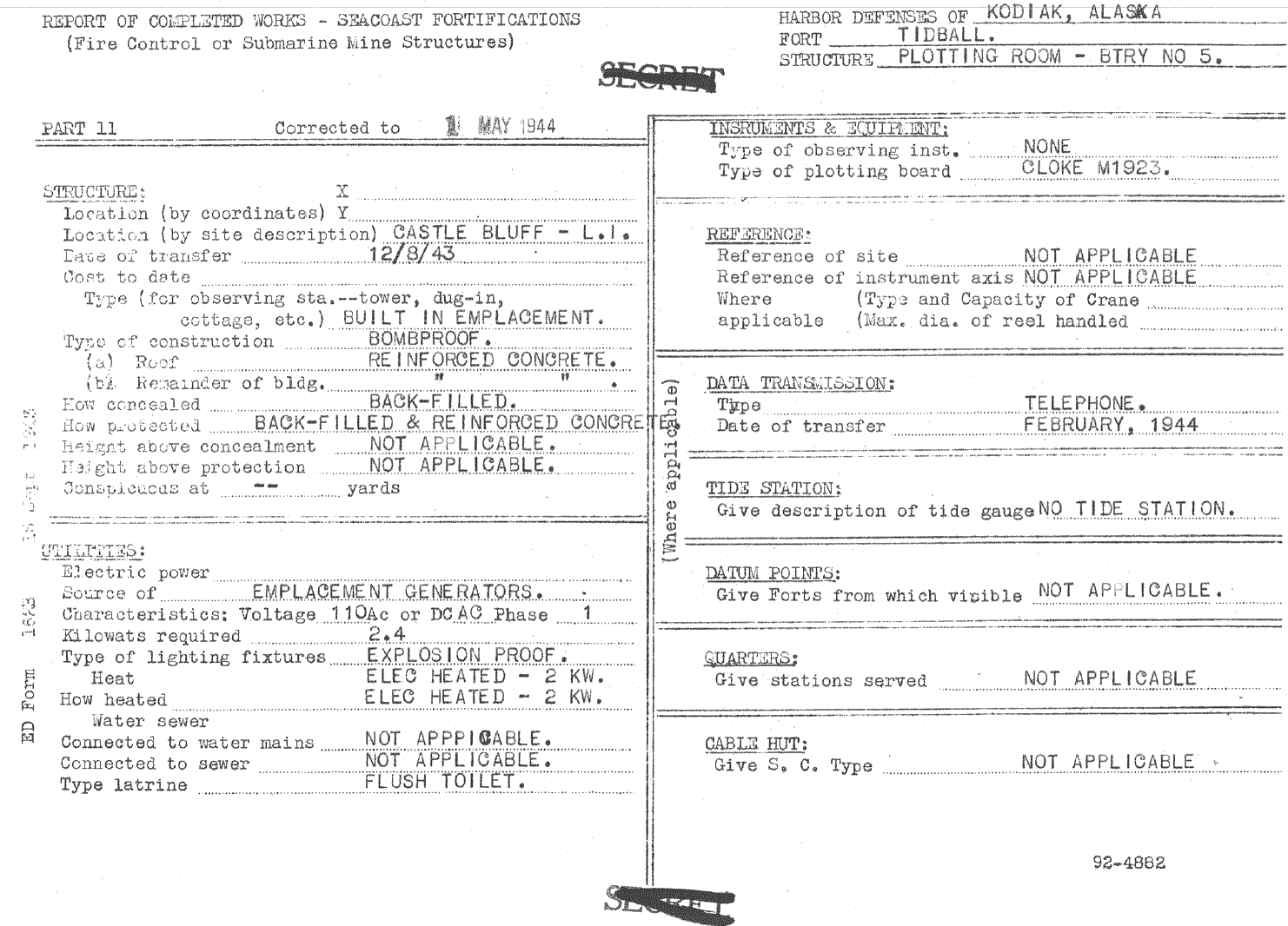

Form 2, plotting roomMay 1, 1944

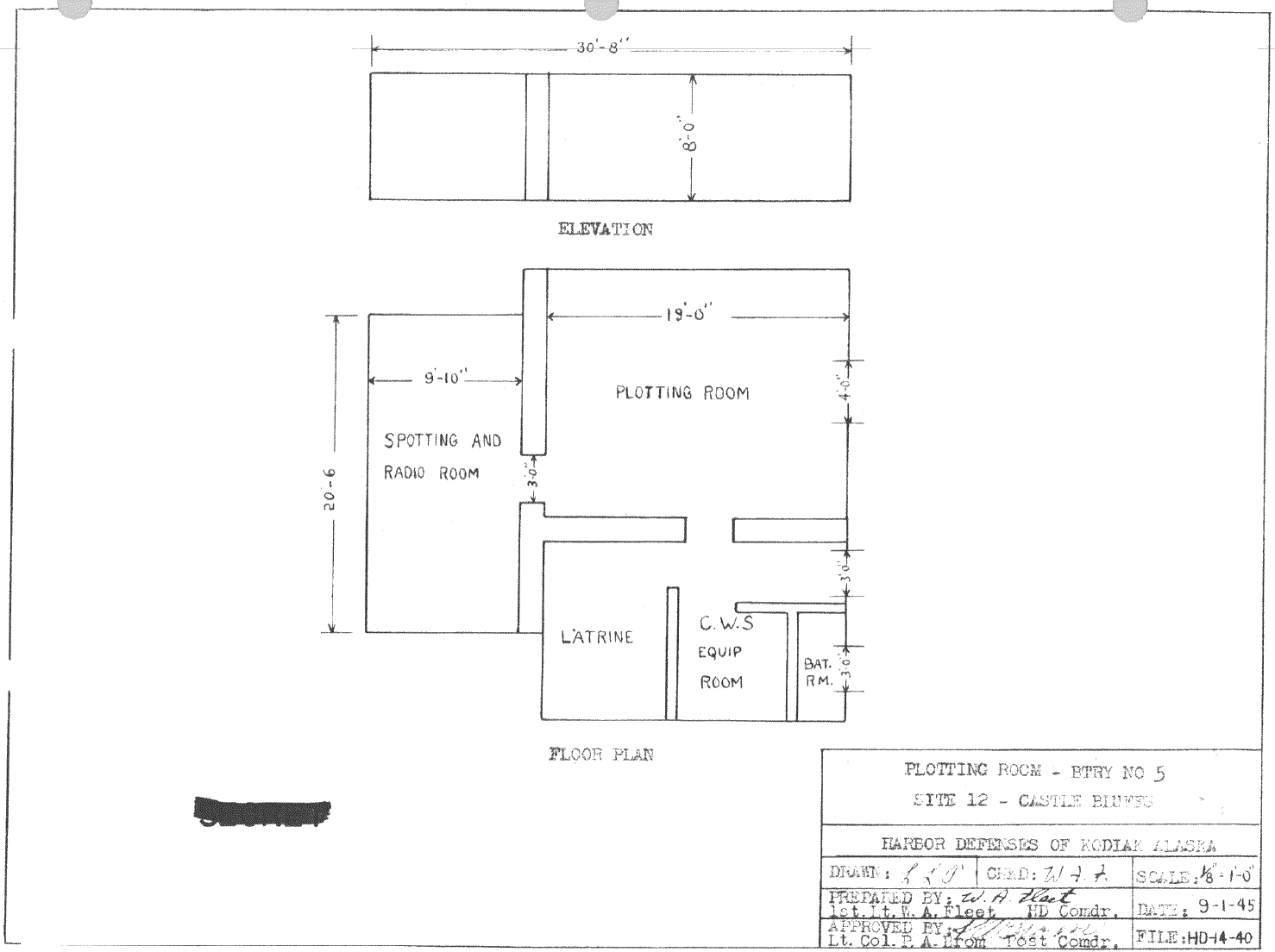

Plan, plotting roomSeptember 1, 1945
Detail map of area.September 1944

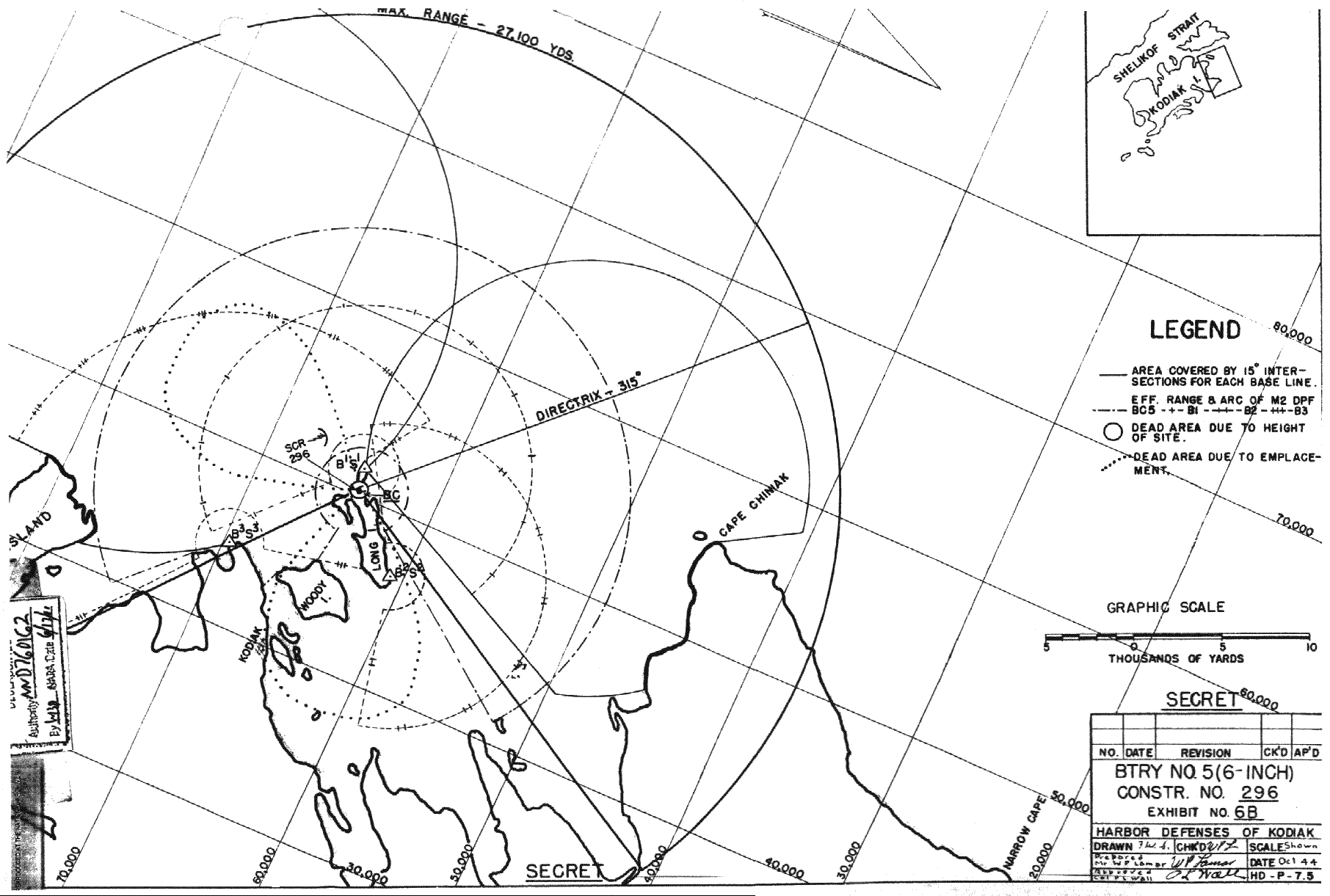

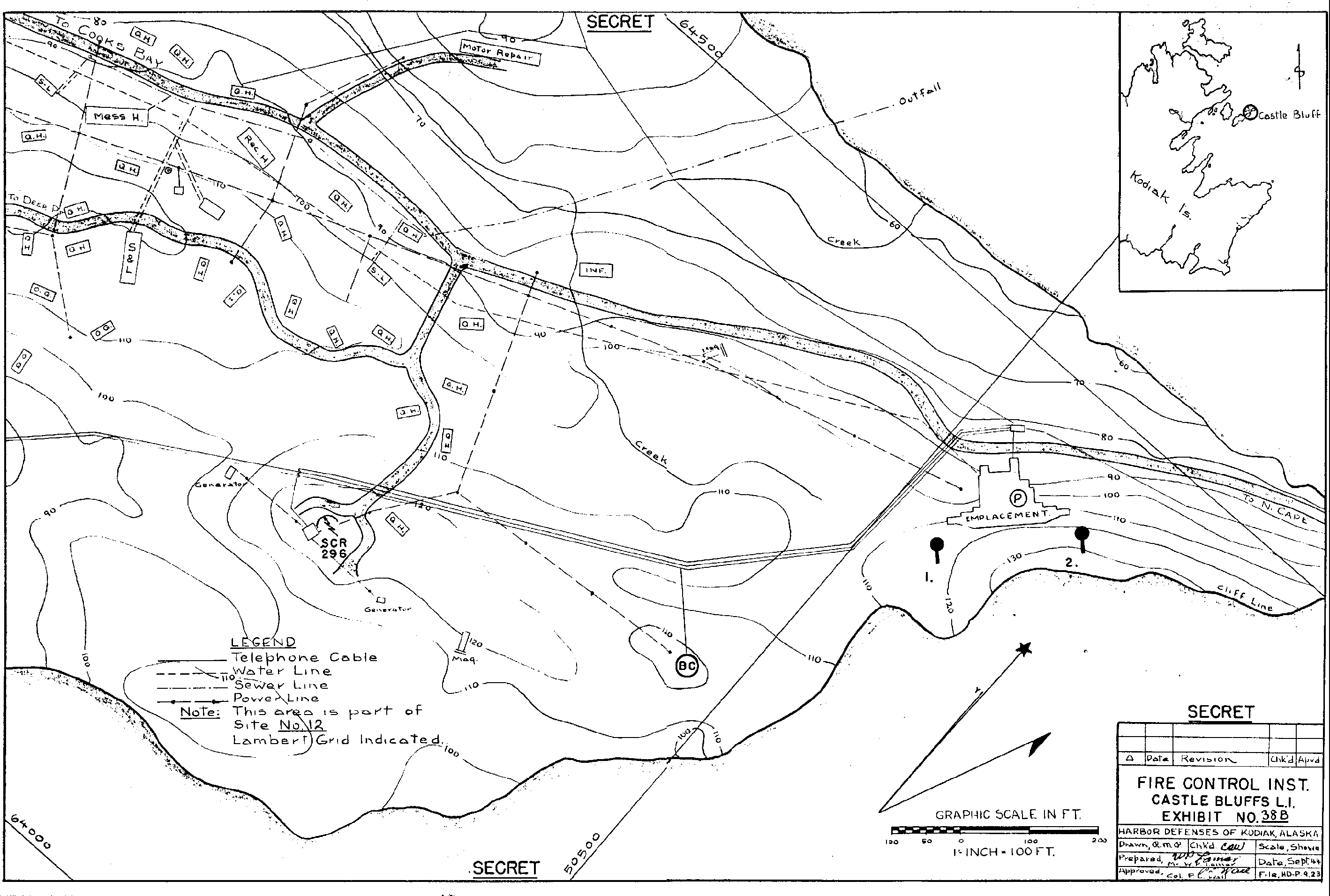

Fire Control Chart.October 1944
