Emplacement #1
Battery Const. #296,
Castle Bluff, Long Island, HD Seward
Home  |  Kodiak  |  Btry #296 main

In addition to the gun positions themselves, both emplacements on the upper level contain a powder room, one large shell room and two smaller shell rooms, an air compressor room and a small store room. Each of the small shell rooms housed 100 rounds of high explosive ammunition while the large shell room provided storage space for 400 armor piercing rounds.




Gun Position

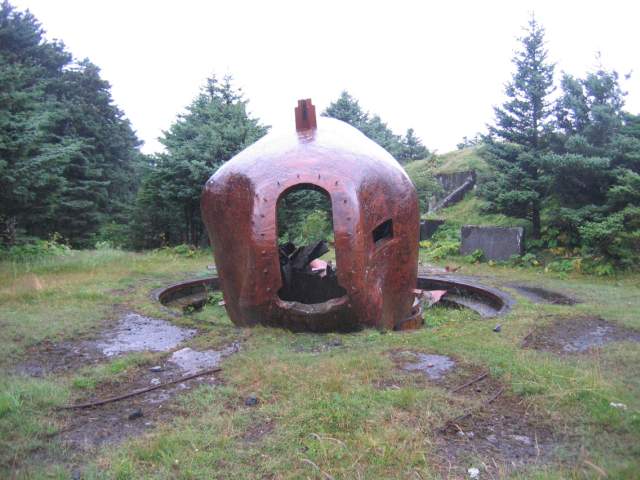

The #1 gun, looking northwest.
August 2005
The #1 gun, looking north.
August 2005

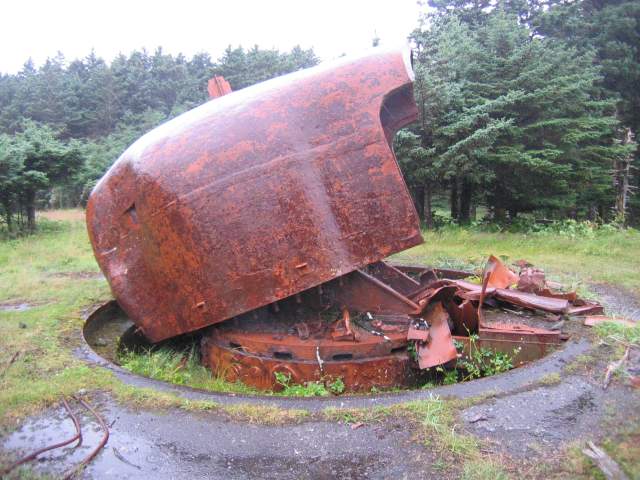

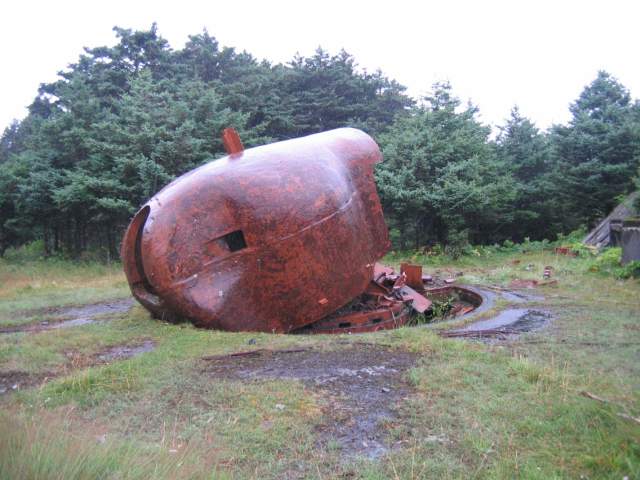

The steel shield was blown lose when the gun was destroyed.
August 2005

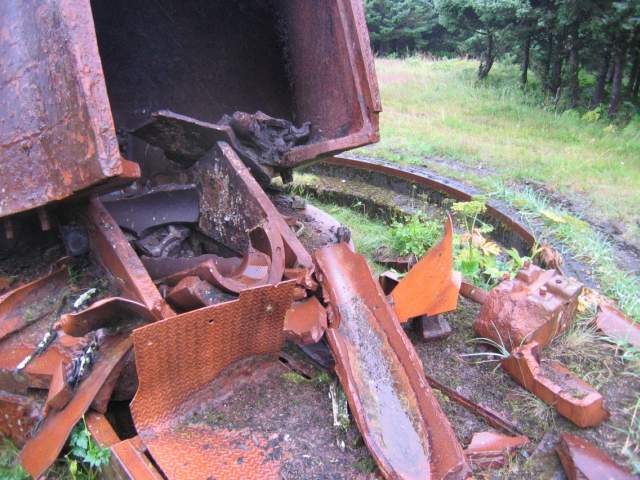

Portions of the gun and carriage.
August 2005

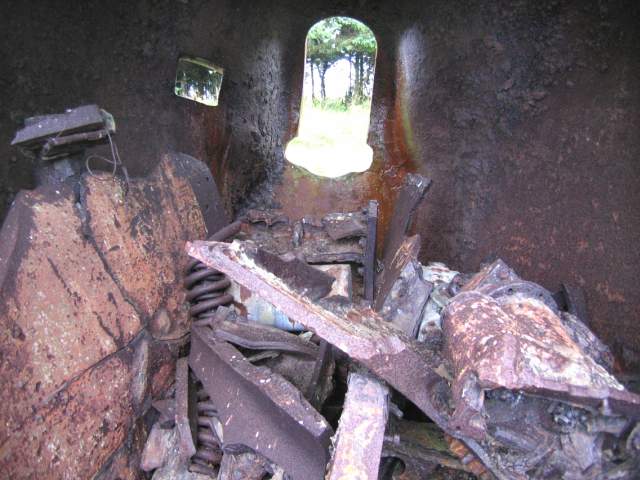

Inside the shield. Parts of the hydraulic elevating mechanism are visible on the right, recoil springs and gun tube fragments at center and the manual traversing mechanism on the left.
August 2005

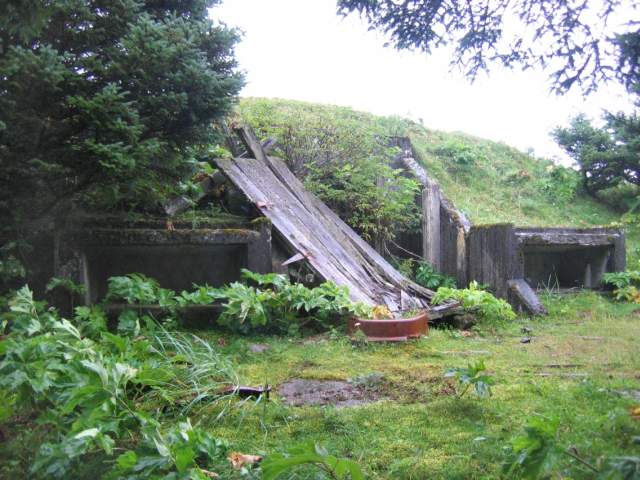

Looking northeast at the #1 entrance to the battery.
August 2005

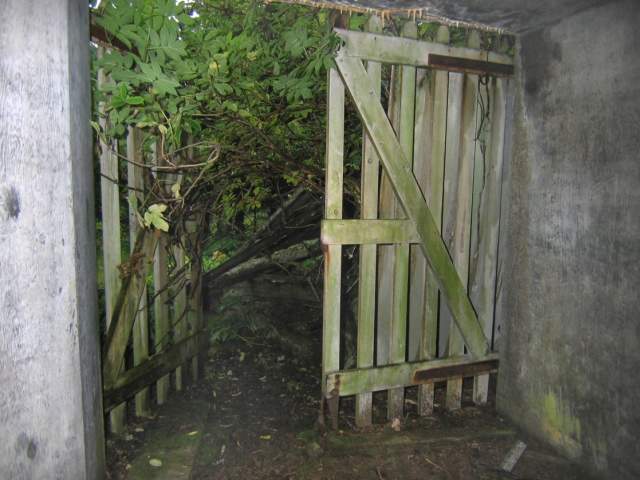

Looking out of the #1 entrance.
August 2005



Store Room and Air Compressor Room


Looking west at the doors to the air compressor and store rooms.
August 2005

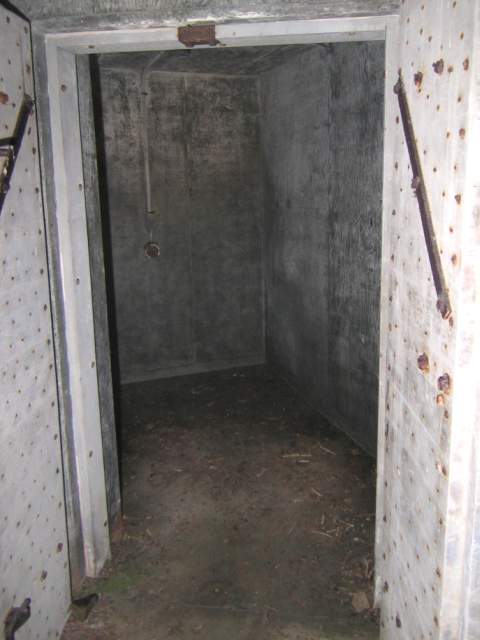

Looking into the store room.
August 2005

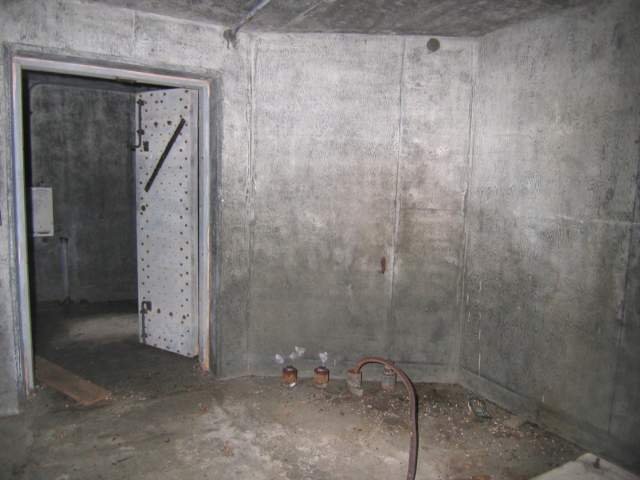

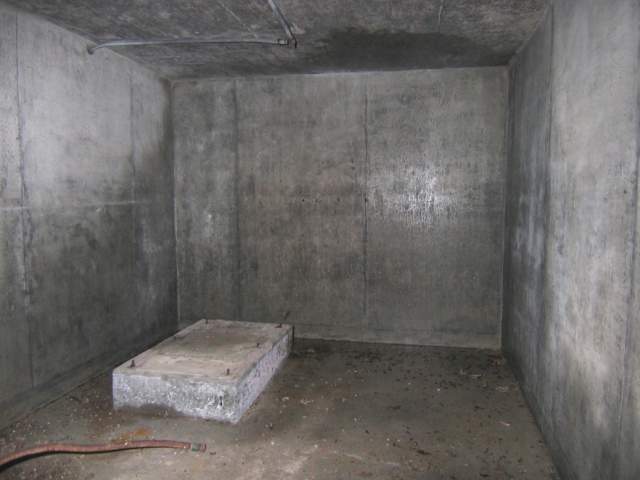

Looking northwest in the air compressor room.
August 2005
Looking south in the air compressor room.
August 2005



Shell Rooms

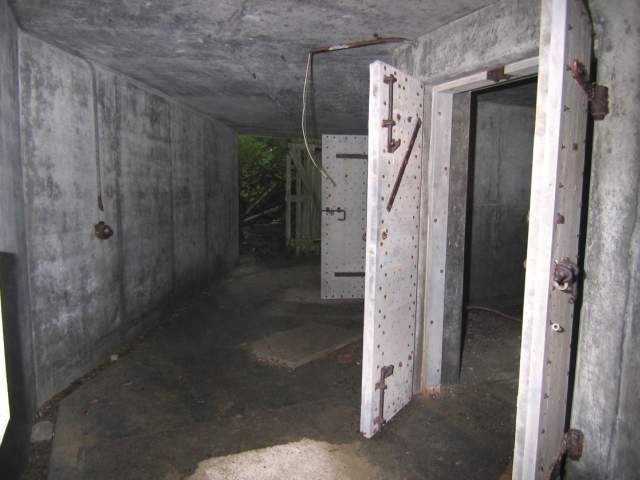

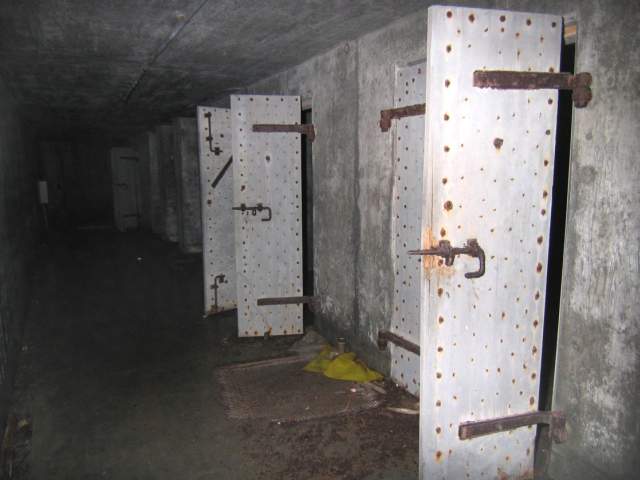

Looking west at the shell room doors.
August 2005

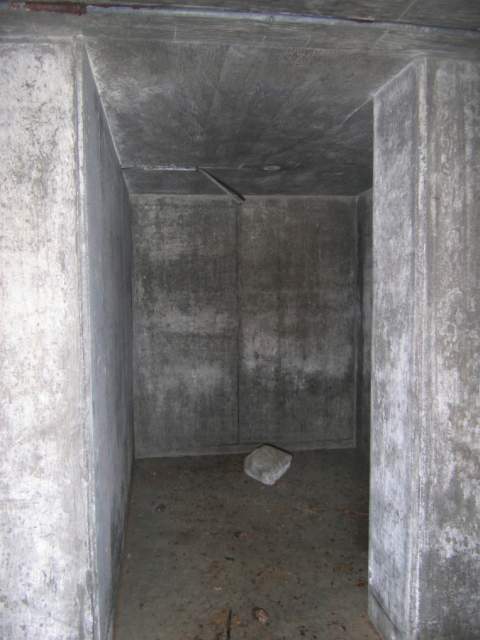

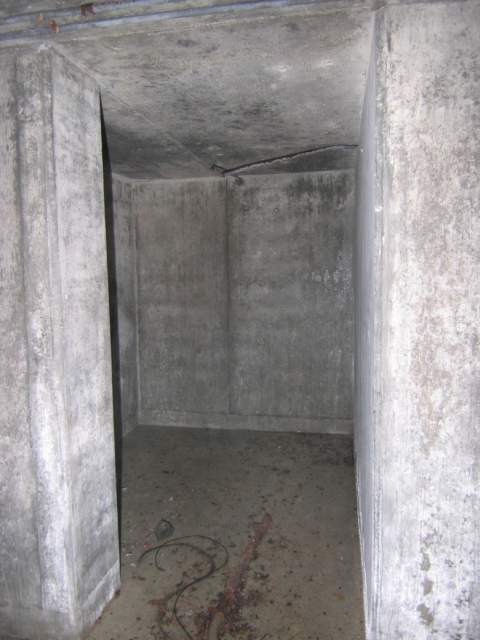

Looking into the northeast small shell room.
August 2005
Looking into the southwest small shell room.
August 2005

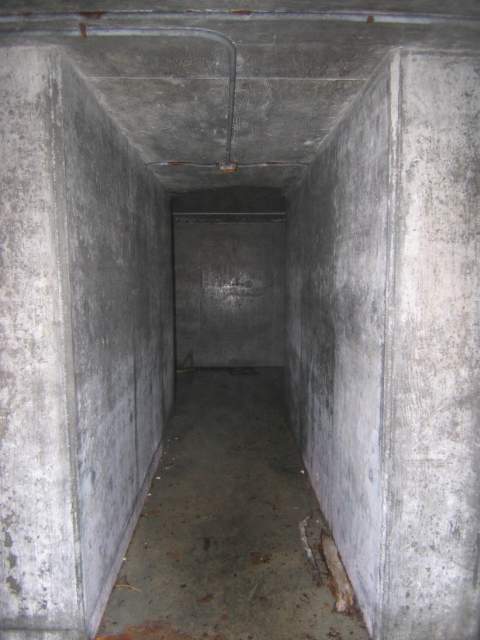

The corridor to the large shell room, looking northwest.
August 2005

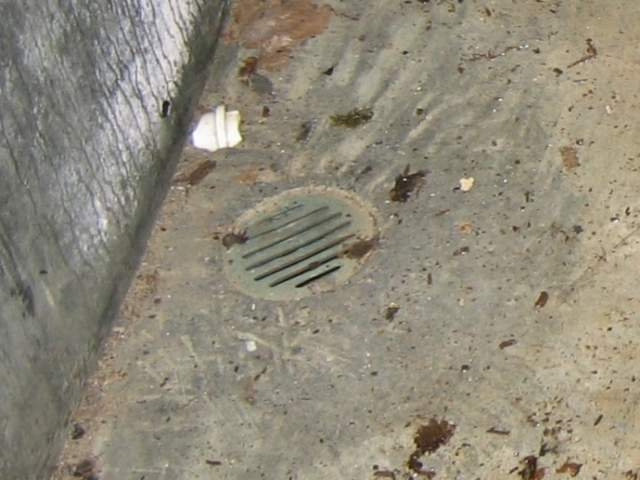

Detail of drain in the large shell room corridor.
August 2005

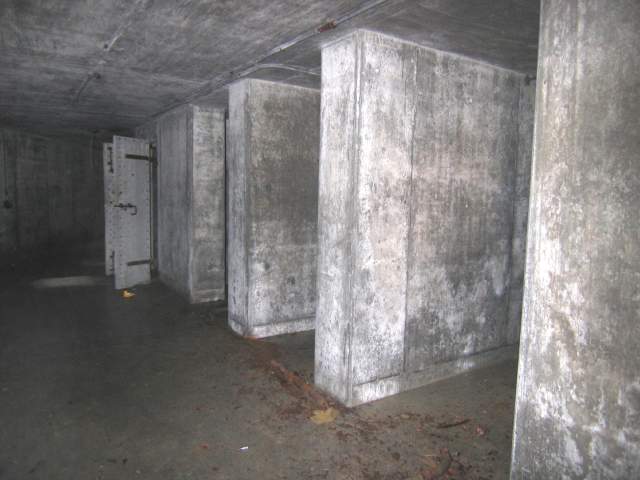

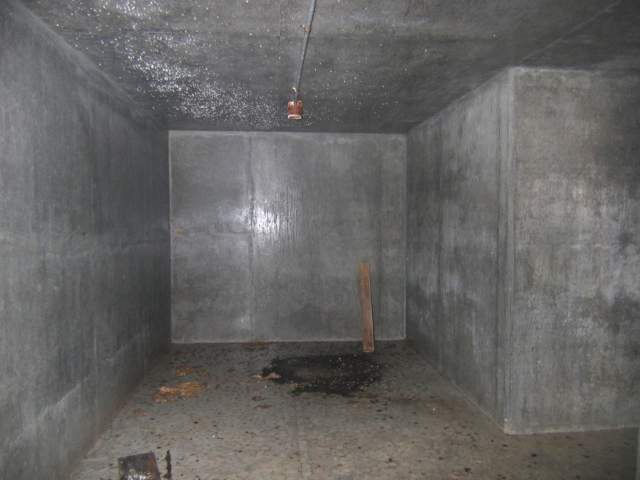

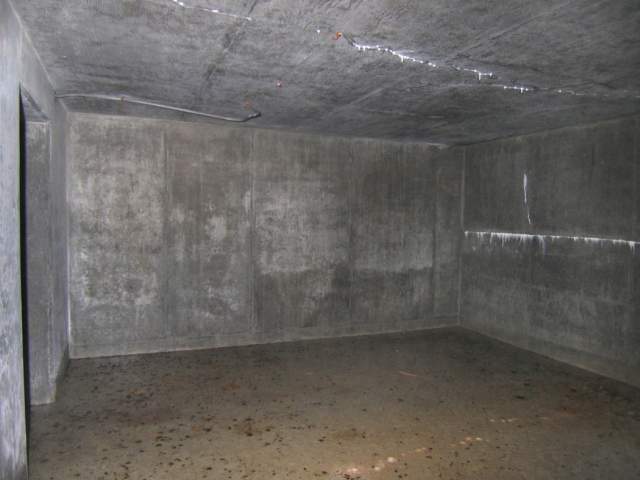

Inside the large shell room, looking northeast.
August 2005

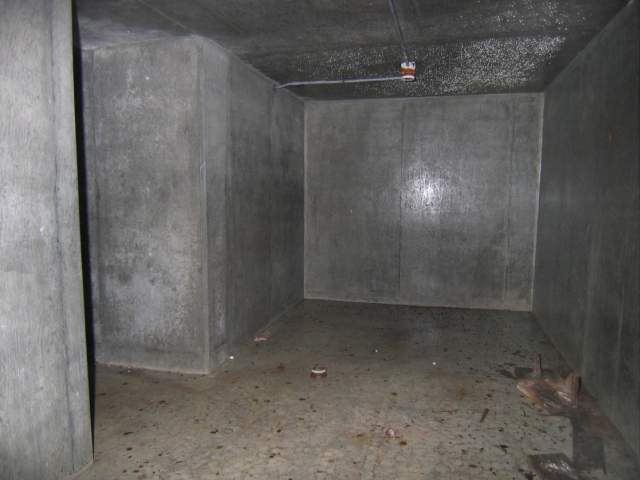

The southwest end of the large shell room.
August 2005



Powder Room

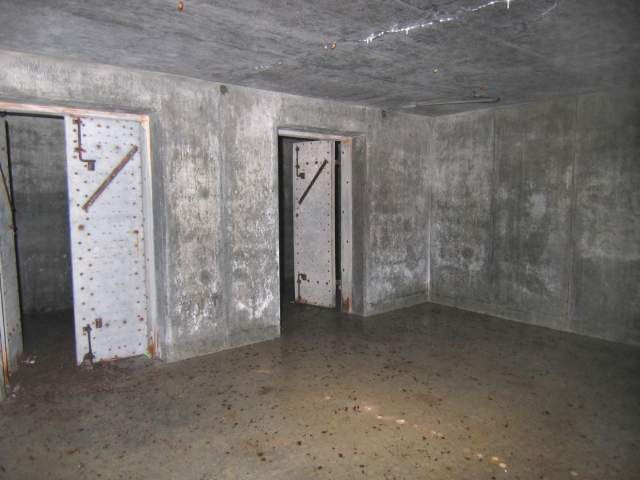

Looking west at the two doors to the powder room.
August 2005

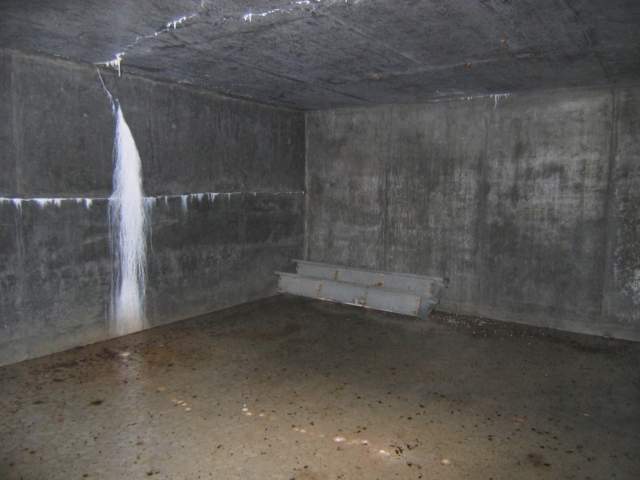

Looking east in the powder room.
August 2005
The south corner of the powder room.
August 2005

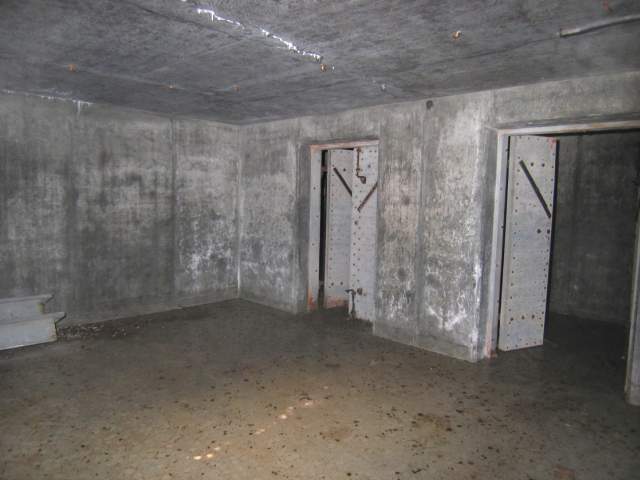

Looking southwest in the powder room.
August 2005
The wooden steps in the north corner probably came from the power room.
August 2005
