The war reserve ammunition area at Fort McGilvray is located along the Battery Const. #293 access road to the north of the battery and consists of four concrete magazines and at least one smaller magazine of corrugated metal construction. The four large magazines are of the parabolic arch concrete igloo type common in seward, and are built into the hillside on either side of the road. Each of the concrete magazines was assigned a letter to identify it. Two magazines of similar design were constructed to store antiaircraft ammunition at Caines Head and Rugged Island.

---

Magazine A

---

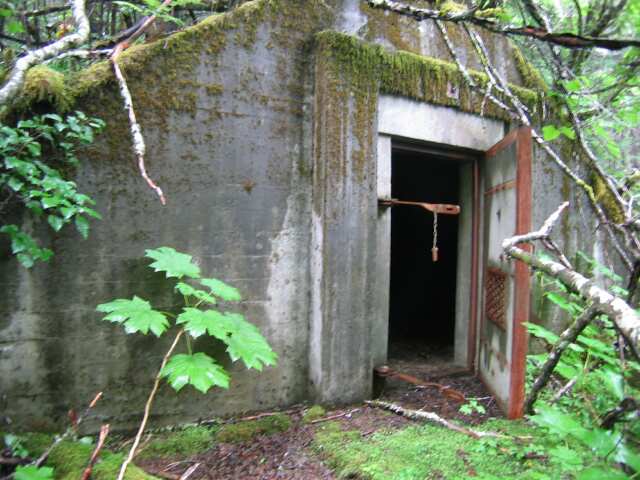

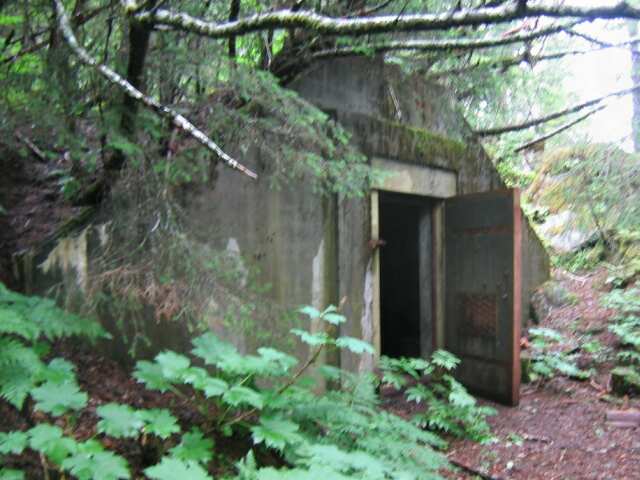

The front of the magazine. July 2005 Looking southwest in the magazine. July 2004

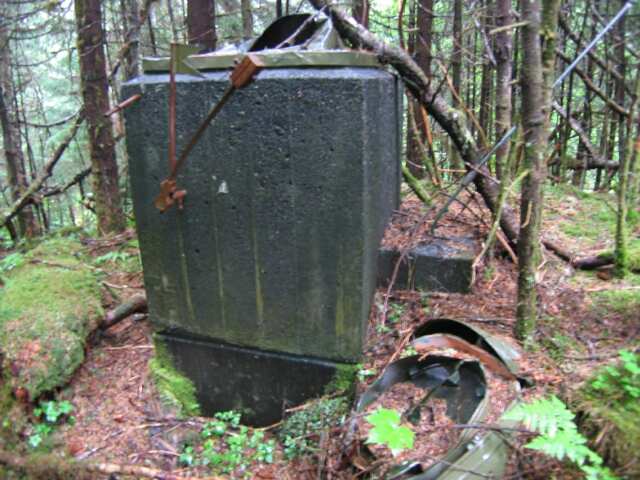

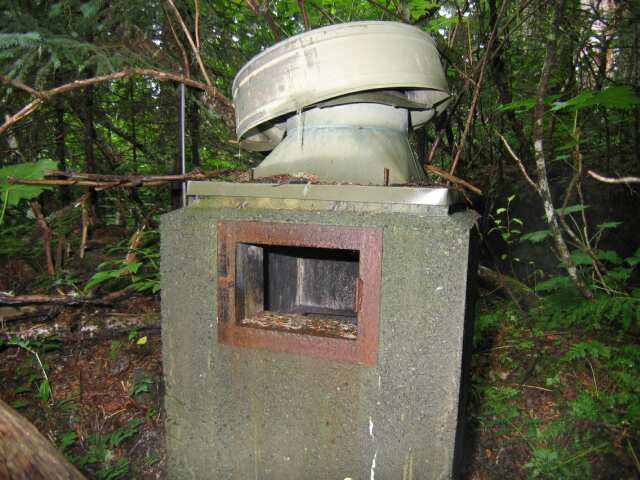

Detail of the vent shaft. July 2004 The northeast end of the magazine. July 2004

---

Magazine B

---

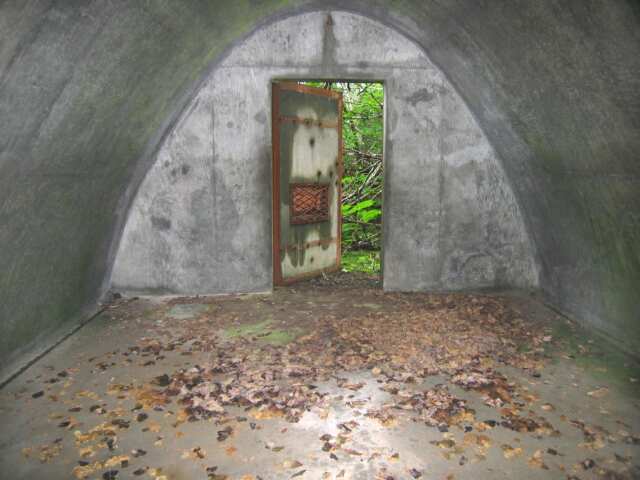

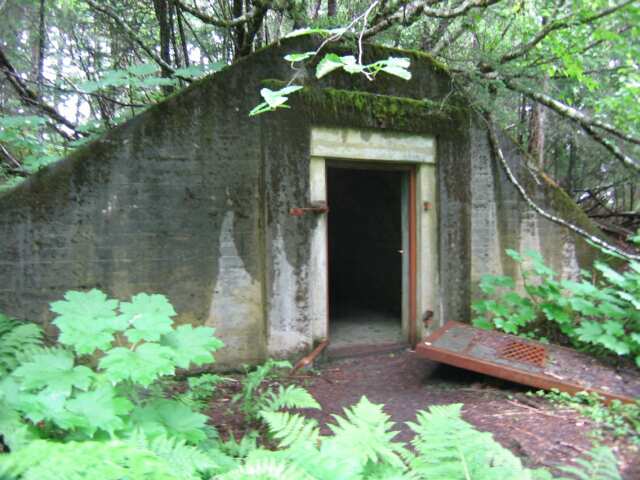

Looking north at the magazine. July 2004 Inside the magazine. July 2004

Detail of the vent shaft. July 2004 Looking east in the magazine. July 2004

---

Magazine C

---

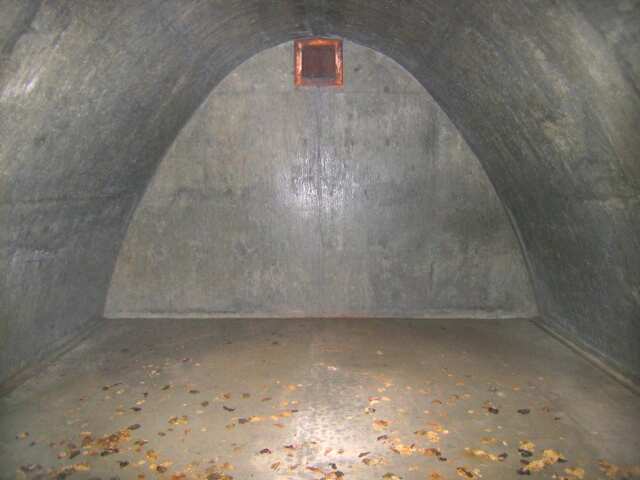

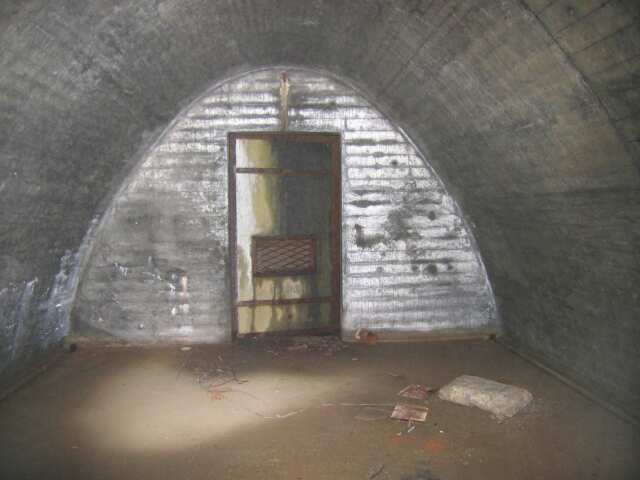

The front of the magazine. July 2004 Looking northeast inside the magazine. July 2004

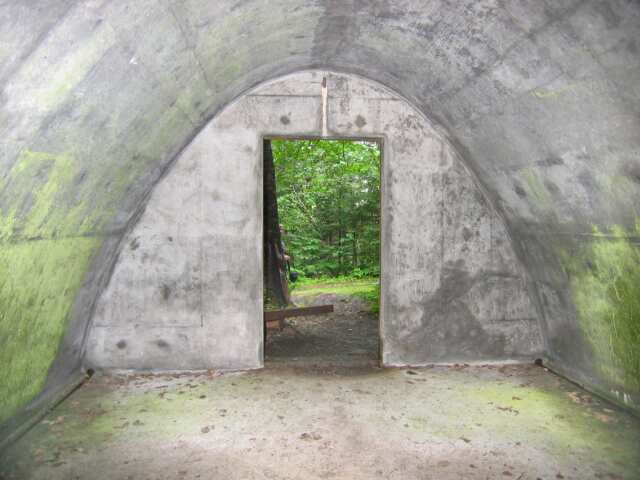

Looking out of the magazine. July 2004

---

Magazine D

---

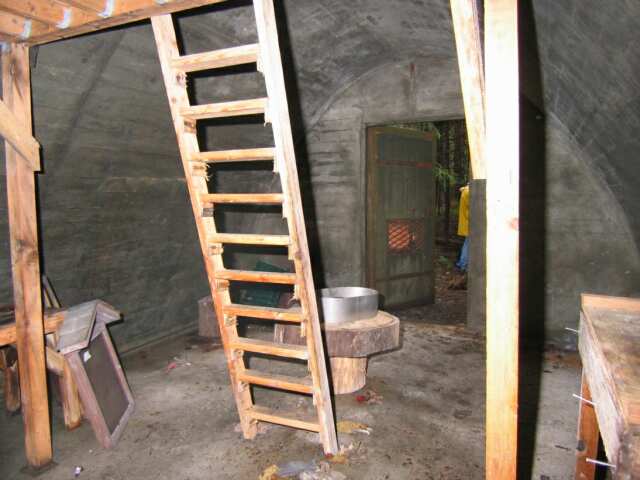

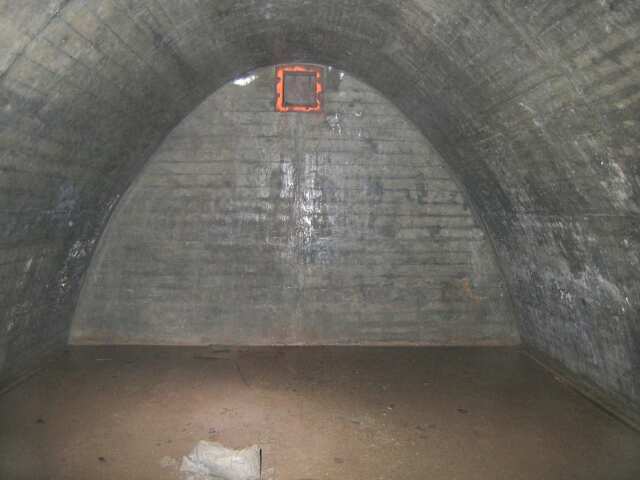

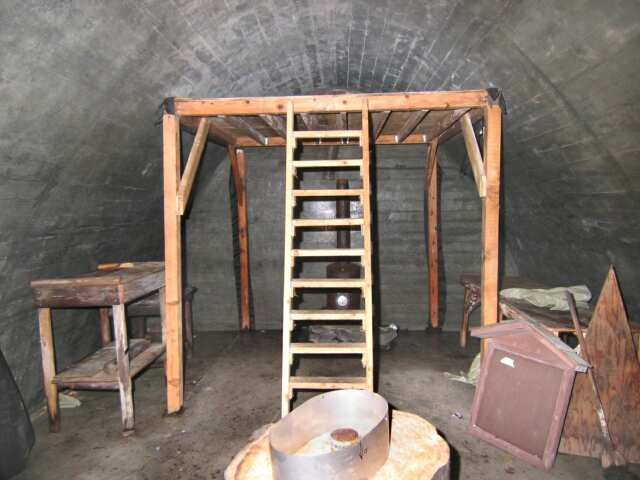

Looking southeast at the magazine. July 2004 Inside the magazine. July 2004

Detail of the vent shaft. July 2004 The southeast end of the magazine. July 2004

---

Corrugated metal magazine

---

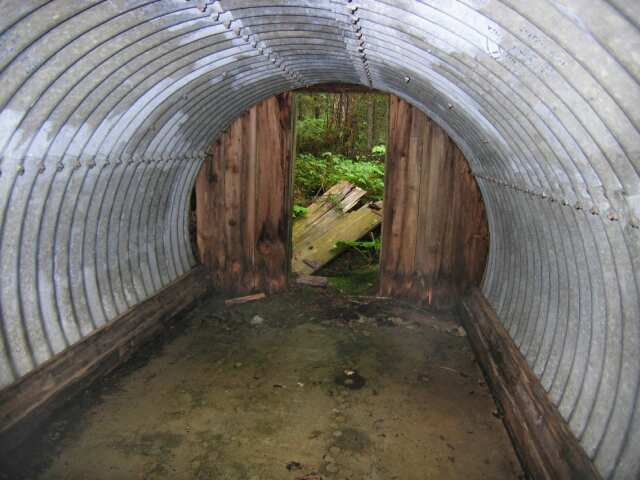

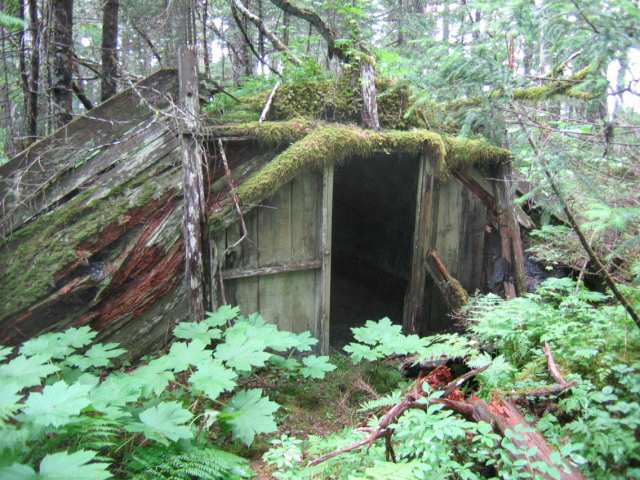

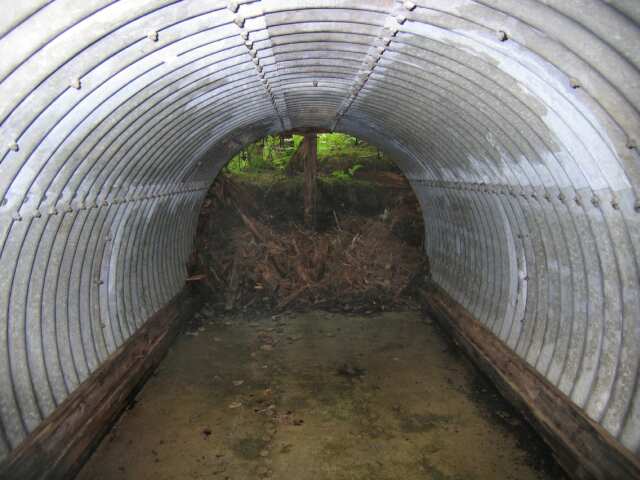

Wooden front wall of the magazine. July 2005 Inside the magazine. July 2004

Looking towards the back of the magazine. July 2004

---

Documents

---

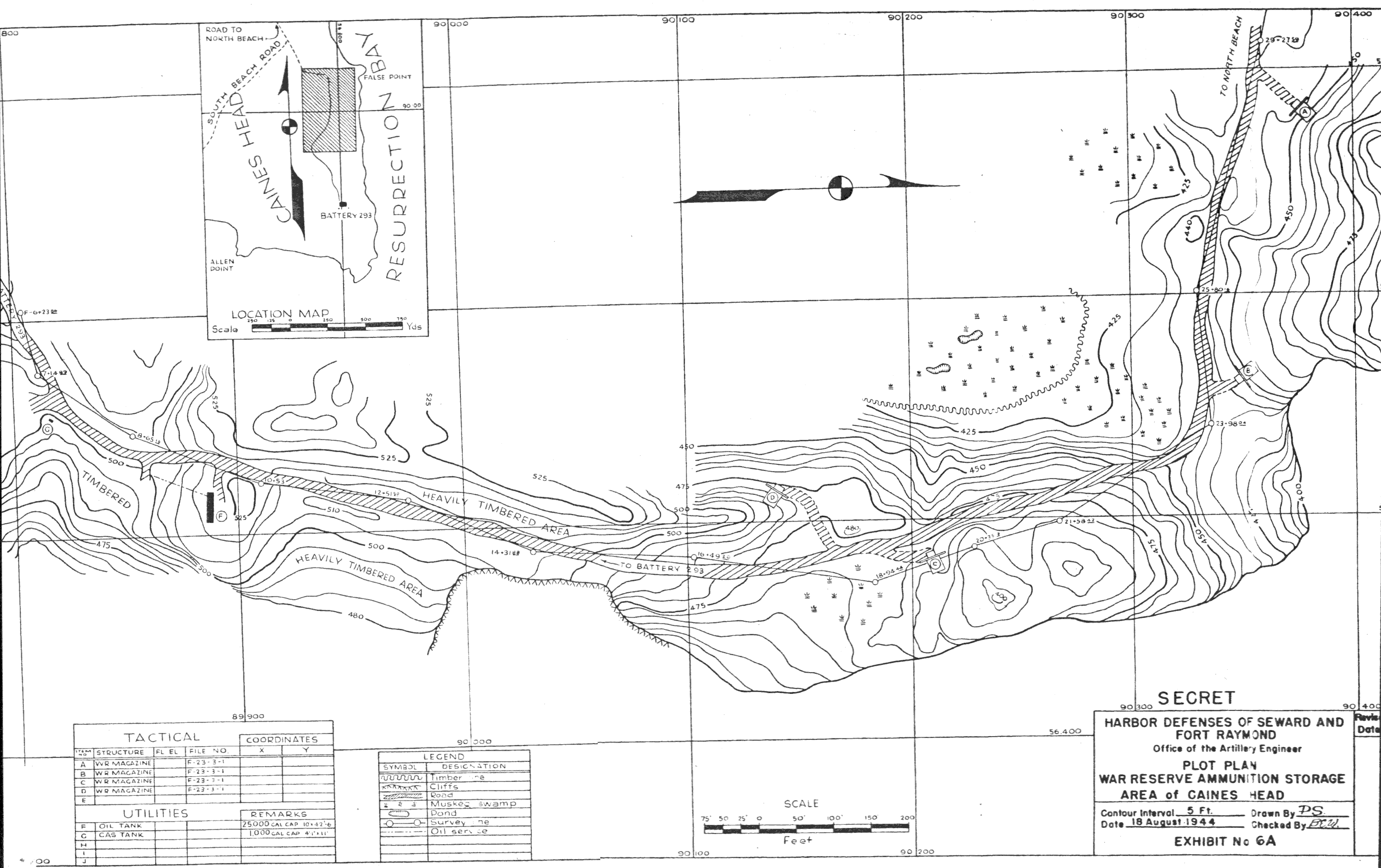

The locations of the concrete magazines are shown in exhibit 6-A of the 1944 A Annex.

---
