Deer Point, Long Island, HD Kodiak |
|
|
|
|
| |
|
|
The Group 2 Command Post was a single room station occupying the lower level of a two-story station set atop a 40-foot wooden tower. Personnel here were responsible for coordinating the fire of Battery Const. #296 and Battery Tactical #4, the two batteries located on Long Island.
Above the command post was an equipment room for the SCR-582 general surveillance radar unit that was installed on the top of the tower. This radar site was capable of detecting both surface craft and low-flying aircraft for a range of more than 20 miles. |
|
| ||||
|
| ||||
|

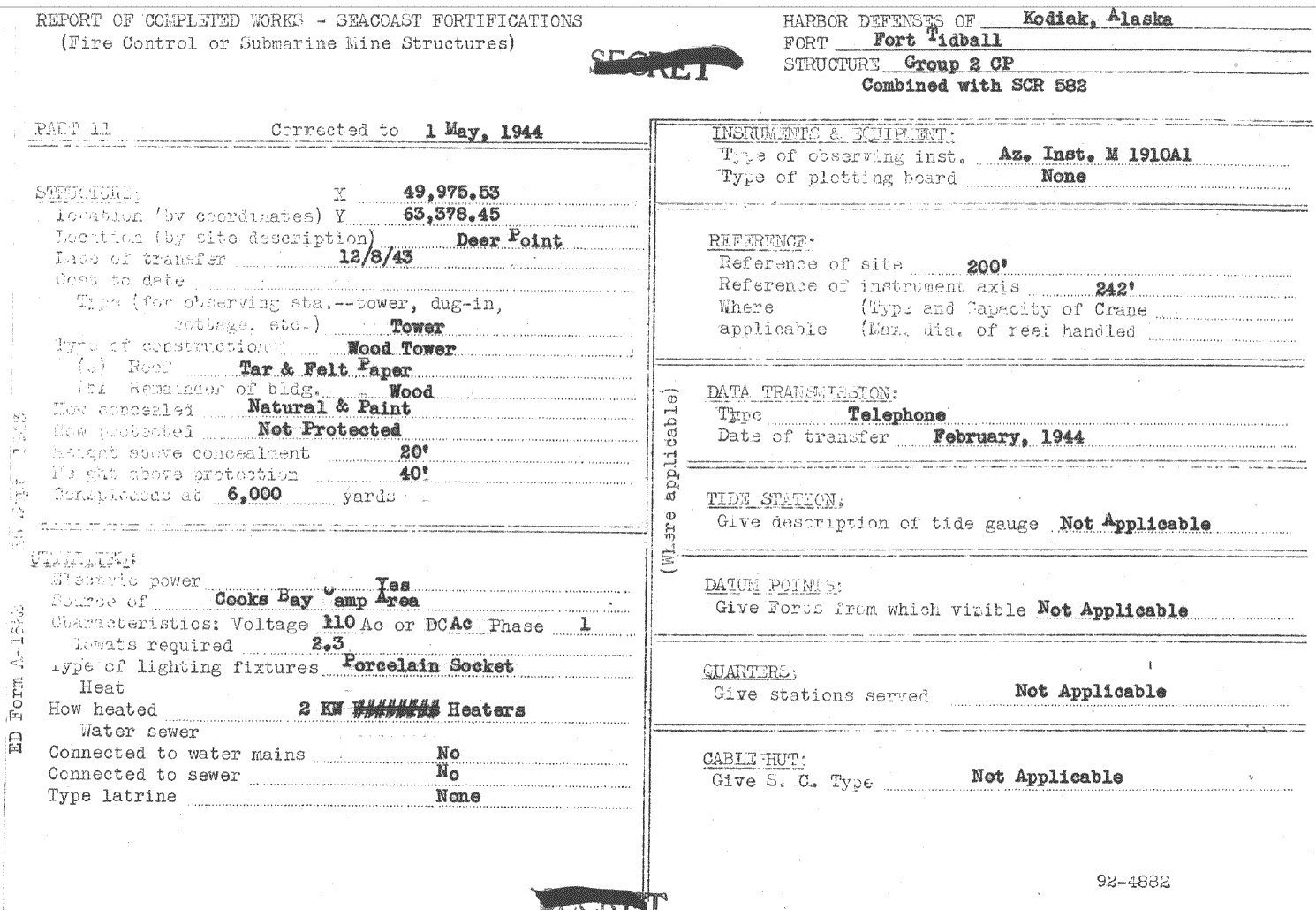

| Form 2, Group 2 CP | May 1, 1944 |

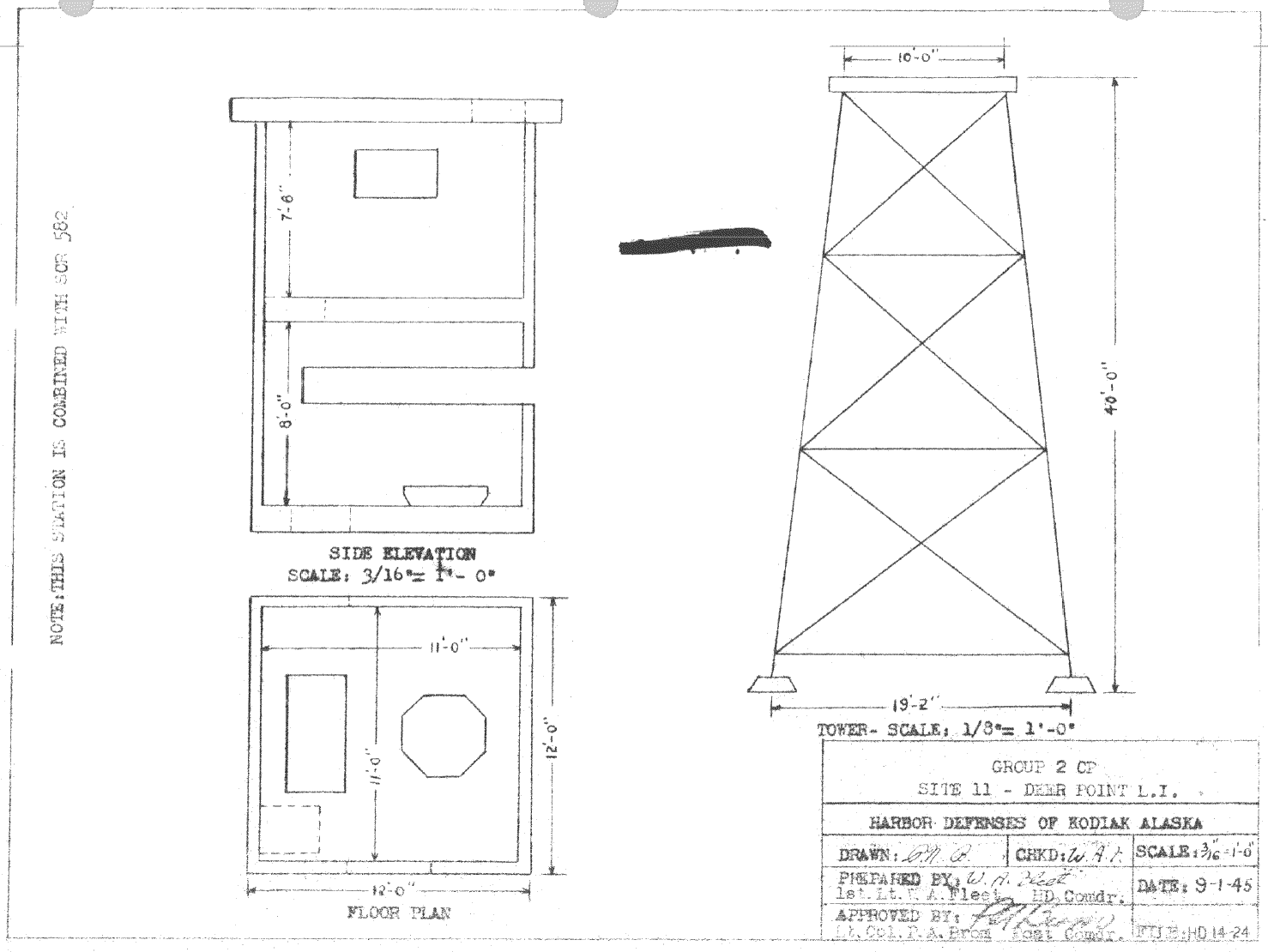

| Plan, Group 2 CP | September 1, 1945 |

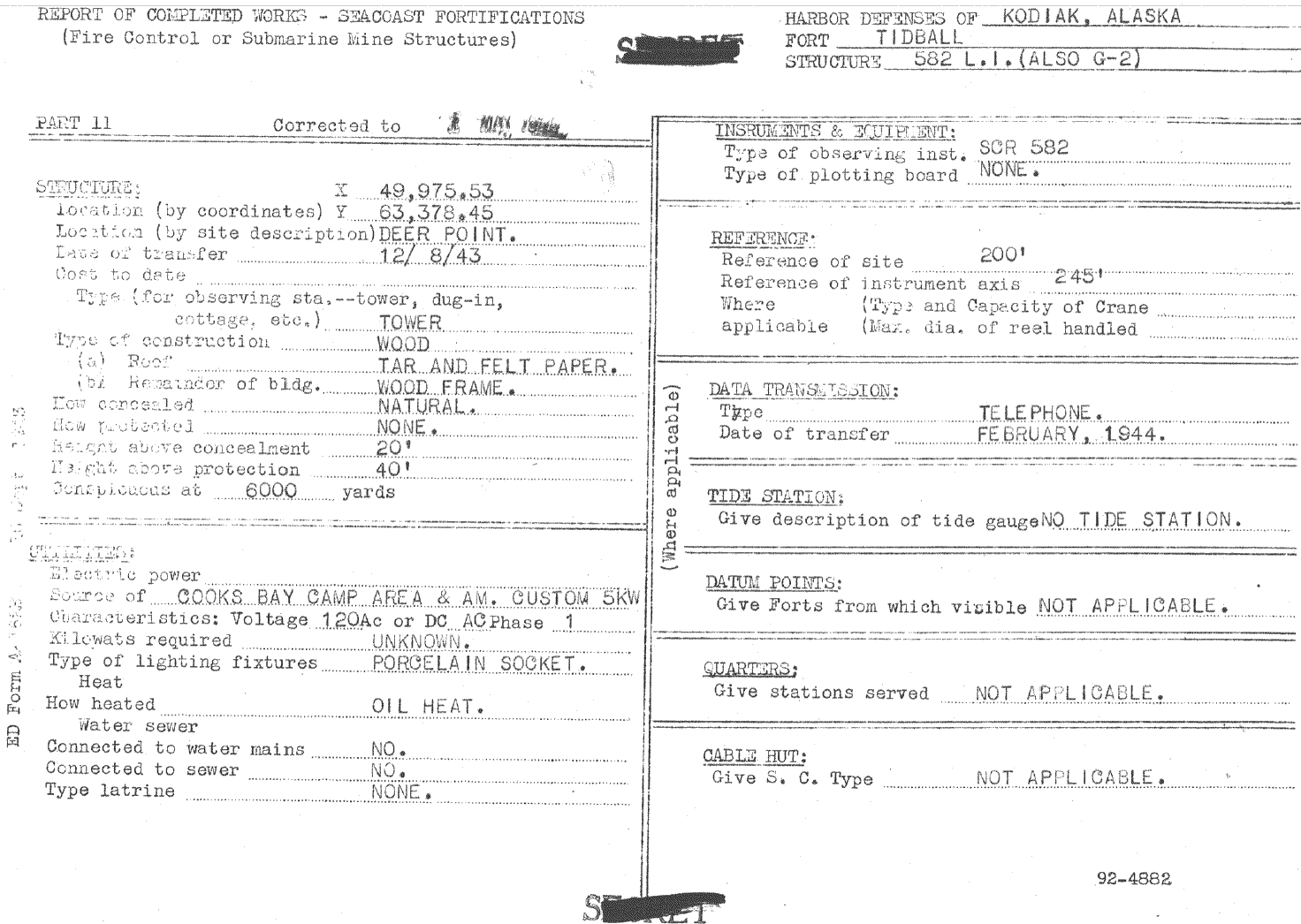

| Form 2, SCR-582 | May 1, 1944 |

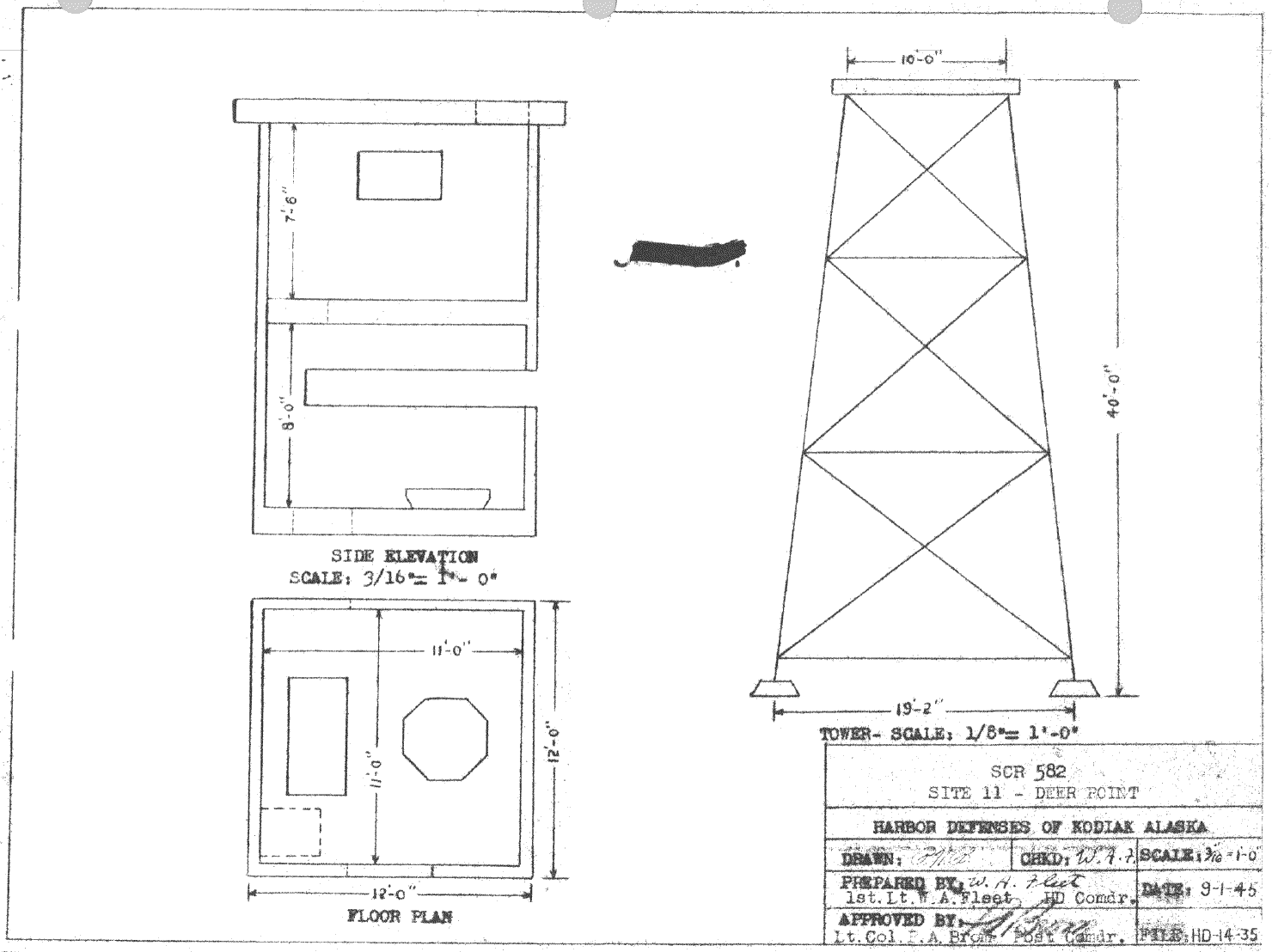

| Plan, SCR-582 | September 1, 1945 |

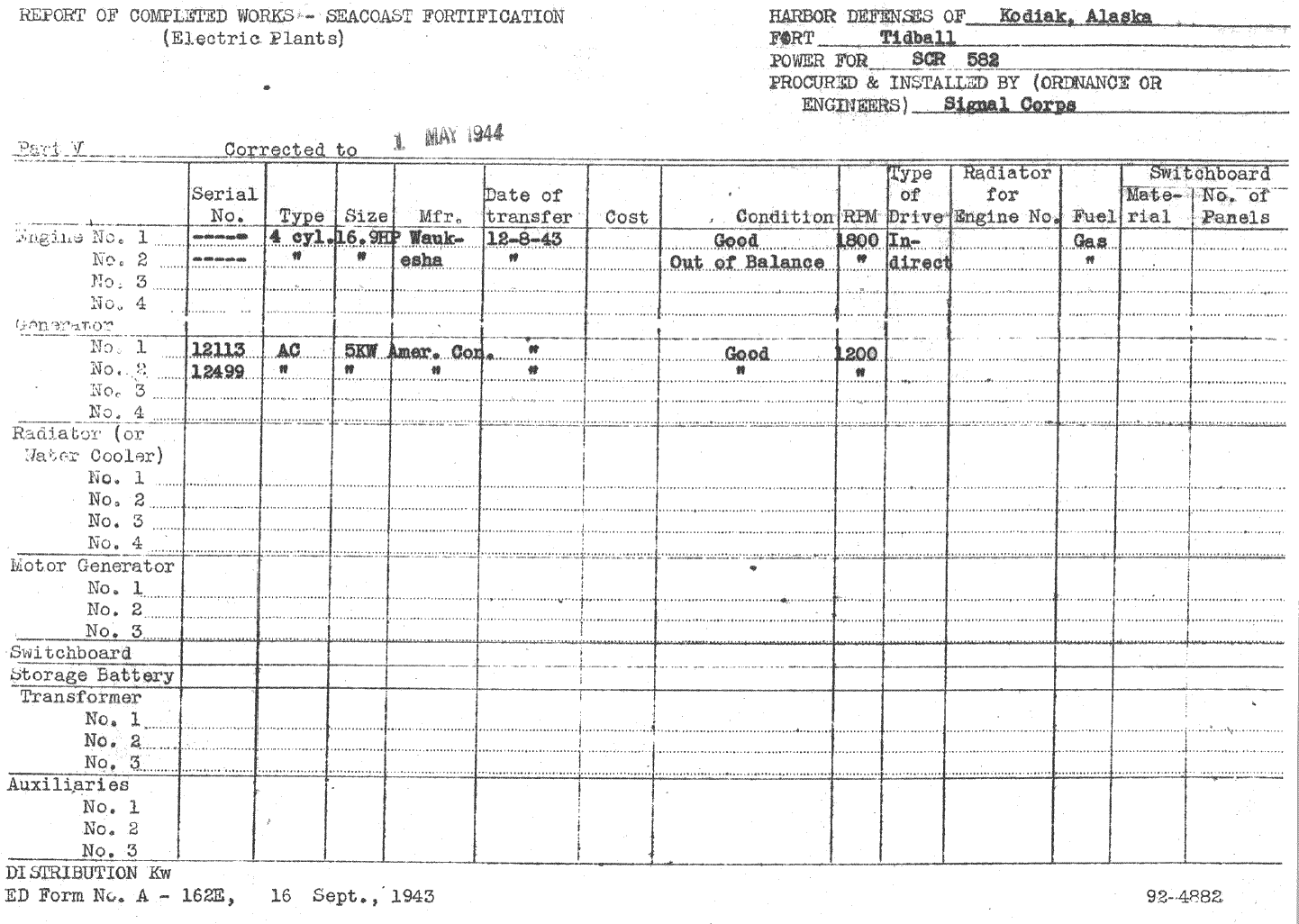

| Form 5, SCR-582 power plant | May 1, 1944 |

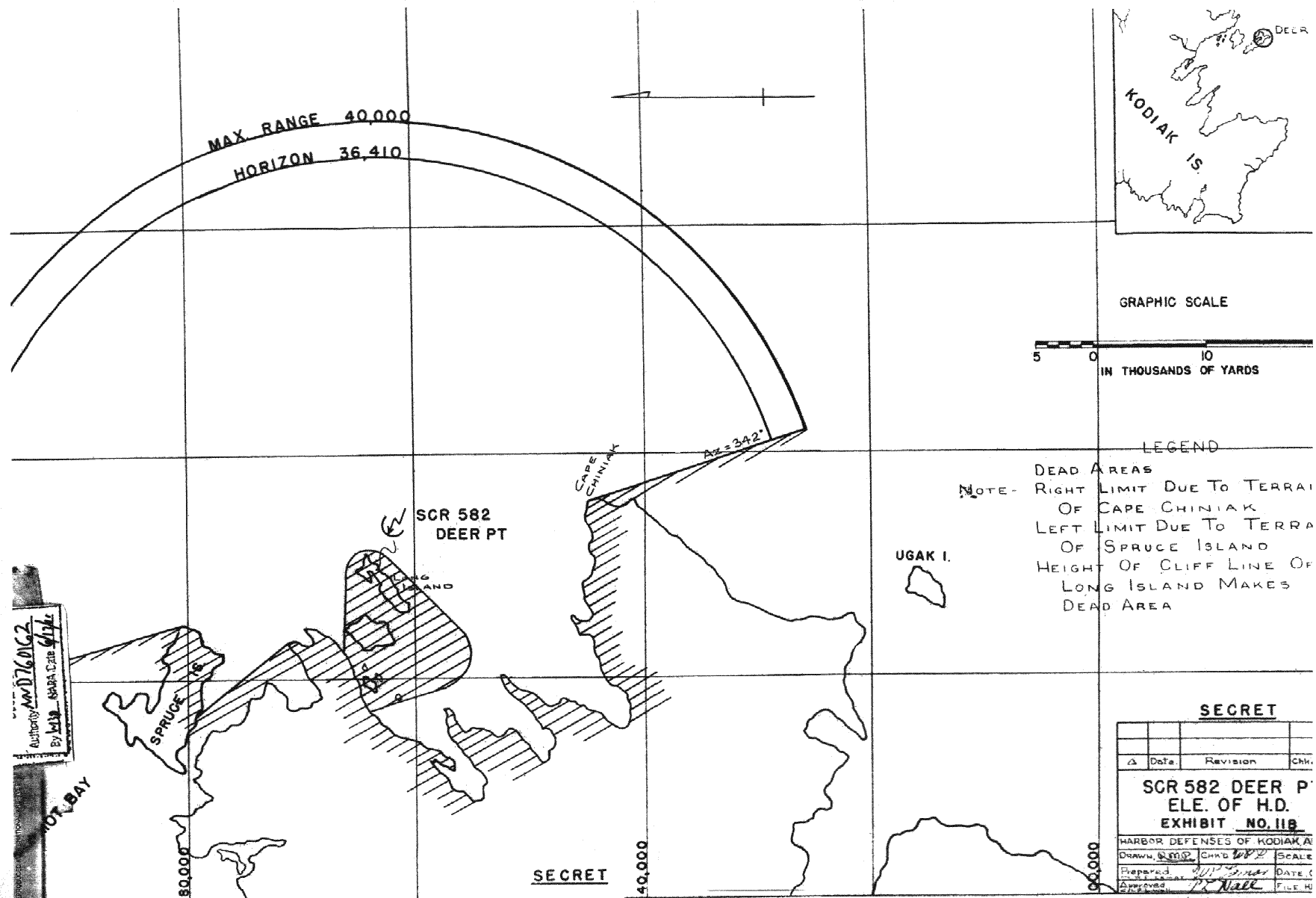

| SCR-582 Arc of Detection map | |
| Detail map of area. | September 1944 |
