Magazines
Battery Const. #404,
Fort Abercrombie, HD Kodiak
Home  |  Kodiak  |  Btry #404 Main


The layout of the central battery structure is based around a U-shaped main corridor, the center portion of which widens into a shell room. The shells were stored on raised concrete shelves to either side of the corridor. Powder charges were stored in a single large room next to the shell room. Other facilities included a small power room, a store room and a latrine.



Main Corridor and Shell room

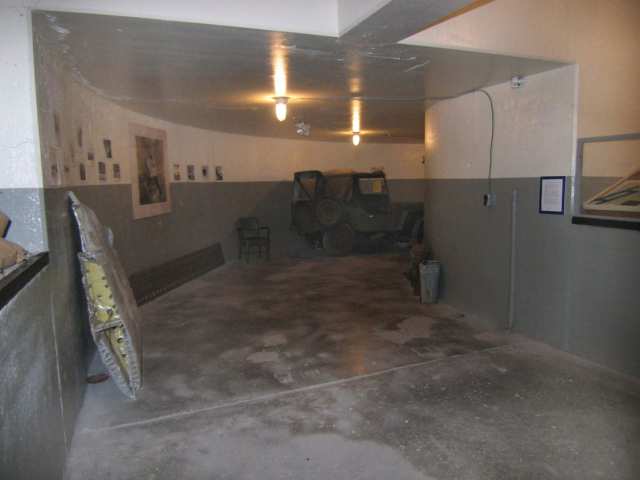

Looking northeast in the #2 side corridor.
August 2005
Looking southwest in the #2 side corridor. Powder room door on left.
August 2005

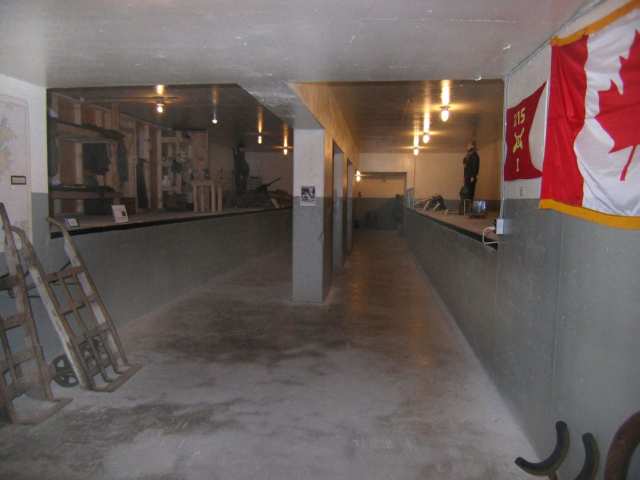

Looking into the shell room from the #2 side.
August 2005
Looking back along the #2 corridor from the shell room.
August 2005

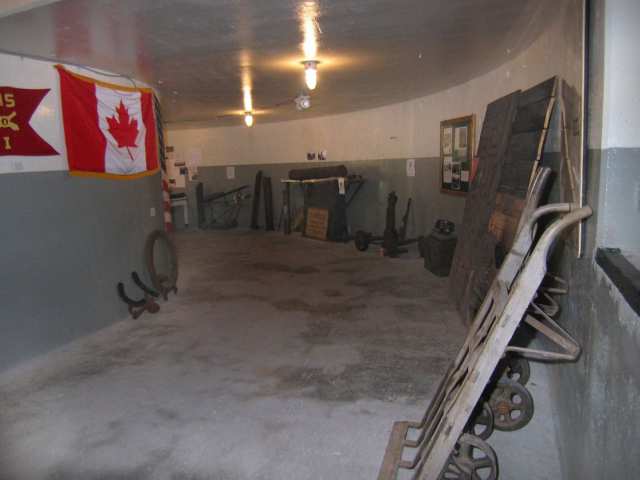

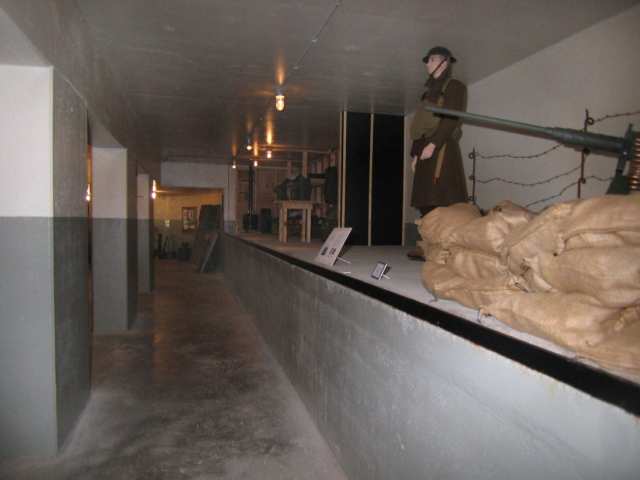

The southwest side of the shell room.
August 2005

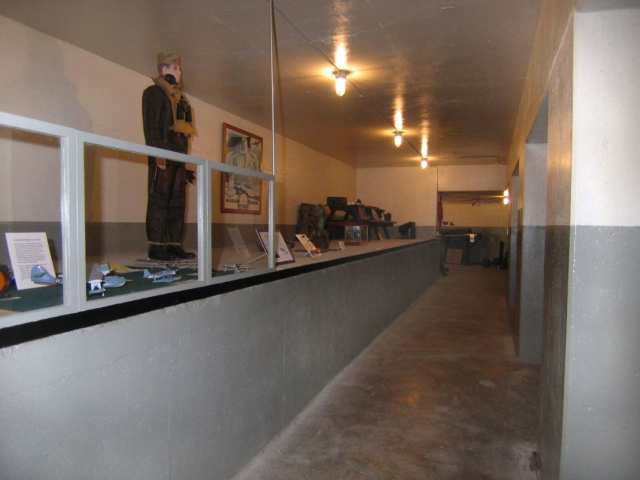

The northeast side of the shell room.
August 2005
Looking out of the shell room into the #1 side corridor.
August 2005
Looking north in to the shell room.
August 2005

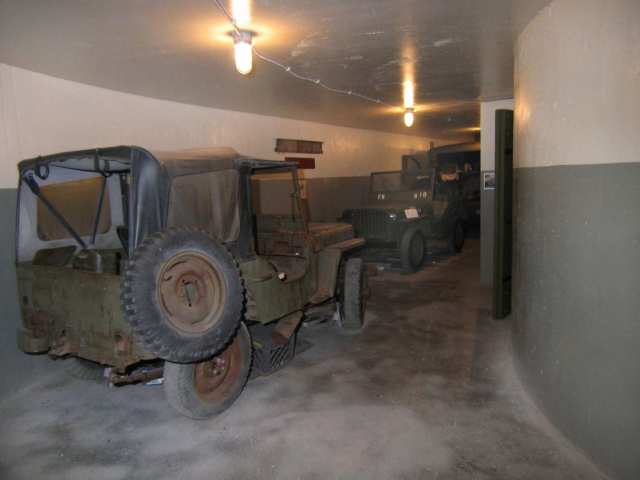

The #1 side corridor, looking south.
August 2005
Looking southwest in the #1 side corridor. Powder room door on right.
August 2005



Powder Room

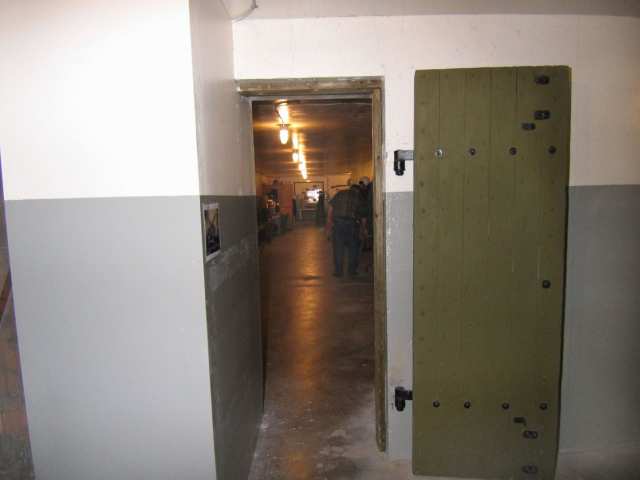

The #1 side door to the powder room has been narrowed to accommodate modern ventilation equipment.
August 2005

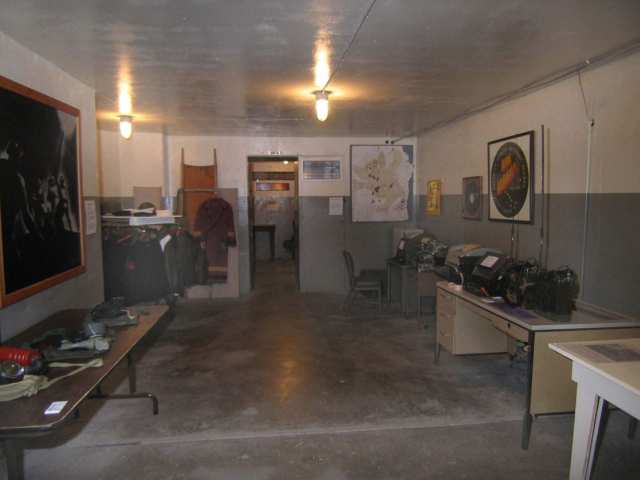

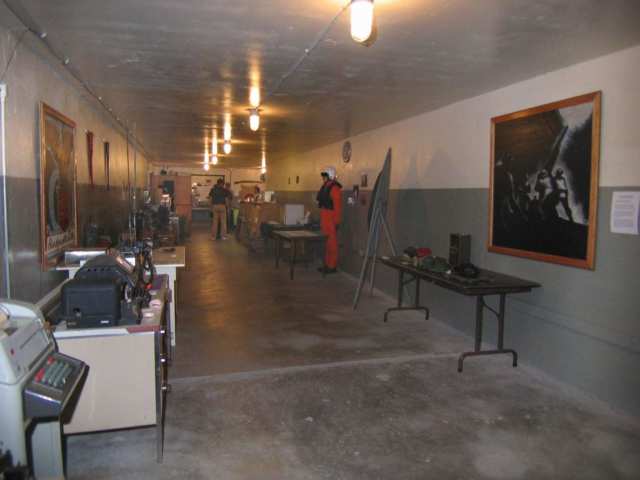

Looking northwest in the powder room.
August 2005
The southeast (#1) end of the powder room.
August 2005



Store Room and Display Items

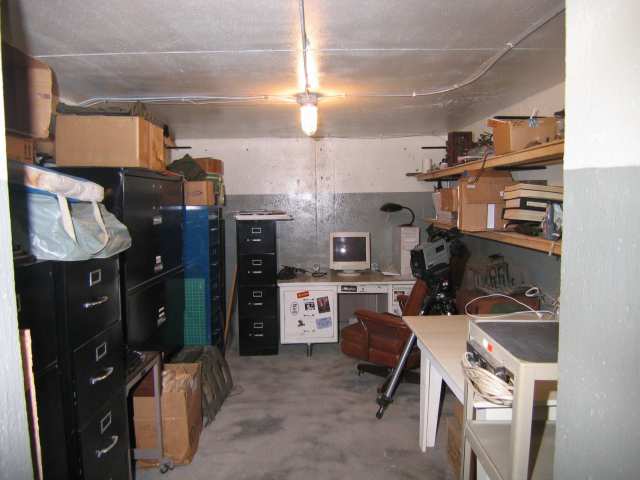

The store room is now used as an office.
August 2005

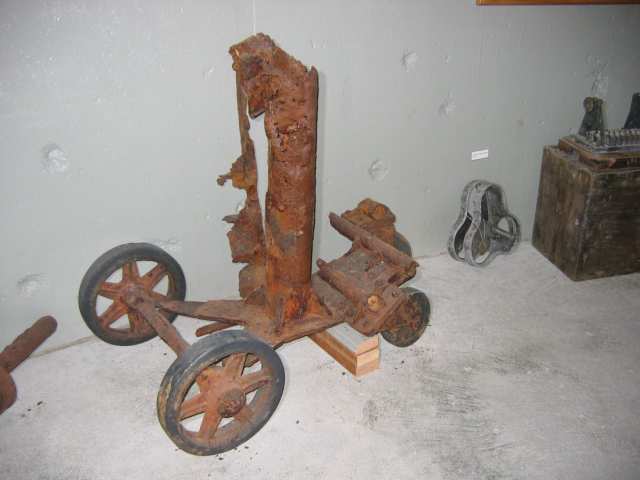

The remains of this 8-inch ammunition cart were recovered from the Isadora Island Magazine Complex.
August 2005

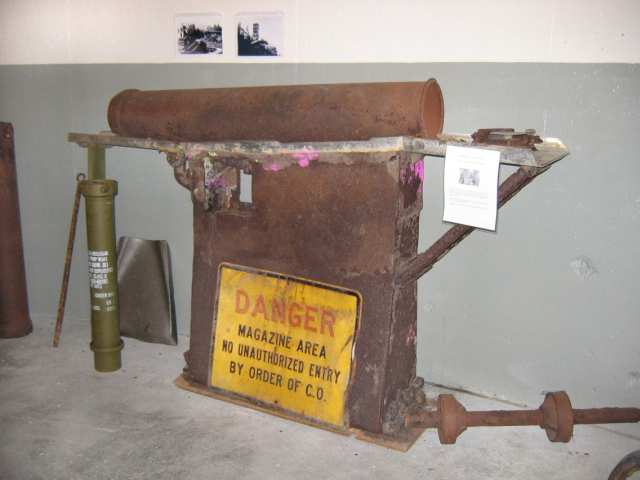

The loading stand for an 8-inch gun, recovered from Battery Const. #403.
August 2005

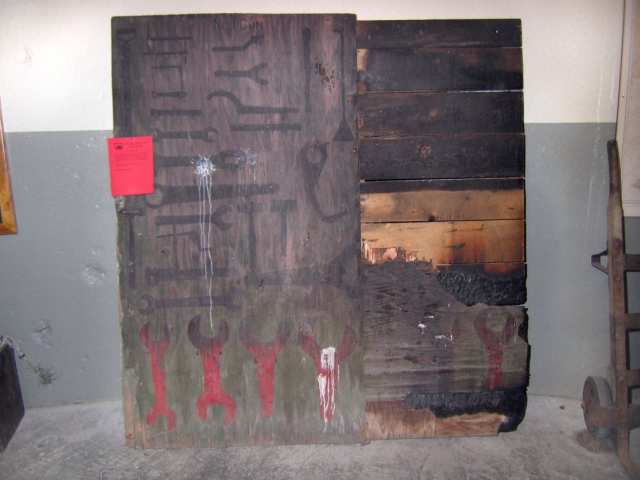

Remains of a tool bord, also recovered from Battery Const. #403.
August 2005

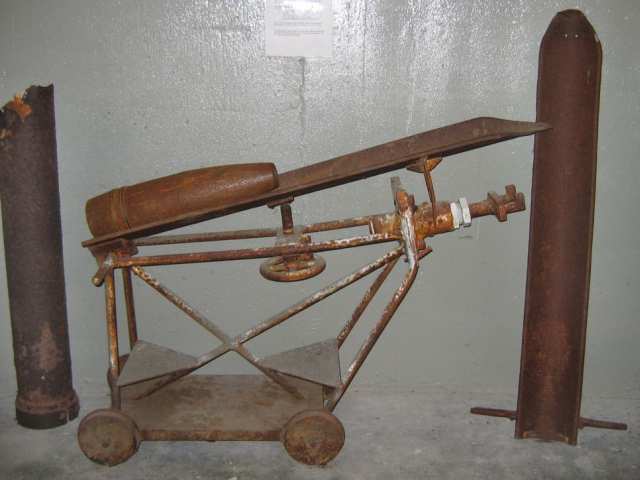

A 6-inch shell cart recovered from Battery Const. #296.
August 2005
