SCR-296 Site
Fort Schwatka, HD Dutch Harbor
Home  |  Dutch Harbor

The SCR-296 radar installation that provided targeting information to Battery Const. #402 was located approximately 500 feet southeast of the gun battery. Structures at the site included a platform were the antenna was mounted without a tower, a standard Signal Corps transmitter building and two small power plants of a nonstandard type.

A system of wooden tunnels connected the transmitter building with the Battery Command station and the Plotting room. All but a small section of the tunnel has collapsed.

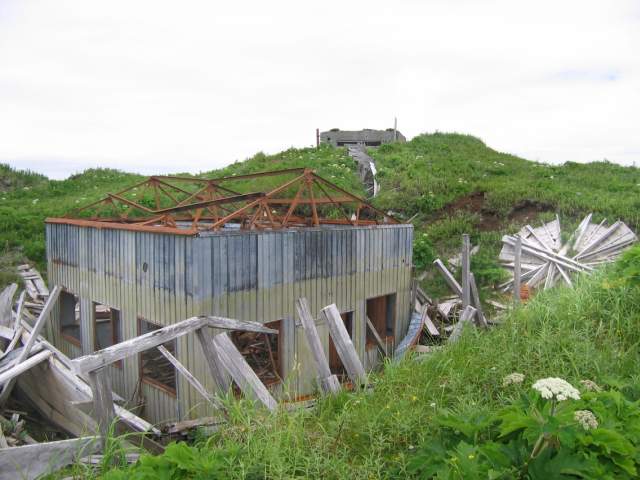

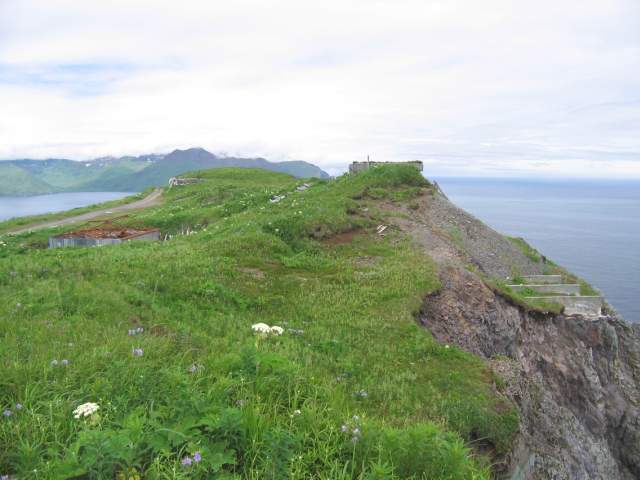

Looking northwest at the radar site. Antenna platform at right, transmitter building at left and BC station center.
July 2004

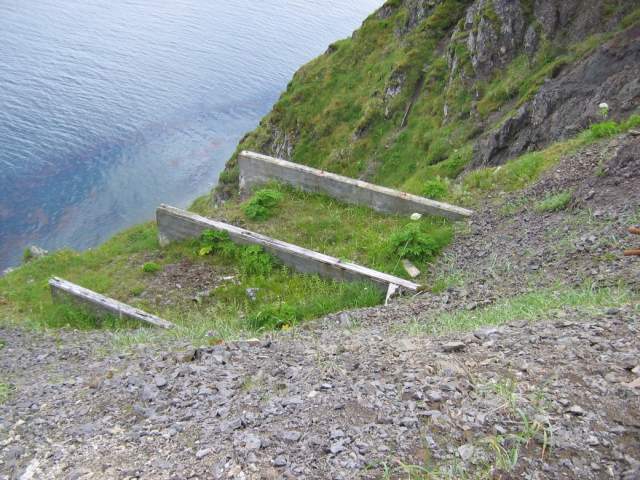

The antenna platform foundations.
July 2004

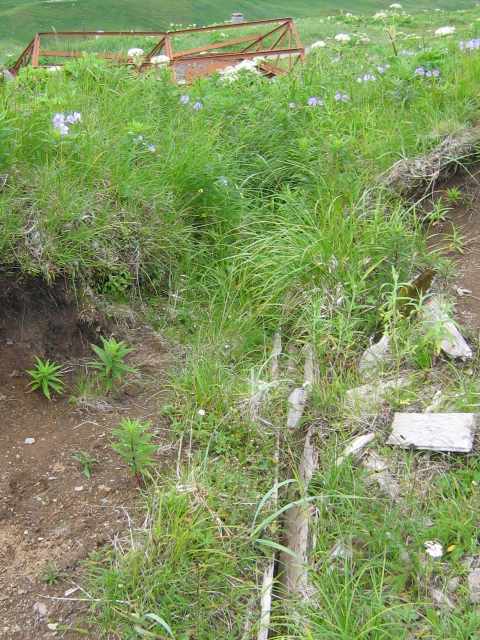

Wood lined cable trench from antenna to transmitter building.
July 2004

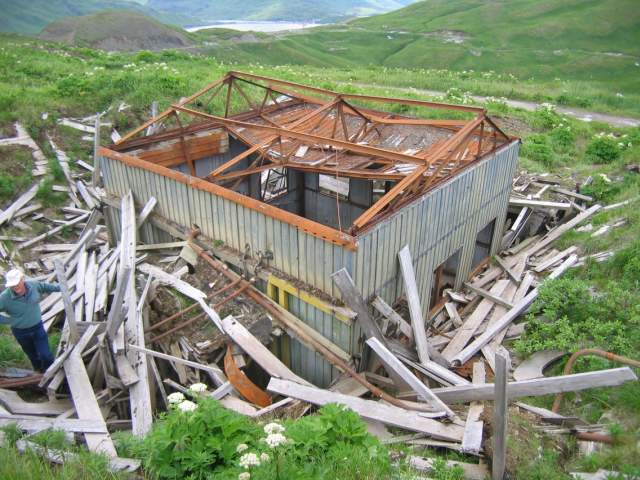

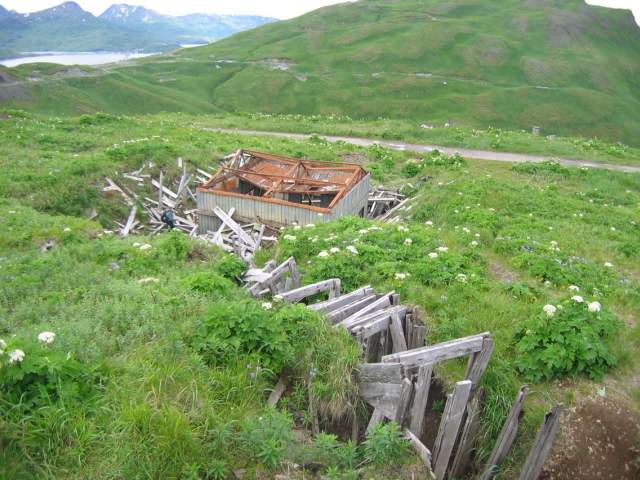

Looking down at the transmitter building from the BC station.
July 2004



Transmitter building

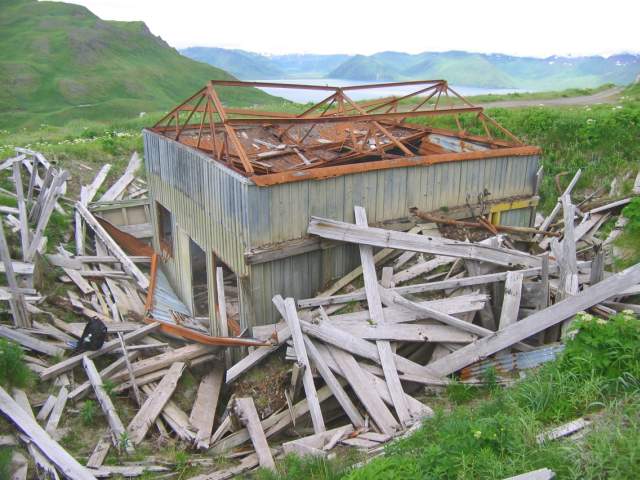

Looking west at the transmitter building.
July 2004
The transmitter building, looking south.
July 2004
The transmitter building, looking east.
July 2004

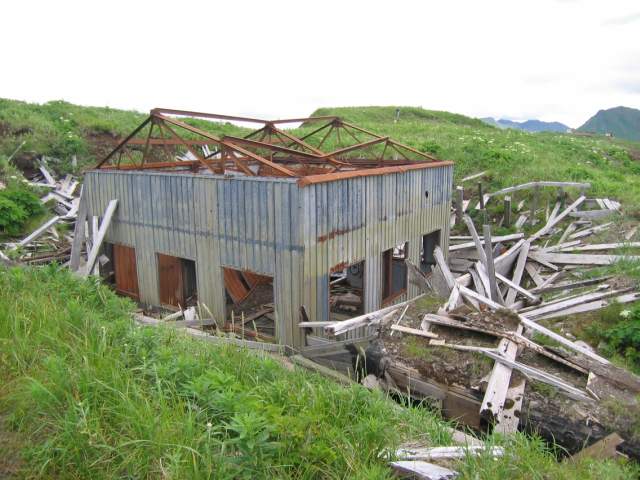

Looking north at the transmitter building.
July 2004

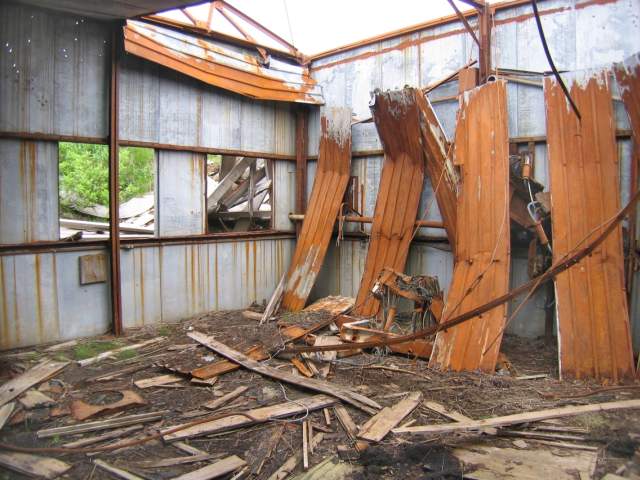

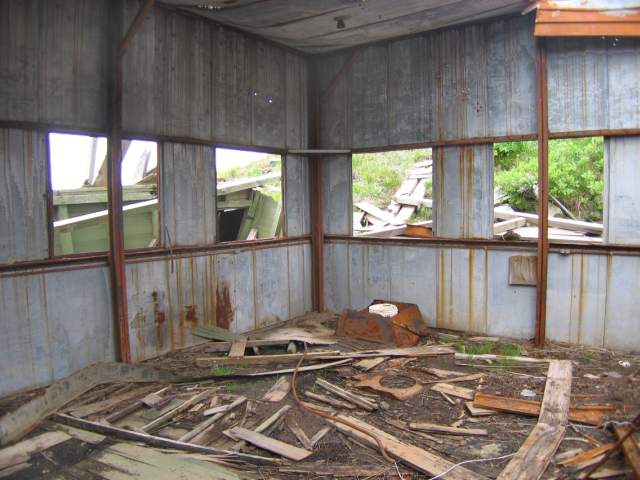

Inside the transmitter building, looking south.
July 2004
The west corner of the transmitter building.
July 2004

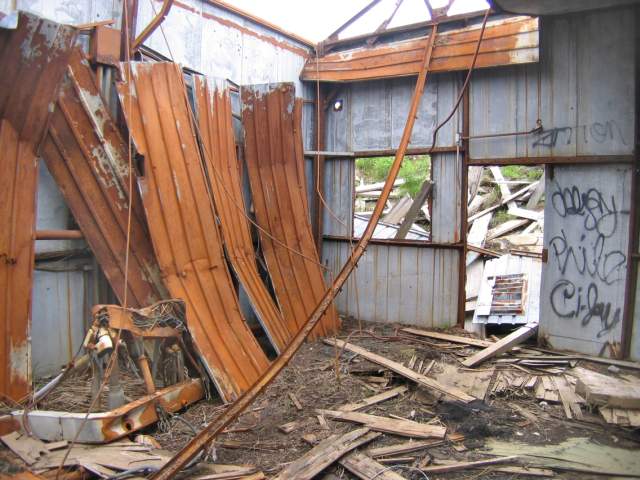

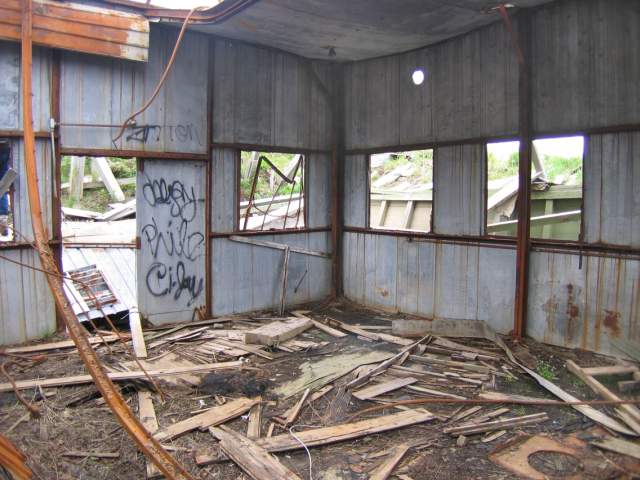

Looking north in the transmitter building.
July 2004
The transmitter building, looking east.
July 2004

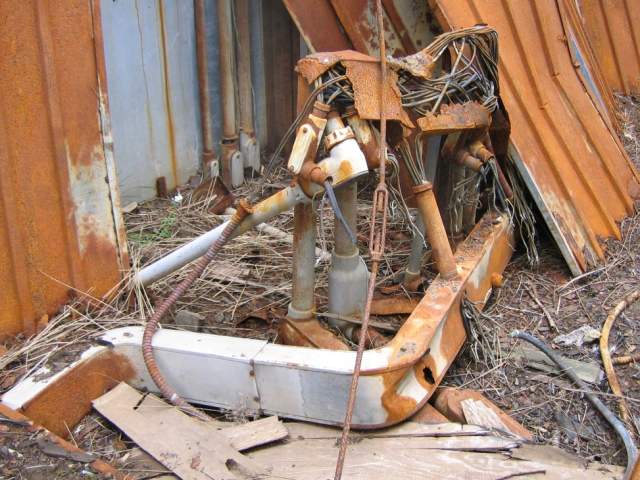

Detail of old electrical equipment in the transmitter building.
July 2004

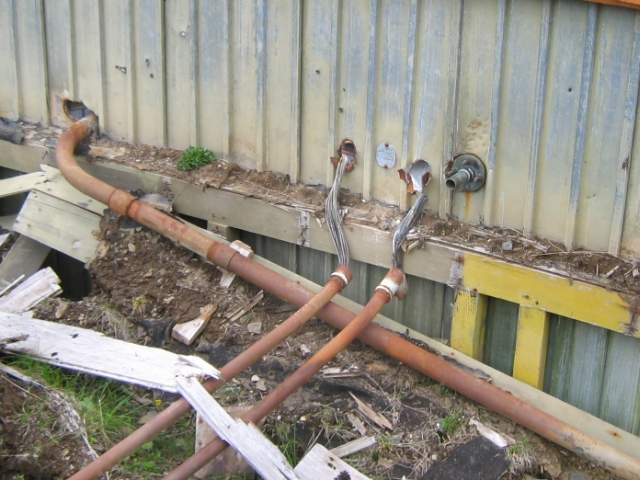

Detail of antenna cables entering the transmitter building.
July 2004



Power plants and tunnel segment

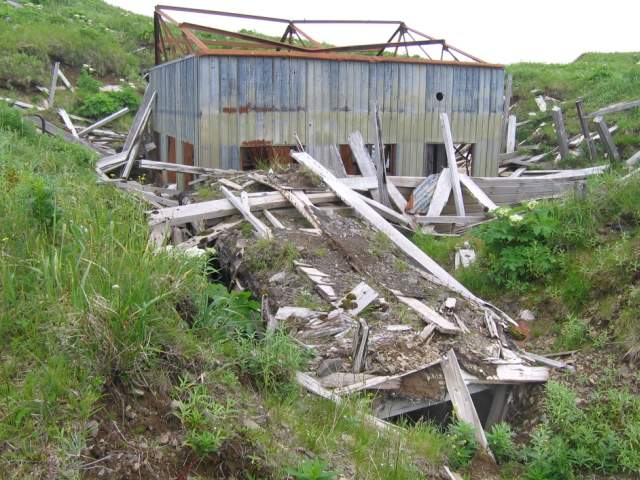

Partly collapsed tunnel segment.
July 2004

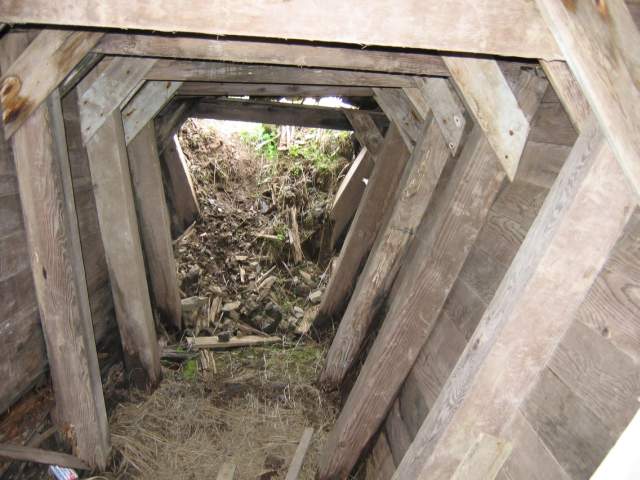

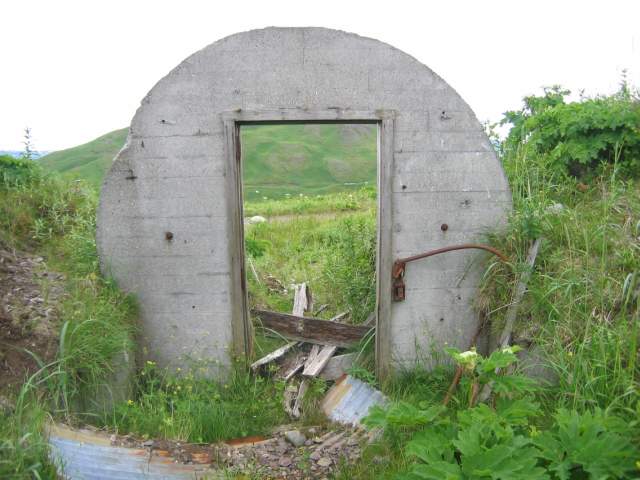

Looking into the tunnel segment.
July 2004
Looking east at the north power plant, BC station to rear.
July 2004
The north power plant, looking southeast.
July 2004

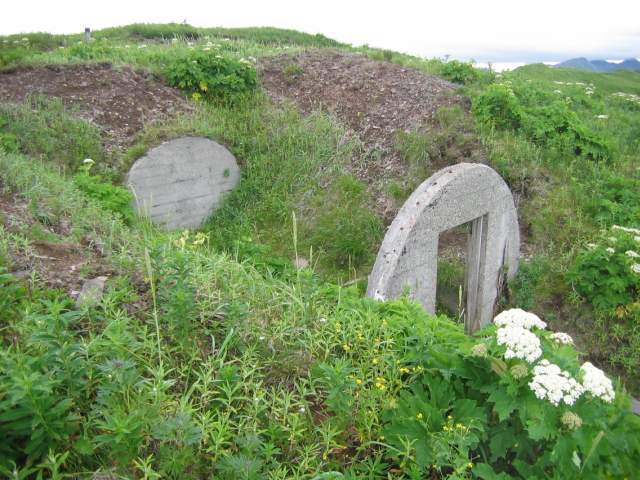

The south power plant, looking east.
July 2004
Looking southwest out of the south power pant.
July 2004






Documents
Form 2August 1, 1944

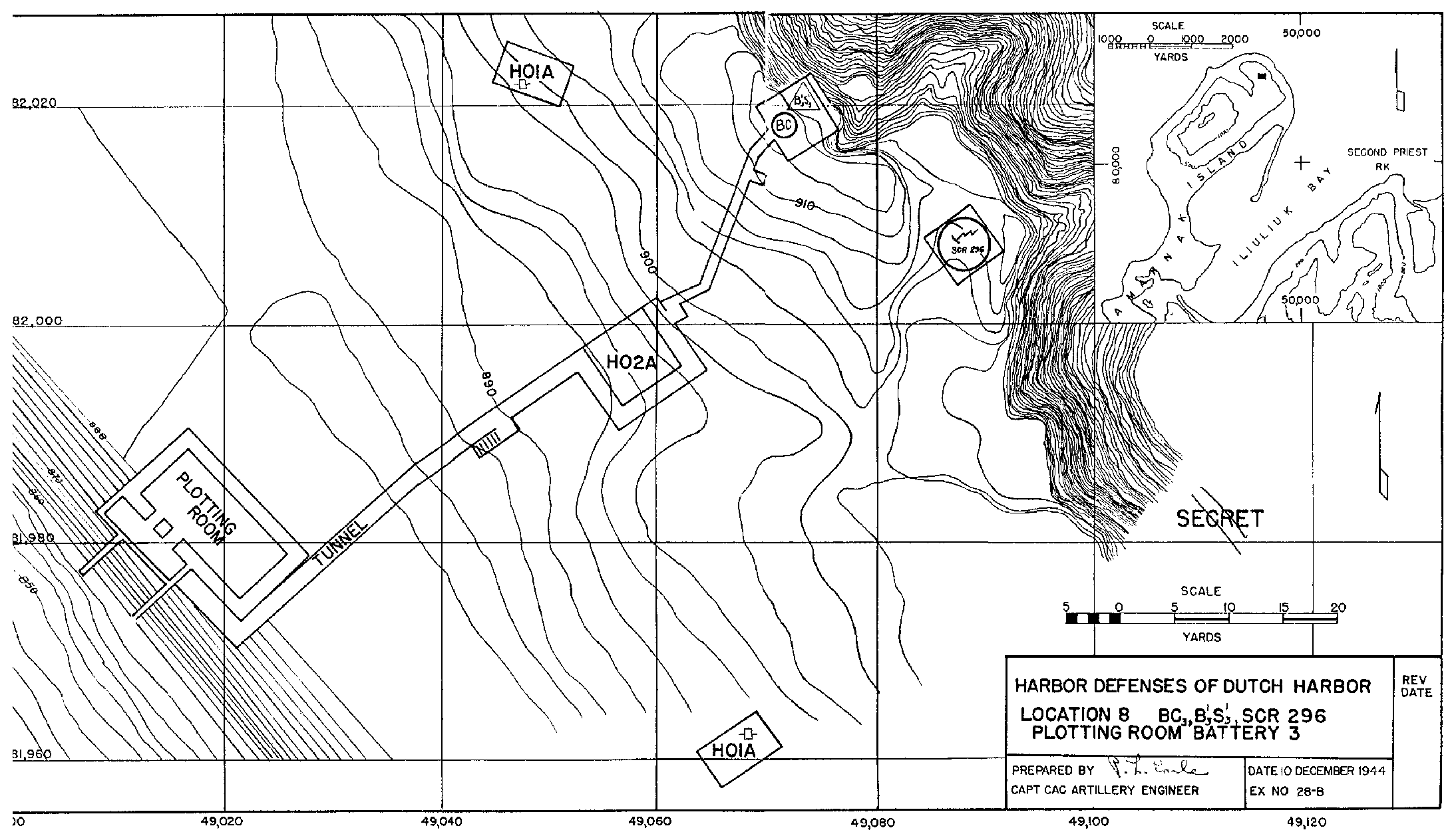

Detail map of area.December 10, 1944

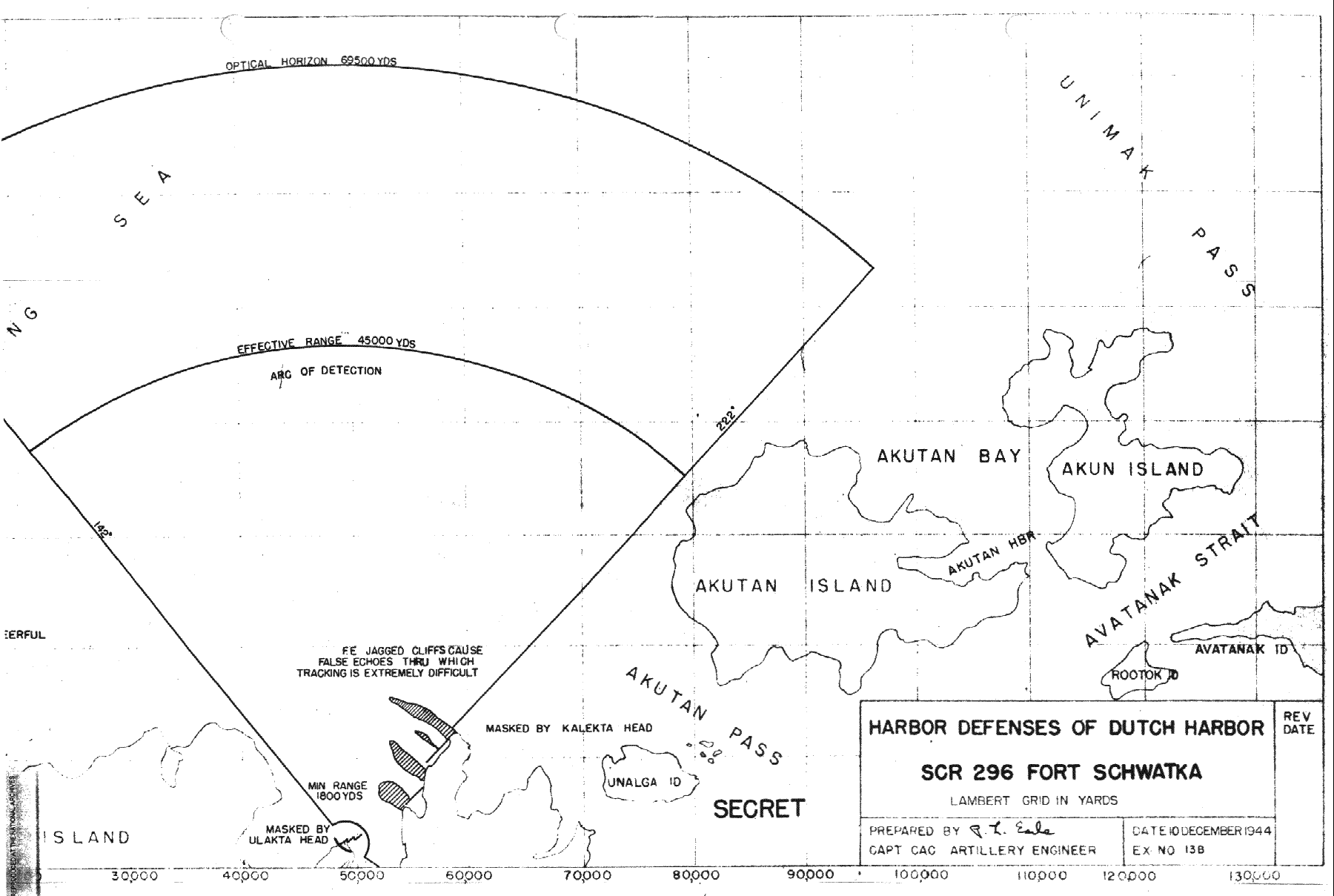

Arc of Detection.December 10, 1944
