Battery Const. #402
Fort Schwatka, HD Dutch Harbor
Home  |  Dutch Harbor


Located nearly 900 feet above the waters of Unalaska Bay, Battery Const. #402 was equipped with a pair of 8-inch navy guns on barbette carriages. The battery structure consists of two gun positions and a central magazine complex with a power plant, latrine and ammunition storage spaces.

Located near the #1 magazine entrance are two rooms which don't appear on some floor plans. One of these was used as crew quarters, while the purpose of the other is unknown.

Gun positions
Magazines
Plotting room
BC station

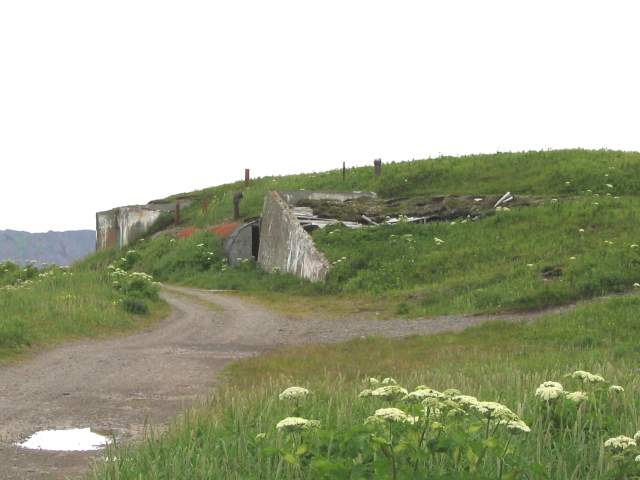

Looking southeast at the battery.
July 2004
Looking northwest at the rear of the battery.
July 2004

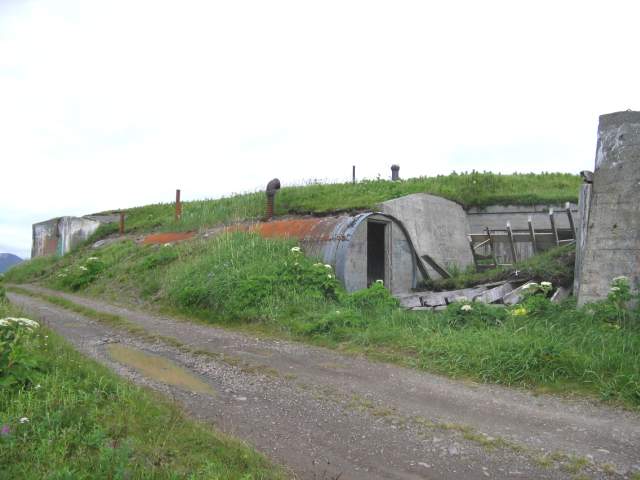

The crew quarters and #1 magazine entrance.
July 2004

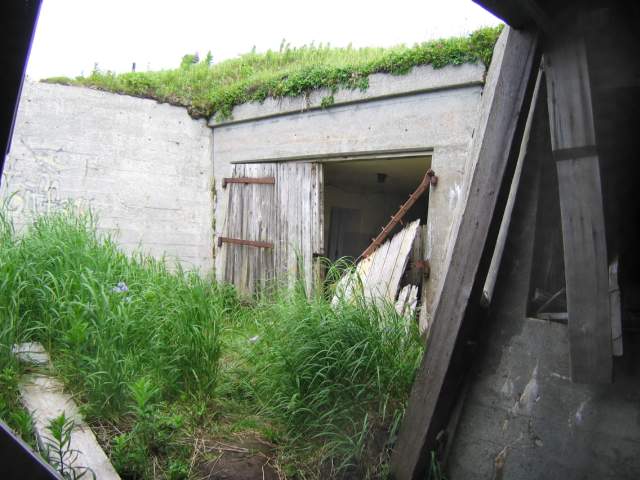

The #1 door to the magazines.
July 2004
Looking northeast at the #1 entrance area.
July 2004

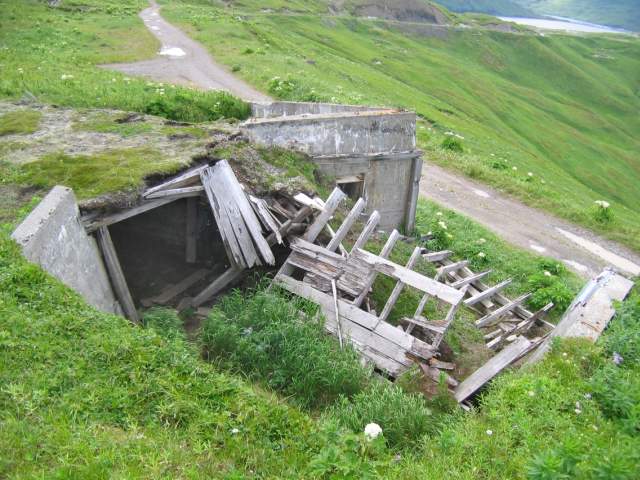

Looking down from above the #1 entrance. Tunnel to the gun position at left.
July 2004
Looking west at the unknown room.
July 2004

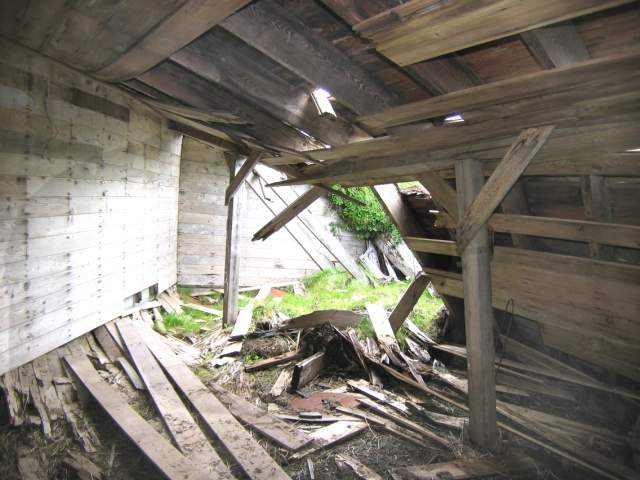

Inside the unknown room.
July 2004
The northwest side of the unknown room.
July 2004
In the #1 tunnel, looking at an outside wall of the unknown room.
July 2004

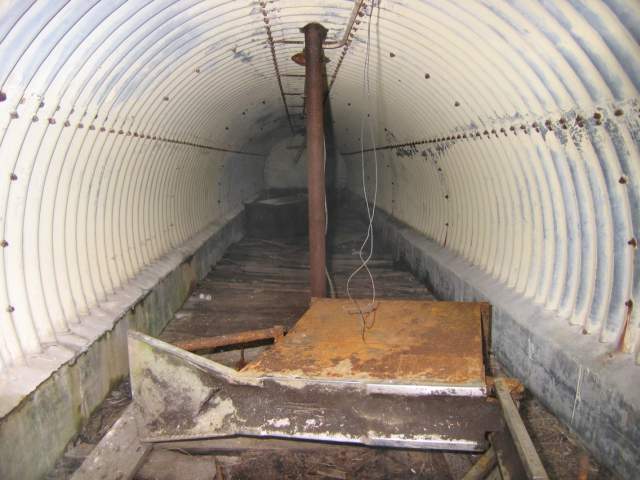

Inside the crew quarters, looking northwest.
July 2004

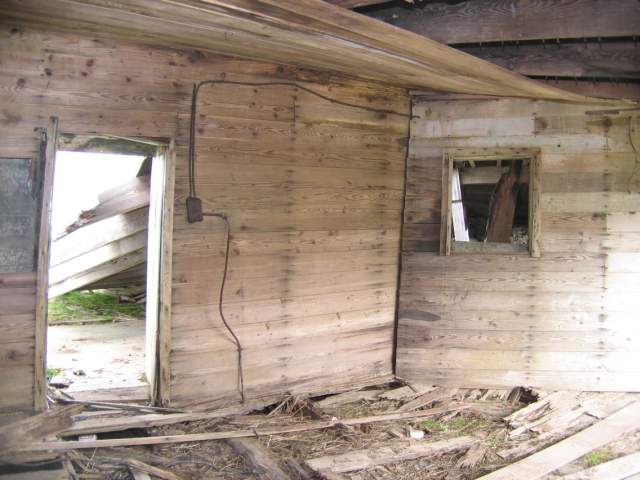

Looking back out of the crew quarters.
July 2004

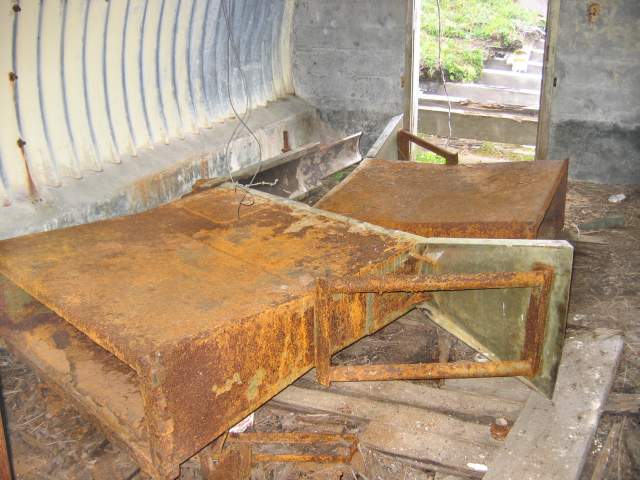

Detail of loading stands taken from the gun carriages.
July 2004

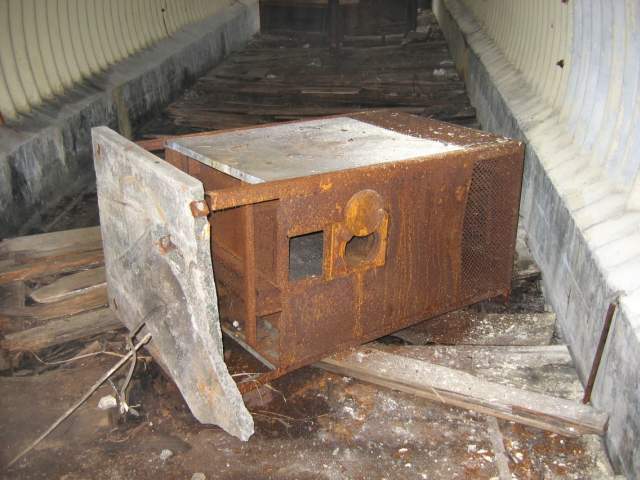

Detail of old heater in the crew quarters.
July 2004







Documents
Form 1August 1, 1944
Form 5August 1, 1944
Form 7November 8, 1944
Arc of fire mapDecember 10, 1944
Description of fire control1944
Tabulation of fire control1944
Fire control chartDecember 10, 1944
Plot planDecember 10, 1944
As built drawing Note: modified from the originalJune 12, 1945
