The power plant is located on the east side of the center corridor and consists of the power room, water cooler room and the muffler gallery. The power room would have held three 125 KVA diesel generators and associated equipment. The water cooler room housed the radiators used to cool the generators. The muffler gallery contained exhaust pipes and mufflers for the power room equipment.




Power Room

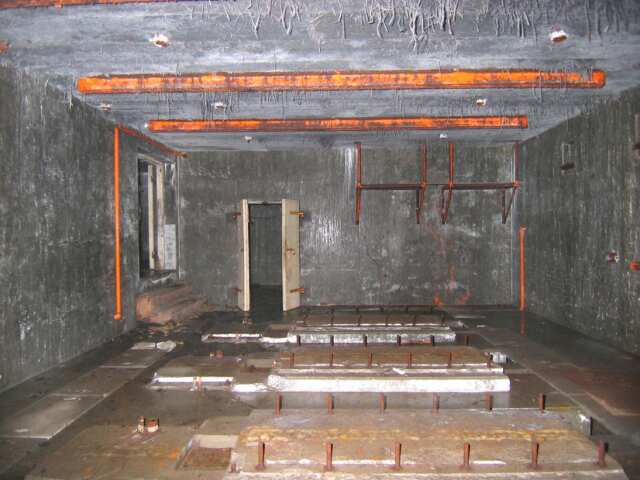

Looking southeast in the power room.
July 2004

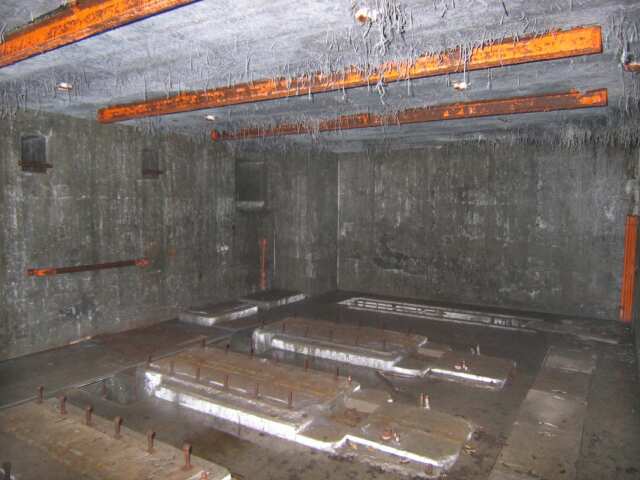

The power room looking north.
July 2004
Detail of conduits in the southwest corner.
July 2004

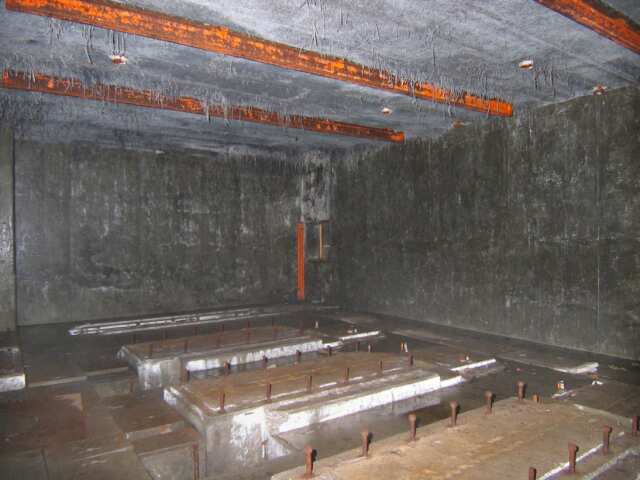

Looking southwest in the power room.
July 2004

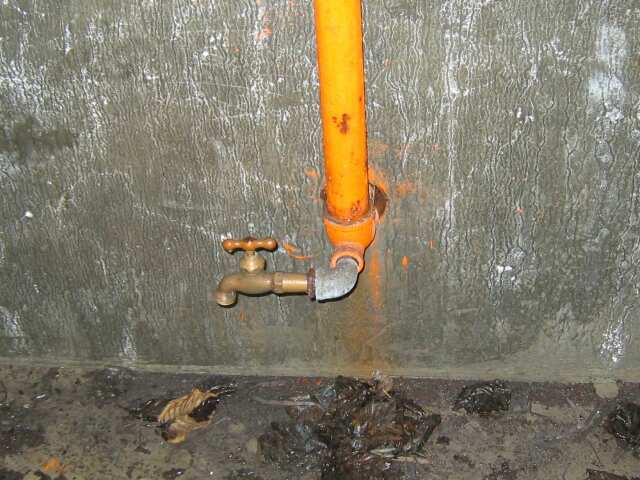

Detail of water faucet near the power room door.
July 2004
Detail of conduits under the power distribution equipment.
July 2004



Water Cooler Room

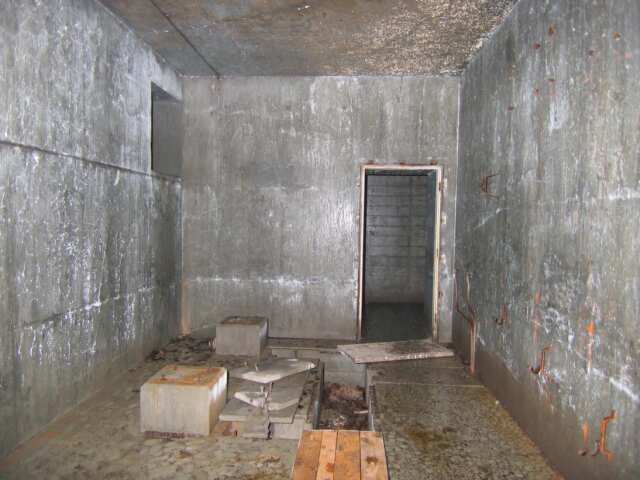

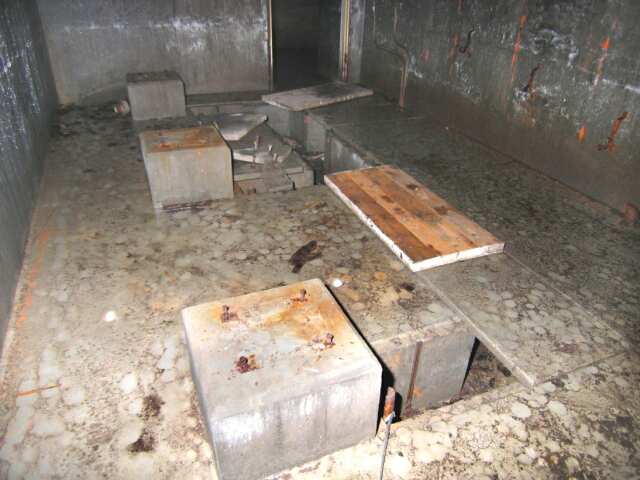

Looking east.
July 2004

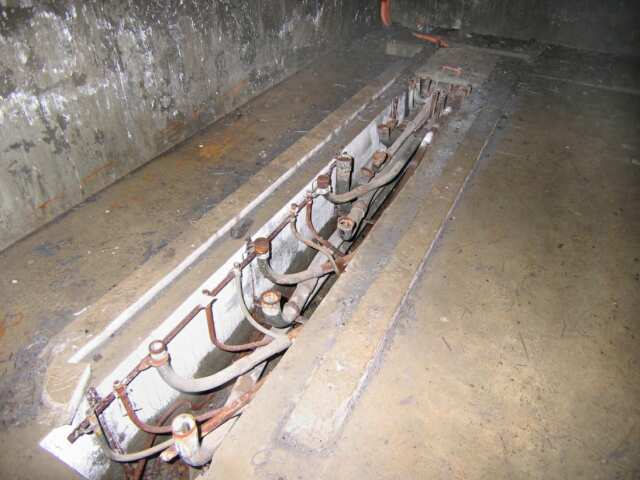

Detail of cable trenches.
July 2004

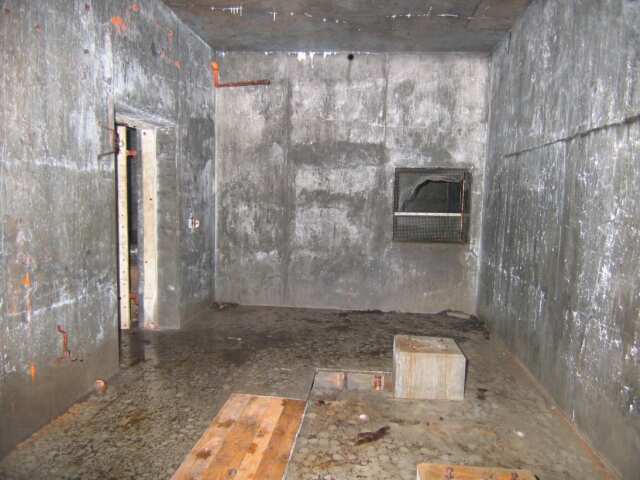

Looking west.
July 2004



Muffler Gallery

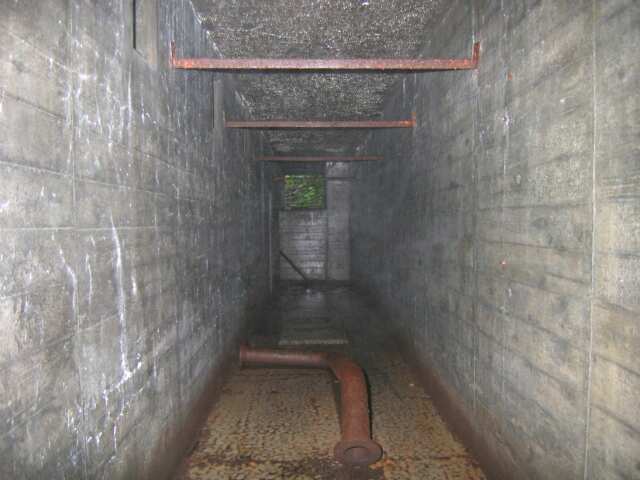

Looking north in the muffler gallery.
July 2004

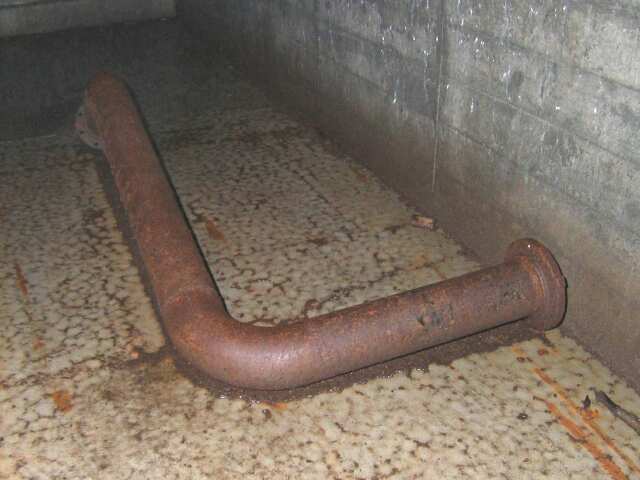

Detail exhaust pipe segment.
July 2004

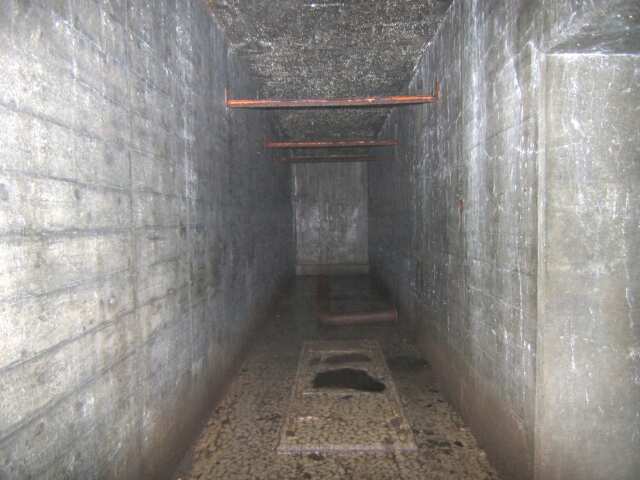

Looking south in the muffler gallery.
July 2004
