Battery #131 Power room
Camp Hayden, HD Puget Sound
A.M.T.B. btry Ft. Flagler.

The power room area actually consists of seven different rooms including; a latrine, two dehumidification rooms, an auxiliary generator room, a water cooler room, a work room and the power room proper. There are also a pair of vent tunnels, one for the generator exhaust (the muffler gallery) and one for the water cooler room.

The floor level in the power room is four feet lower than in the front corridor, so the ceiling height is 12 and a half feet rather than the 8 and a half that the rooms off the front corridor are built to.


Main battery #131 page


Floor plan of battery #131.

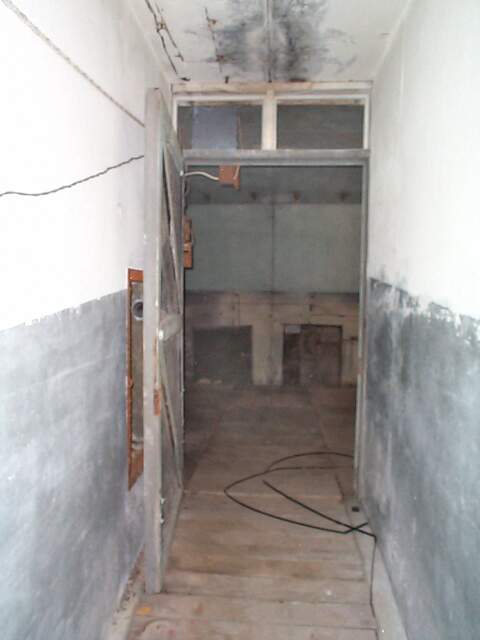

The door to the power room from the front corridor.
Looking the other way at the door from the power room to the front corridor.



Power room
The power room held three 375 KVA diesel generating units and a 2-ton traveling crane.

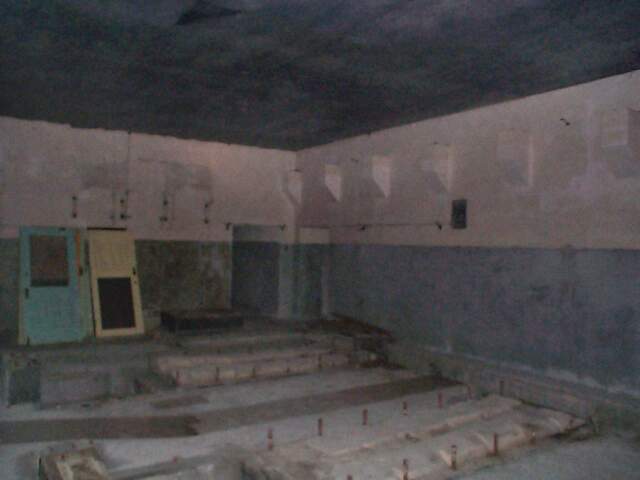

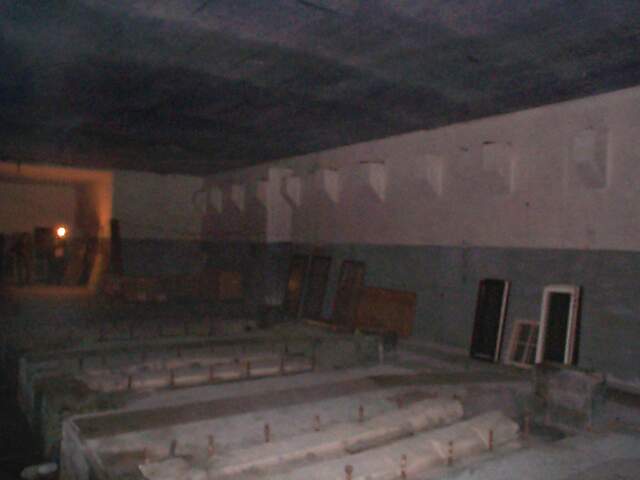

Looking southeast in the power room.

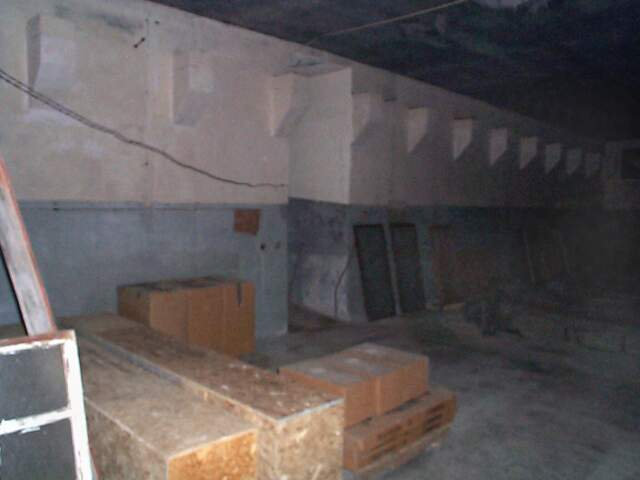

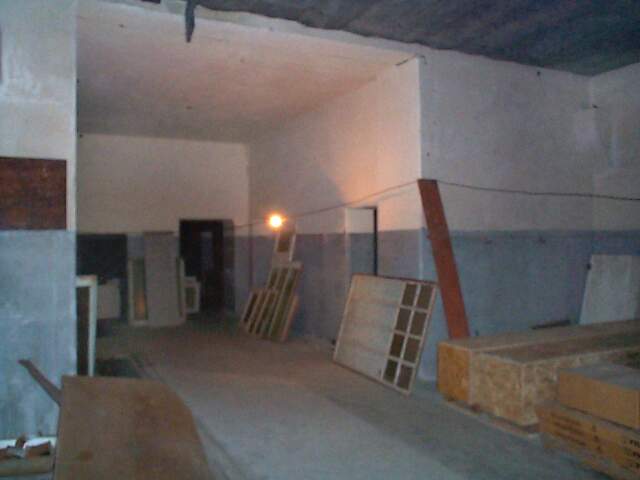

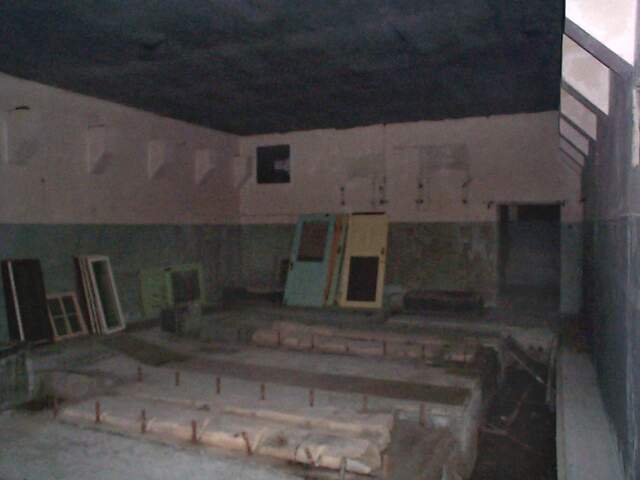

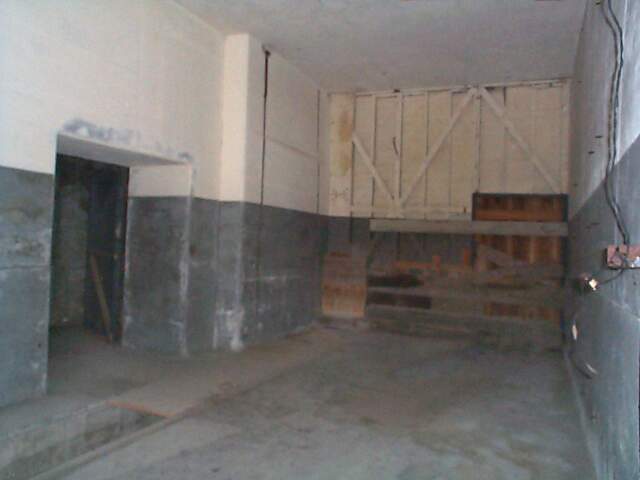

Looking northwest in the power room.

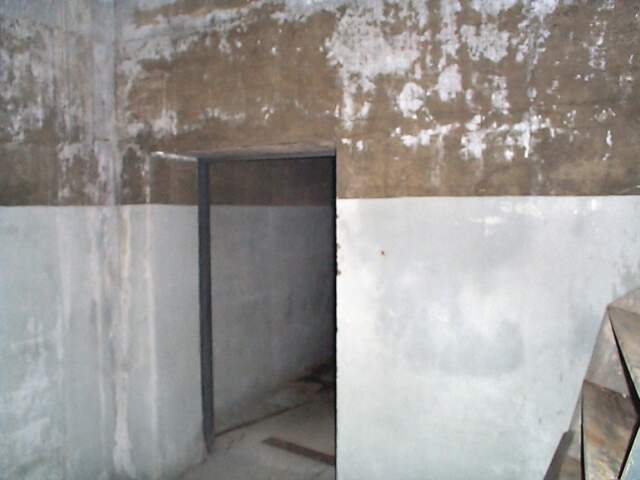

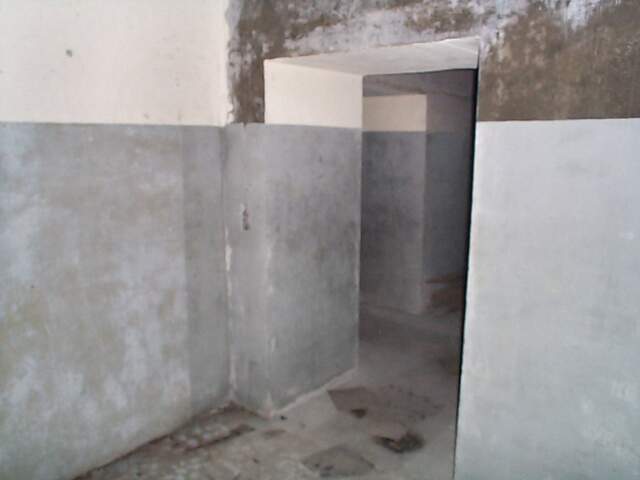

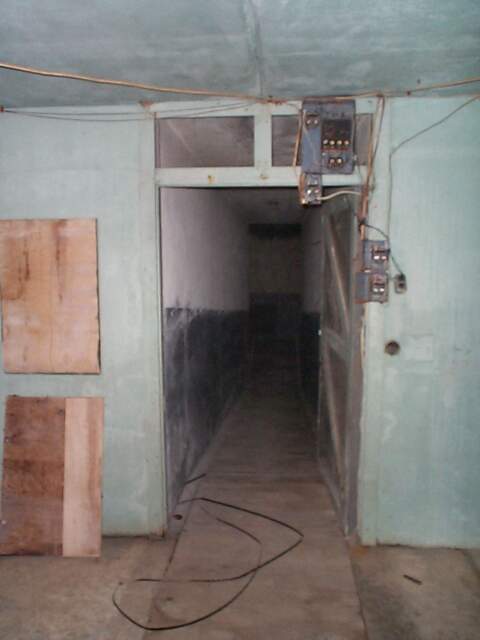

The passage to the front corridor, looking north.
Looking west from the power room towards the water cooler room.

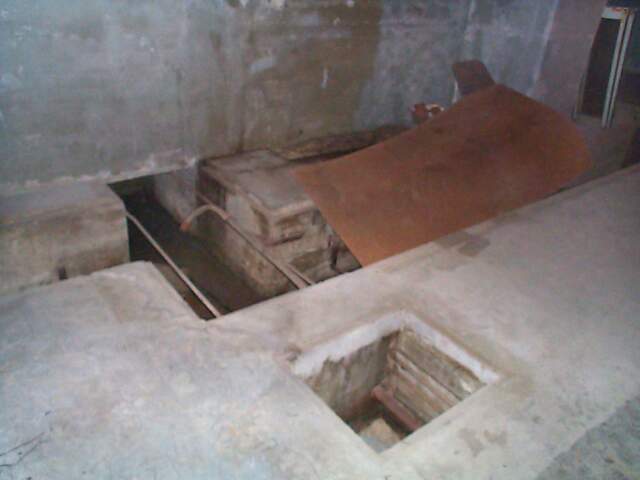

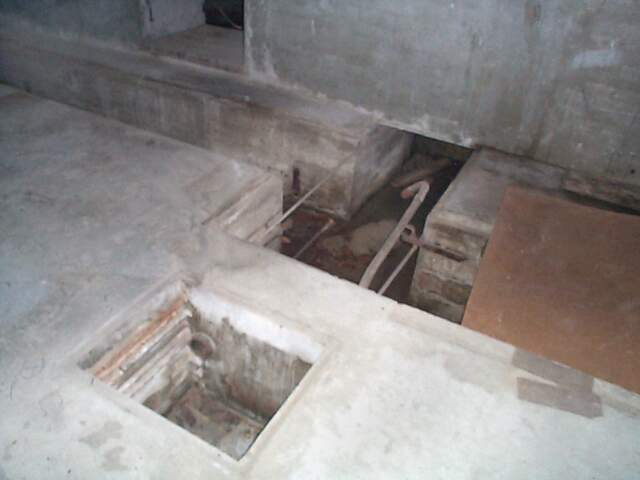

Cable trenches in the southwest corner of the power room.

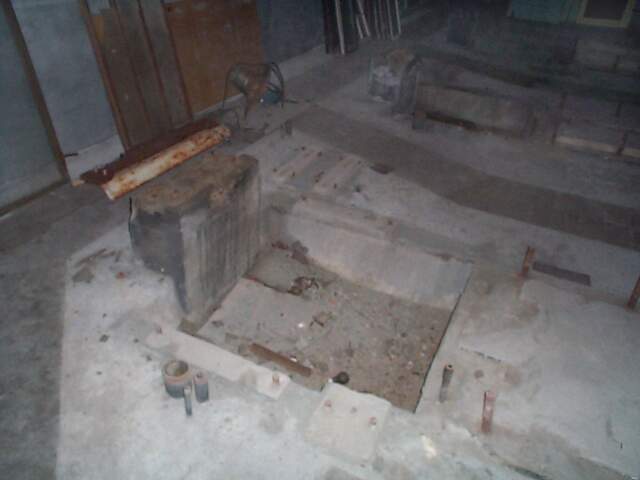

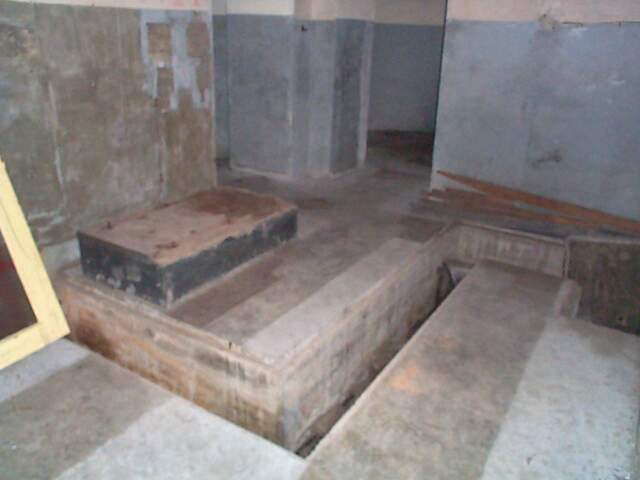

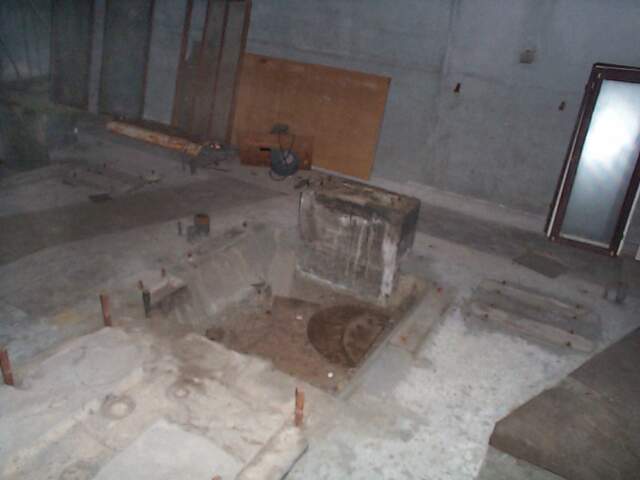

Generator mounts, looking east.

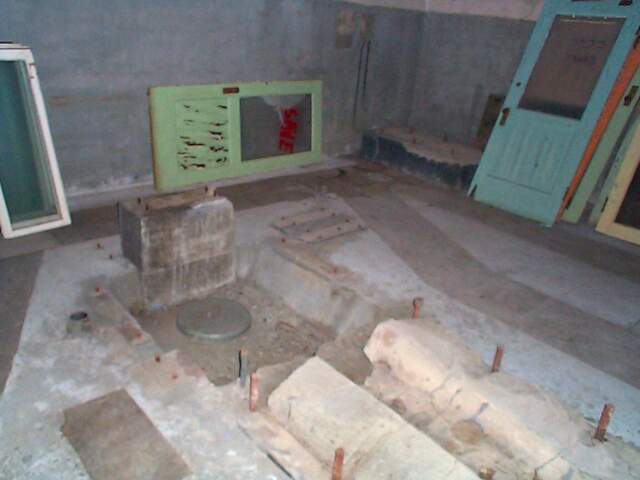

The eastern most generator mount.
Cable trenches and equipment mount in the southeast corner.

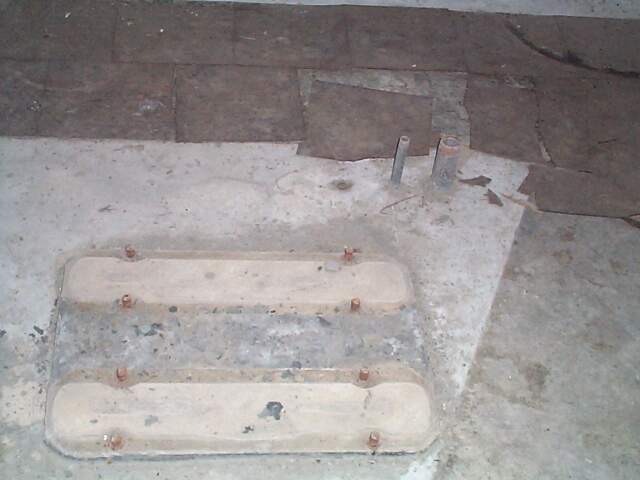

Small equipment mount near generator mounts.

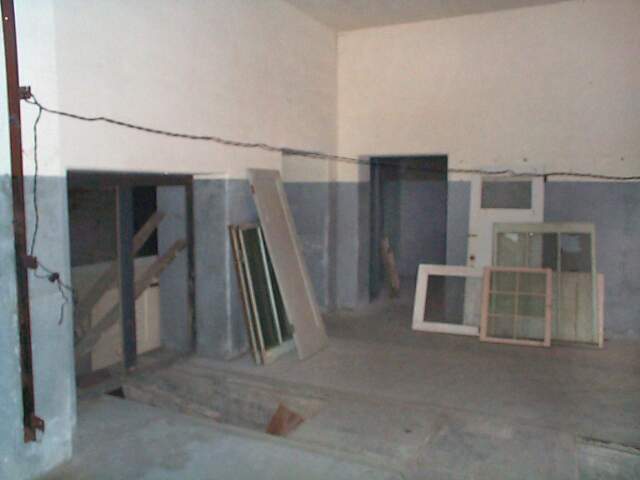

Looking northeast in the power room.

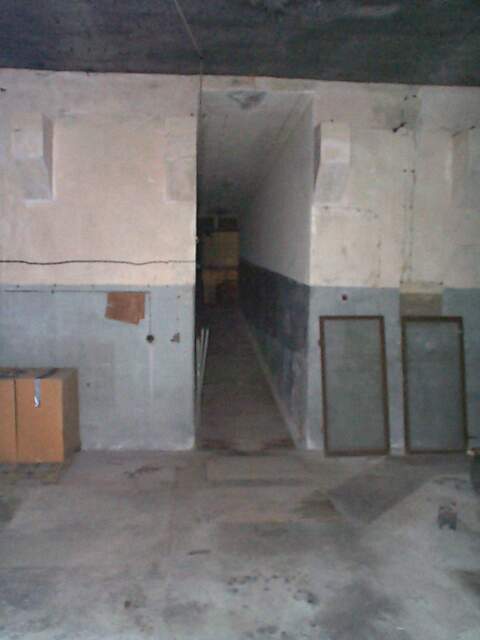

Looking northeast at the north wall of the power room with the passage to the front corridor.

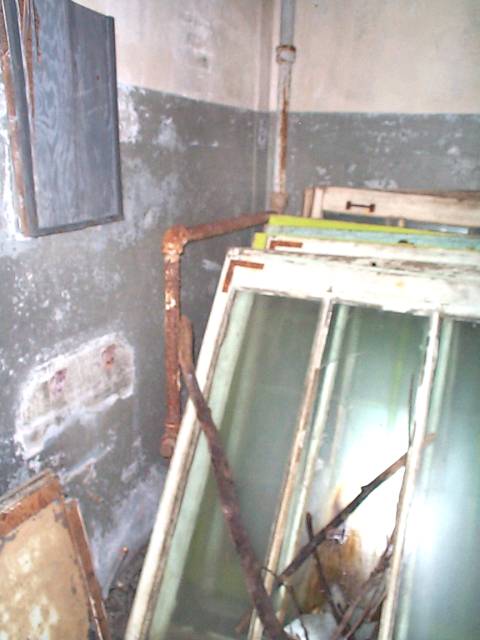

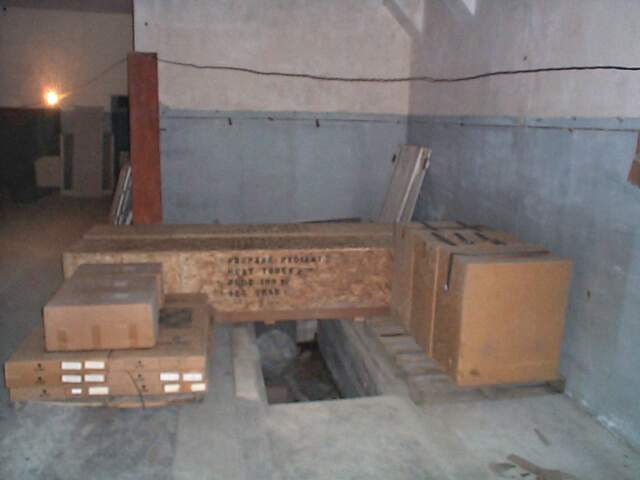

Civil defense supplies in the northwest corner of the power room.

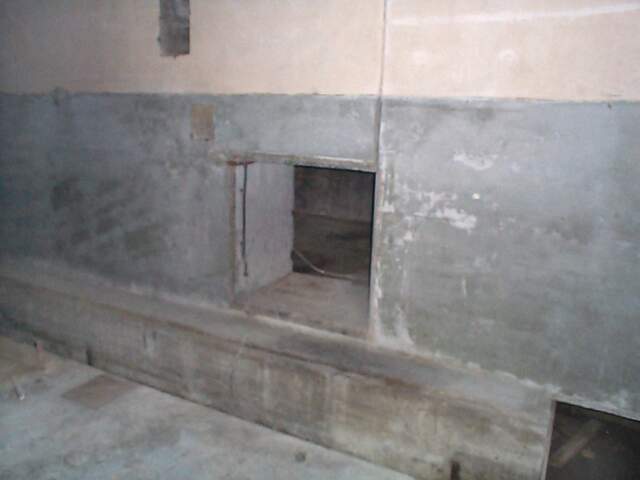

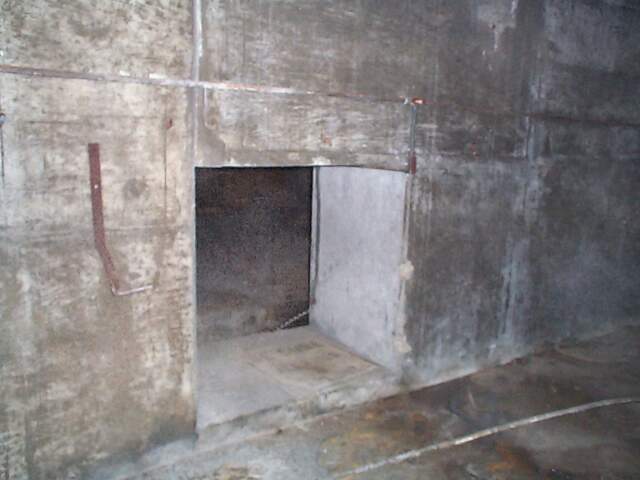

The south wall of the power room, with a vent into the muffler gallery.
Cable trenches in the southwest corner of the power room.

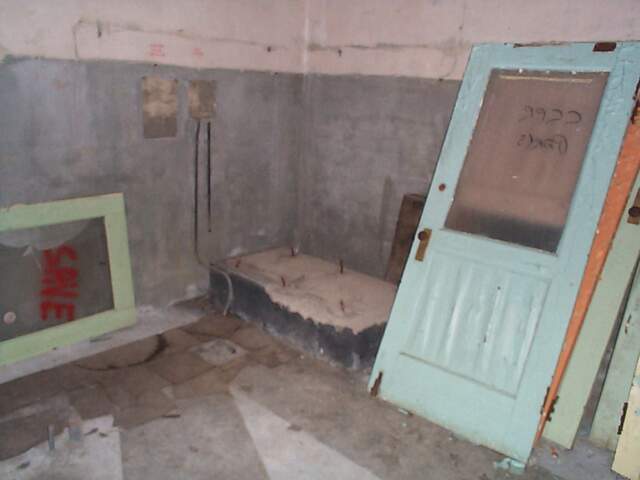

Equipment mount in the northeast corner of the power room.
The northeast corner of the power room.
southeast corner of the power room.



Water cooler room
The water cooler room contained the radiators for the three diesel engines in the power room. The water coolers were never removed from battery #131.

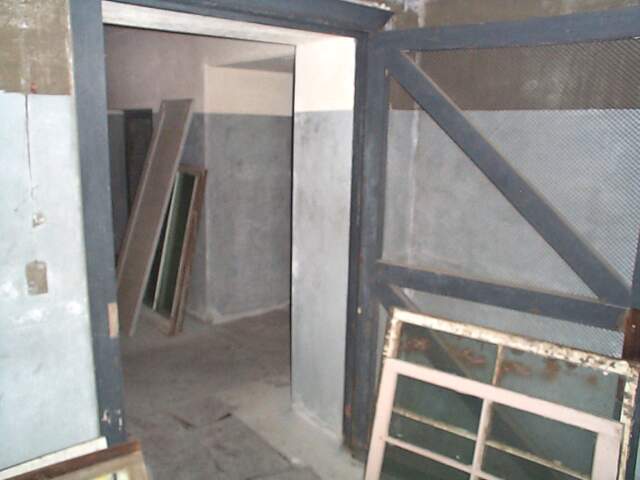

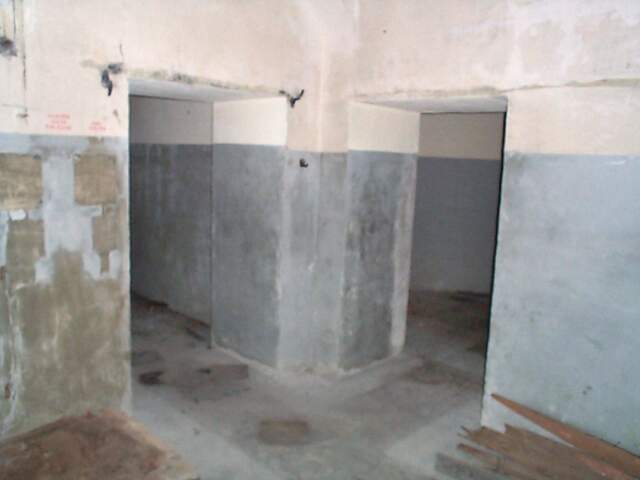

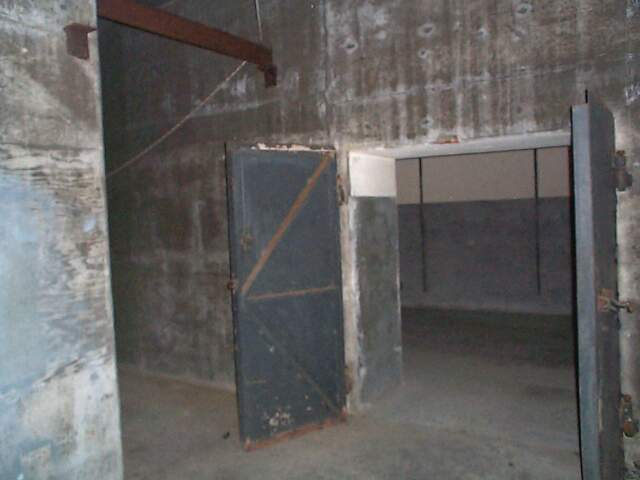

The doors to the water cooler room(left, center) and the #2 dehumid room(right) Looking north.
Looking in the north door to the water cooler room.

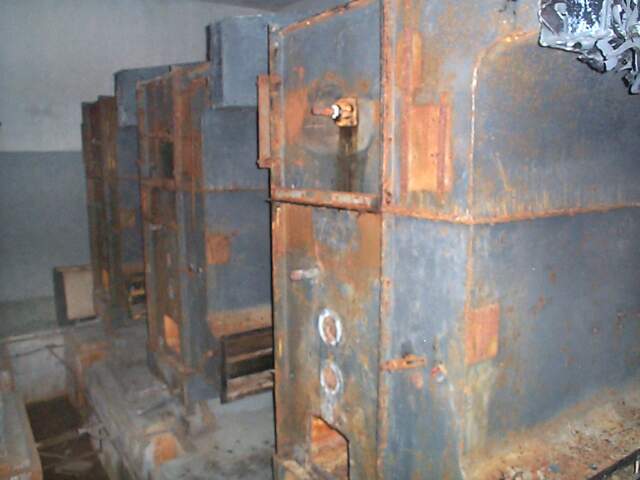

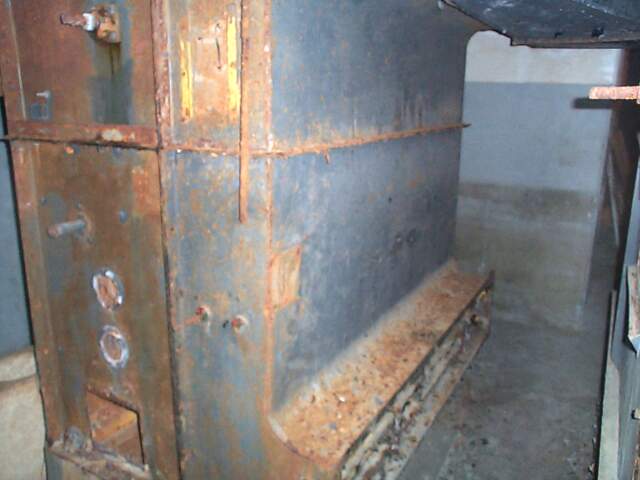

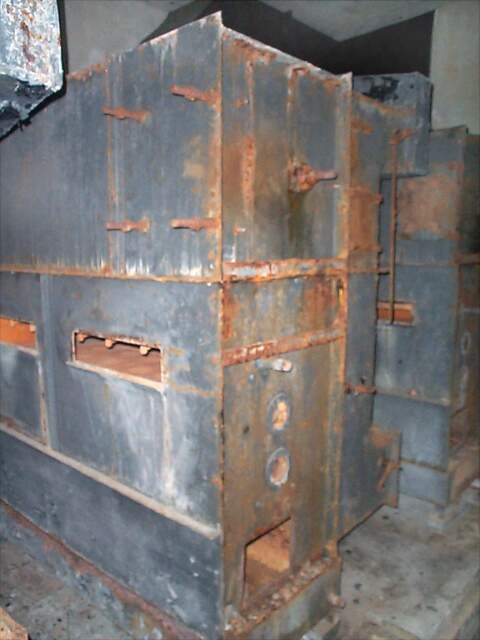

Looking southwest at the north water cooler.
Looking northeast at the north water cooler.
Looking northeast behind the water coolers.

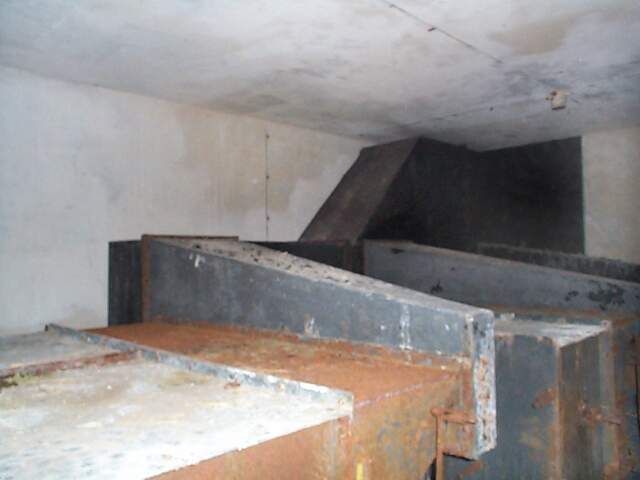

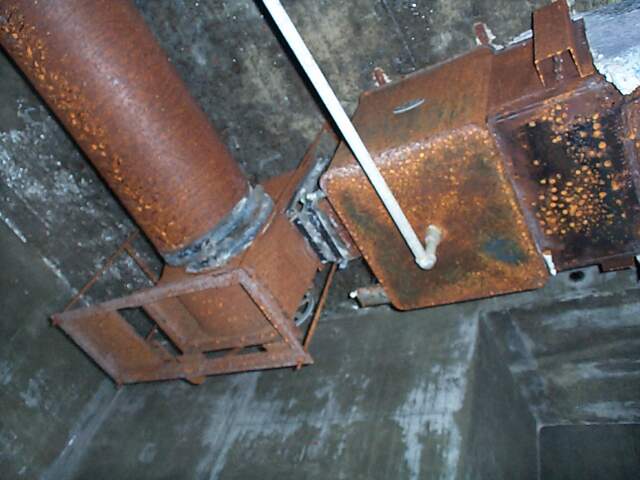

Looking southeast over the water coolers.
Looking north on the east side of the water coolers.

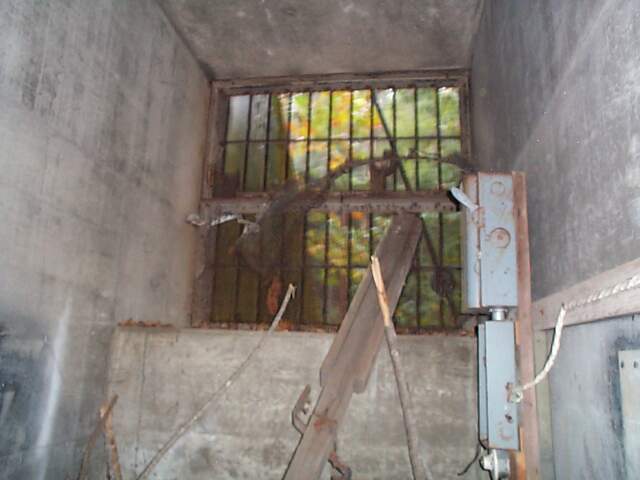

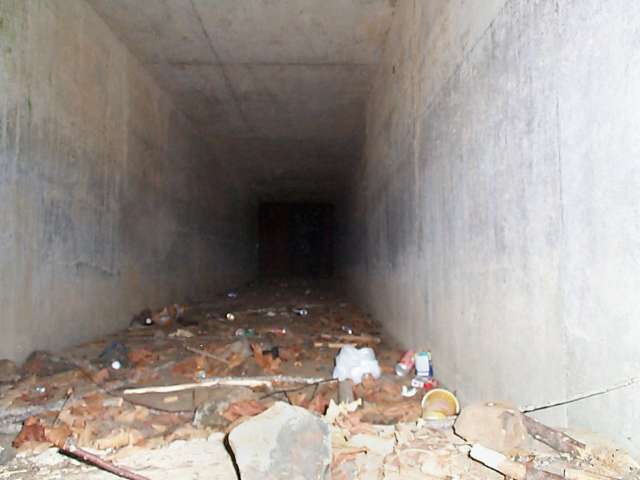

Looking north in to the water cooler vent tunnel from outside.

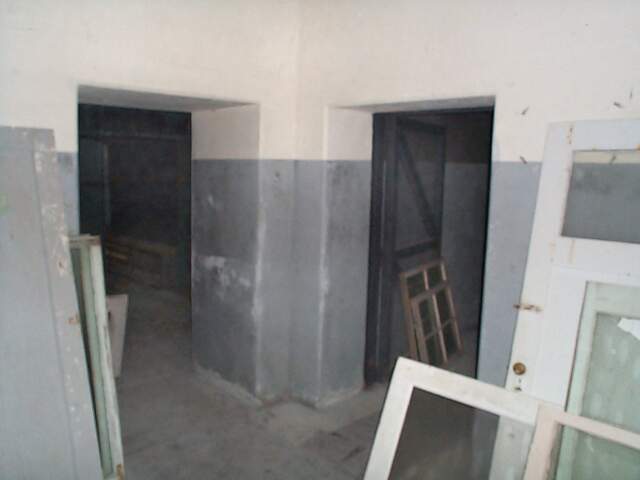

The water cooler door(left) and the #2 dehumid room door(right).

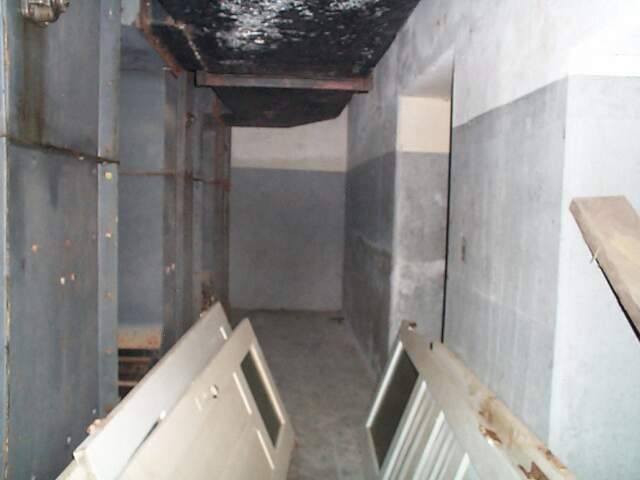

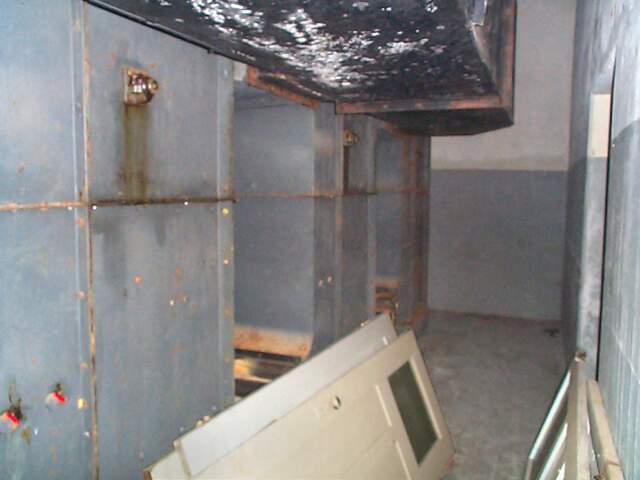

Looking south along the east wall of the water cooler room.

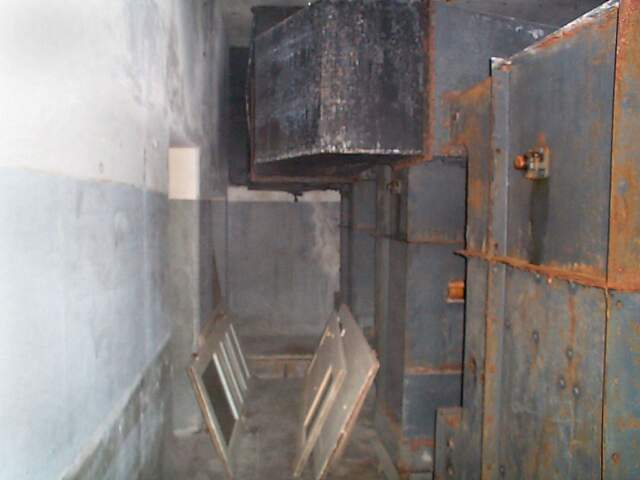

Looking south behind the water coolers.

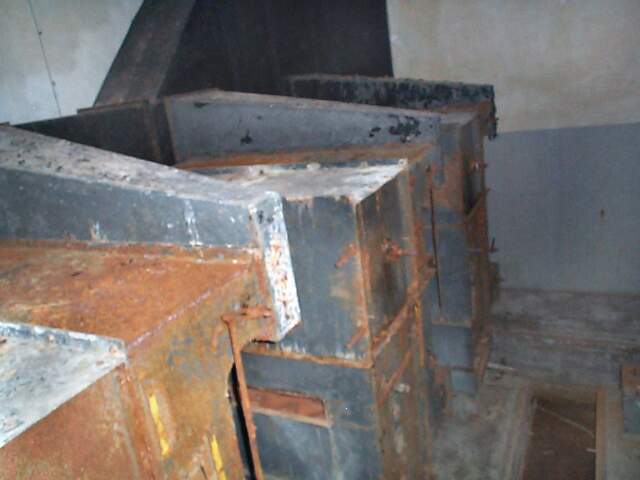

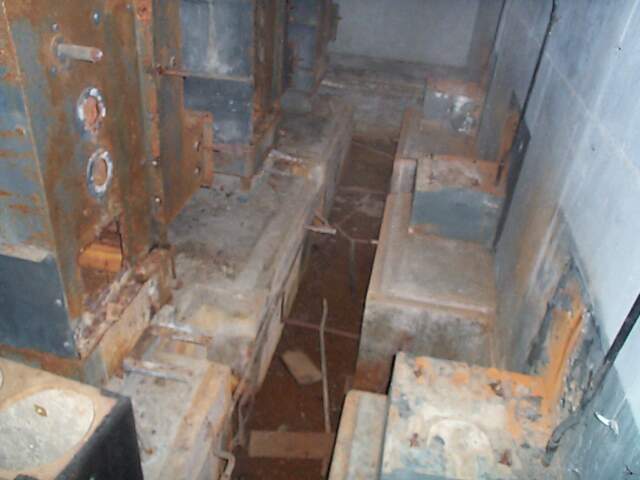

Looking southeast at the south and center water coolers.
Looking southeast over the water coolers.
Looking northwest.



#1 dehumidification room
The dehumidification equipment in this room was used to heat and dry the air in the eastern powder room and shell room.

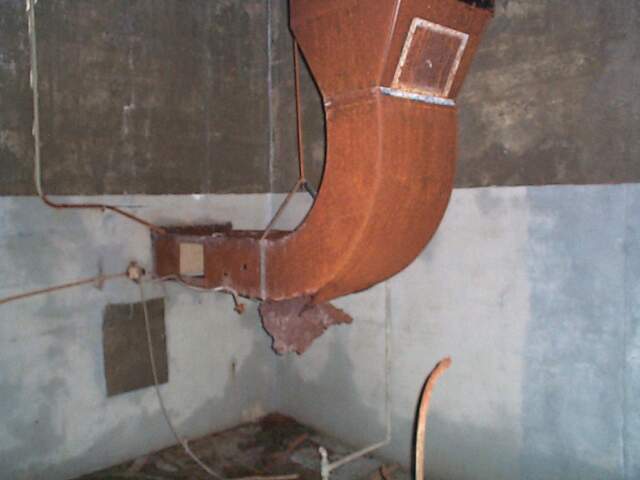

The northeast corner of the #1 dehumid room.
Looking south.

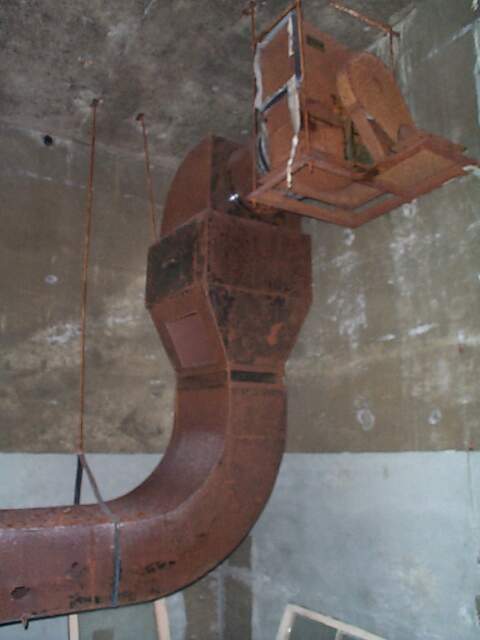

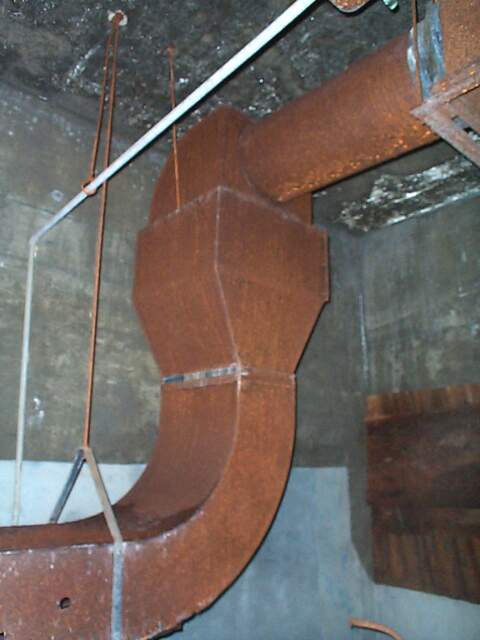

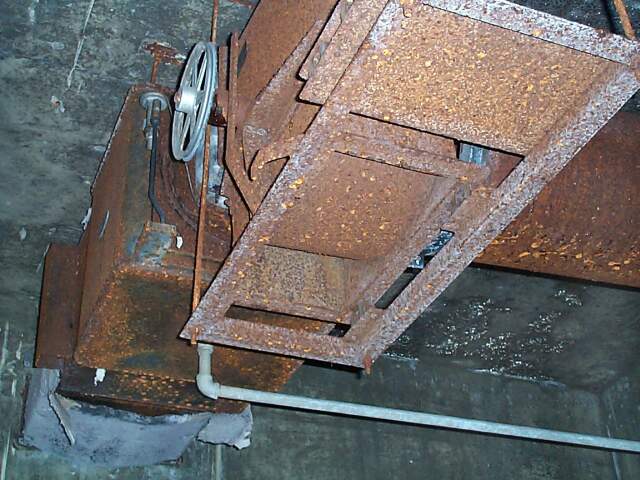

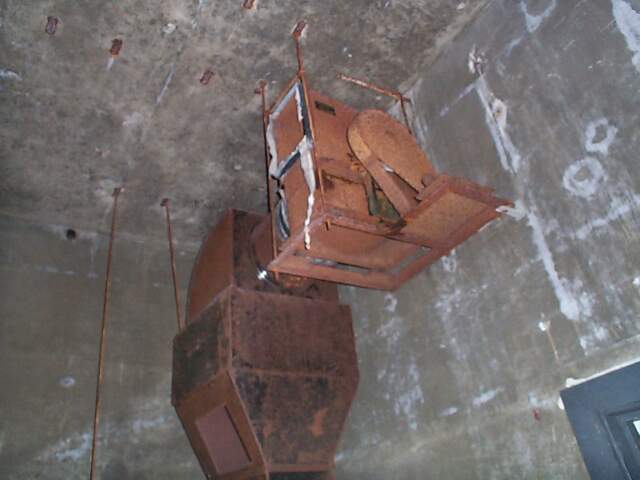

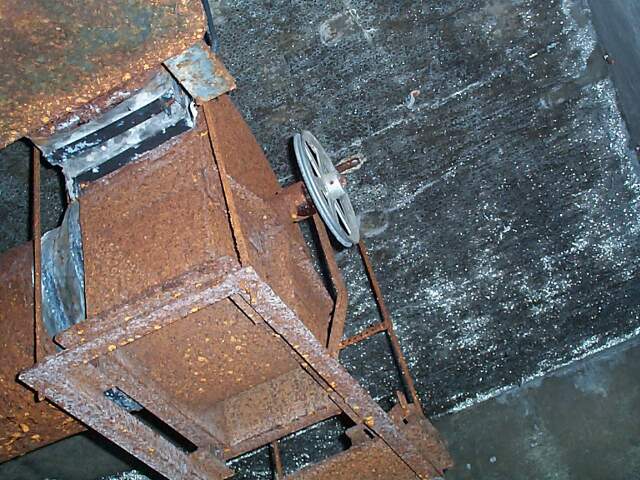

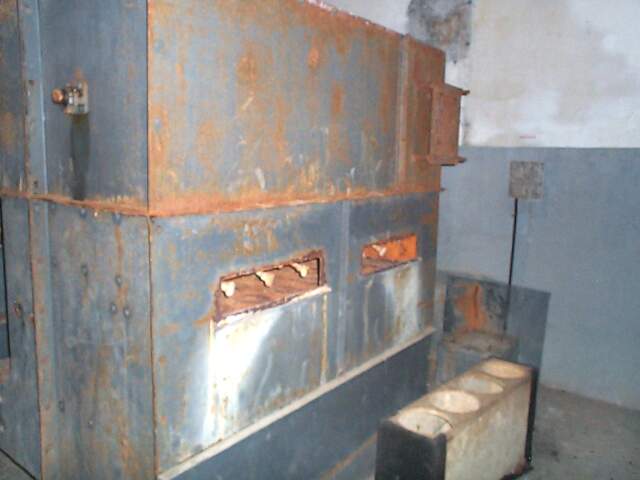

Dehumid equipment.

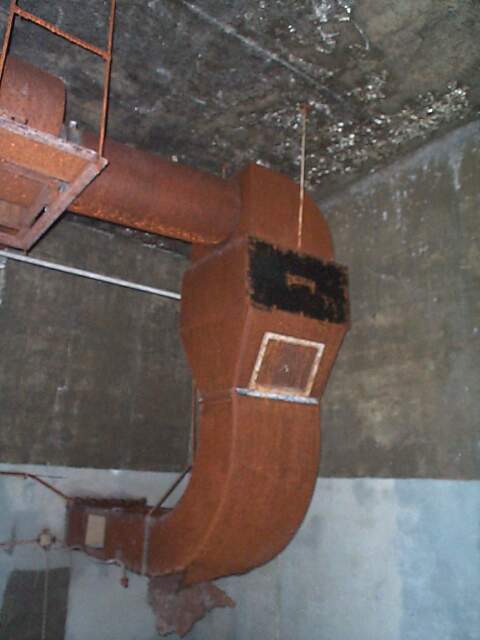

Dehumid equipment.
Dehumid equipment looking northeast.

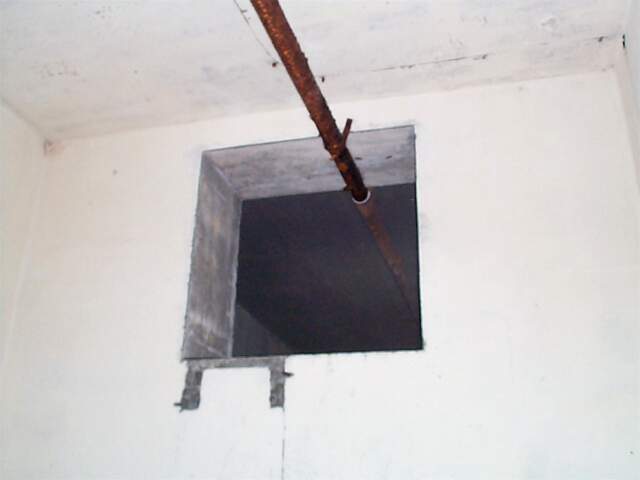

Vent from the power room in west wall.
Looking southeast.
The northwest corner.
Dehumid equipment.
Dehumid equipment.
Dehumid equipment looking southeast.



#2 dehumidification room
The dehumidification equipment in this room was used to heat and dry the air in the western powder room and shell room.

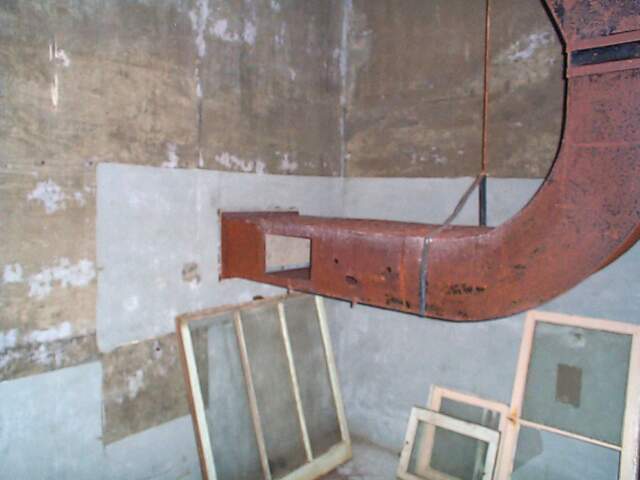

The northeast corner of the #2 dehumid room.
Looking southwest.

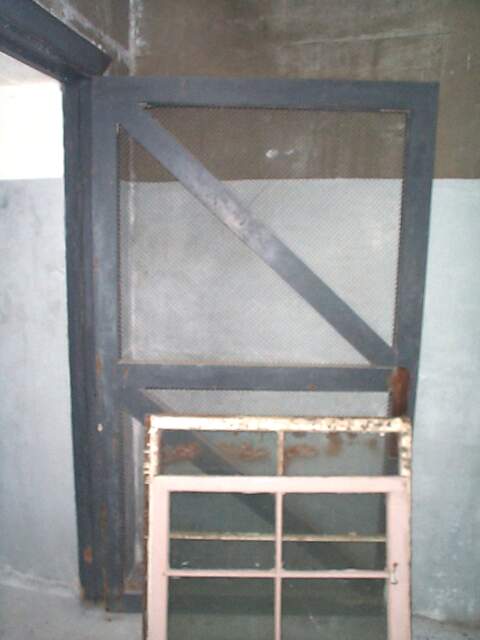

The dehumid room door.

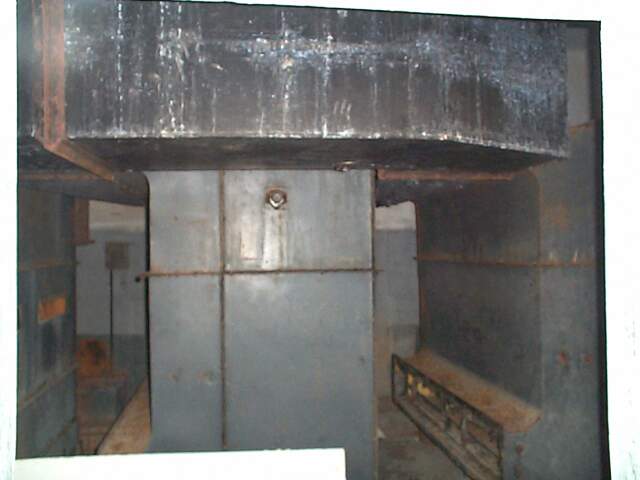

Dehumid equipment.
The southeast corner.
Dehumid equipment looking southeast.
Dehumid equipment.



Auxiliary generator room
Battery #131 was equipped with a 62.5 KVA auxiliary generator, it was housed in a small room just off the power room.

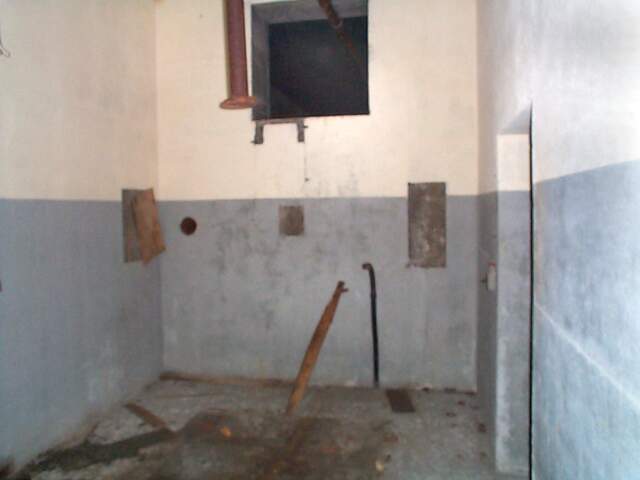

Looking west in the aux. generator room.

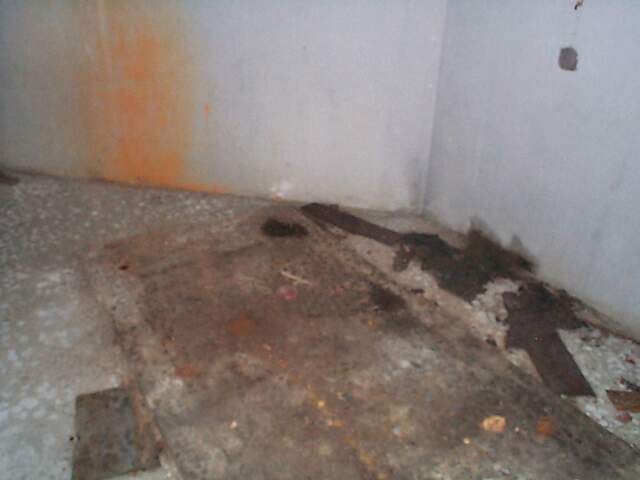

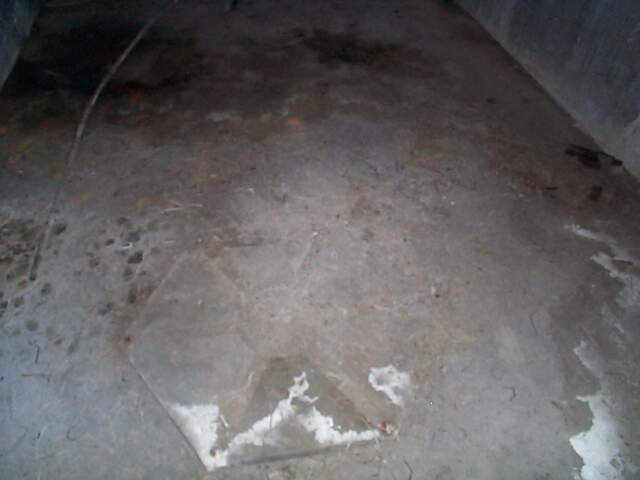

The southeast wall and floor.
Vent to the muffler gallery in the west wall.

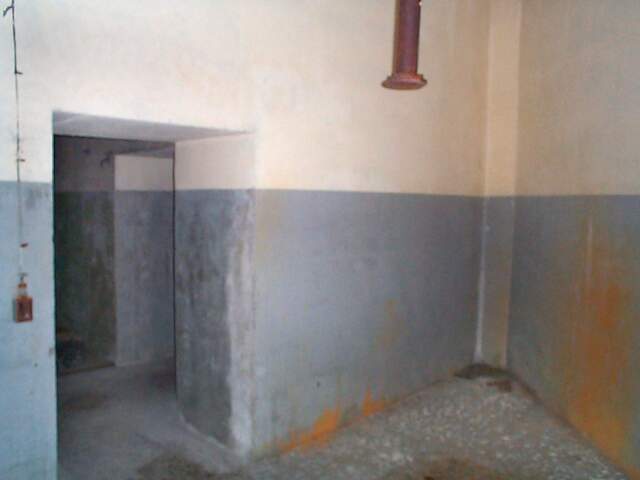

Looking northeast.
The door in the north wall to the power room.



Work room

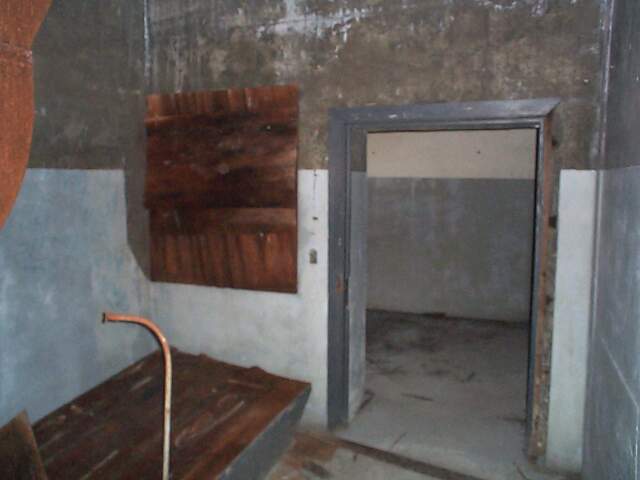

northwest corner with door to the #1 dehumid room.
Looking southeast.
Electric outlet on the east wall of the work room.

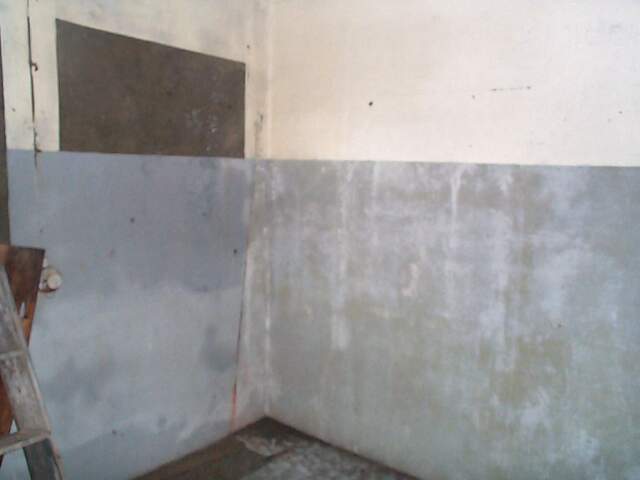

The northeast corner.

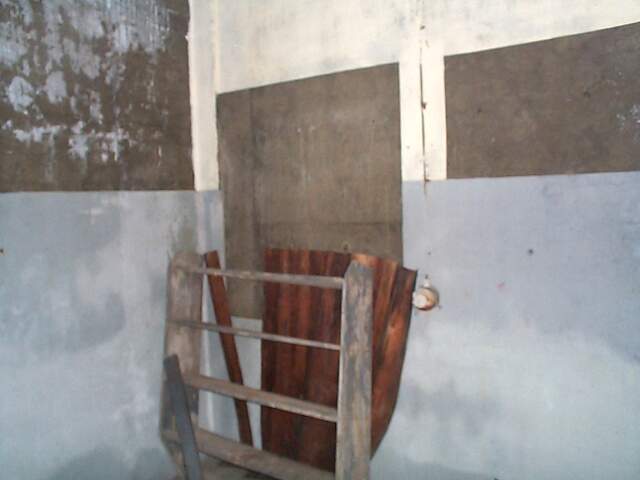

The southwest corner with the power room door.



Power room latrine

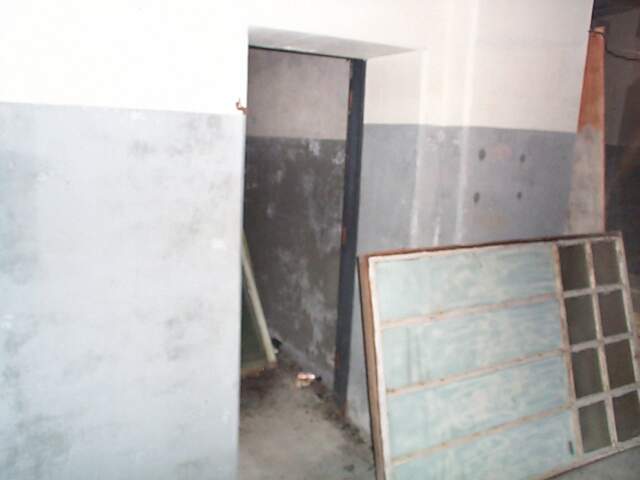

Door to the latrine.
The latrine.
Looking north in the latrine.



Muffler gallery

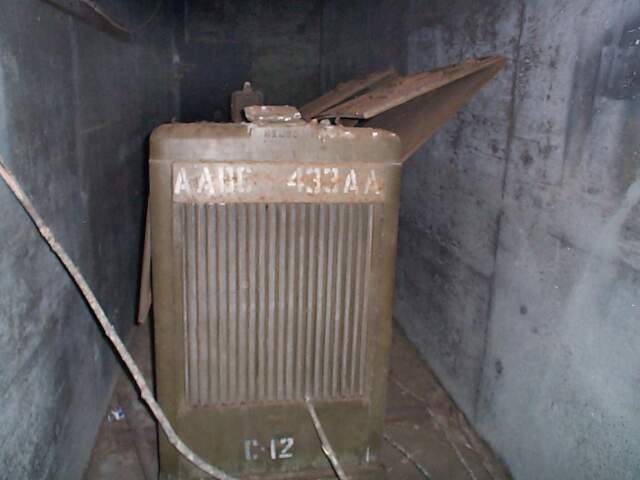

The southern leg of the muffler gallery has an old generator in it. It has several pipes under it as rollers, and might have been in the process of being mounted for Civil defense uses.

Looking south at the power room door, the door to the muffler gallery is to the left.

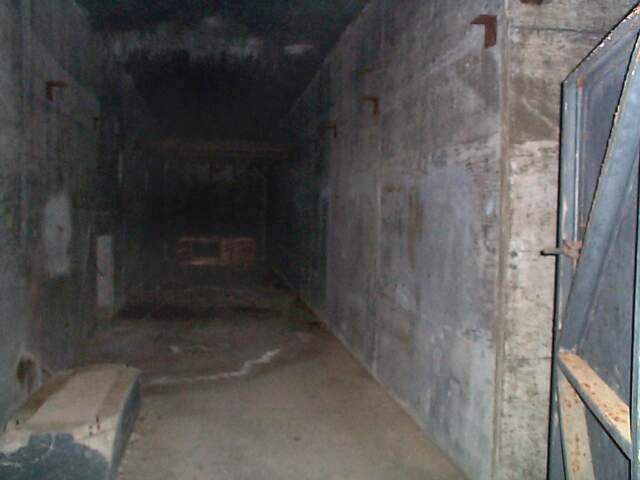

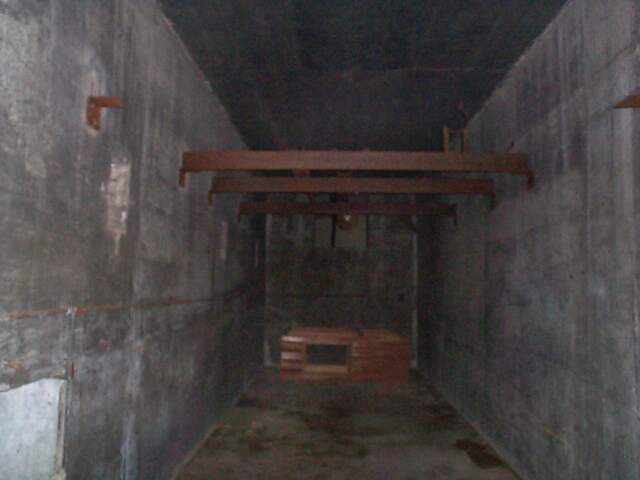

Looking east in the muffler gallery.
Looking west in the muffler gallery.

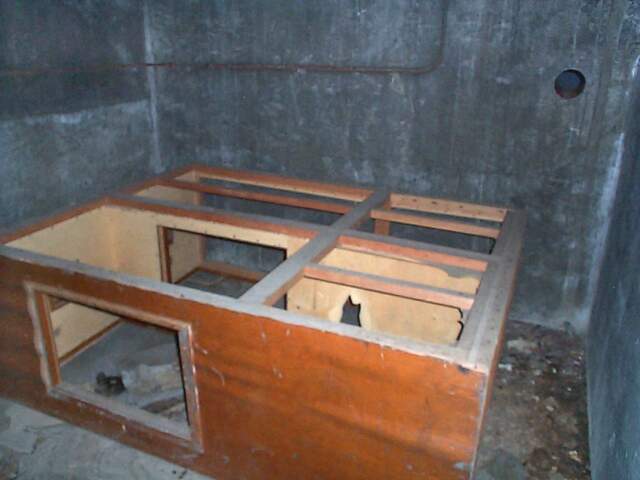

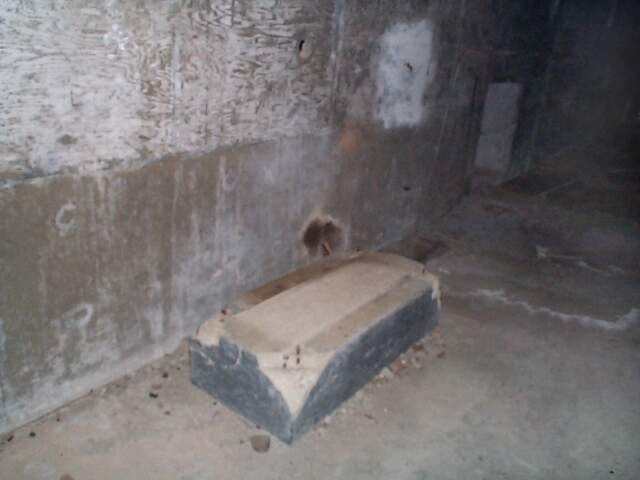

Equipment mount in the muffler gallery.
Vent from power room.

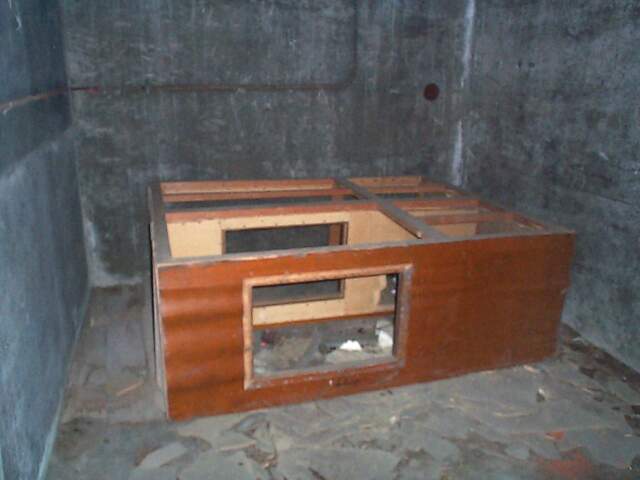

? At the eastern end of the muffler gallery.

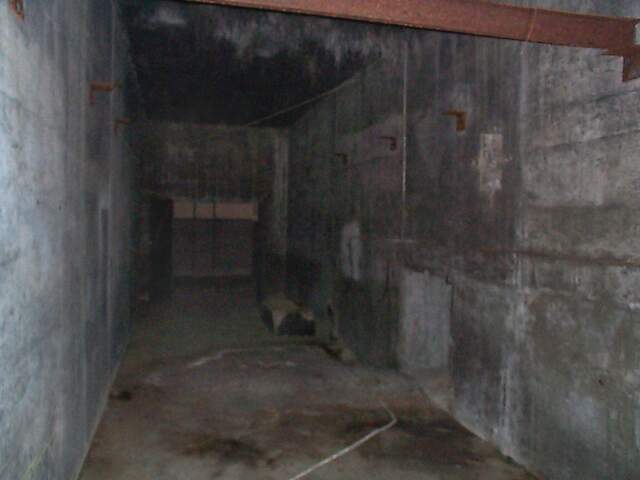

Looking south in the muffler gallery.

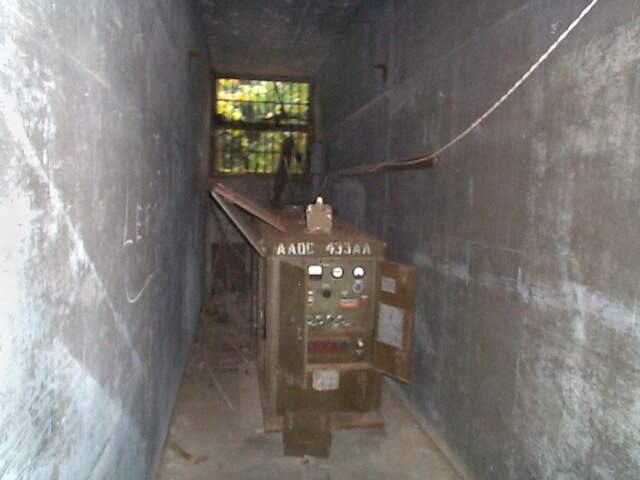

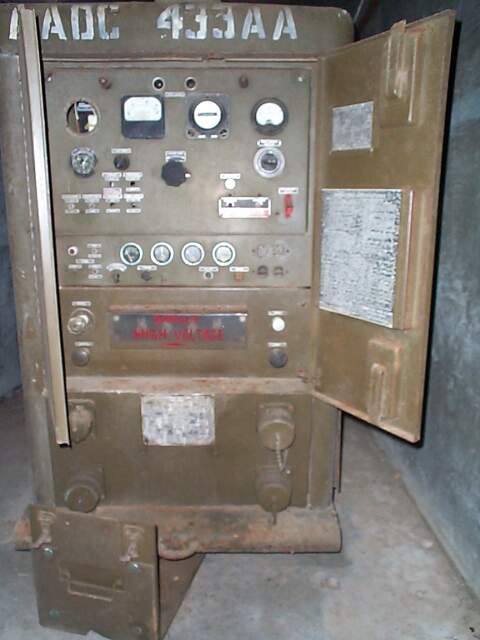

Civil defense(?) generator in the muffler gallery.

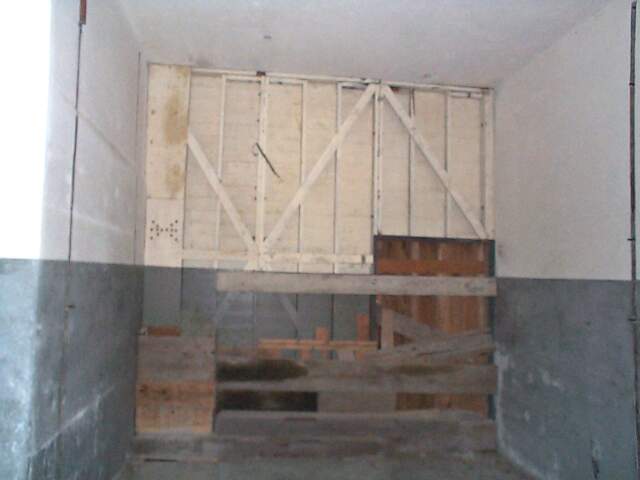

The inside of the power room doors.
Looking east in the muffler gallery.
Looking southwest at the muffler gallery door.
Six sided mount in the muffler gallery.
? At the eastern end of the muffler gallery.
Muffler gallery vent hole.
Looking north in the muffler gallery.

All photos from Oct 2003, unless otherwise noted.
