SCR-296 Site
Piedmont Point, HD Kodiak
Home  |  Kodiak


The Army installed an SCR-296 fire control radar site at Piedmont Point, a small point southeast of Battery Const. #404. The facility included a metal frame transmitter building, two power houses and a 50-foot steel tower. The radar site's primary assignment was to serve Battery Const. #404, but it could also assist Battery Const. #296 when needed.






Looking northeast at the transmitter building site.
July 2005

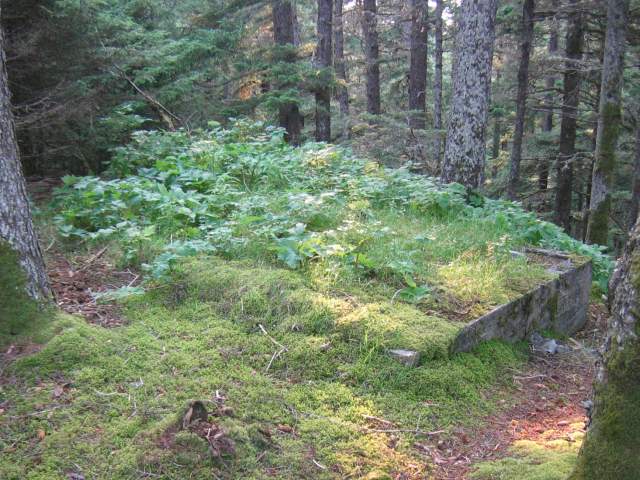

The west corner of the transmitter building foundation.
July 2005

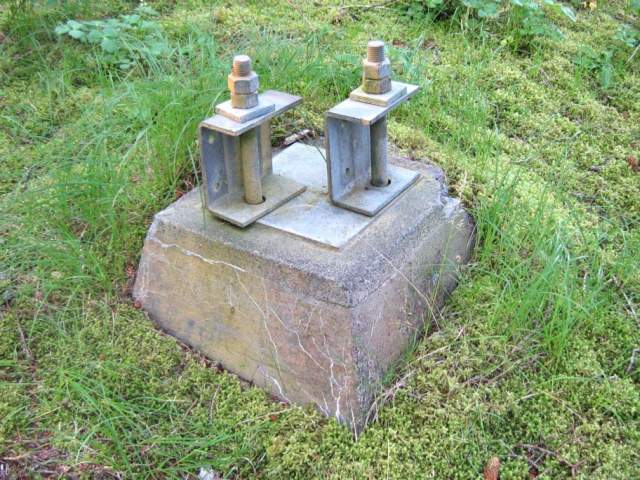

One of the tower footings.
July 2005

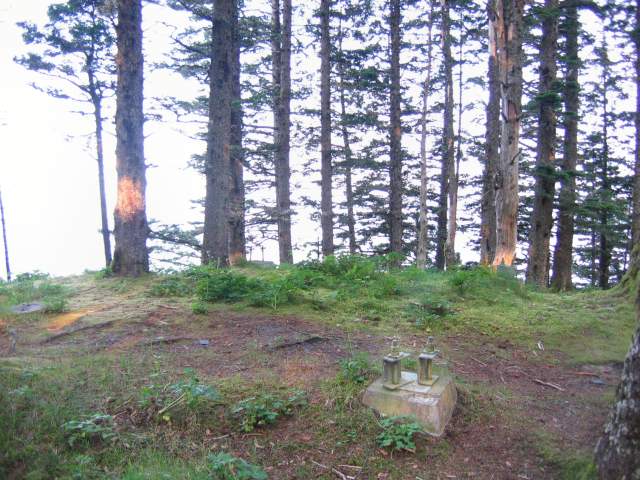

The tower site.
July 2005

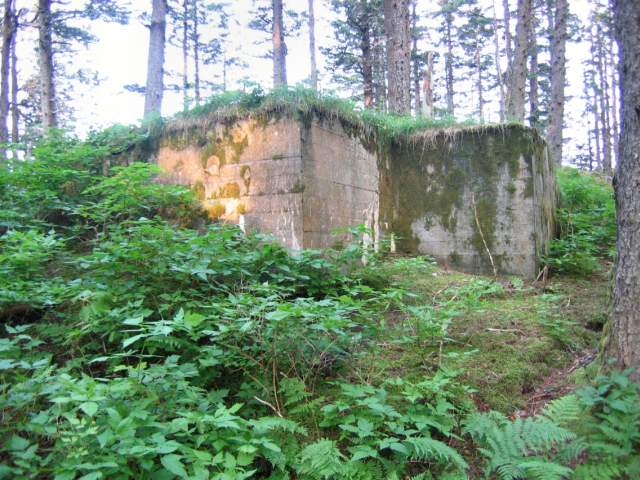

Looking west at the north power house site.
July 2005

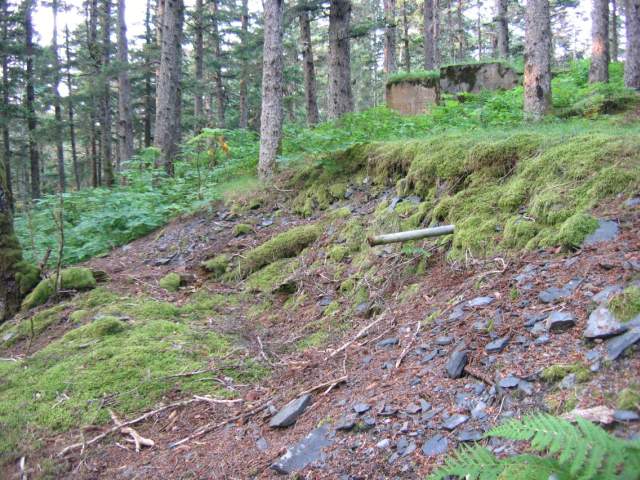

A pit near the north power house, probably left by a removed fuel tank.
July 2005

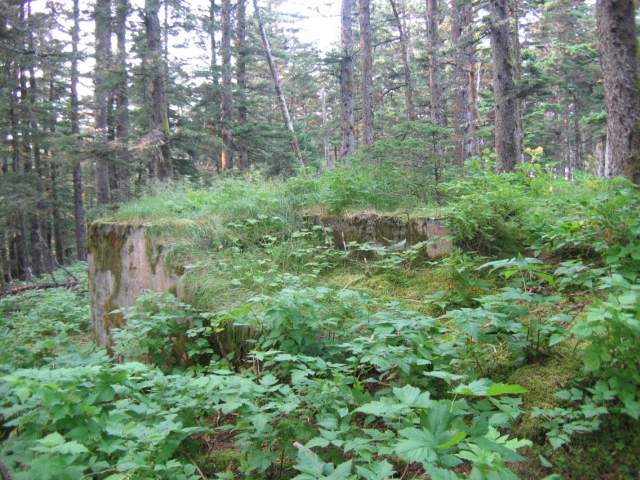

The south power house site, looking south.
July 2005
Possible fuel tank location near the south power house.
July 2005

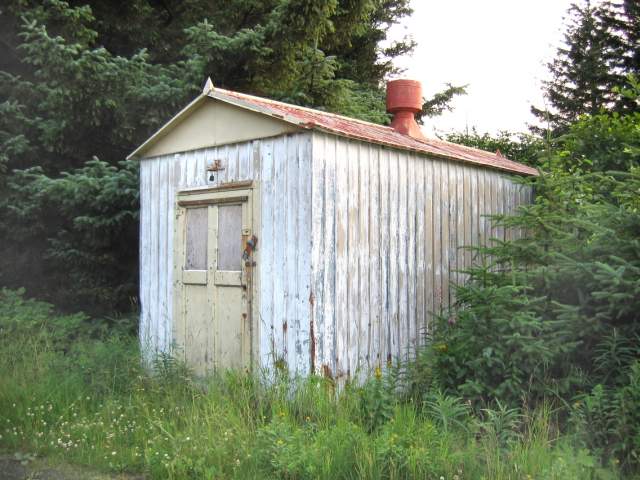

A building typical of the standard SCR-296 power houses is located near the Kodiak VFW hall. It was probably relocated from Piedmont Point sometime after the war.
July 2005







Documents

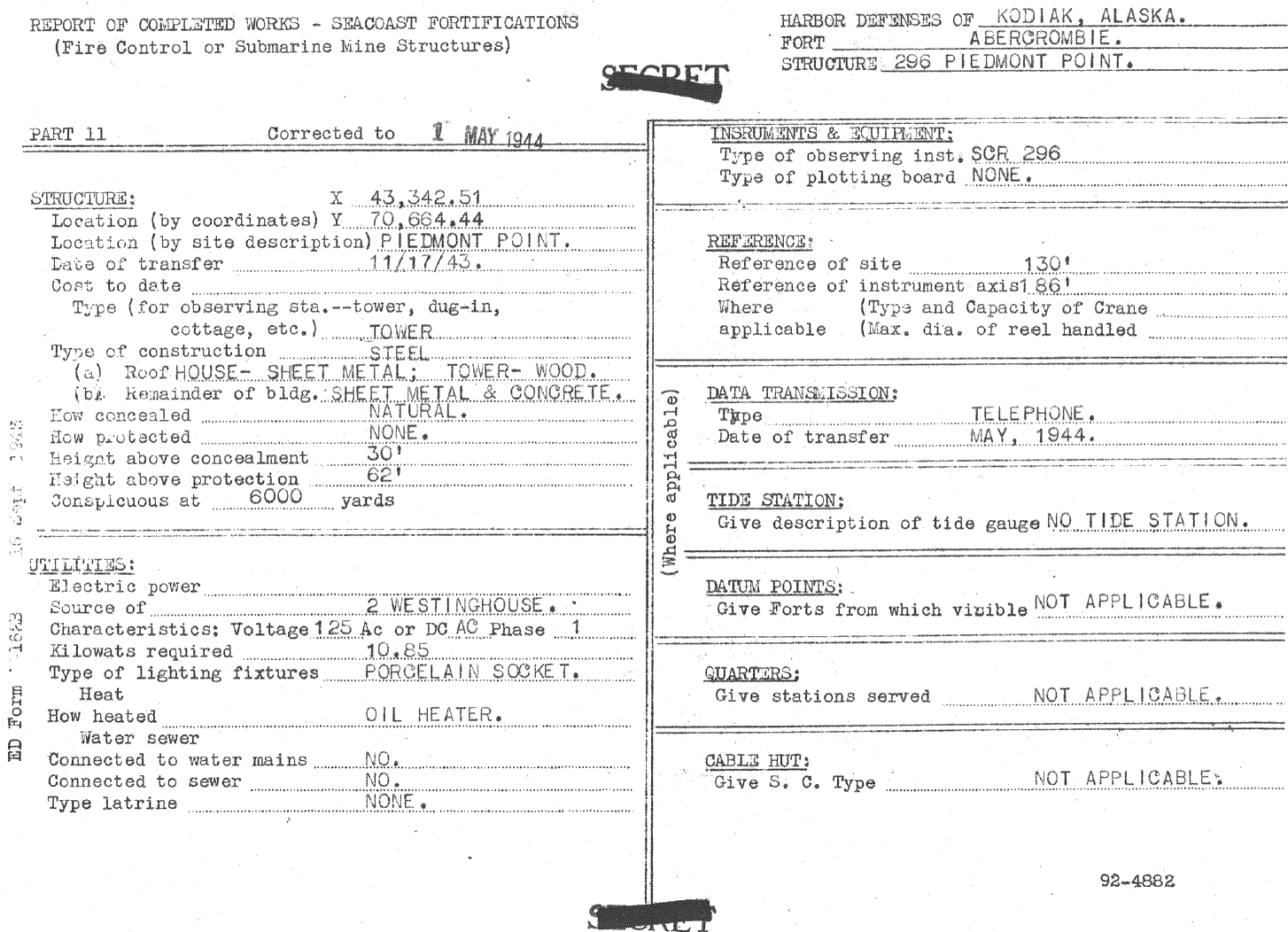

Form 2May 1, 1944

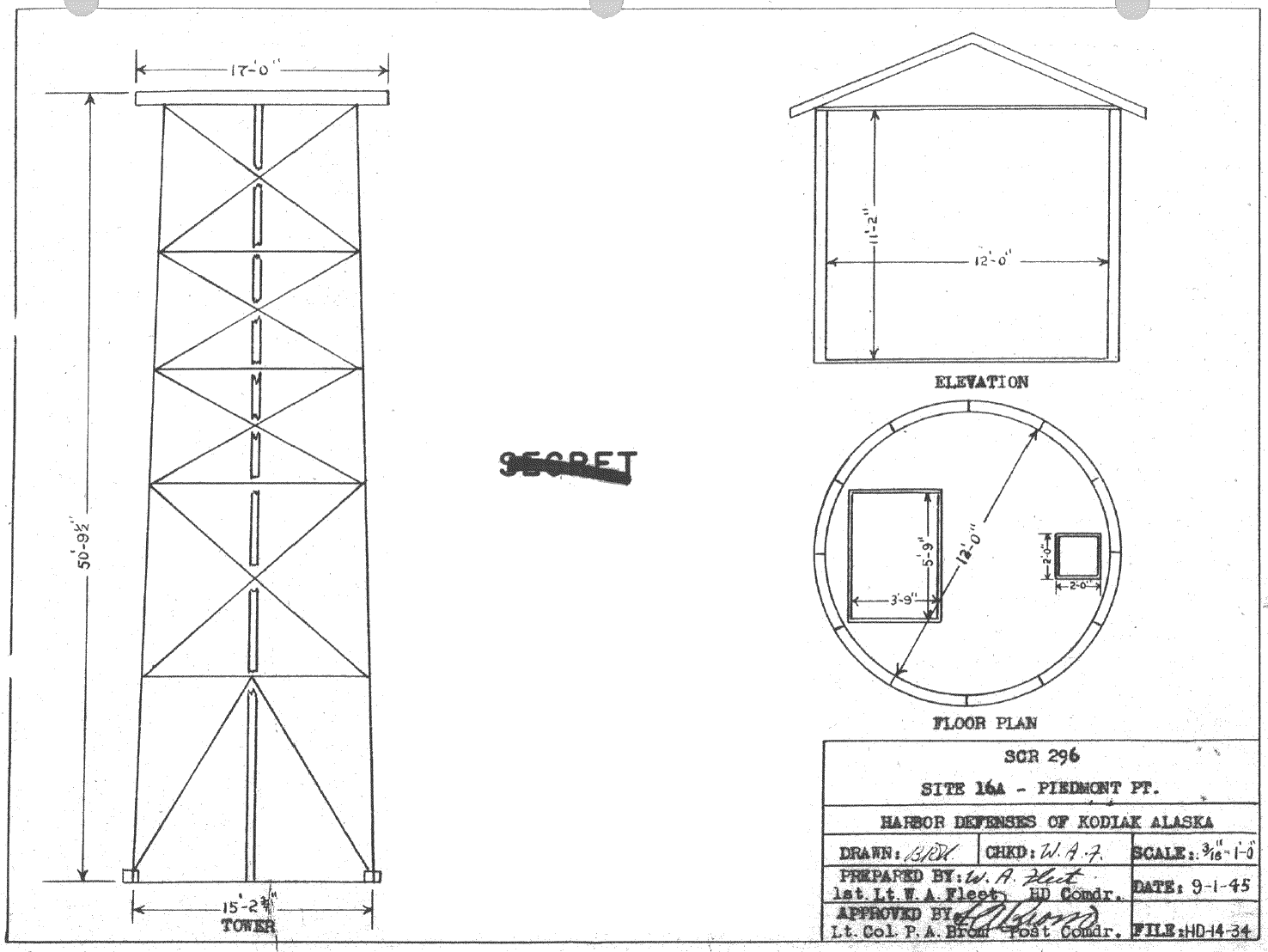

PlanSeptember 1, 1945

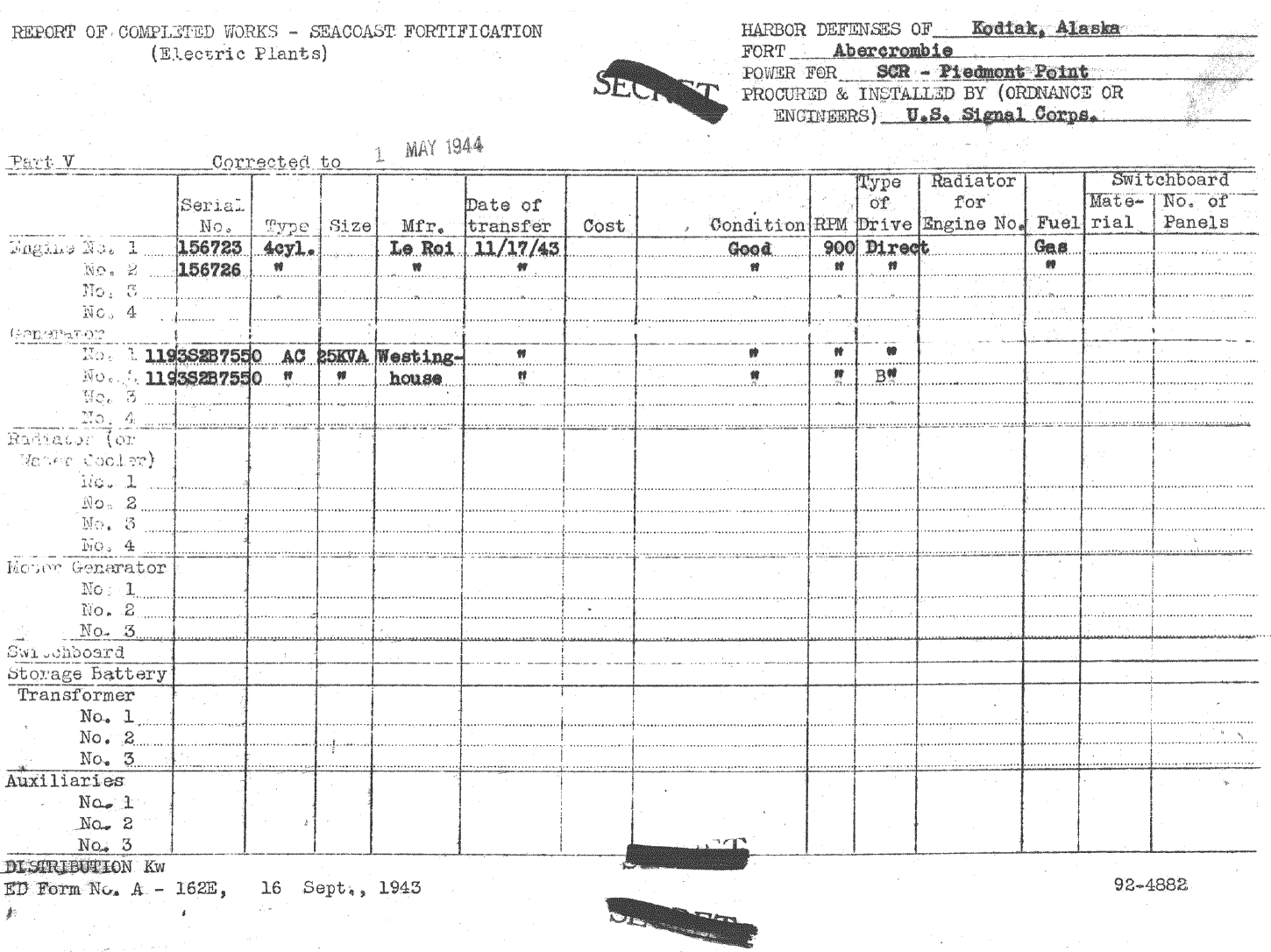

Form 5September 1, 1945

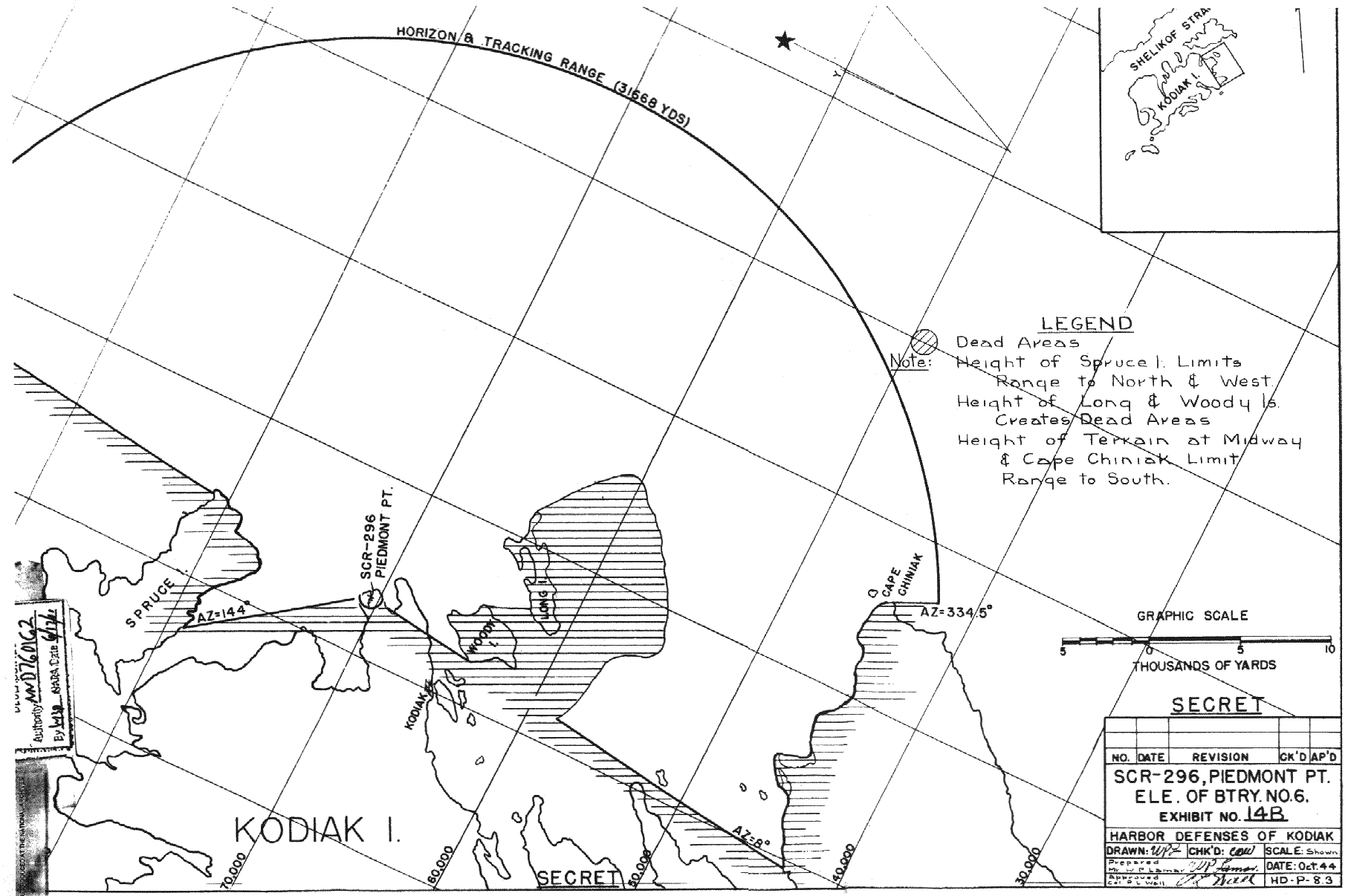

Arc of Detection map.October 1944

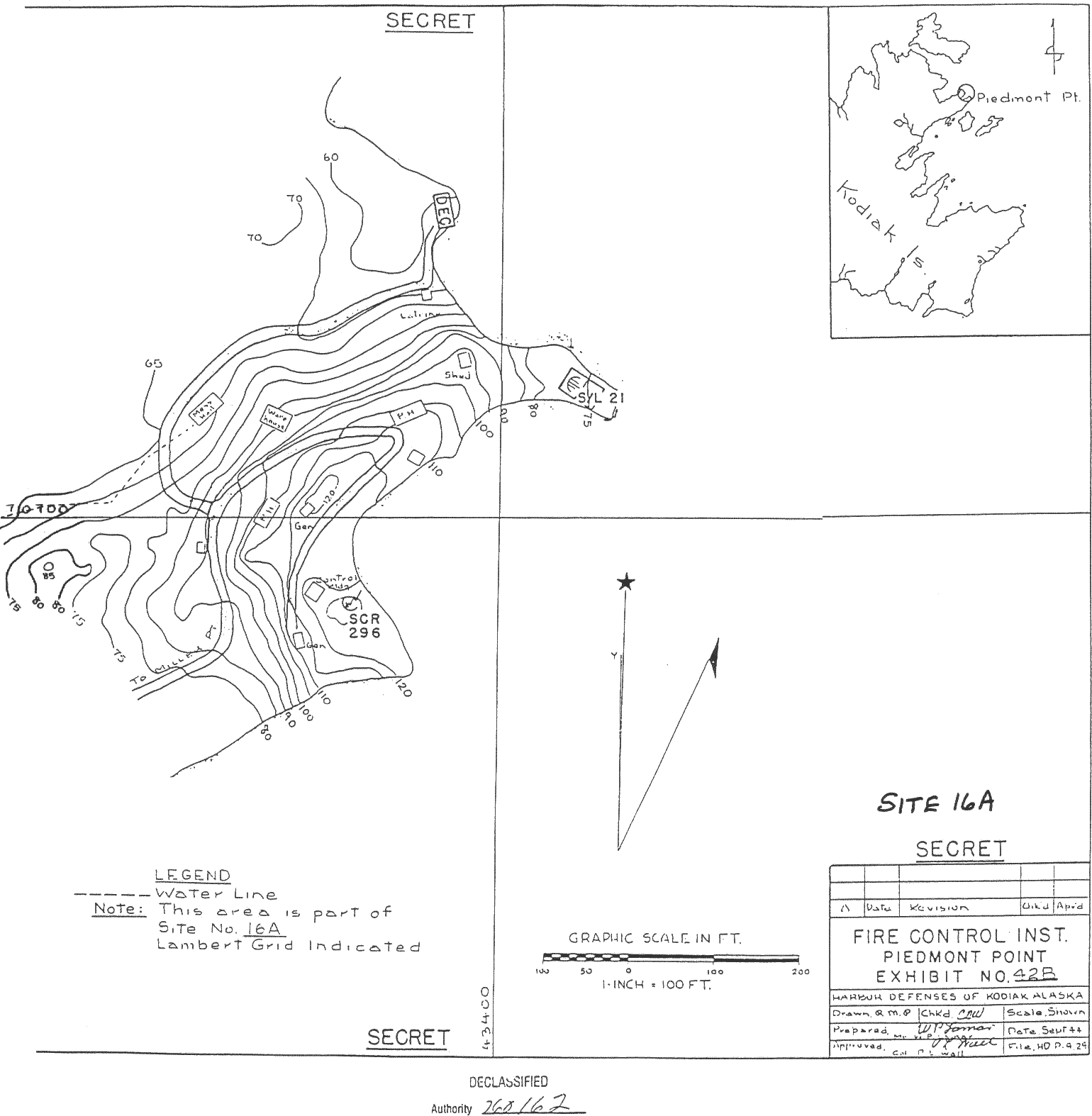

Detail map of area.September 1944
