B 2/3 S 2/3
Mansfield Ridge, HD Kodiak
Home  |  Kodiak


B 2/3 S 2/3 is a single room concrete structure, located in an overgrown area near the Kodiak Airport. Personnel manning the station provided observation data for the 155-mm battery installed at Buskin Hill, about 1.3 miles to the northeast.

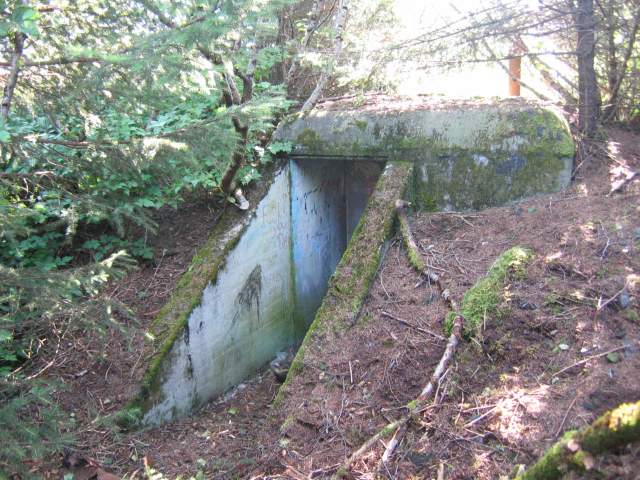

The rear entrance to the station.
August 2005

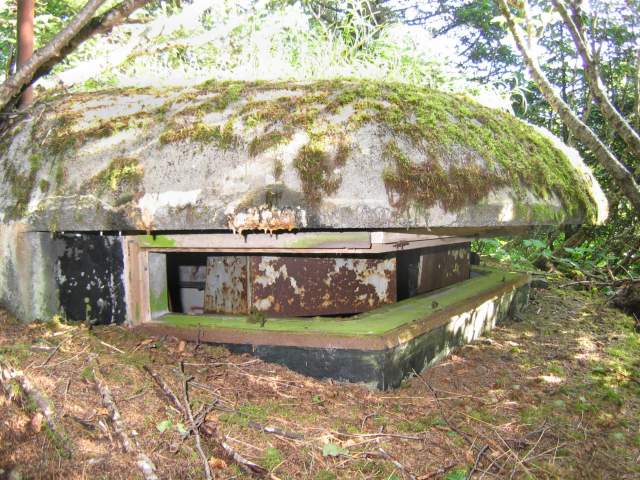

Looking northeast at the observation window.
August 2005

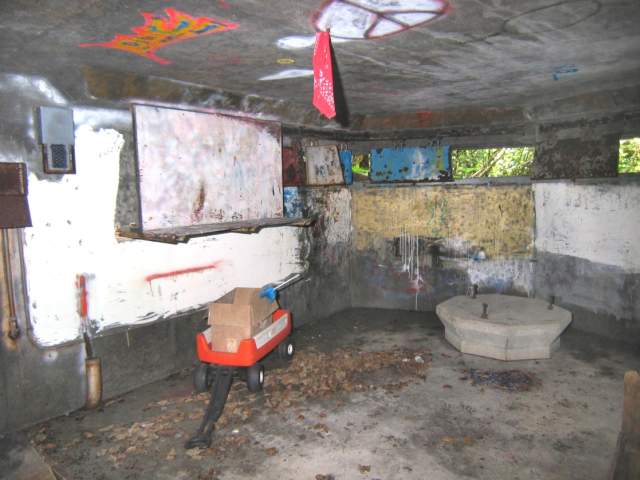

Inside, looking towards the front.
August 2005

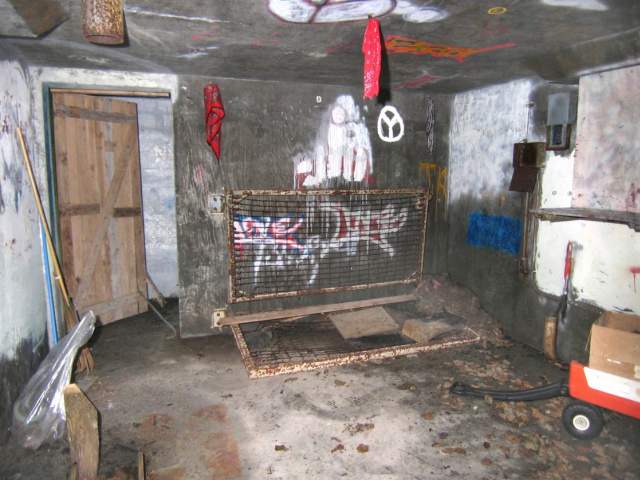

The rear of the station.
August 2005
Detail of electrical and telephone junction boxes.
August 2005

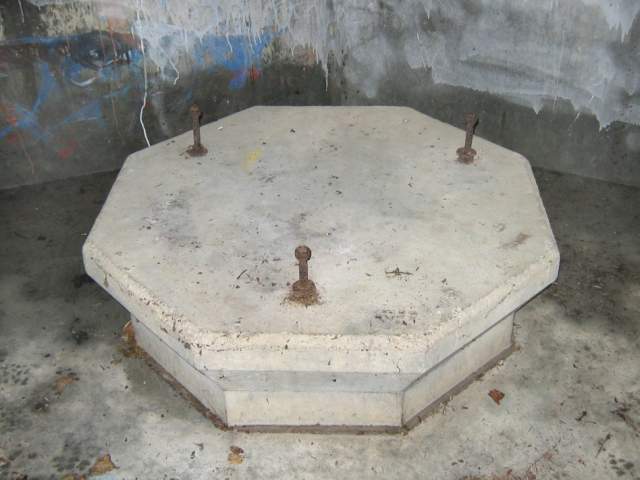

Detail of the instrument pedestal.
August 2005







Documents

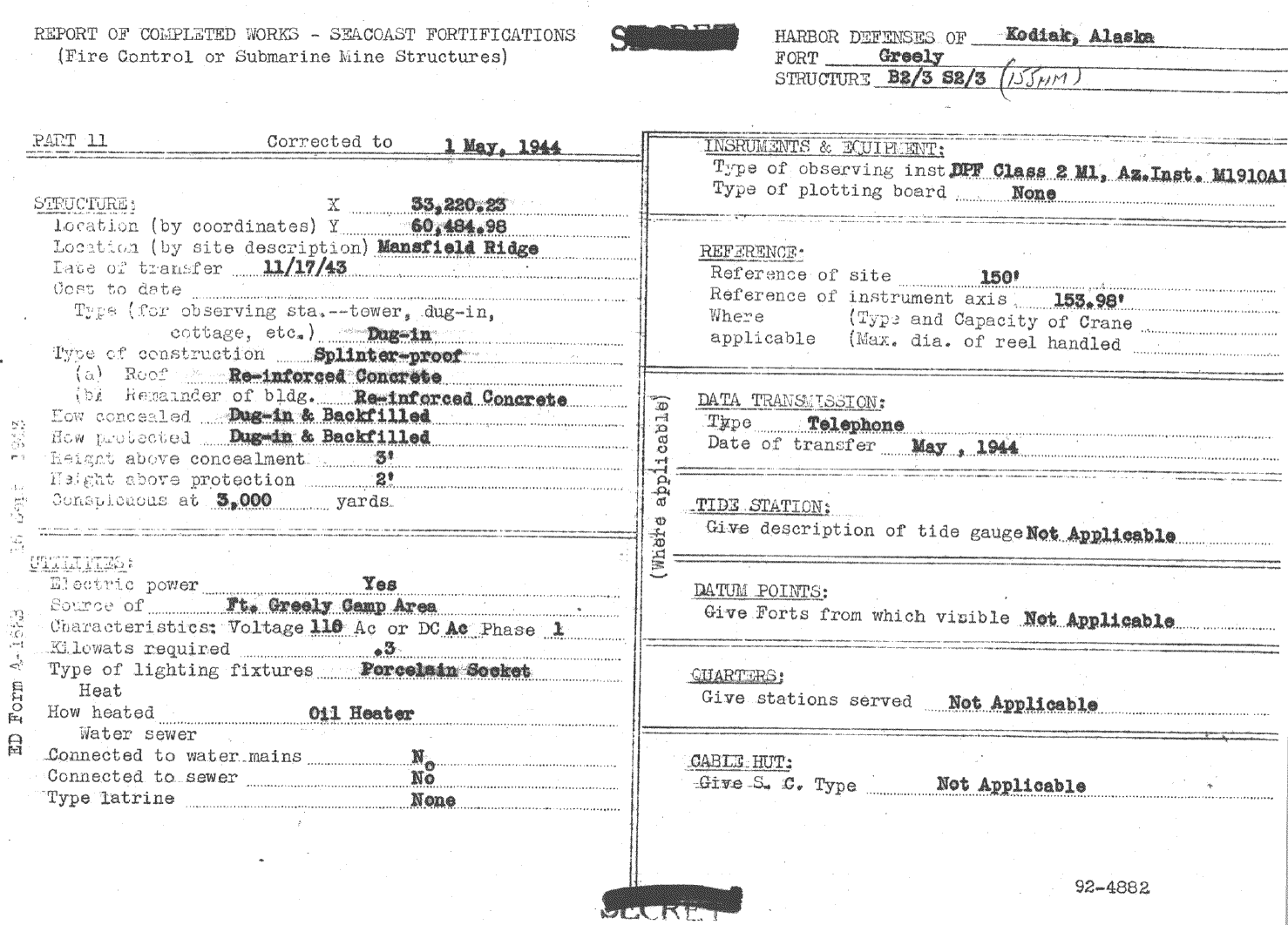

Form 2May 1, 1944

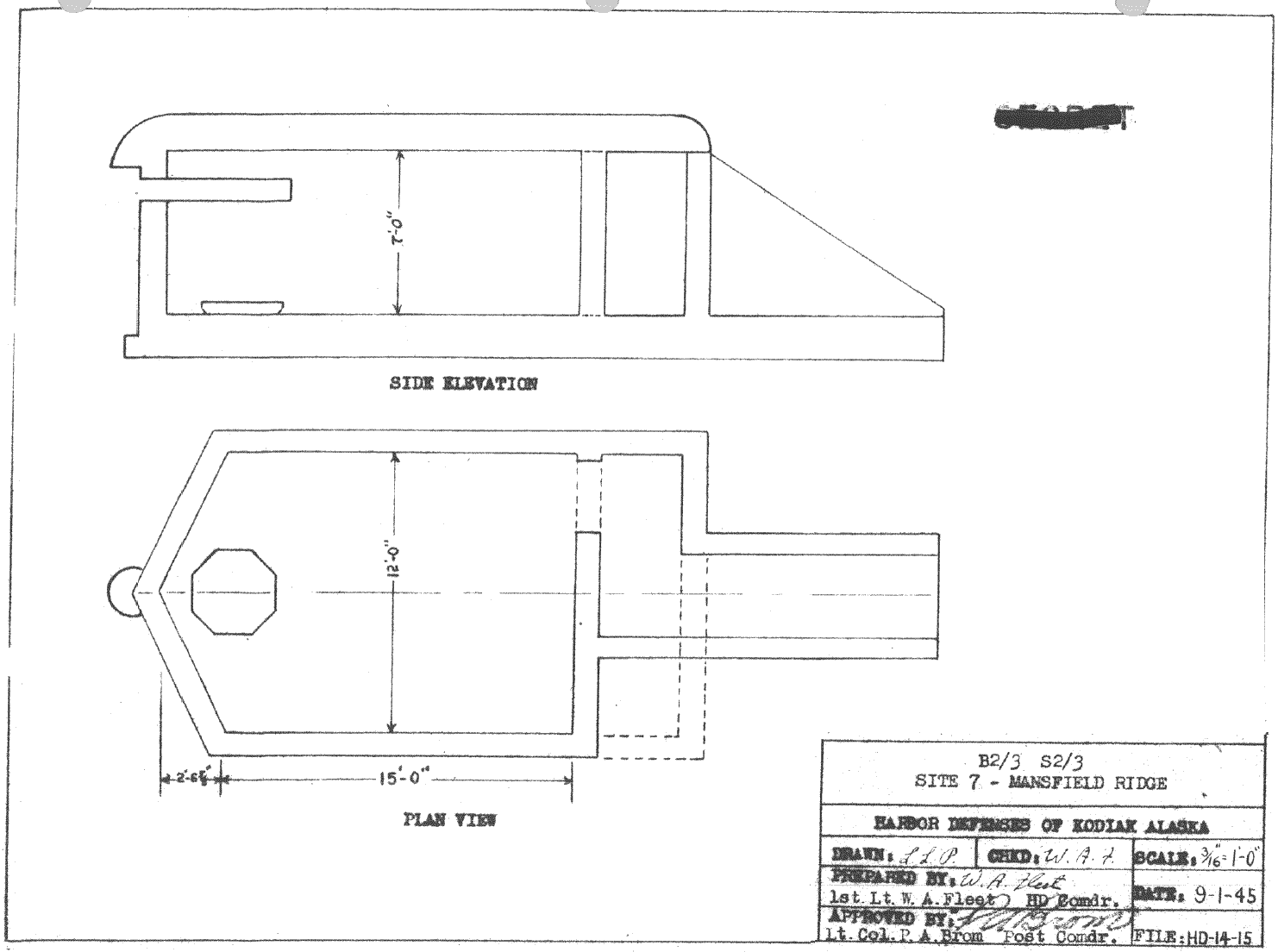

PlanSeptember 1, 1945
Detail map of area.September 1944
