SCR-296 Site
Fort Learnard, HD Dutch Harbor
Home  |  Dutch Harbor


The SCR-296 radar installation that provided targeting information to Battery Const. #298 was located on a hill about 1700 feet southwest of the battery. The site included the antenna platform, a transmitter building and two power plants. Interestingly, the antenna was mounted at ground level, without the usual tower.

The power plants have both collapsed, but the transmitter building is intact. Parts of the round wooden antenna shelter are still in evidence, along with significant portions of the antenna equipment itself.




Antenna Position

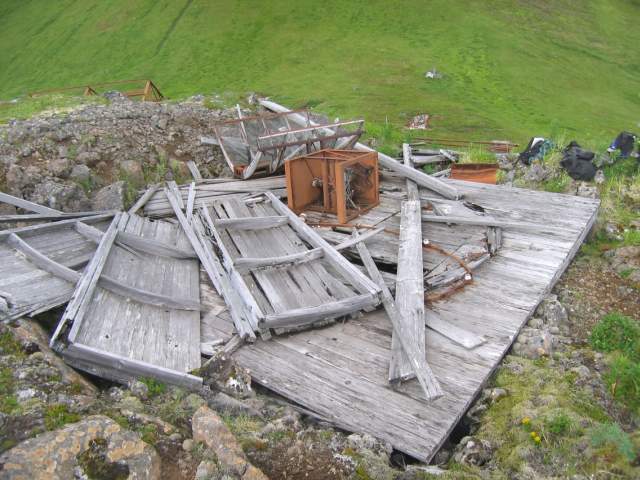

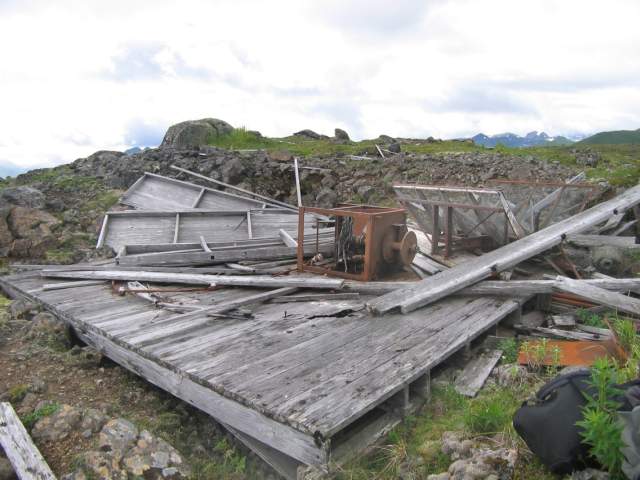

Looking east at the antenna position.
July 2004
The antenna position, looking south.
July 2004

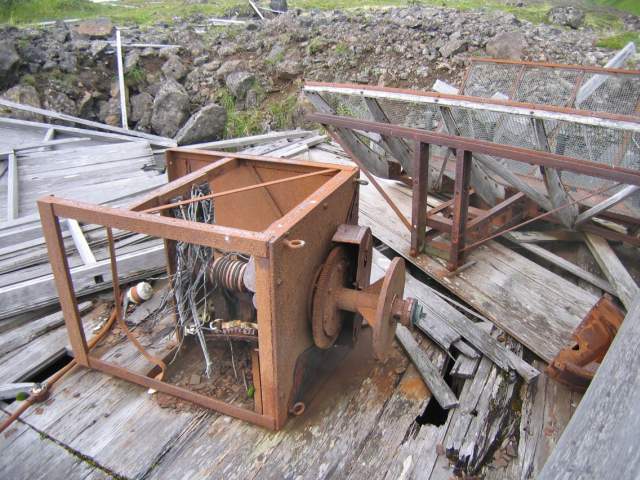

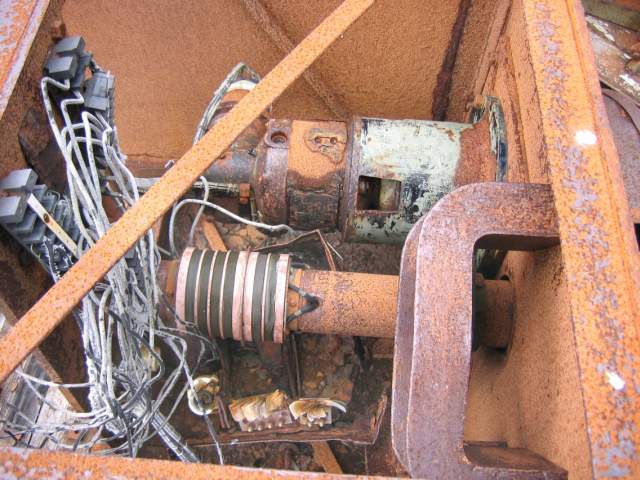

Detail of the radar equipment.
July 2004

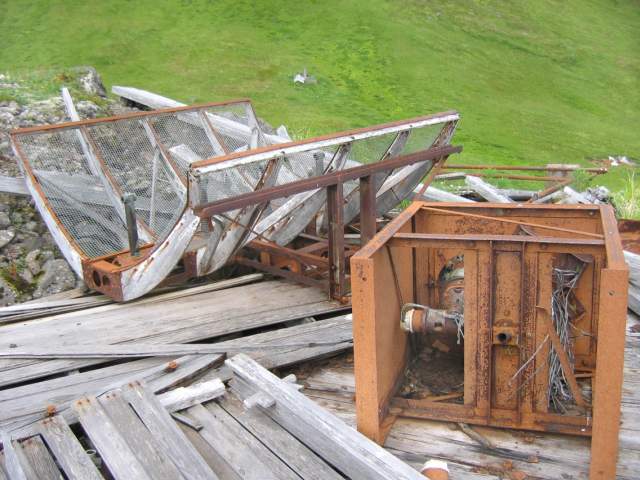

Detail of equipment.
July 2004

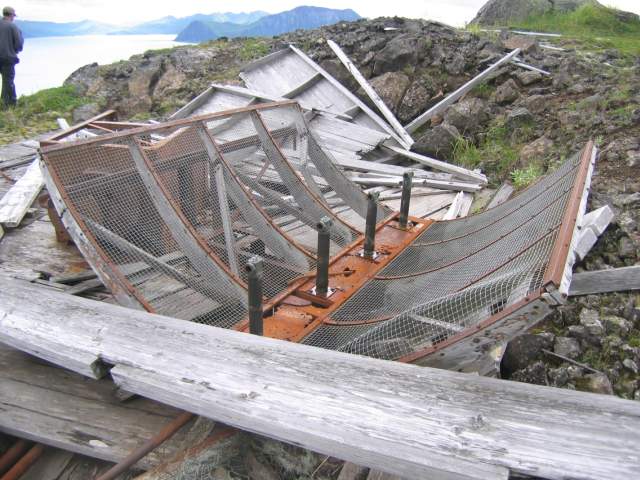

Detail of the antenna.
July 2004
Inside the antenna base.
July 2004




Transmitter building

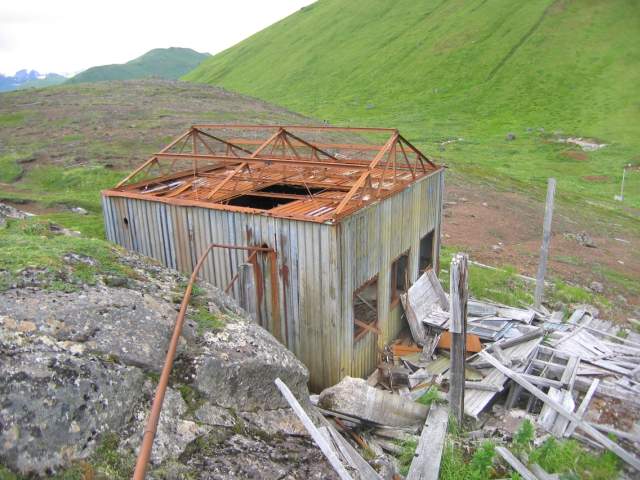

Looking southeast.
July 2004

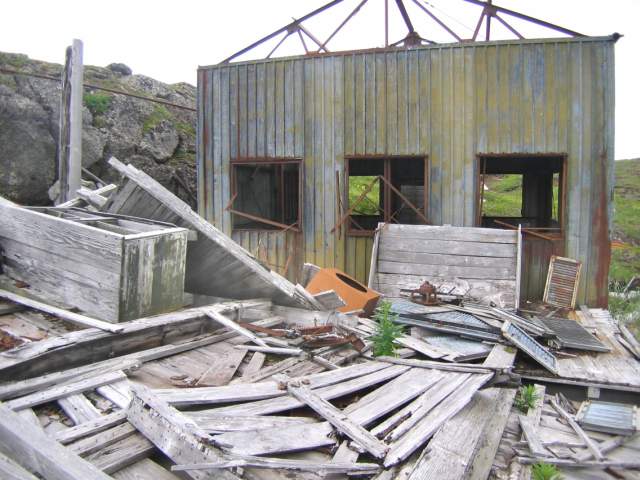

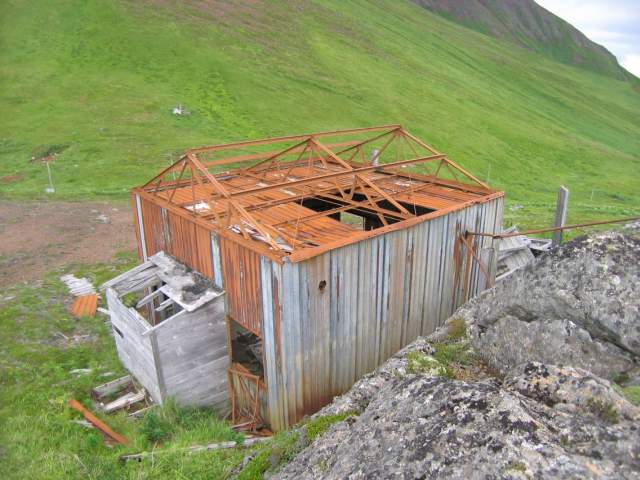

Looking northwest at the transmitter building.
July 2004

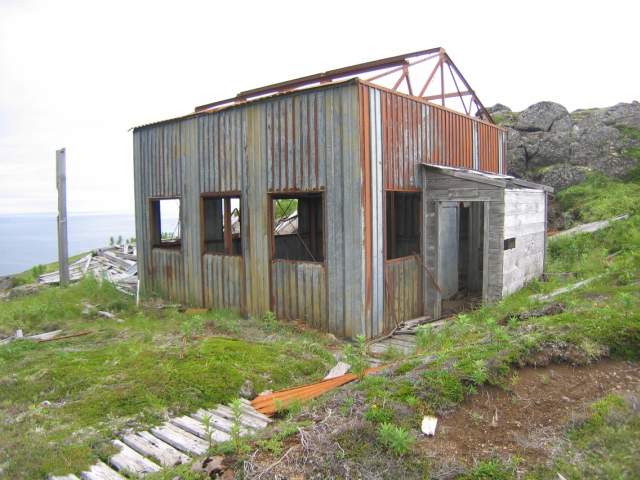

Looking northeast. Note the wooden walkway.
July 2004

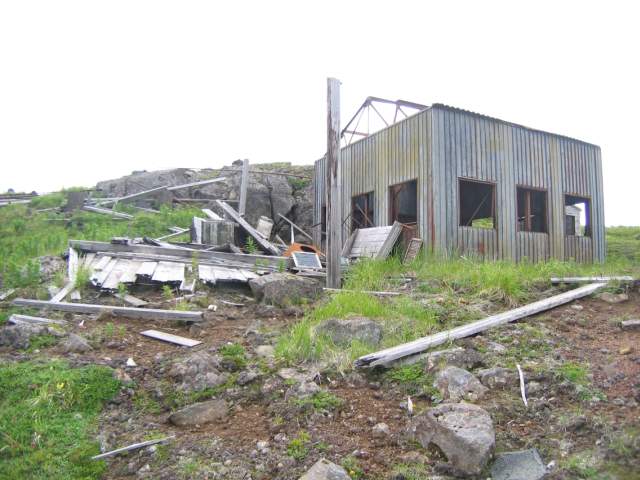

Looking southeast at the transmitter building.
July 2004

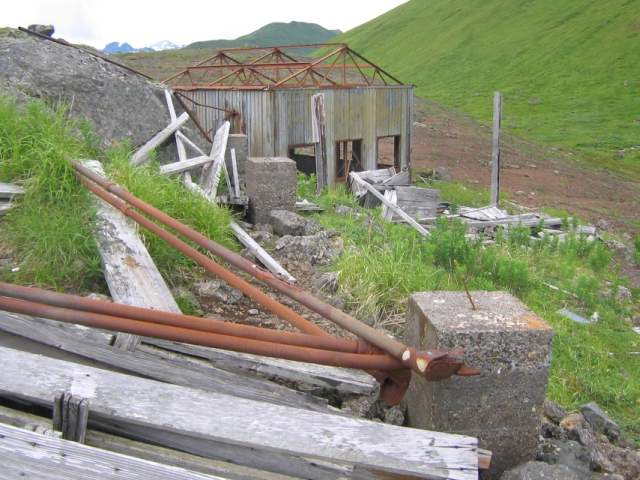

A series of concrete piers supported the conduits running from the transmitter building to the antenna.
July 2004
Collapsed wooden structure on the north side of the building.
July 2004

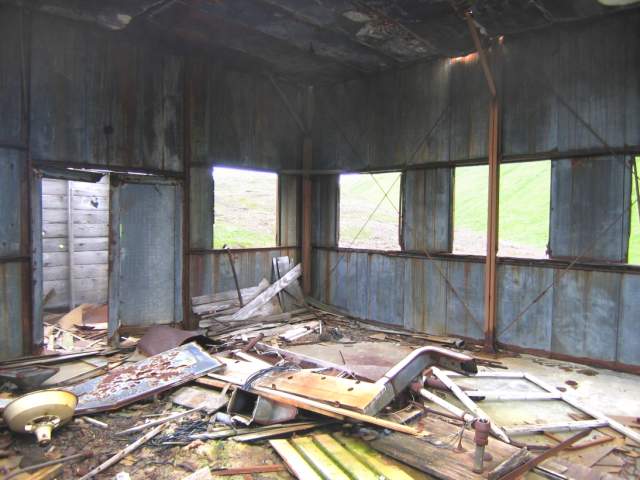

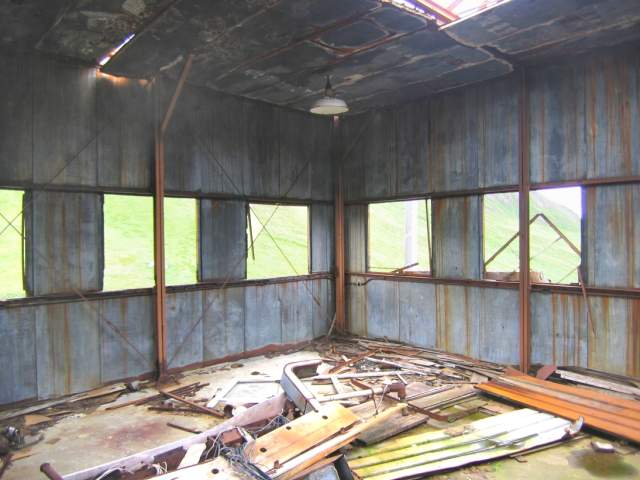

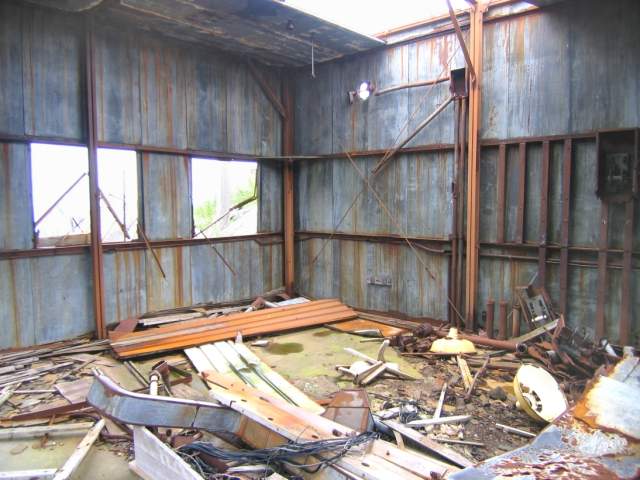

Inside the transmitter building, looking northeast.
July 2004
Looking southeast.
July 2004
The northwest corner.
July 2004
Looking southwest in the transmitter building.
July 2004

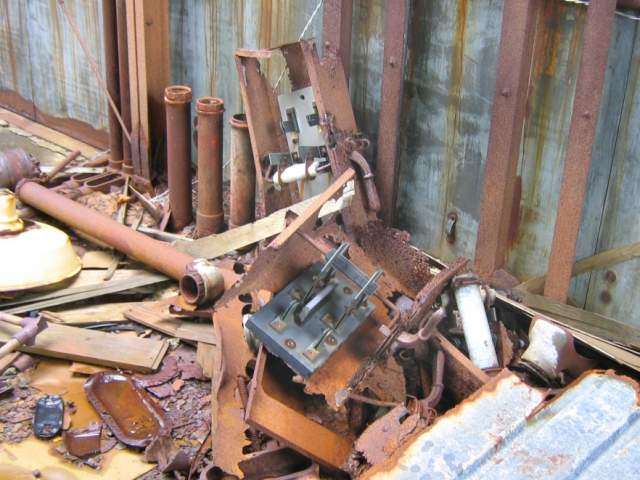

Detail of old electrical equipment.
July 2004

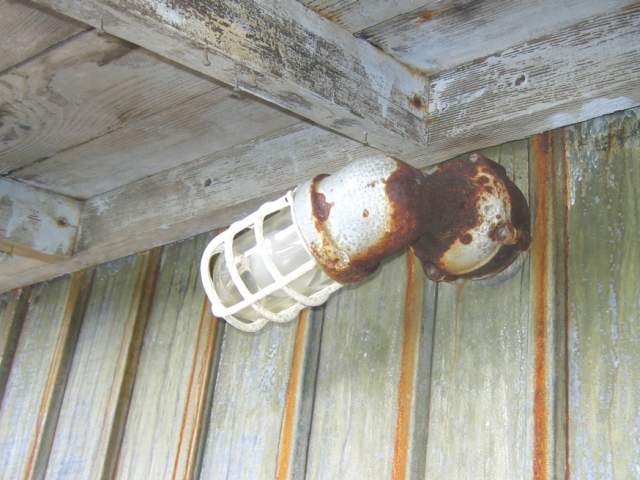

Detail of light fixture in the entry area.
July 2004




Power Plants

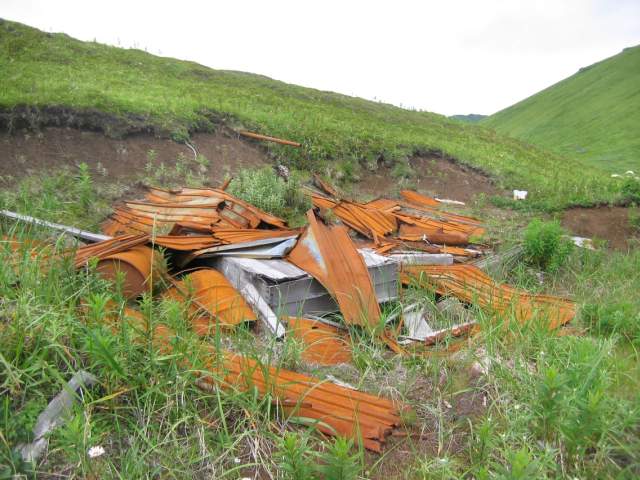

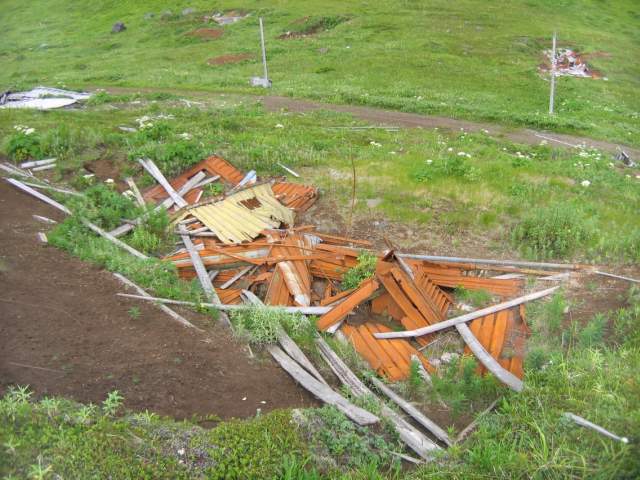

The northeast power plant.
July 2004
The southwest power plant.
July 2004







Documents

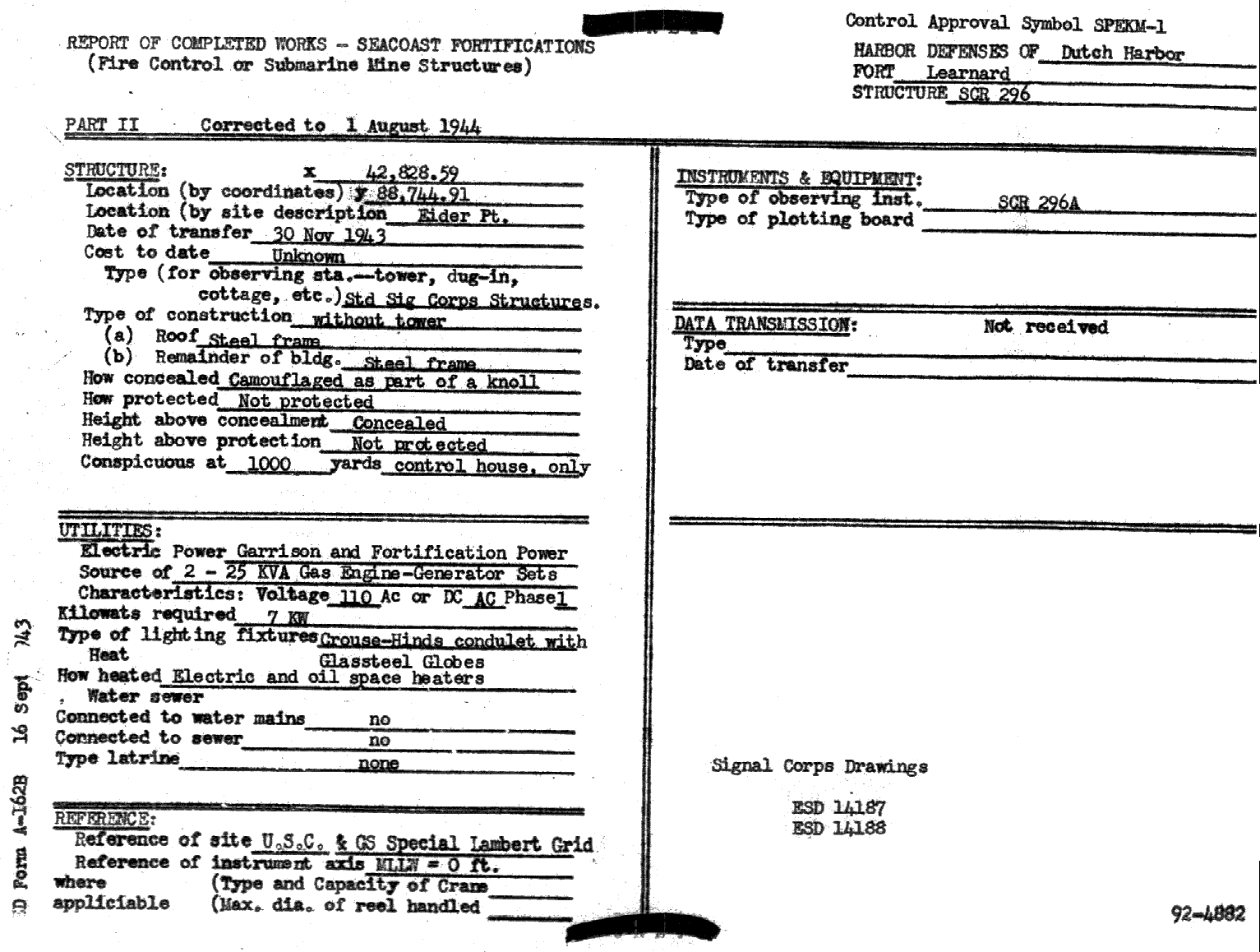

Form 2August 1, 1944

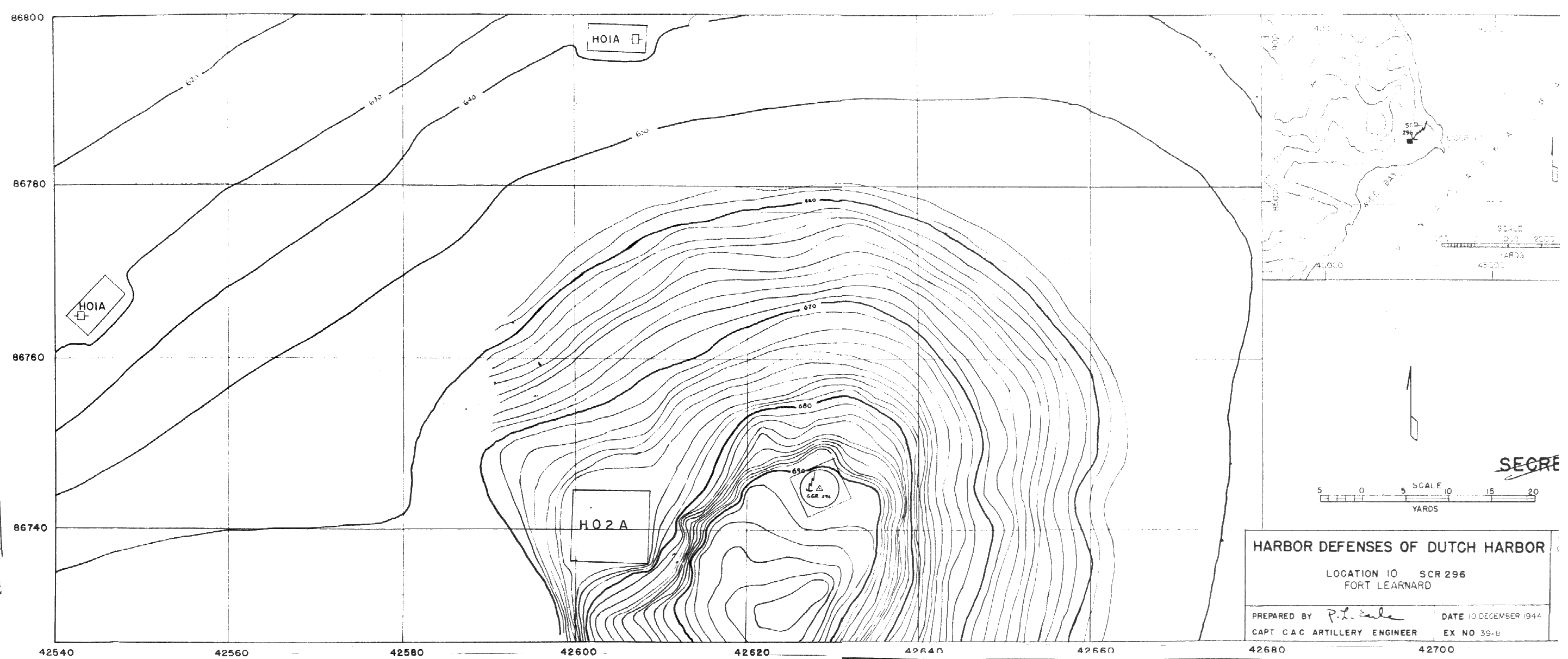

Detail map of area.December 10, 1944

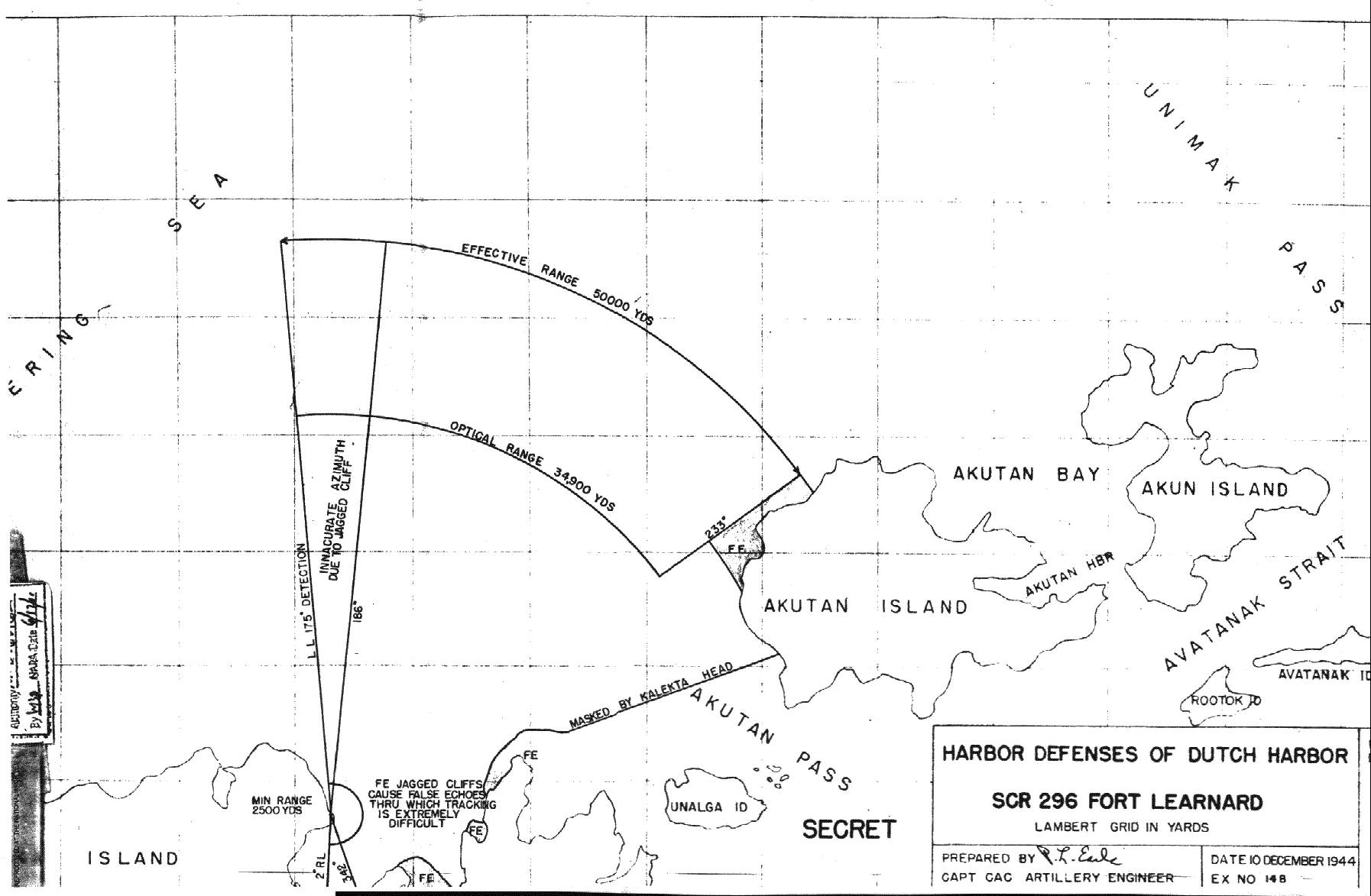

Arc of Detection.December 10, 1944
