Searchlights #9 and #10
Midway Point, HD Kodiak
Home  |  Kodiak


The searchlight facilities at Midway Point include two combined power plant and searchlight structures and a single Distant Electrical Control station, or DEC, from which both lights were directed. Army personnel would roll the searchlights out of the shelters to the end of a short concrete track before operating them.

This double DEC station is larger than a typical single station. Interestingly, Army plans form the 1940s show it as a standard size installation.



DEC Station


Looking northwest at the DEC station.
August 2005

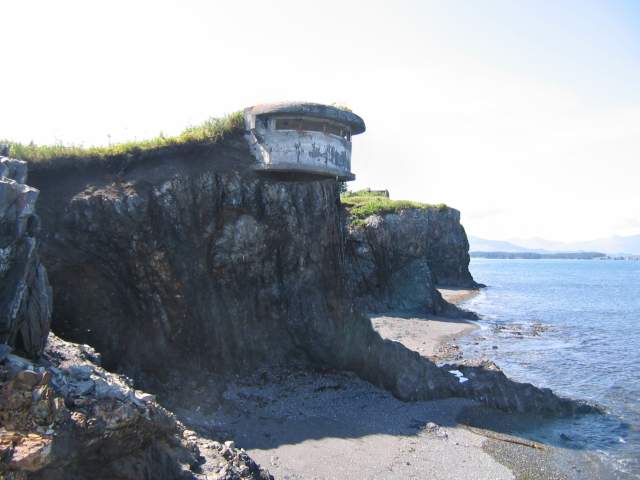

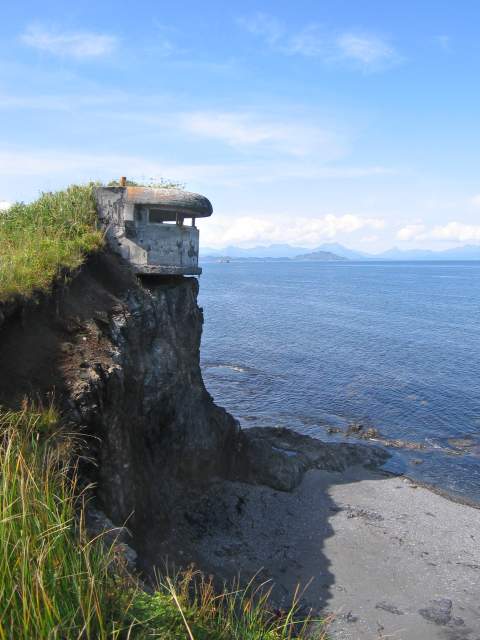

The station as seen from the beach.
August 2005

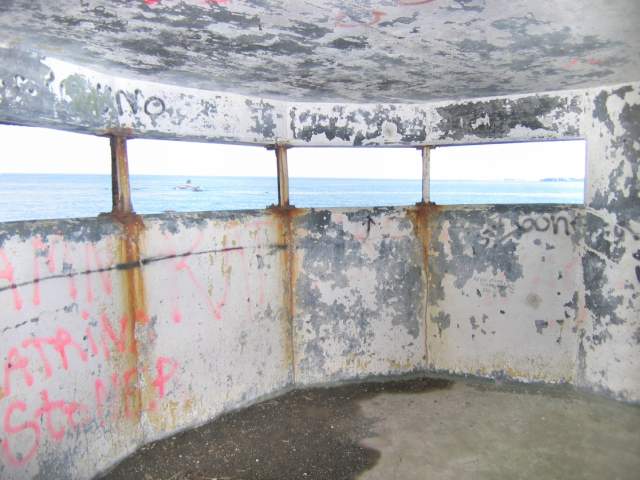

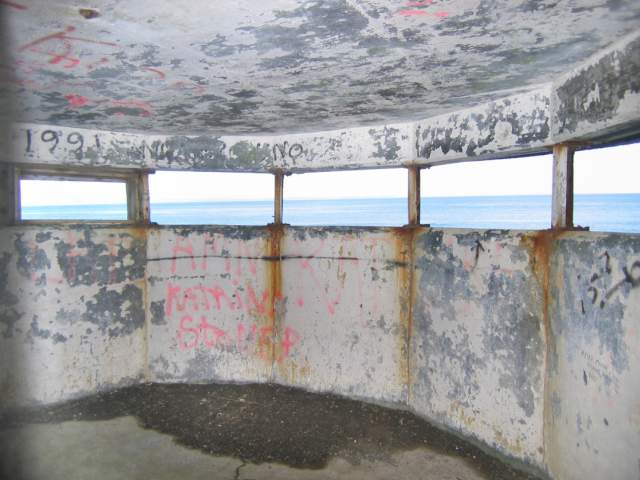

Looking out of the DEC station.
August 2005
The southeast corner of the station.
August 2005

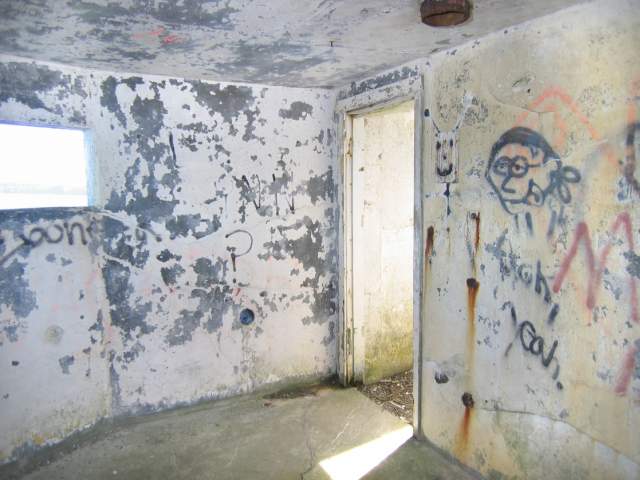

Looking northwest inside the station.
August 2005
Inside the station, looking northeast.
August 2005



Searchlight #9


Searchlights #9 and #10 as seen from the DEC station.
August 2005

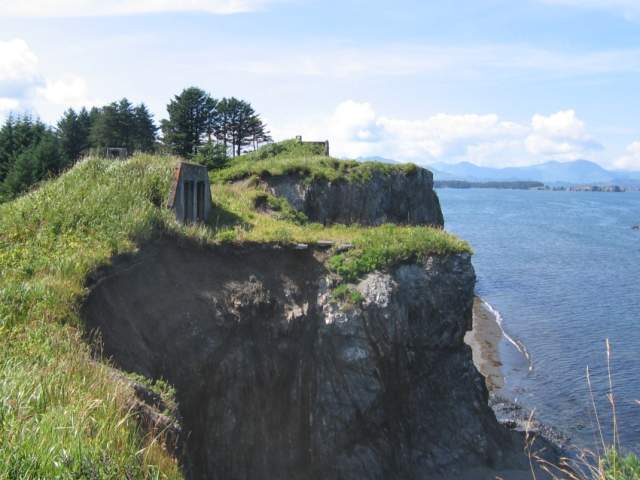

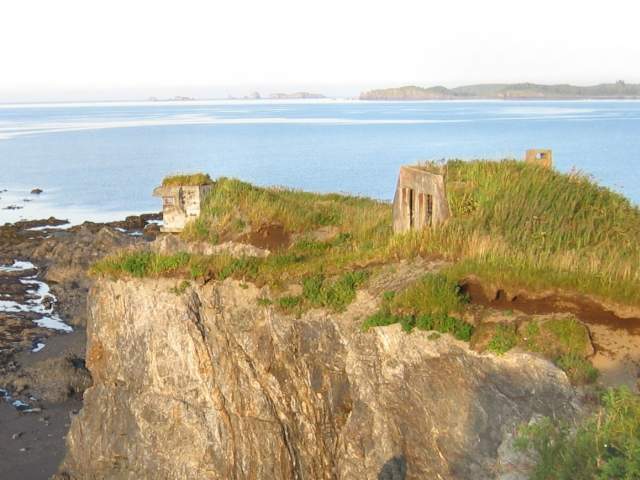

Searchlight #9 and the DEC as seen from Searchlight #10.
August 2005

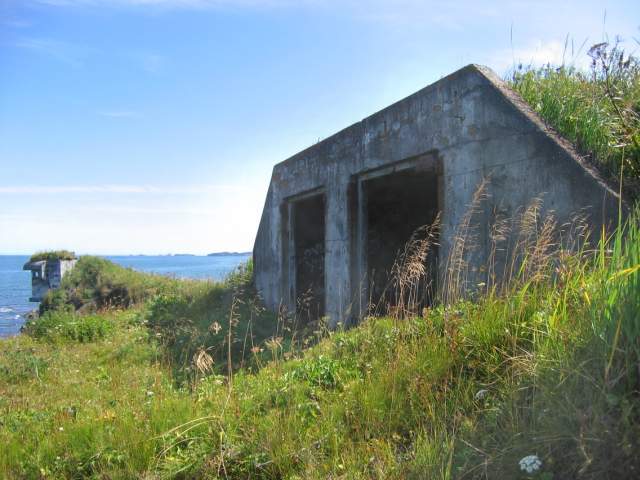

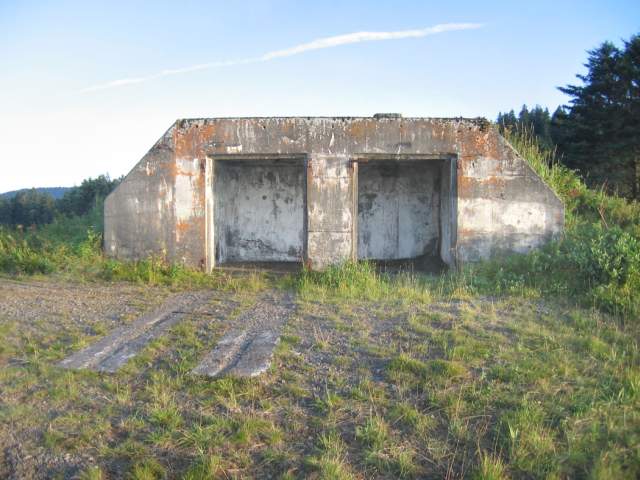

Looking south at the shelter. Note the concrete tracks on the left.
August 2005
Looking east at the shelter.
August 2005

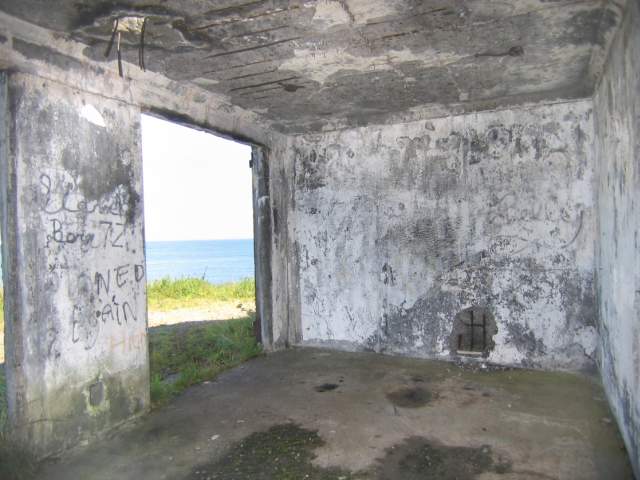

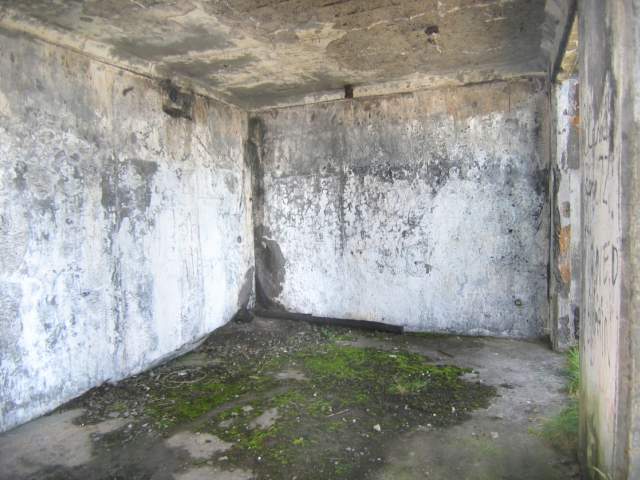

Looking west inside the shelter.
August 2005
Inside the shelter, looking northeast.
August 2005



Searchlight #10

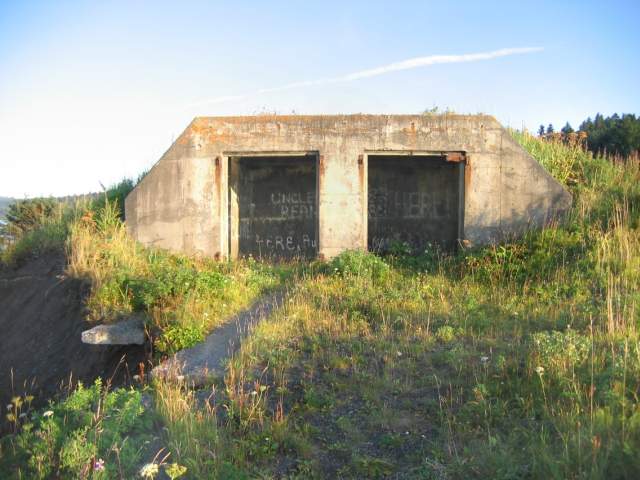

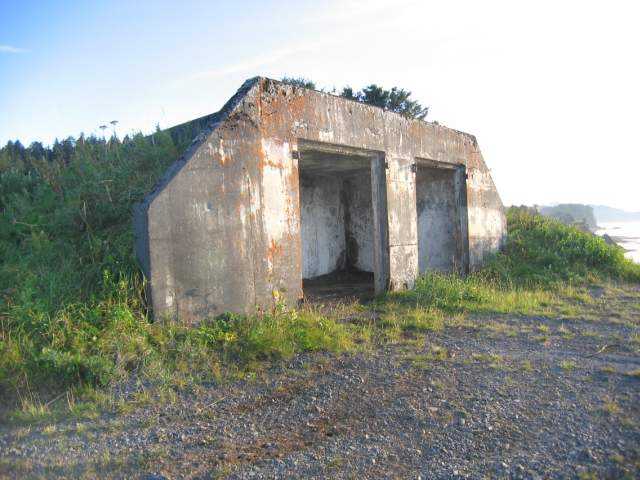

The shelter, looking southwest.
August 2005
Looking south.
August 2005

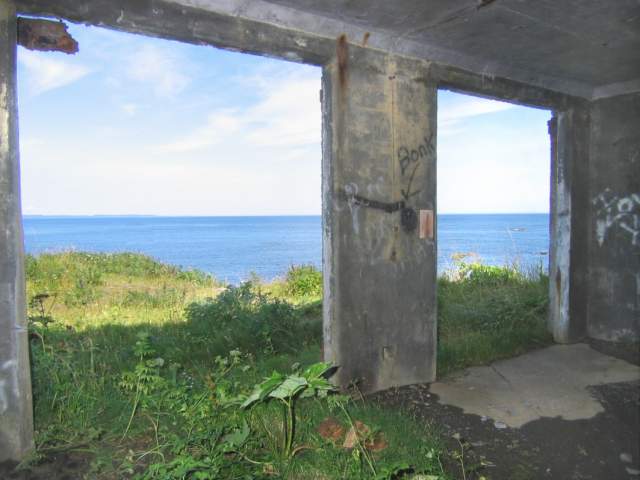

Looking west inside the shelter.
August 2005
The east end of the shelter.
August 2005







Documents

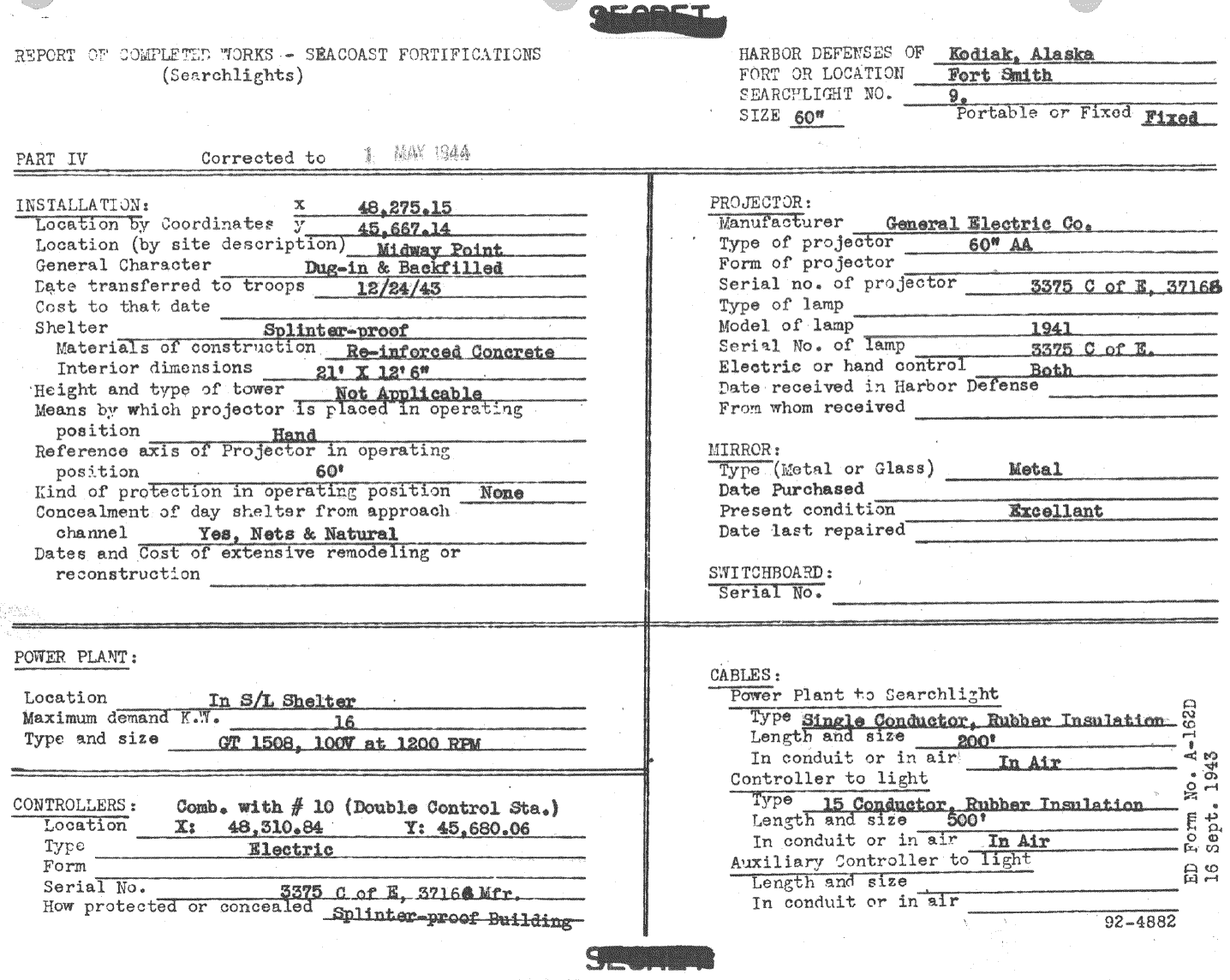

Form 4, Searchlight #9May 1, 1944

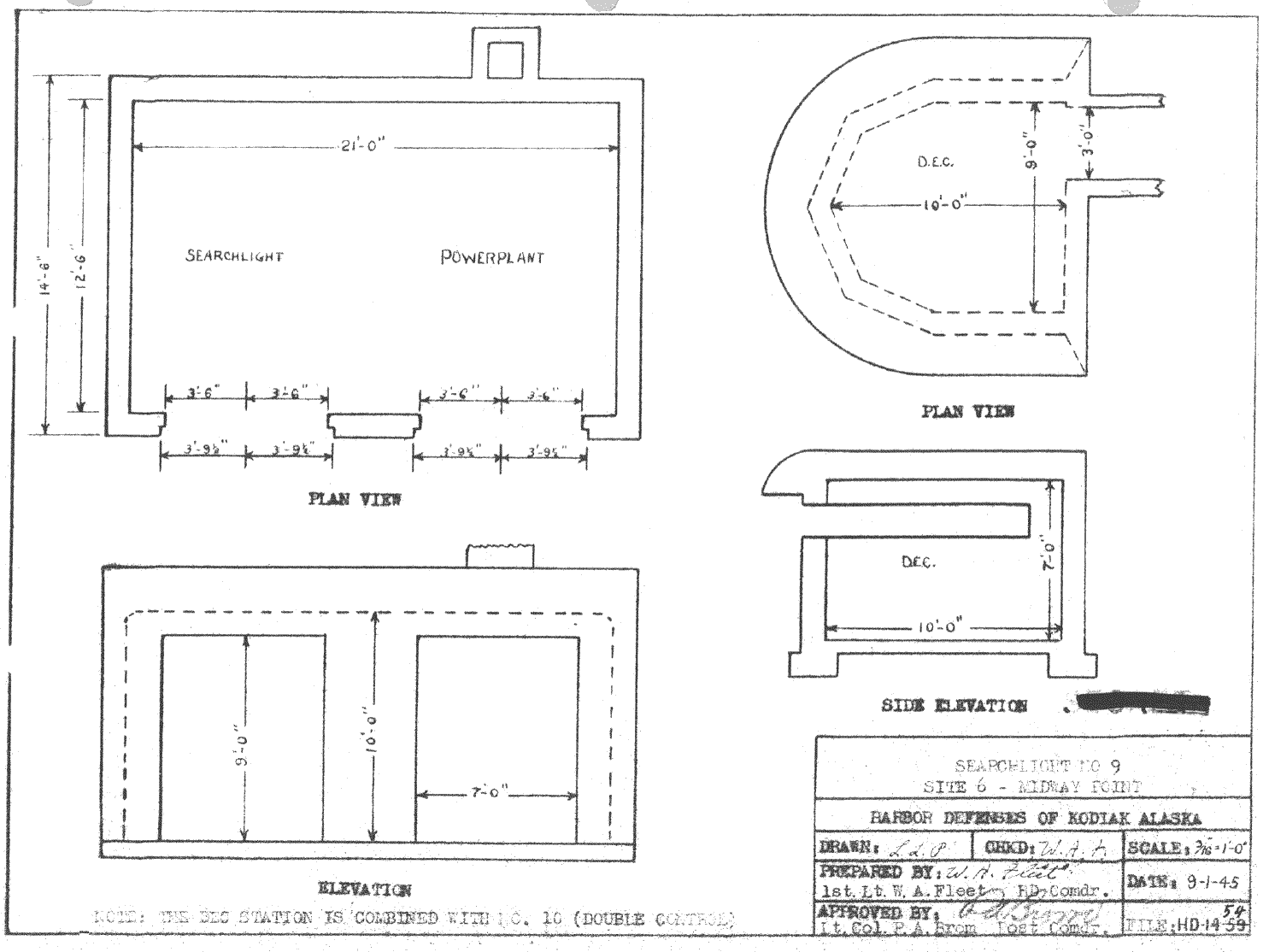

Plan, Searchlight #9September 1, 1945

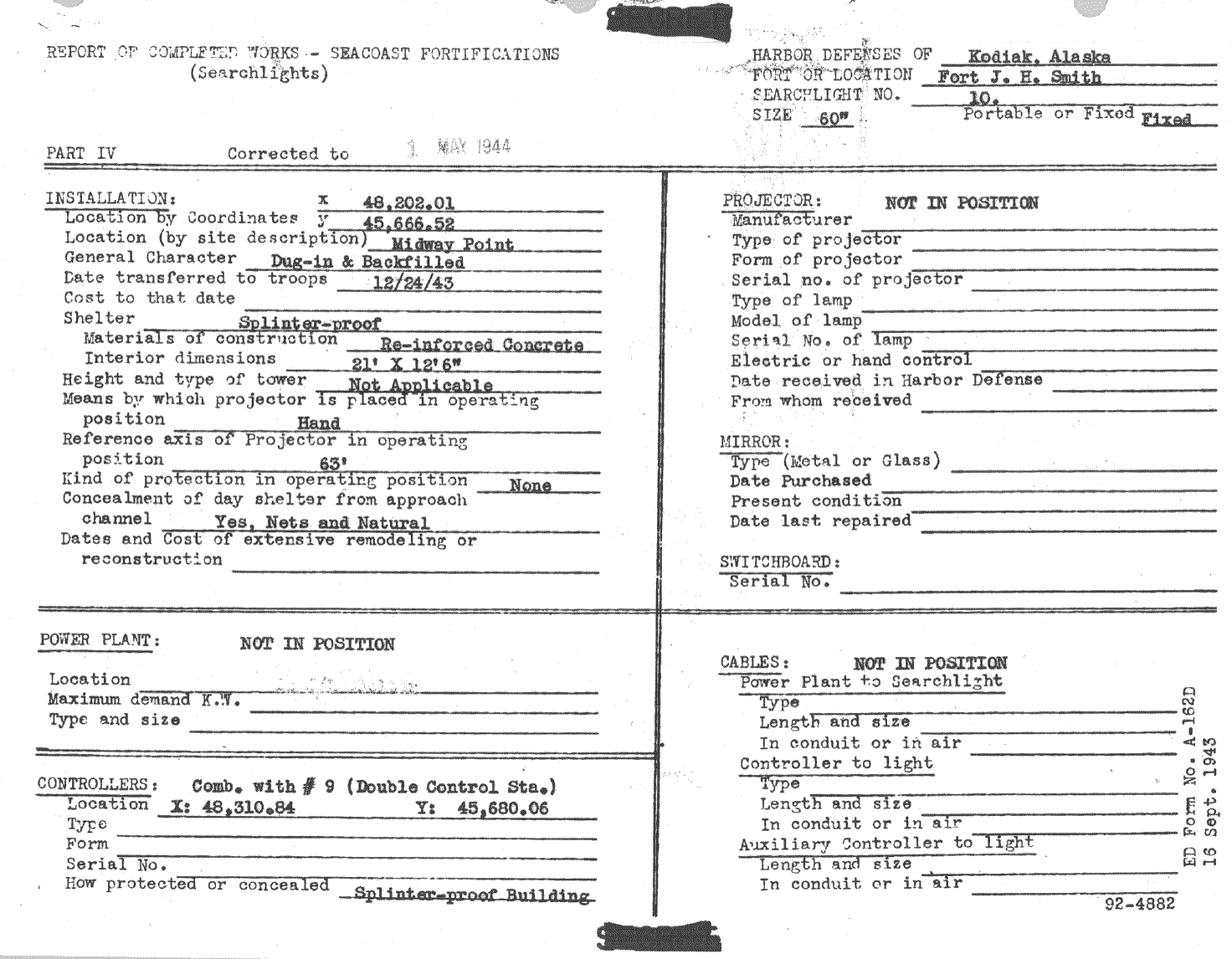

Form 4, Searchlight #10May 1, 1944

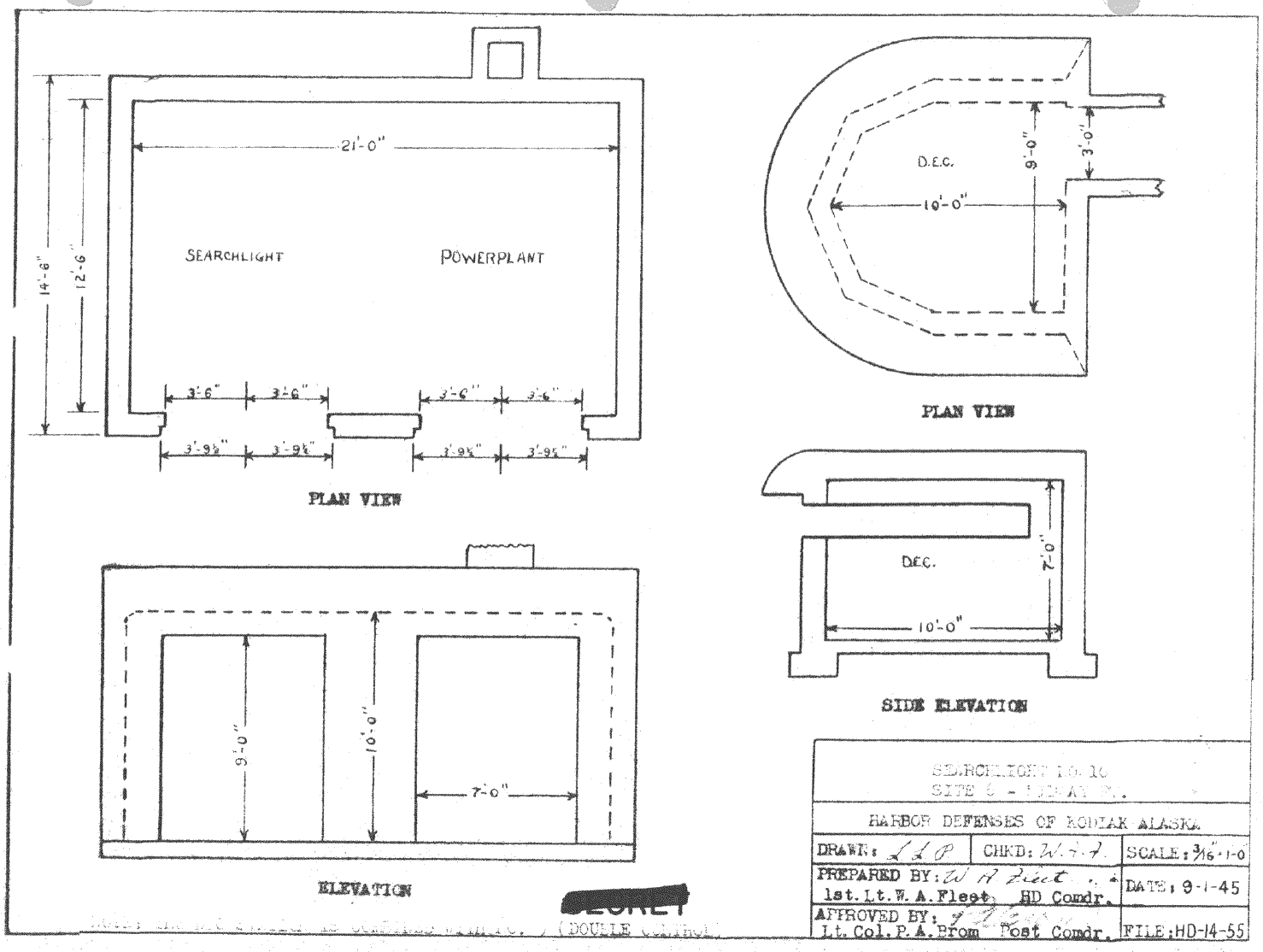

Plan, Searchlight #10September 1, 1945
Detail map of area.September 1944
Area of Illumination map.
