B 2/1 S 2/1
Midway Point, HD Kodiak
Home  |  Kodiak


The Coast Artillery installed the second base end and spotting station for Battery Const. #403 on the hillside above Midway Point at an elevation of 205 feet. The station was a wooden building with a concrete floor, installed at the top of a 60-foot wooden tower.

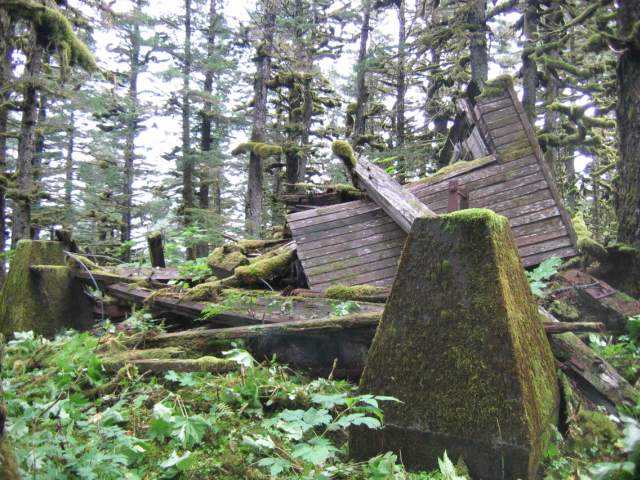

Looking southwest at the collapsed tower. Portions of the actual station are visible atop the debris.
August 2005

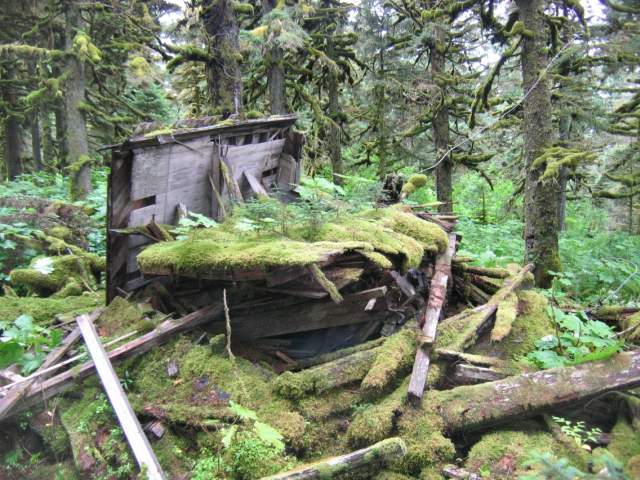

Looking northeast at the station.
August 2005

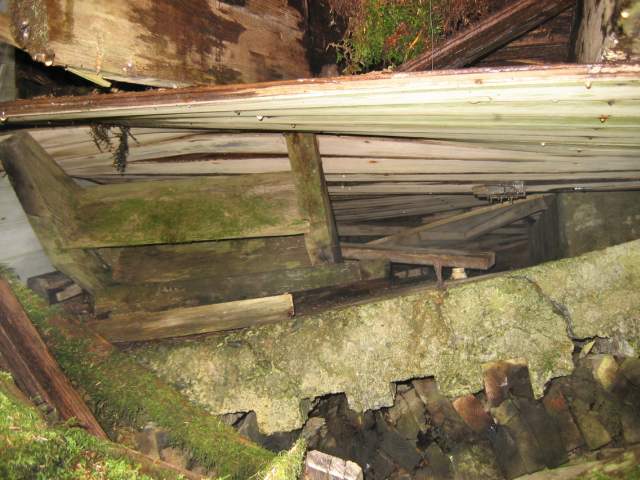

Looking into the collapsed station, a wooden ladder remains (left center). Note the concrete and wood floor.
August 2005

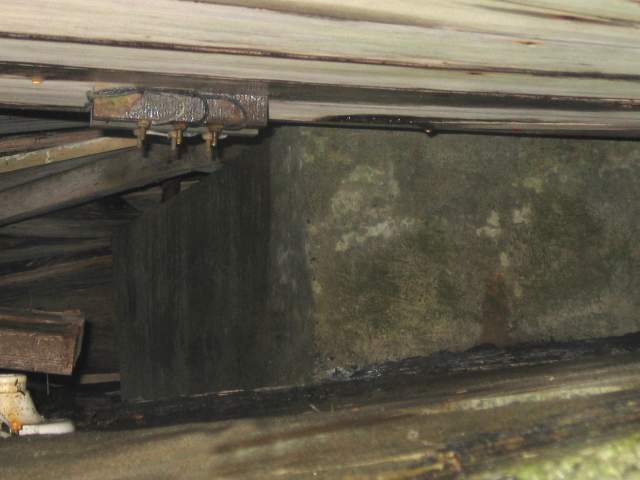

Detail of a concrete block, possibly the instrument pedestal, and a telephone terminal still attached to the ceiling.
August 2005

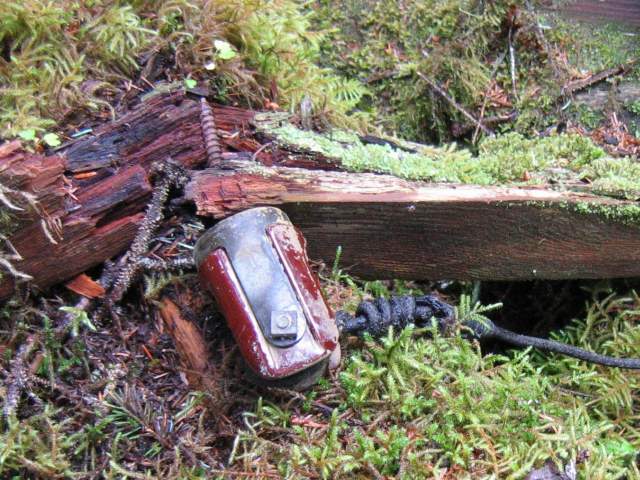

Detail of an insulator among the tower debris.
August 2005
A turnbuckle from one of the tower's guy-wires.
August 2005







Documents

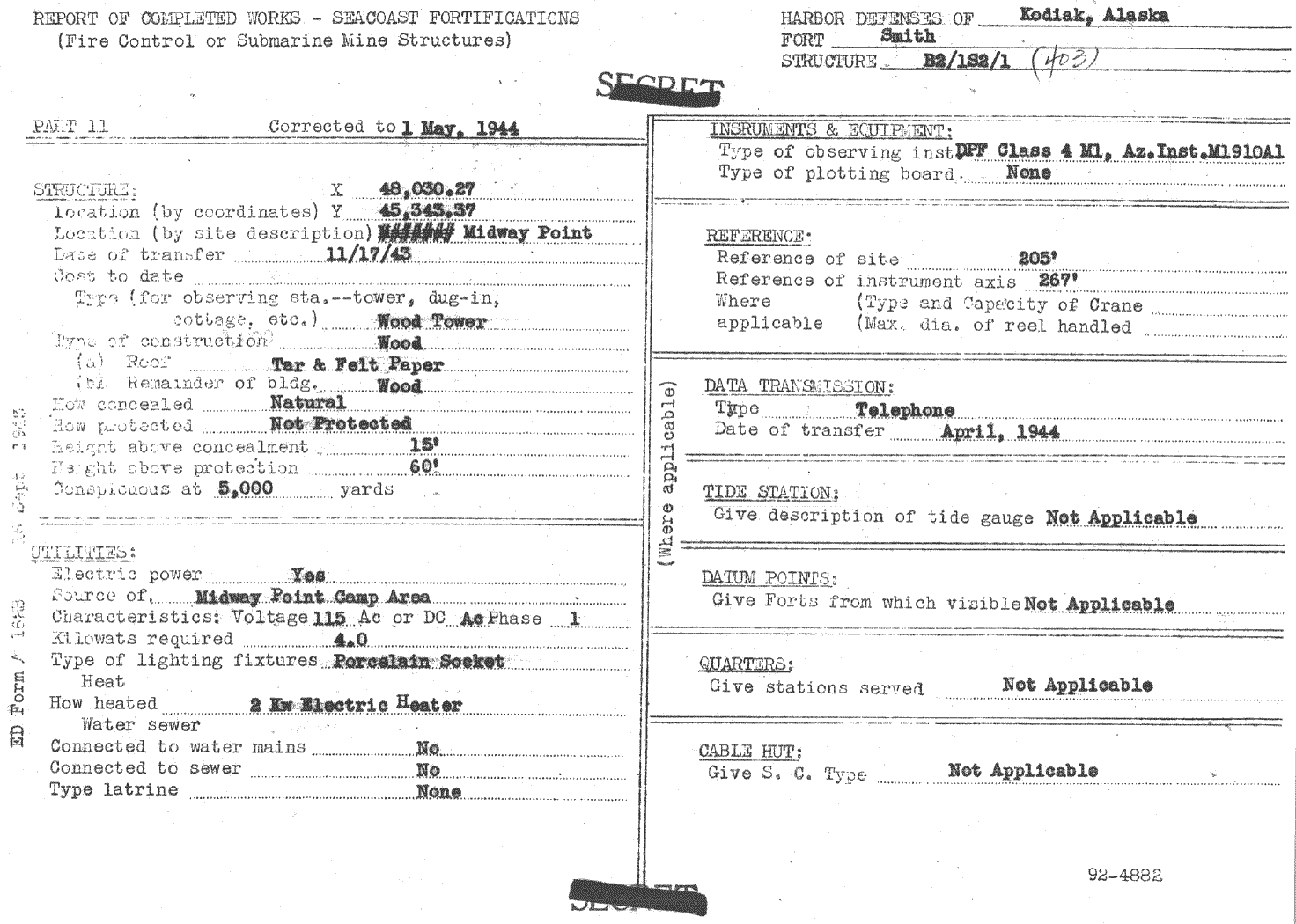

Form 2May 1, 1944

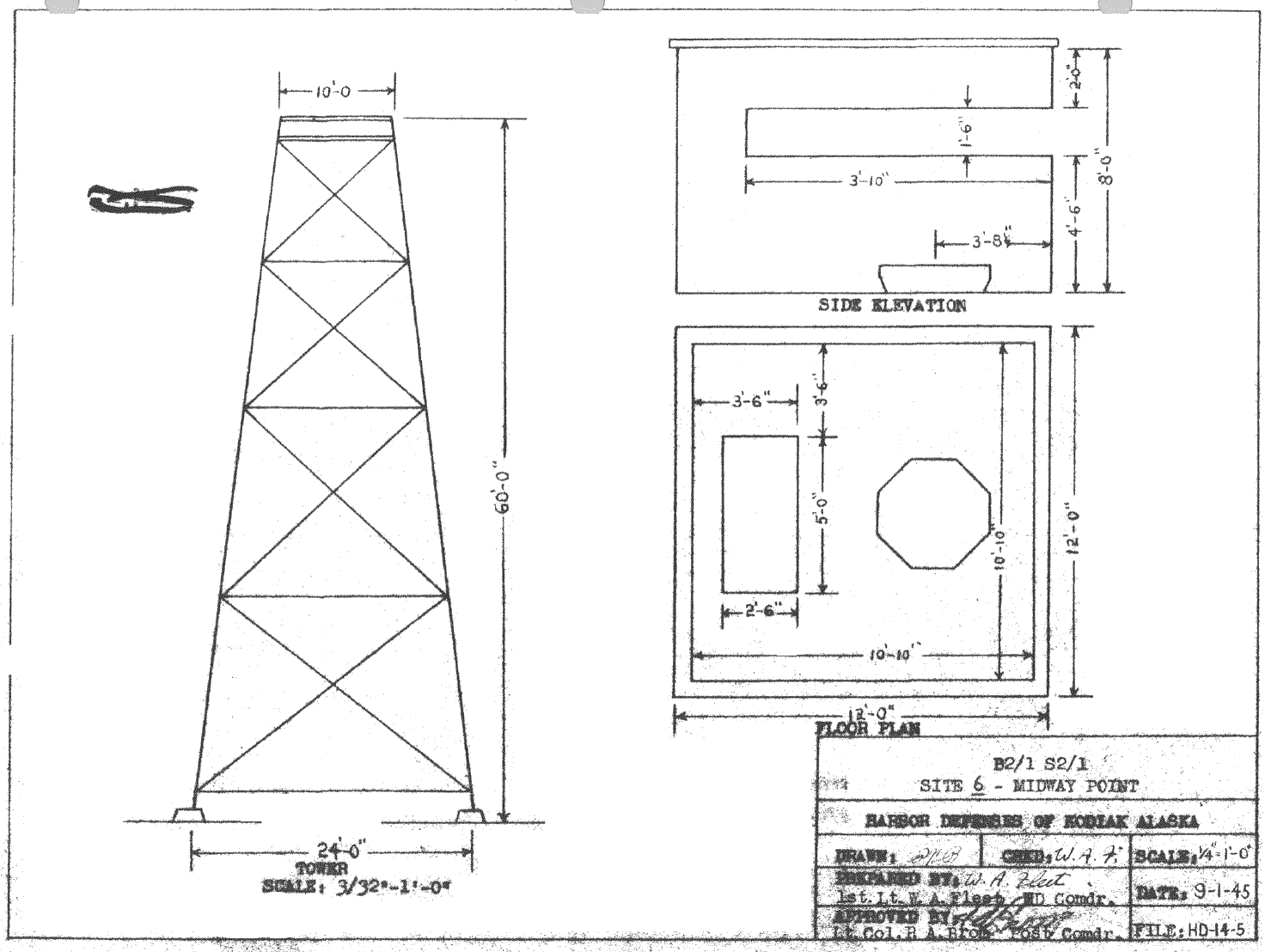

PlanSeptember 1, 1945
Detail map of area.September 1944
