Plotting Room
Battery Tactical #1,
Fort Brumback, HD Dutch Harbor
Home  |  Dutch Harbor


The plotting room for Battery Tactical #1 is located in a "multiplate magazine" type structure about 2000 feet east of the gun positions. This type of construction used small plates of corrugated metal bolted together to form a Quonset hut like structure, with plate metal walls enclosing either end.

In addition to the actual plotting room, the facility also included a small switchboard room and an auxiliary power shelter. Interesting features at the plotting room include the original oil heater and some telephone equipment.

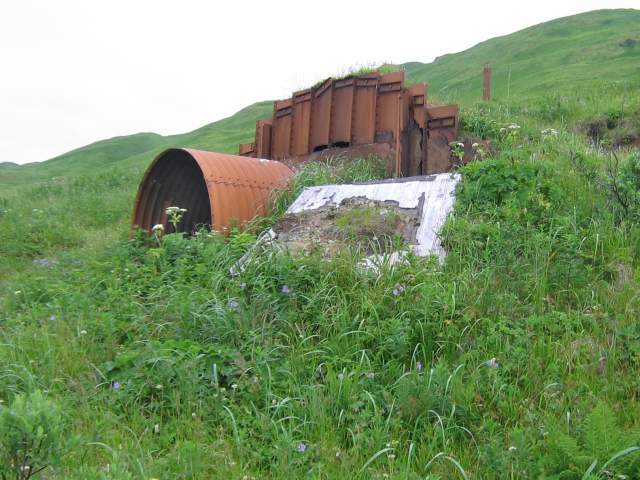

Looking west at the installation.
July 2004

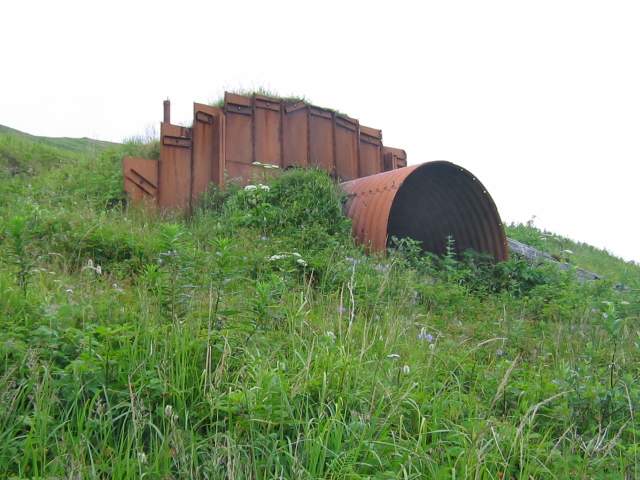

The font of the plotting room. Collapsed wooden power shelter in front.
July 2004

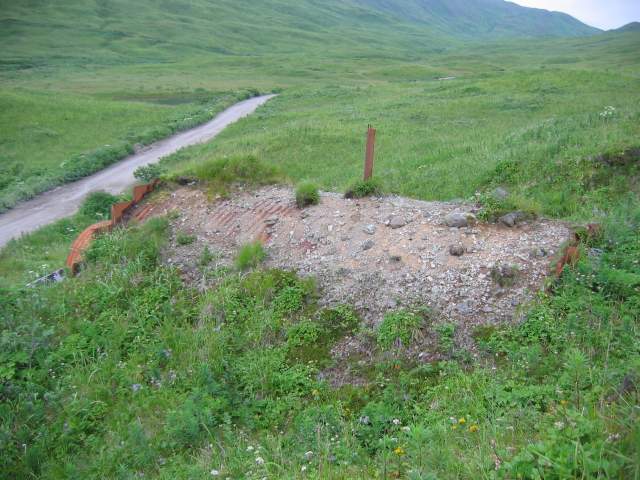

The roof. There would originally have been more fill covering the structure.
July 2004

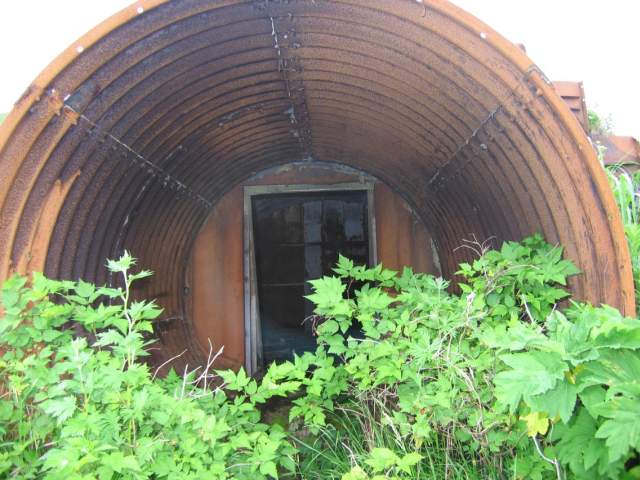

Looking into the entry area.
July 2004

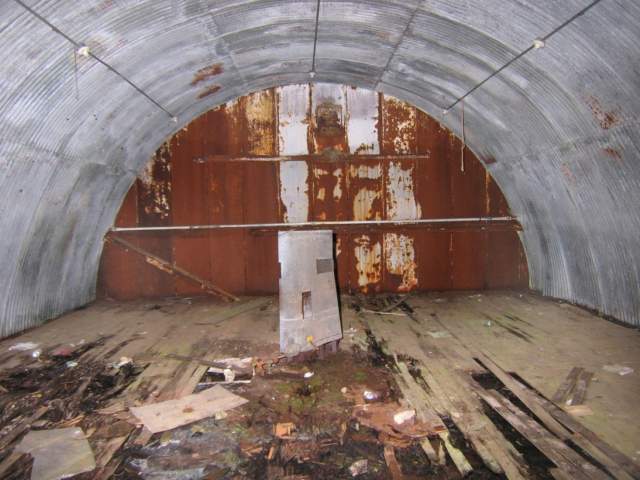

Looking south inside the plotting room.
July 2004

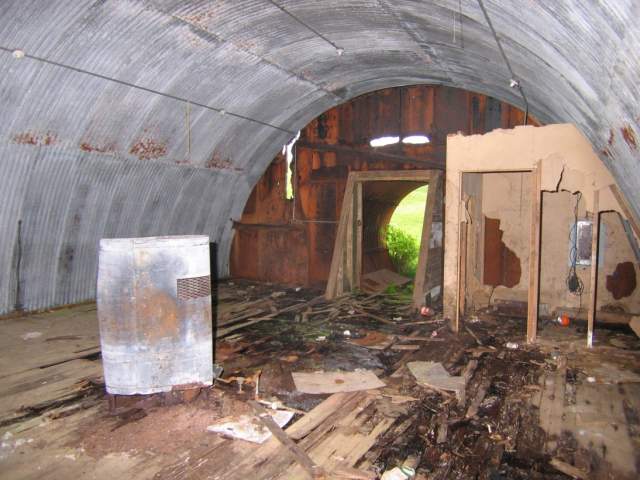

Looking northwest in the plotting room, switchboard room at right.
July 2004

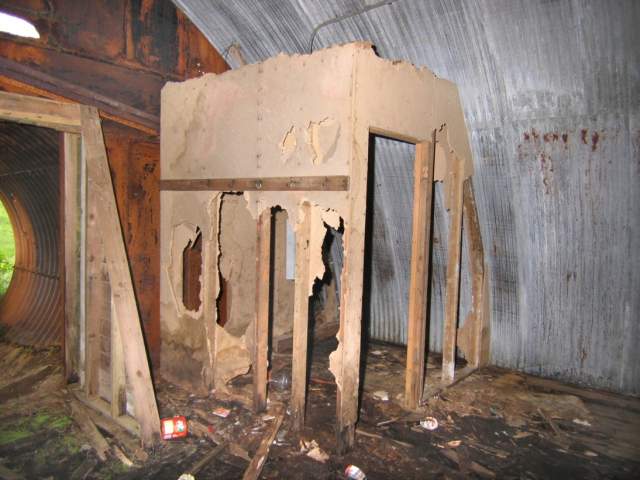

Looking northeast at the switchboard room.
July 2004

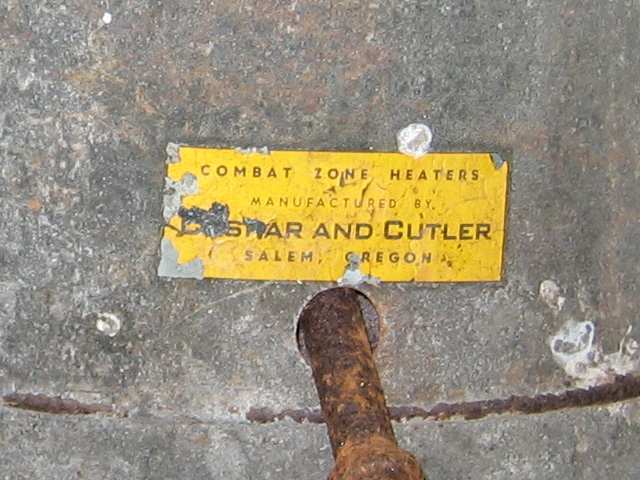

Detail of plaque on the oil heater.
July 2004

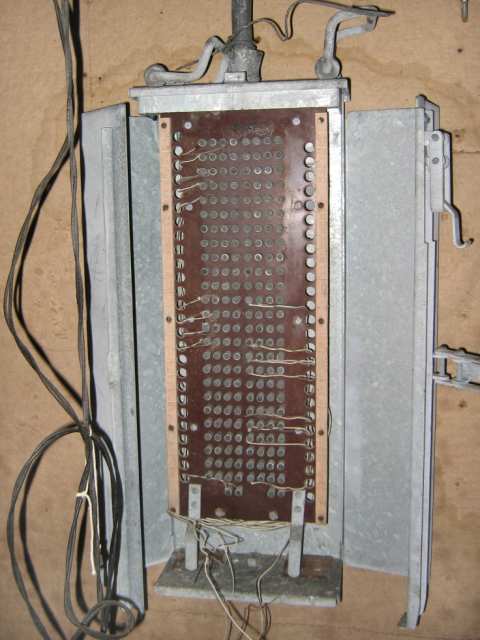

Detail of telephone equipment in the switchboard room.
July 2004







Documents
Form 2
Fort Brumback mapDecember 10, 1944
